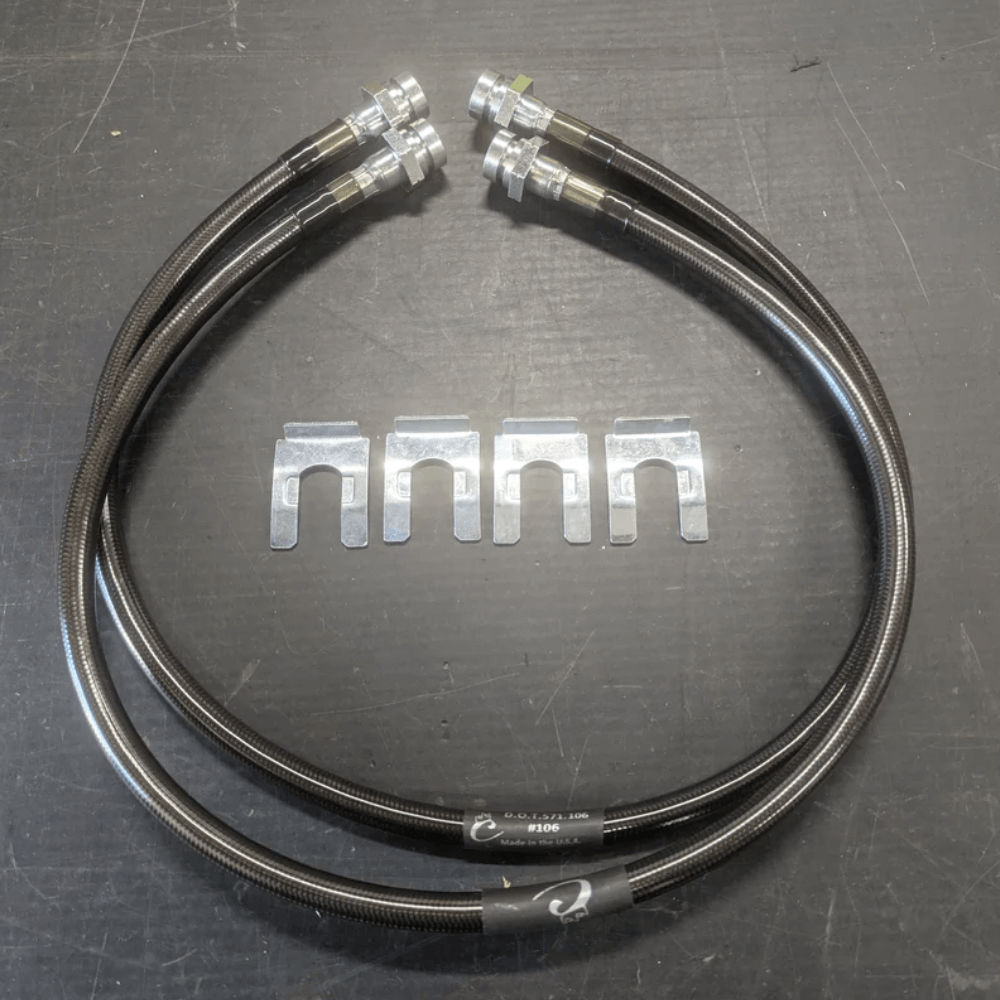

2005-2023 Toyota Tacoma Extended Rear Brake Line Hose Pair
Quantity of one = one pair of rear brake hoses. 26" length, long enough for 14" shocks.
Other brand's hoses are not long enough for 14" shocks.
Made in USA.
Fitment: 2005-2023 Toyota Tacoma
Fitment Chart
2005-2023 Tacoma DCSB
| Leaf Pack | Estimated Lift Amount AG Leafs | Axle-Tube-to-Frame-Bottom |
| Stock 3/1 - 0lbs | 0in | 8.25in |
| Archive MD - 0lbs | 3.25in | 11.25in |
| Archive MD - 300lbs | 2.5in | 10.75in |
| Archive MD - 600lbs | 2in | 10.25in |
| Archive HD - 600lbs | 3in | 11.25in |
| Archive HD - 1250lbs | 2in | 10.25in |
| Archive XD - 1250lbs | 3in | 11.25in |
| Archive XD - 1750lbs | 2.5in | 10.75in |
Recommended Shocks (Confirmed Fit & Performance)
| Shock | Brand |
| Accutune Fox Factory RR 2.5x12 | Fox |
| Accutune Fox Factory RR 2.5x14 | Fox |
| AccuTune Fox Factory RR DSC 2.5x12 | Fox |
| AccuTune Fox Factory RR DSC 2.5x14 | Fox |
| AccuTune King RR 2.5x12 | King |
| AccuTune King RR 2.5x14 | King |
| AccuTune King RR 2.5x12 w/ adjuster | King |
| AccuTune King RR 2.5x14 w/ adjuster | King |
| ADS Smooth Body 2.5x12 | ADS |
| ADS Smooth Body 2.5x12 w/adjuster | ADS |
*If using HD Springs or XD 12in is best
For additional options reach out to shock company to confirm with specs below
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel
12-14in
Fittings/Spacers
Standard rod-end shocks (1.5" wide, 1/2" bolt)
2.5" Bypass
Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.
Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer
Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR. Owner assumes all risk when exceeding Toyota's GVWR or GAWR.
