Name: 2003-2009 Lexus GX470 4 Gear Gen 2 Portal Axle Kit
Brand: 74Weld
Price: 17000.0 USD
Availability: InStock

2003-2009 Lexus GX470 4 Gear Gen 2 Portal Axle Kit

$17,000.00

Shipping calculated at checkout.

Quantity

CURRENT ESTIMATED LEAD TIME IS 14-16 WEEKS

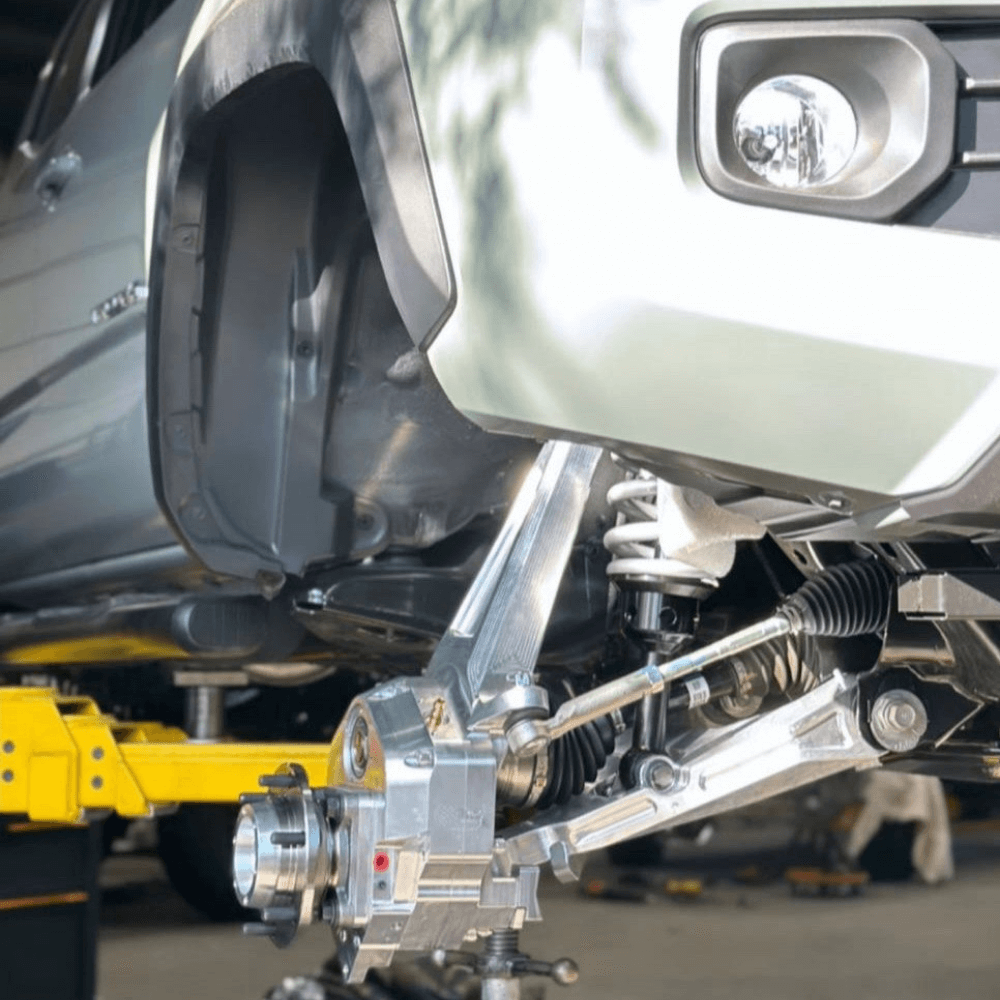

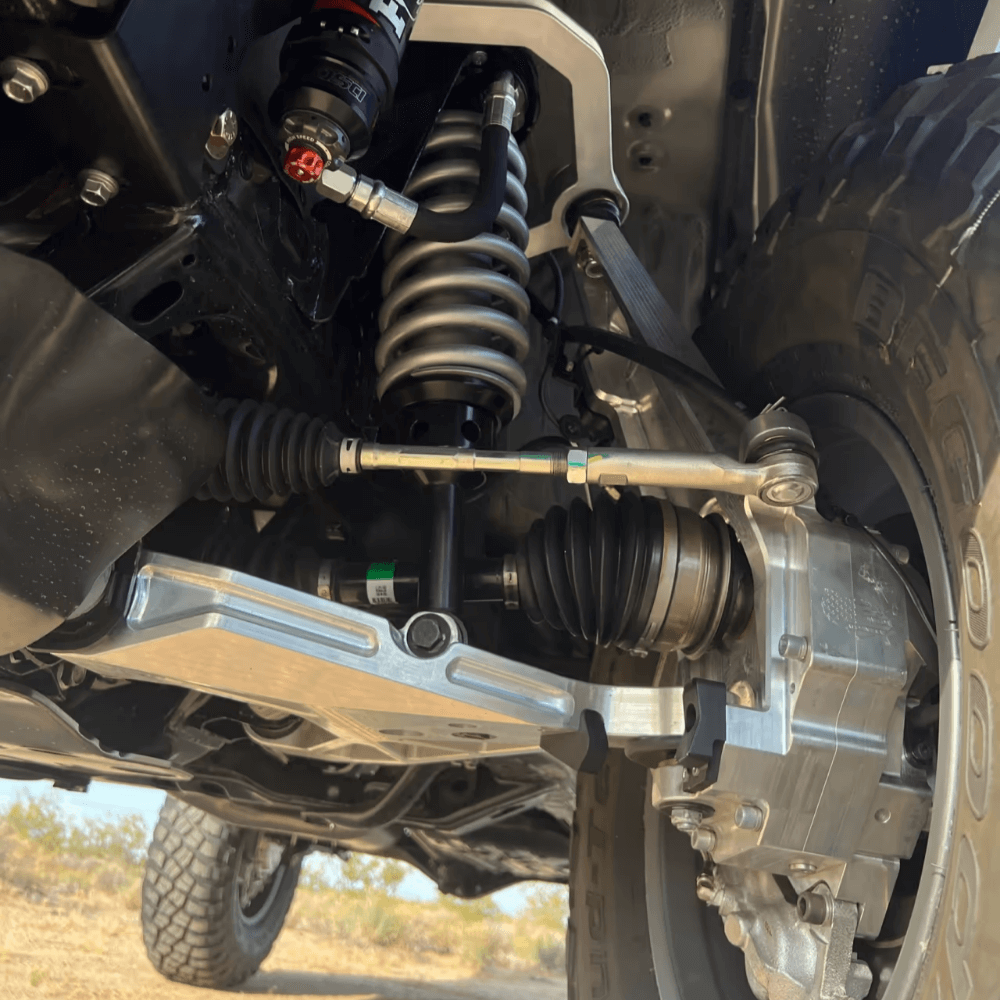

The Gen 2 Toyota Portal allows you to build an extreme off road capable vehicle while still retaining the comfort and ride quality of the OEM suspension. Our 4 gear design provides a 22% reduction at the hub which allows you to run a bigger tire without the extra stress on drivetrain components. This means you run a 35-37” tire without having to regear axles, and without putting more stress on your factory front CV axles. The portal is your lift, the portal is your re-gear, and unlike conventional kits, it gives you ground clearance. A portal lift is widely recognized as the absolute best solution for an independent suspension system. It is why so many Ultra4 and Trophy Truck racers run our Race Portals. The portal allows you to keep your arms, steering, and CV’s flat at ride height yet still gain huge improvements in ground clearance. Stop lifting your suspension and start lifting your axles.

This 4 gear portal design borrows from our race-winning Ultra4 and Trophy Truck portals and scales things down to package perfectly on the Tacoma vehicle. With these portals you are able to re-gear, lift, improve ground clearance, and provide room for larger tires on your Lexus, all with a single product.

This is a 100% bolt on product that is fully compatible with the factory ABS system.

Included:
✔ Billet Aluminum Portals Front and Rear

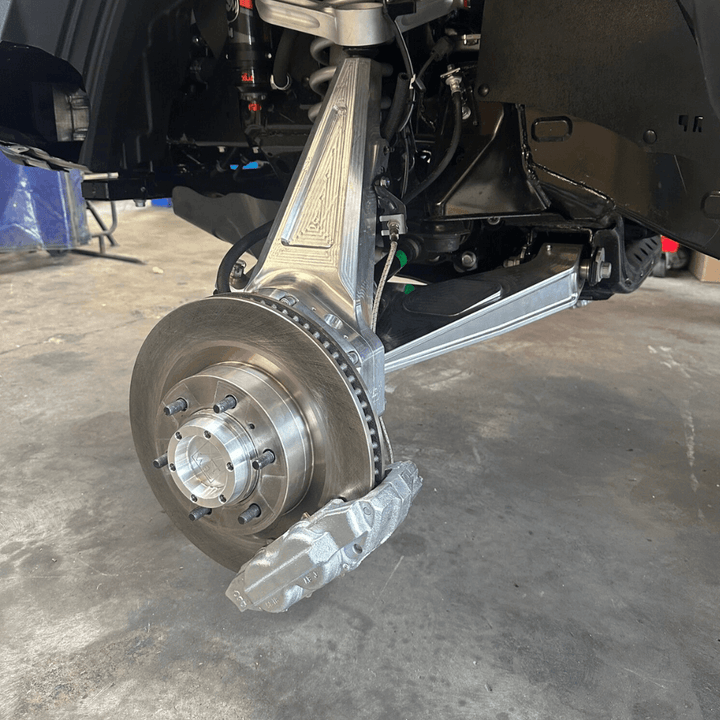

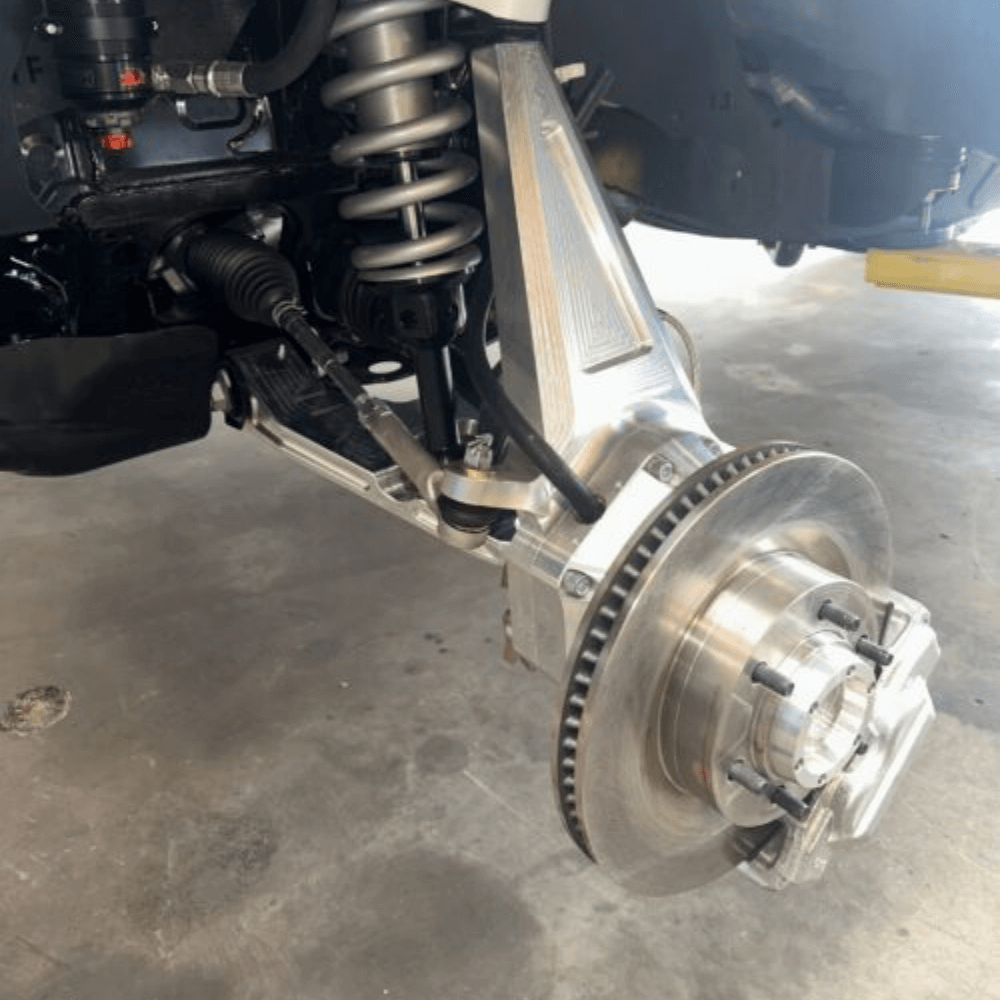

✔ Larger front calipers and rotors
✔ Rear caliper with integrated parking brake
✔ 4340 Heat Treated Rear Full Float Axle Shafts
✔ All Necessary Hardware and Detailed Instructions
✔ Maxima Full Synthetic Oil

Fitment:
✔ 2003-2009 Lexus GX470
✔ 2010-2023 Lexus GX460
✔ 2007-2014 FJ Cruiser
✔ 2003-2024 4Runner
✔ 2005-2023 Tacoma

Please Note: In order to reserve a set, a 25% deposit is required.

Double Shear Steering

➜ 1.8125″ spread between steering arms.
➜ Designed for Kartek KTKHMA3458 misalignments, a 3/4″ Heim, and a 5/8″ bolt. (not included).
➜ If you upgrade to double shear steering you will be responsible for drilling out the tapered steering arm insert on the portal upright to fit a 5/8″ bolt.

1.22 gear reduction.
3.88″ lift.
3.5″ width increase per side.
Factory ABS compatible.
Billet 7075 Knuckle with steel inserts.
Billet 6061 Portal Box.

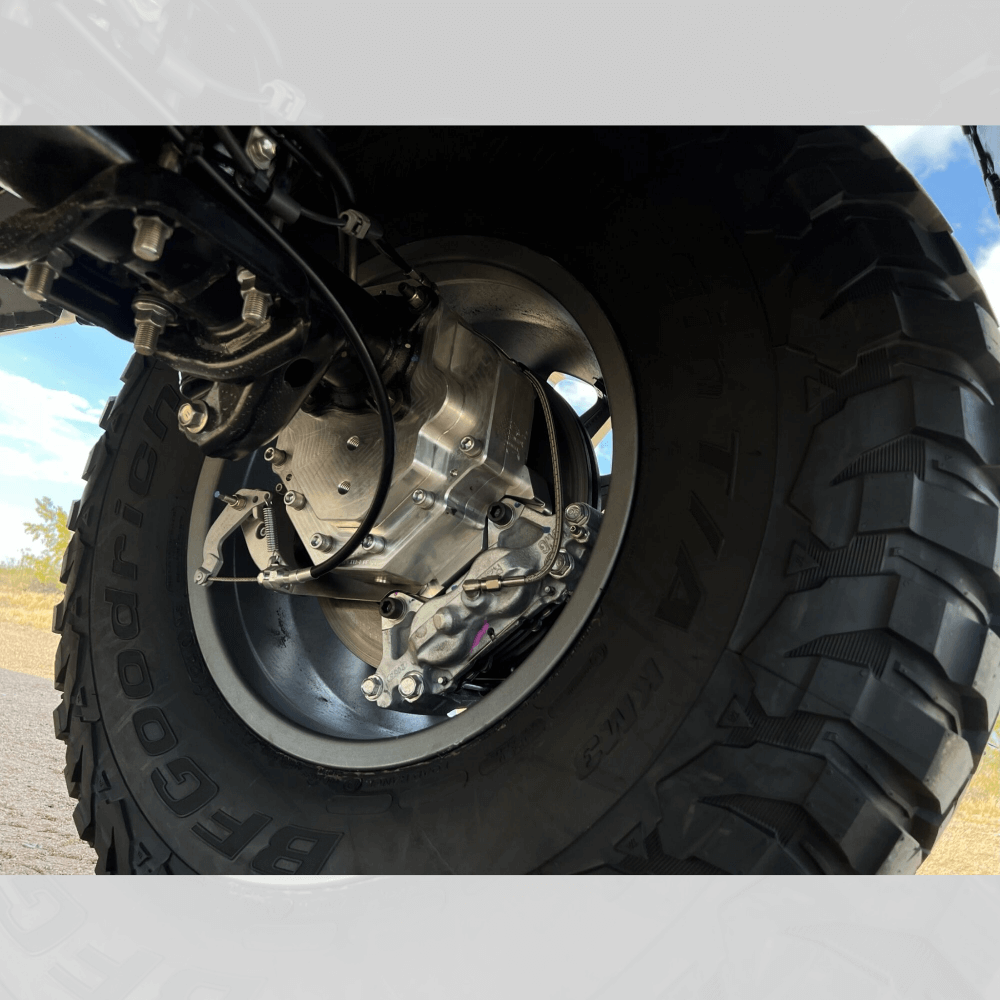

Rear disc brake conversion with larger front calipers and rotors included.
Converts your rear semi float axle to a full float.
4340 heat treated rear full float shafts included.
Optimized width and scrub while maintaining stock suspension components.
17″ minimum wheel diameter required with a recommended backspacing of 5″-6″ for optimal scrub.

WARRANTY OVERVIEW: At 74 Weld, we take great pride in the quality and durability of our products. To ensure that our customers receive the best possible experience, we offer warranties on various parts and components. The warranty coverage provided by 74 Weld is based on the specific components and the tire size that is used with them.

Gears, Bearings, Unit Bearings, and Axle Shafts: 1 Year Warranty Period
Uprights, Knuckles, and Caliper Brackets: Lifetime Warranty Period

Returns: Only the original buyer may request for a return of products. Full (cash/card) refunds can be issued before an order is picked up or shipped out. (Subject to a 20% restocking fee) Returns can only be accepted for up to 10 business days from the day it was picked up, or the delivery date. Returns are good for store credit only. (Subject to a 20% restocking fee after 10 days of order being placed) Shipping costs to and from the purchaser are not refundable. No returns on special orders, or for any parts that have been used, modified, drilled, painted, or installed.
