Description
Warn ZEON. The name to trust when it's all on the line.®

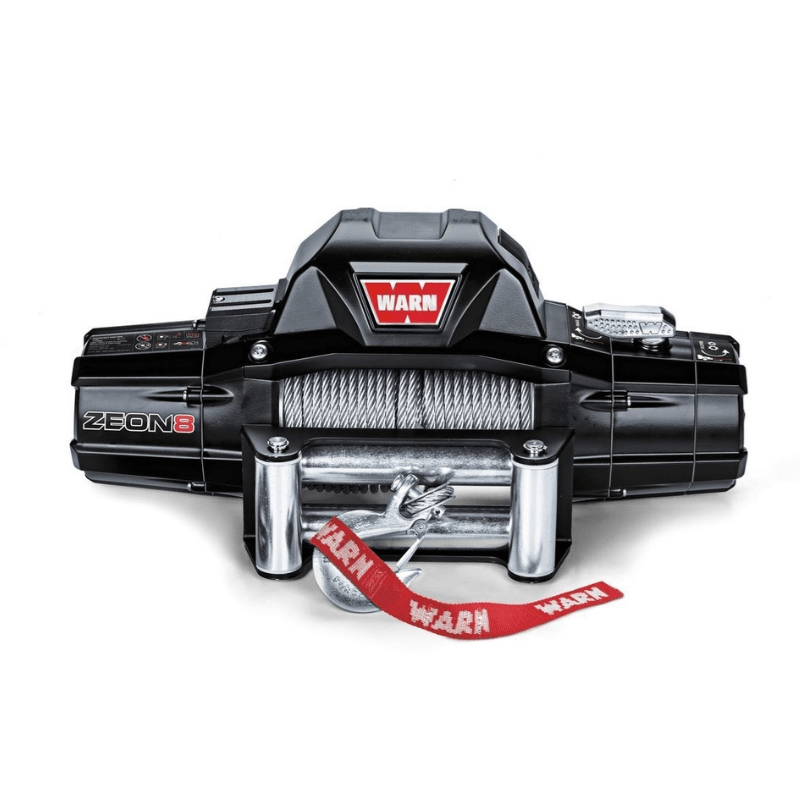

The ZEON 8 is a 12-volt electric winch is vehicle mounted and has a pull capacity of 8,000 pounds. It comes with a roller fairlead and a 100 feet of steel rope.
Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pounds pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
It comes in two winch cable material options:
➜ Steel, with 100 feet of steel rope.

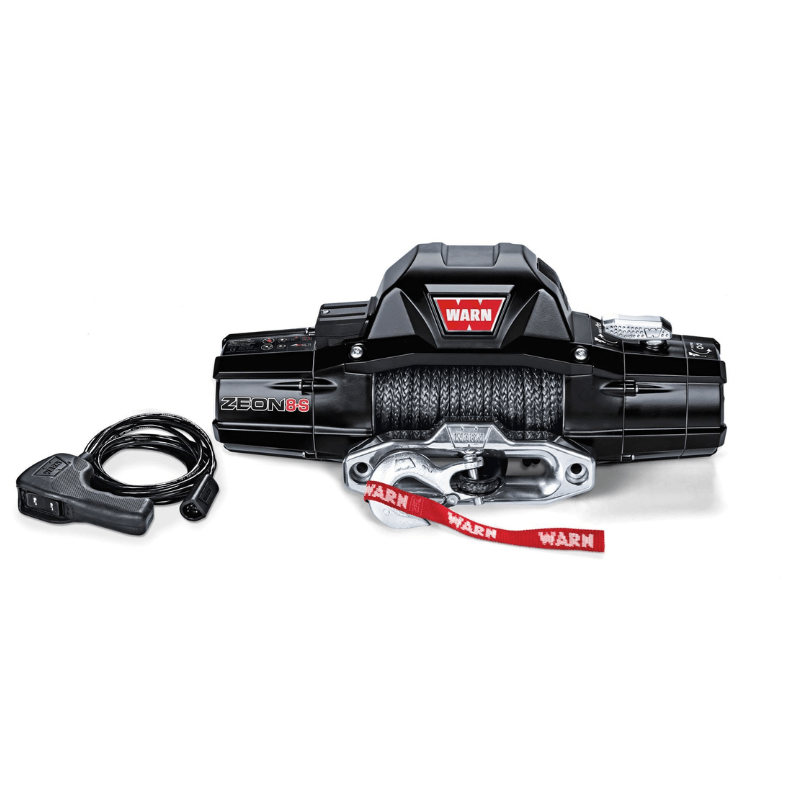

➜ Synthetic, with 100 feet of synthetic rope.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features
➤ A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
➤ IP68-rated waterproof winch construction keeps the elements out
➤ High-performance Albright contactor delivers maximum reliability
➤ Control packs can be relocated for low-profile installations
➤ Durable, one-piece cast-aluminum tie-plate for added strength and durability
➤ Two-in-one remote with wired AND wireless options for ease of use and versatility
Specs
Type: Electric
Recommended Use: Vehicle Recovery
Mounting Type: Vehicle Mounted
Voltage: 12 Volt DC
Electrical Control Type: Albright Contactor
Motor Type: Series Wound
Drive Gear Type: 3-Stage Planetary
Gear Reduction Ratio: 218:1
Free Spooling: Yes
Brake Type: Spring
Line Diameter (IN): 5/16 Inch the Steel rope option / 3/8 Inch for the Steel rope option
Length (FT): 90
Line Material: Steel for the Steel rope option / Synthetic for the Synthetic rope option
Fairlead Type: Roller for the Steel rope option / Hawse for the Synthetic rope option
Remote Type: corded remote with 11.5' (3.5m) lead

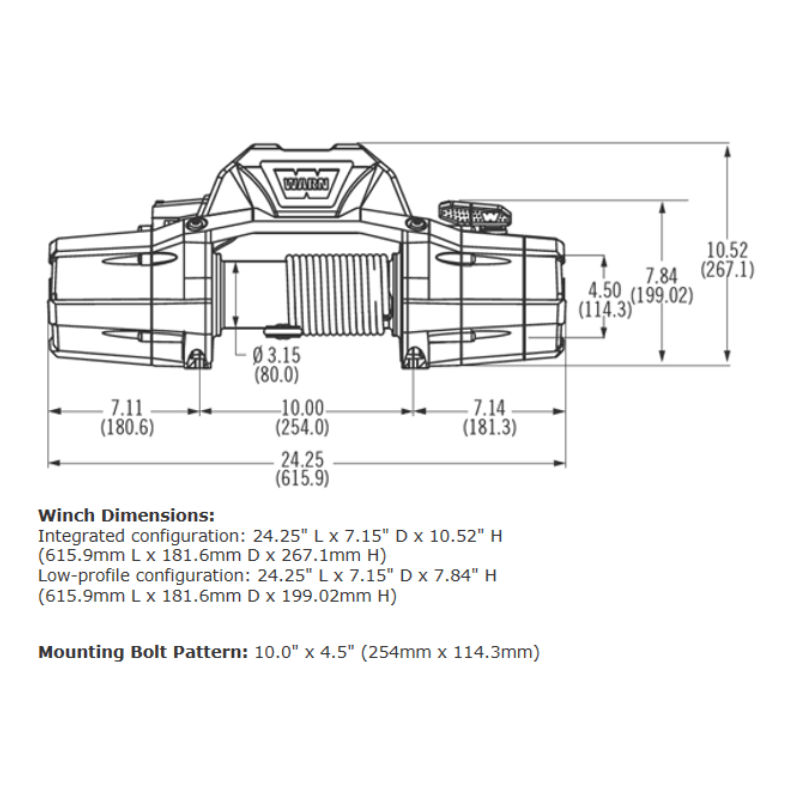

Mounting Hole: Quantity 4
Mounting Pattern Length (IN): 10 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Black
Max Line Pull/ Line Speed: 8000 Pound / 6.0ft per minute
Max Amp Draw/ Line Pull: 298 Amps / 8000 Pound
Drum Material: Steel
Warranty
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
