Description
Warn ZEON. The name to trust when it's all on the line.®
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck busting sealing keeps out everything but the good times. Add a hyper durable cast aluminum housing, satin black finish, and 10,000 Pounds. Single line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
It comes in two winch cable material options:

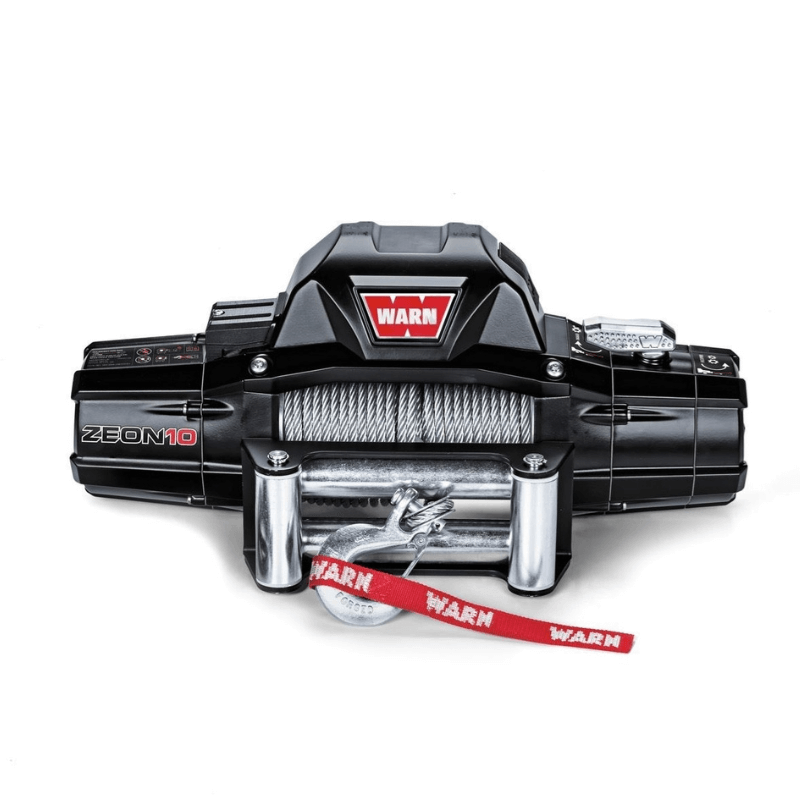

➜ Steel, with 90 feet of steel rope.

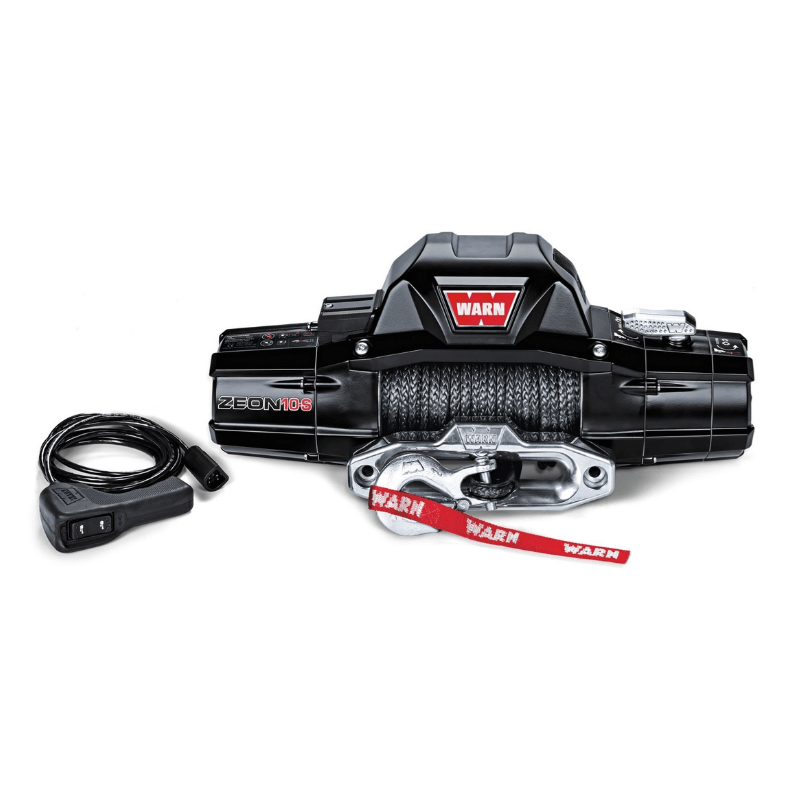

➜ Synthetic, with 90 feet of synthetic rope.
Please Note: This product requires a compatible bumper or mounting plate and must be mounted to a vehicle.
Features
➤ Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
➤ New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
➤ Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
➤ Improved Winch Sealing To Keep The Elements Out
➤ Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
➤ Includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope
➤ 10,000 Pounds Single Line Pulling Capacity
Specs
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Thermal Shutoff: No
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 216:1
- Free Spooling: Yes
- Brake Type: Mechanical Cone
- Line Diameter (IN): 3/8 Inch
- Line Length (FT): 80 Feet for the Steel rope option / 100 Feet for the Synthetic rope option
- Line Material: Steel for the Steel rope option / Synthetic for the Synthetic rope option
- Fairlead Type: Roller for the Steel rope option / Hawse for the Synthetic rope option
- Conforms To J706 Standards: No
- Remote Type: Handheld Remote Switch
- Mounting Hole Quantity: 4
- Operation Type: Automatic

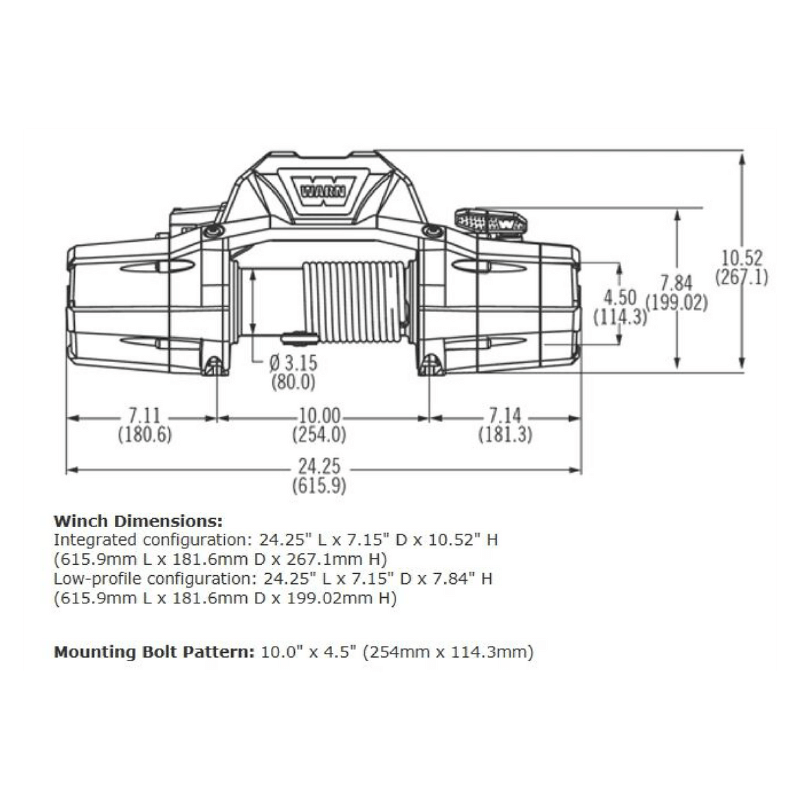

- Mounting Pattern Length (IN): 10 Inch
- Mounting Pattern Width (IN): 4-1/2 Inch
- Includes Mounting Hardware: No
- Color: Black
- Max Amp Draw/ Line Pull: 409 Amp Draw/ 10000 Pound

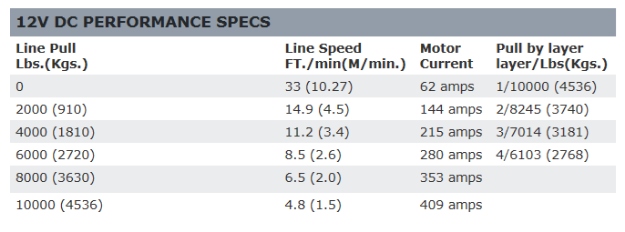

- Max Line Pull/ Line Speed: 10000 Pound/ 4.8 Feet Per Minute
Warranty
Limited Lifetime Warranty for Mechanical Components.
Limited Seven (7) year warranty for Electrical Components.
