Description
Overview

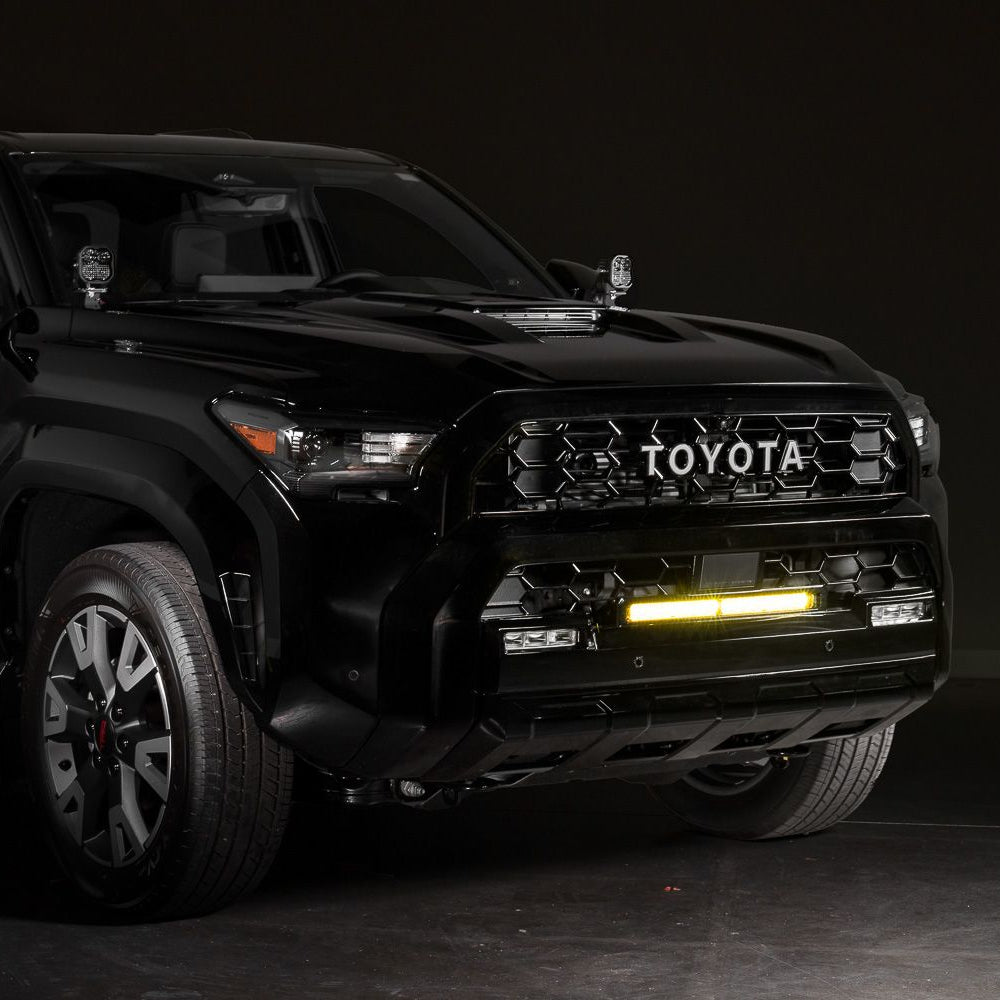

The TRD Pro Grille LED Light Bar Kit for the 2025+ 4Runner adds powerful auxiliary lighting with a clean, OEM-style appearance. These application-specific brackets have been CAD-designed to mount a 20-inch LED Light Bar behind the grille using factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today!.
Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.
Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.
Functional Beam Patterns. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.
The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Everyone wants a great all-around light, and while other options on the market try to tackle this by combining two patterns, the resulting output is less than desirable–spot gives you a harsh hotspot, while a flood or wide pattern produces unwanted glare and wasted light. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination. It’s the ideal choice when you want one bar that can handle just about any situation, and it elevates the standard for what a Combo light should be.
SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees. If you’re looking to add extra distance and output to your setup, this is the perfect option.

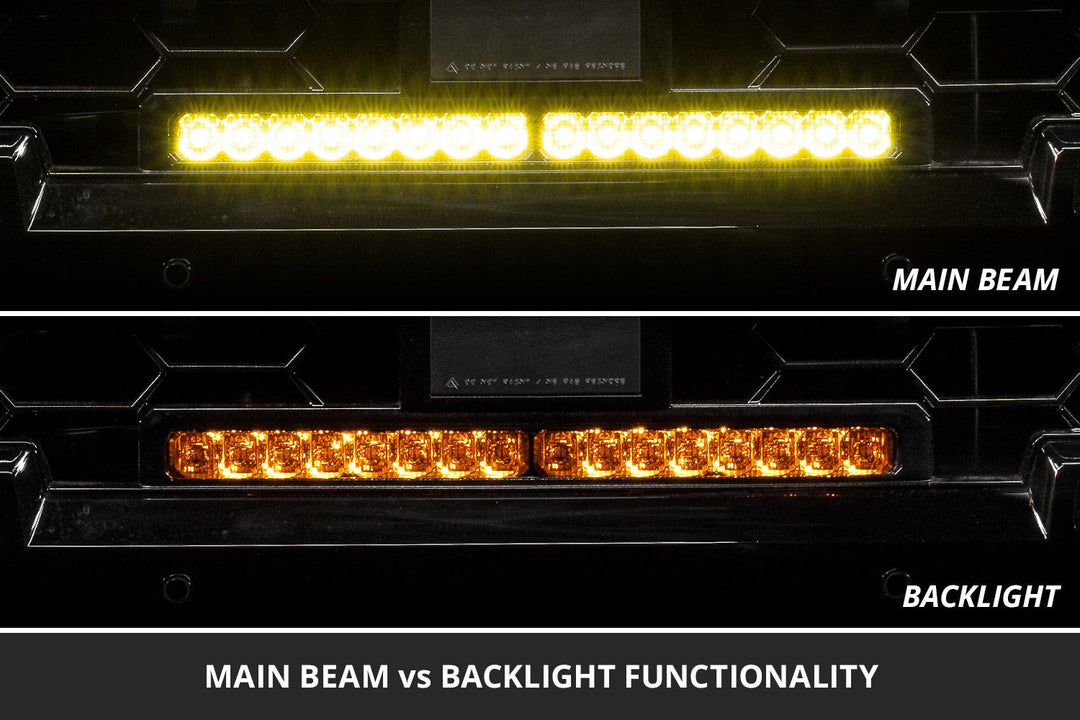

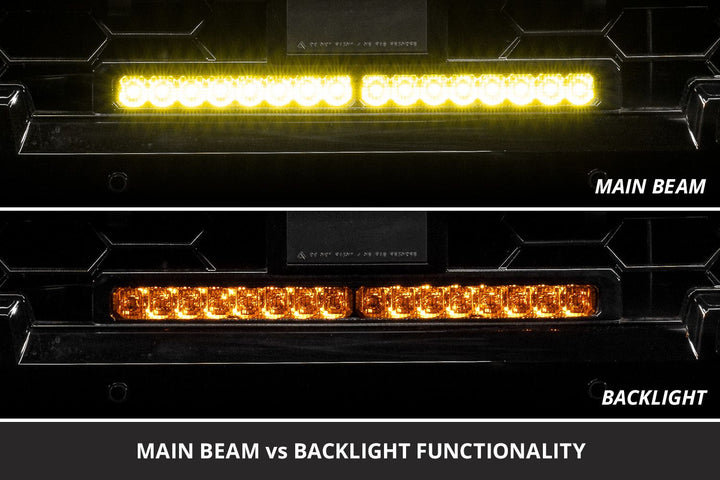

Amber Backlight. All Stage Series LED Light Bars include an integrated amber backlight that fully illuminates the TIR optic, providing distinctive accent lighting and enhanced visibility when parked or stopped on the trail.
White or Yellow. This Stealth LED Light Bar Kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Choose Your Power Level. The SS20 Light Bar is available in two different power levels. The Sport model delivers impressive performance and value, while the Pro model provides a noticeable increase in total output and intensity for those who demand the highest level of performance.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

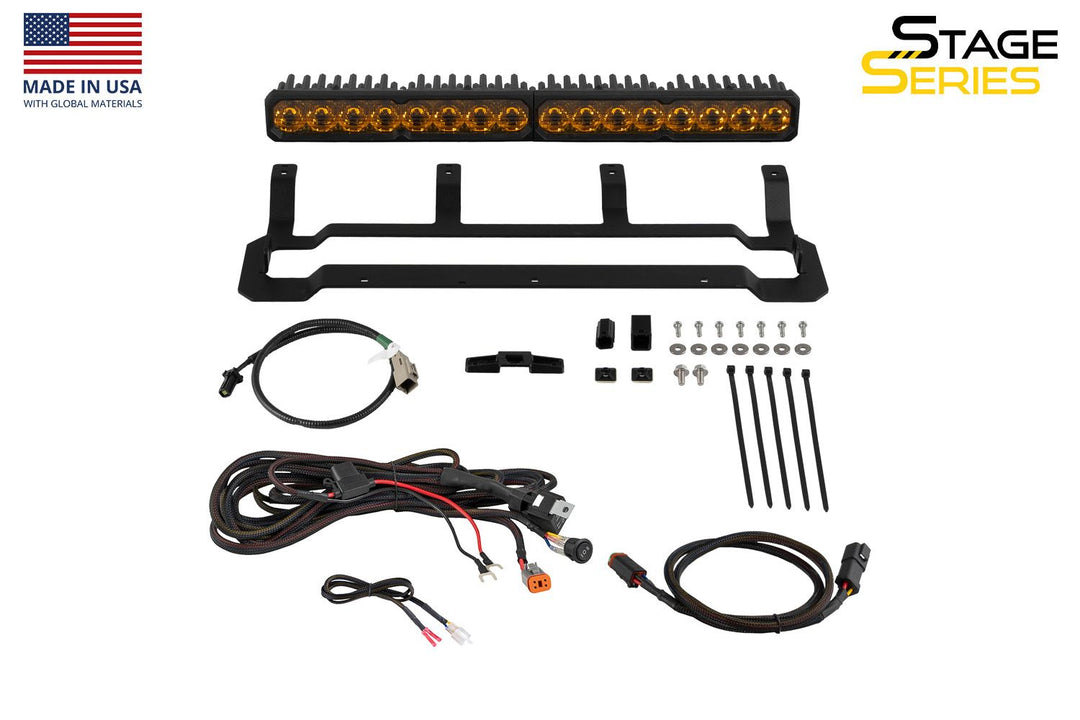

In the Box:
- One (1) TRD Pro Grille Light Bar Bracket Kit
- One (1) SS20 Standard LED Light Bar
- One (1) Wiring Harness
- One (1) Front Camera Relocation Kit
- Five (5) Zip Ties
- Mounting Hardware
NOTE: This kit includes a Standard LED Lightbar, which does not include SmartSelect features.
Quantity: One (1)
NOTE: If you are installing this kit on a TRD Pro, you will need to use the included wiring harness with a new switch to control this light bar. The factory switch cannot be used to control this light bar.
Features
Patented TIR Optics for maximum efficiency and output.
Upgraded beam patterns engineered for real-world performance.
True amber backlight provides unique accent lighting.
Available in Sport and Pro power levels.
Durable aluminum housing with ASTM-standard powdercoat finish.
Built for the extreme with IP69K waterproof rating.
Limited Lifetime Warranty.
Made in USA with Global Materials.
Specs
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo/Driving, 60°x30°, Driving, 20°x12°
Power (watts): Sport: 76.5, Pro: 105
Operating Voltage: 9-30V
Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Warranty
Lifetime Warranty
