Description

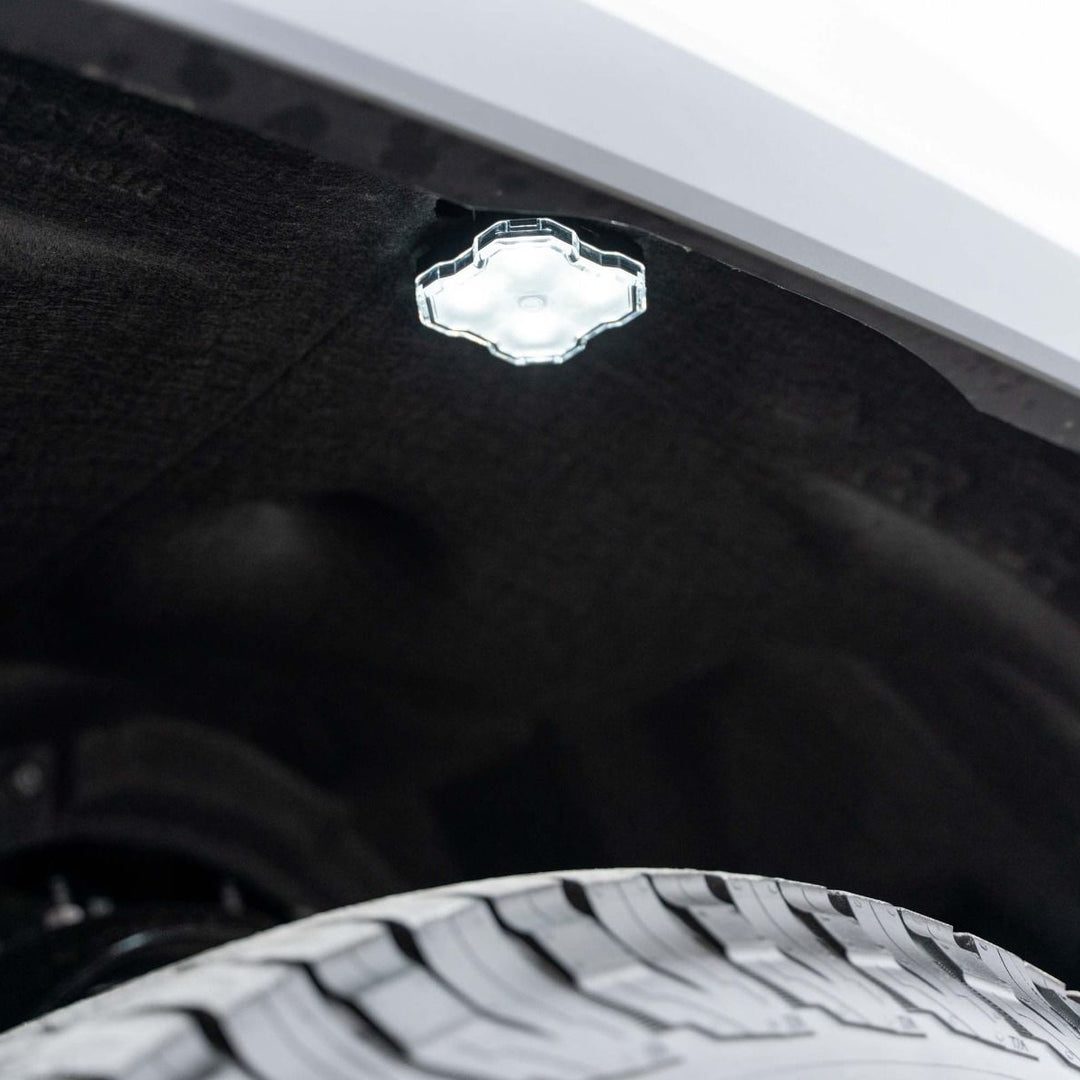

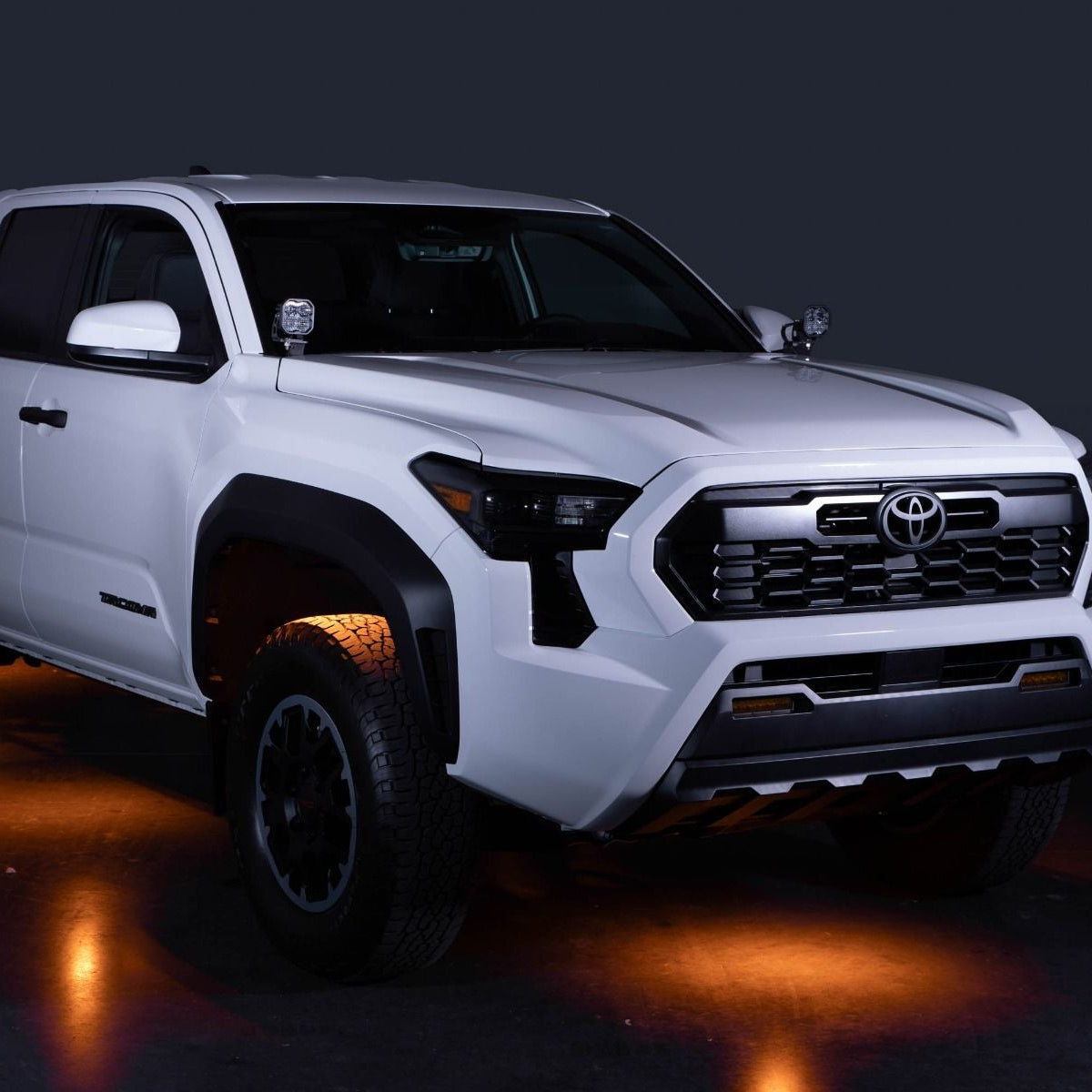

Looking to light up the trail at night? Look no further. Introducing the Stage Series LED Rock Light Kit for the Toyota Tacoma! Designed for superior durability and maximum performance, Stage Series LED Rock Lights have set a new standard in the offroad category. This kit includes all the wiring and hardware necessary to mount eight Stage Series LED rock lights underneath Tacoma, making it easier than ever to add rock lights to your truck.

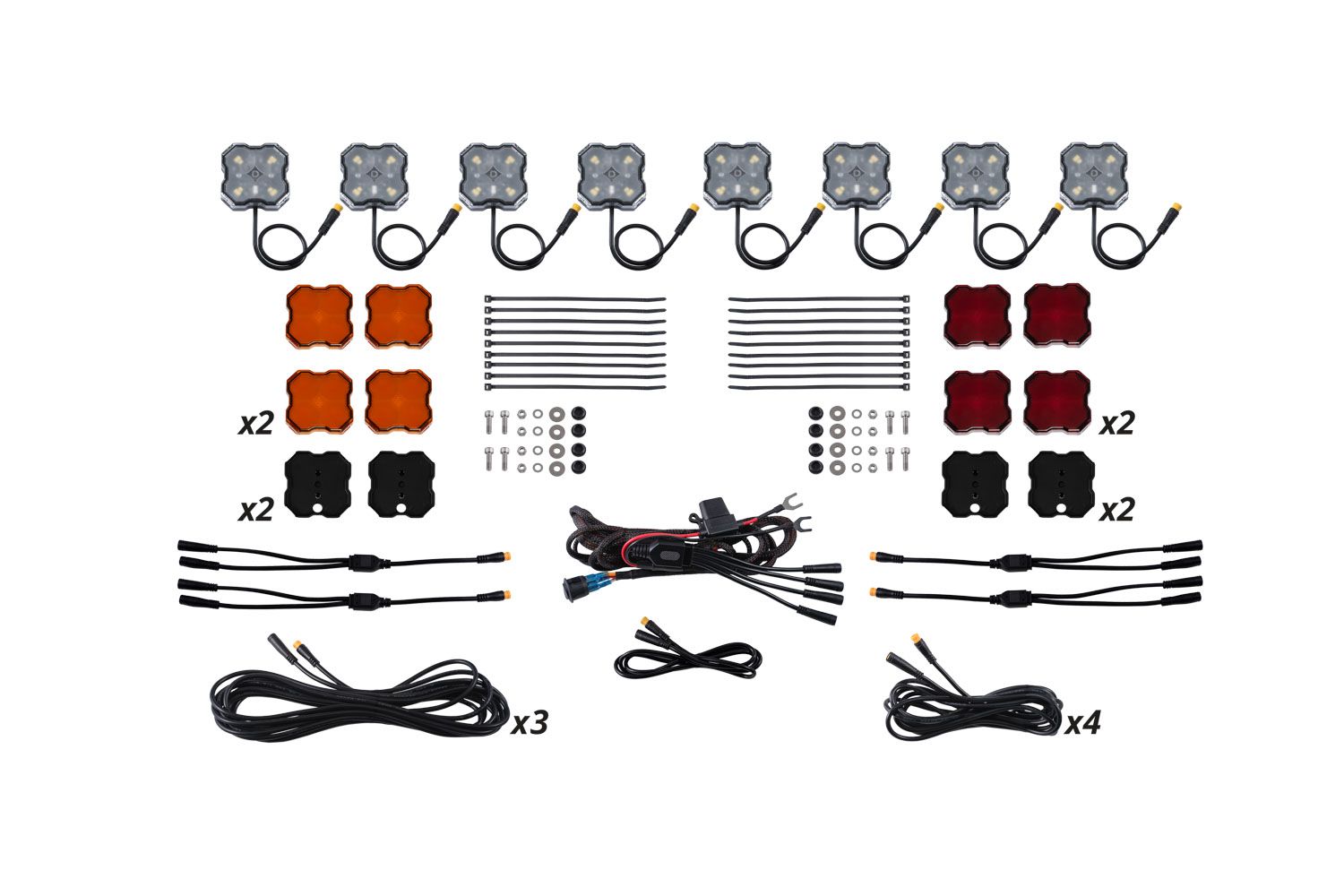

Included:
Single-Color
✔ Eight (8) Stage Series Single-Color Rock Lights
✔ Three (3) 1M Extensions
✔ Five (5) 3M Extensions
✔ Five (5) 5M Extensions
✔ Four (4) Splitters
✔ One (1) Rock Light Single-Color wiring harness
✔ Eight (8) Rock Light Hardware Kits
✔ Eight (8) Magnet Mounts (optional)
✔ Eighteen (18) Zip Ties
✔ Installation guide

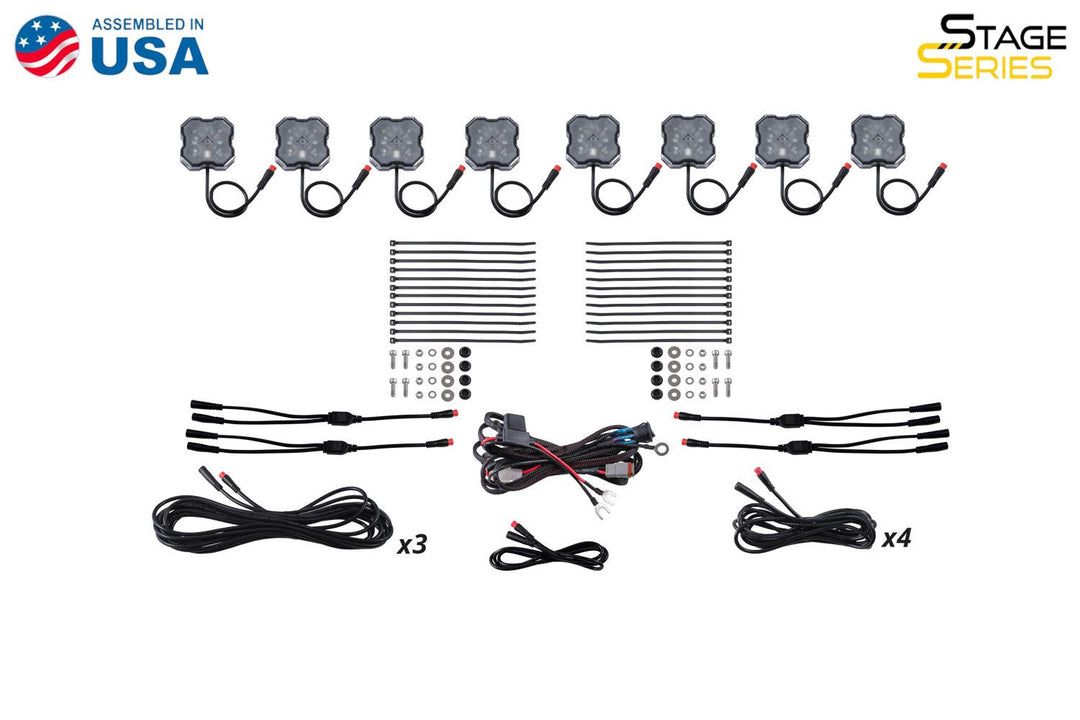

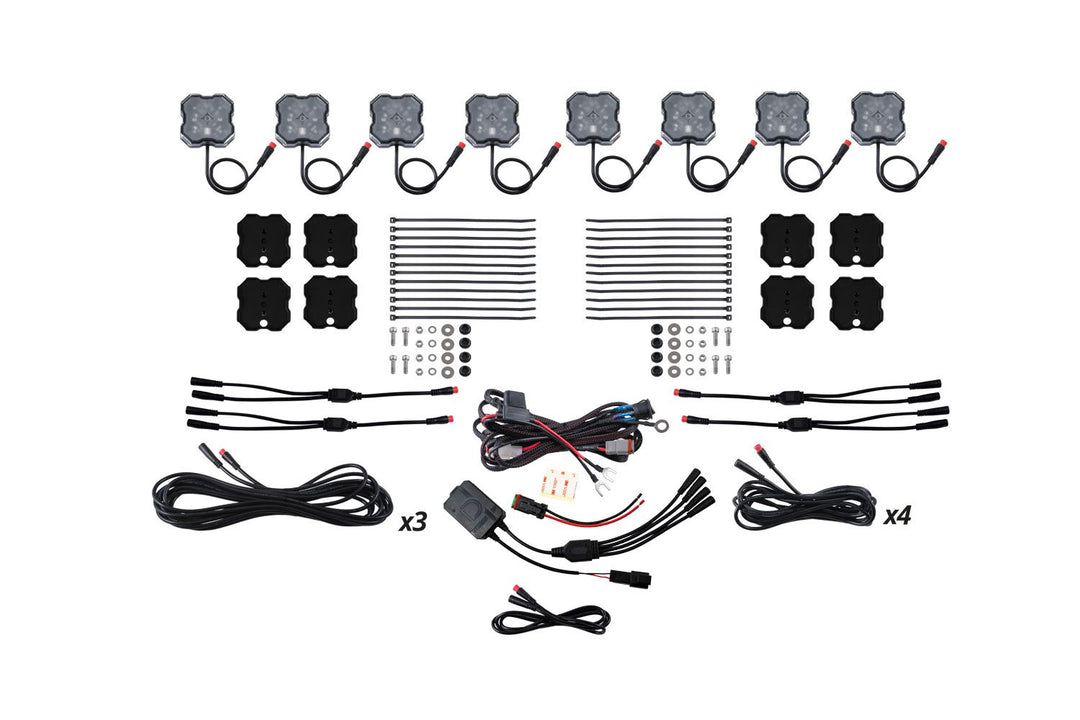

RGBW
✔ Eight (8) Stage Series RGBW Rock Lights
✔ Two (2) 1M Extensions
✔ Five (5) 3M Extensions
✔ Five (5) 5M Extensions
✔ Four (4) Splitters
✔ One (1) Rock Light RGBW wiring harness
✔ Eight (8) Rock Light Hardware Kits
✔ Eight (8) Magnet Mounts (optional)
✔ One (1) Bluetooth RGBW Controller (optional)
✔ Eighteen (18) Zip Ties
✔ Installation guide
Quantity: Eight (8)
Fitment: 2024+ Toyota Tacoma
Features
✔ Allows you to mount eight rock lights under your Toyota Tacoma.
✔ Convenient center-mount or magnet mount installation.
✔ Available in single-color or multicolor output.
✔ Includes all necessary wiring and mounting hardware.
✔ Aluminum heatsink with signature Ico Bezel shape.
✔ Thick, durable lenses, engineered to spread light.
✔ Engineered and Assembled in USA.

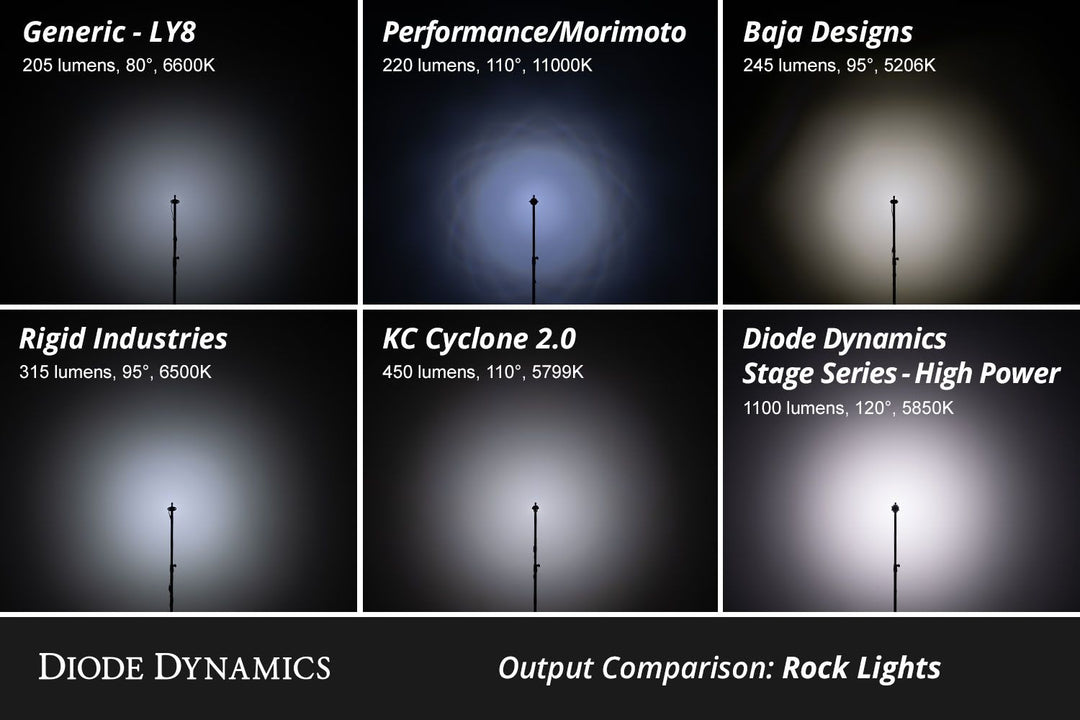

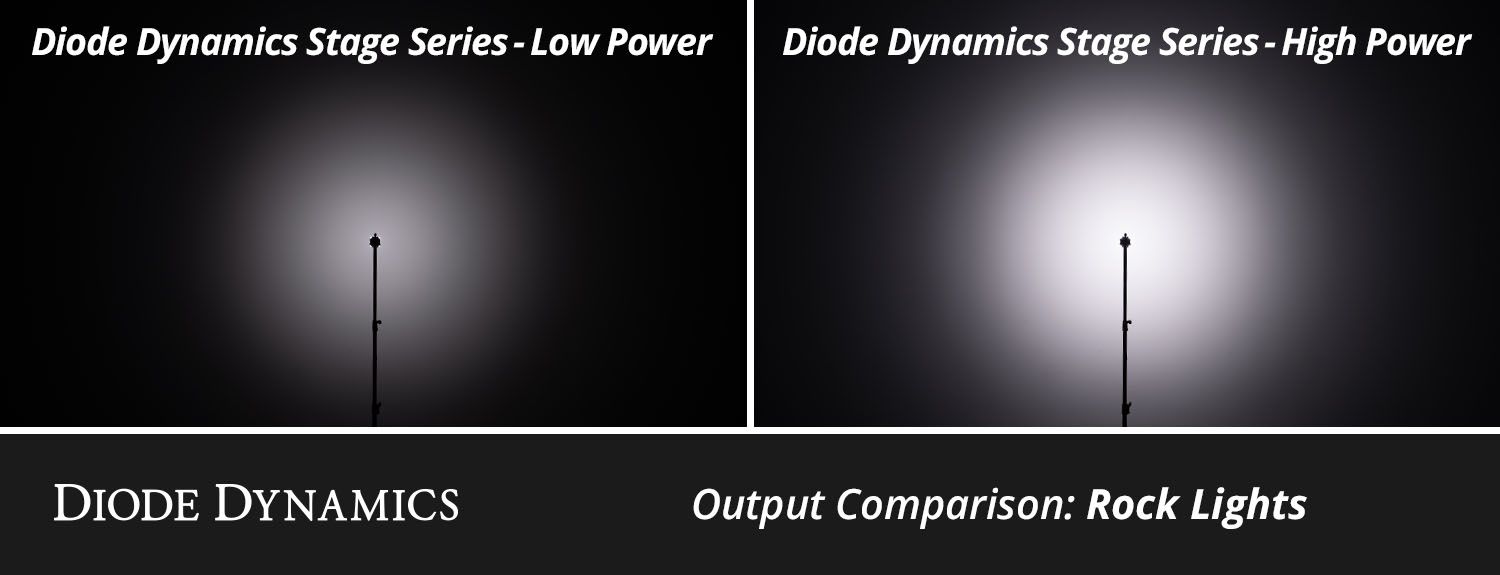

Single-Color or RGBW. The Stage Series Rock Lights in this kit are available in a single-color or multicolor output. Our single-color Stage Series Rock Lights provide a peak output of 800 lumens, with a true power draw of over 10 watts! They use a simple 3-wire system, allowing you to select a low-power or high-power mode. Our single-color rock lights illuminate in a 5700K white color temperature, and also include eight amber and eight red lenses, allowing you to change the color of your rock lights for maximum versatility.

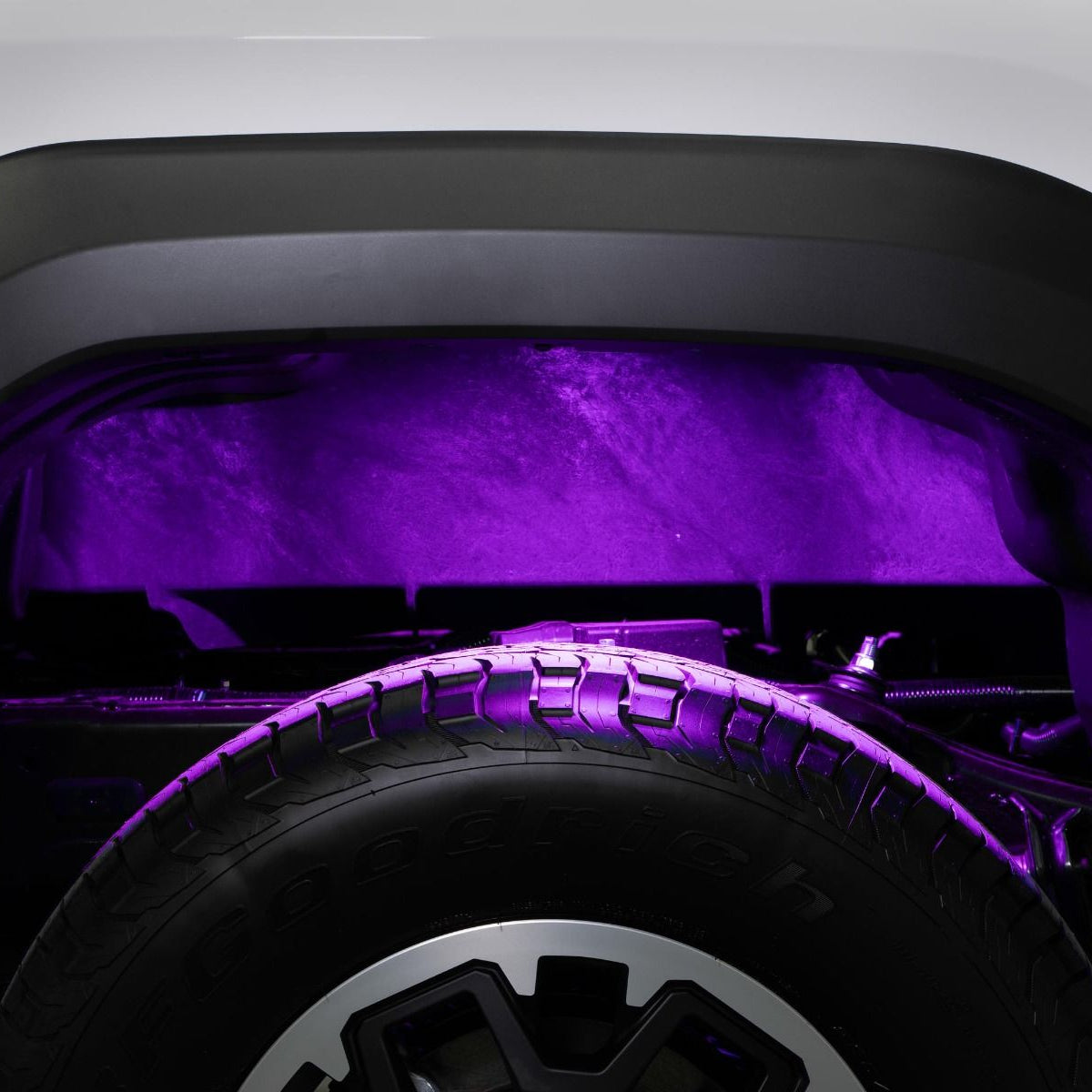

Our RGBW LED Rock Lights provide plenty of output in any color you can think of, with four high-intensity RGBW LED emitters! Our RGBW LED Rock Lights offer more than just multicolor functionality. Thanks to the independent white chip, these LED rock lights will light up in a bright, pure white color when you want to maximize output. When paired with our RGBW Bluetooth controller and app, you can control your rock lights directly from your phone! Want to show off? Use our app to start a pattern, strobe, fade, or control the brightness. The possibilities are endless!

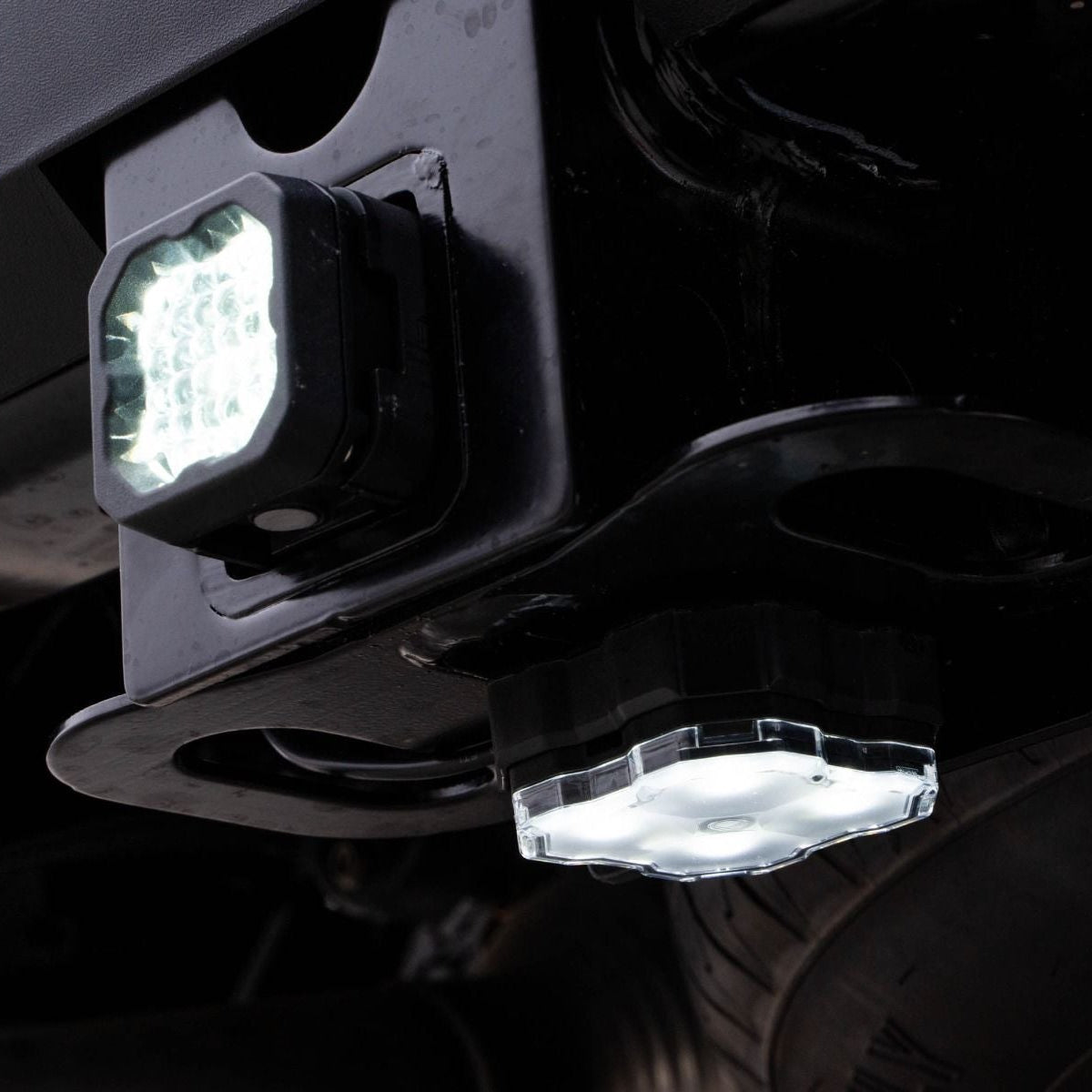

Mount it Your Way. Our Rock Light Kit for the Toyota Tacoma can be mounted using the center bolt mounting point that is neatly hidden underneath the lens and comes standard, or you can select the magnet mount option. Our magnet mounts feature an overmolded design that keeps your rock light secure using the integrated mounting hole. With N42 magnets providing an approximate pull/holding force of 35lbs, you can rest assured that the magnet won't go anywhere!
Simple Connections. For maximum convenience, the rock lights in this kit feature an M8 barrel-style connector for simple installation. No custom wiring required! The M8 connector provides a secure, waterproof connection and plugs directly into the included wiring harness. At only 8mm in diameter, the included wiring is easy to route under your Tacoma.

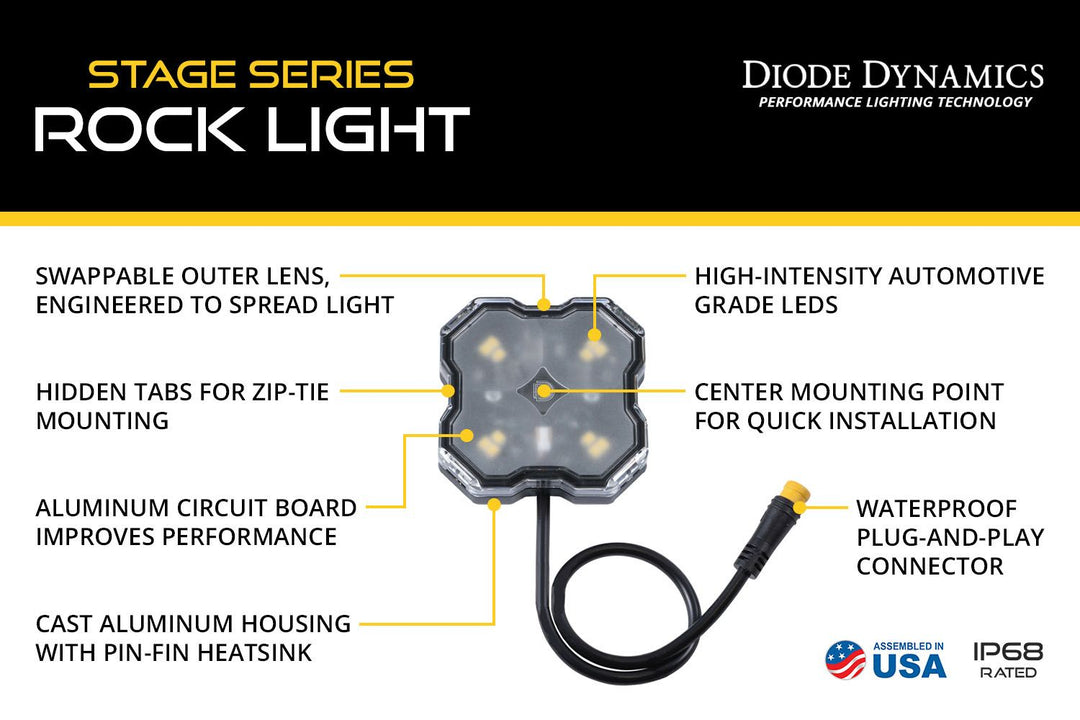

Optically-Engineered, Interchangeable Lenses. Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable, and can be swapped out easily for a quick color change on the single-color option. Click here to find extra interchangeable lenses.
Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
Specs
Color Temp (CCT): Single-Color: 5700K, RGBW: 6800K
Measured Lumens: Single-Color High Power: 800, RGBW: 75
Intensity (cd): Single-Color High Power: 300, RGBW: 30
Beam Angle: Round, 60°
Current (amps @ 13.2V): 1.1
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Connector(s): M8 Input
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof
Note: The output data above is for the White Diffused option.
Warranty
➜ Limited Lifetime Warranty
