Description

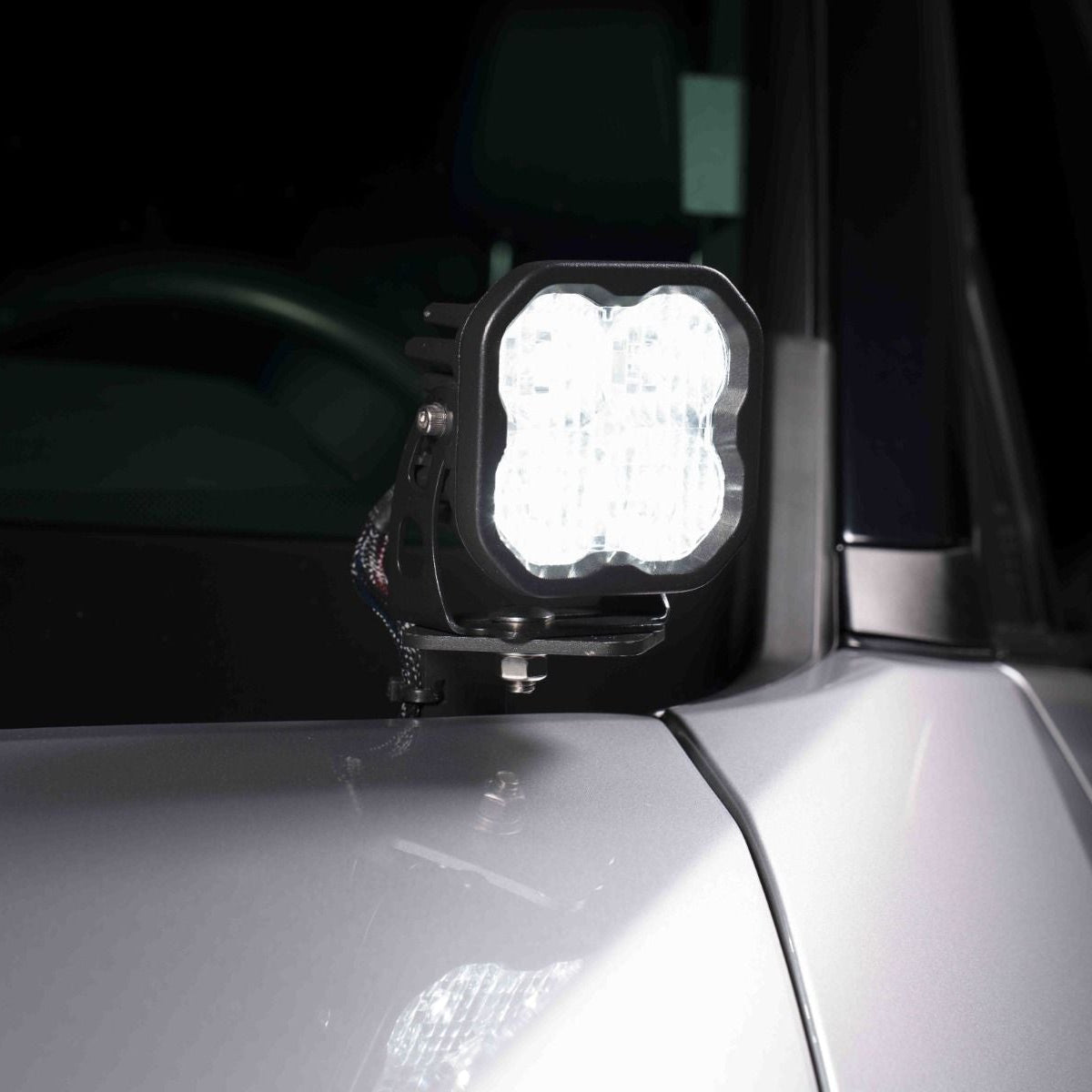

The Stage Series Backlit Ditch Light Kit for the Toyota RAV4 allows you to easily mount two SS3 or C2 2.0 Backlit Pods above the hood, perfect for more visibility along the side of the road or downrange. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.
Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our LED Pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in our SS3 and C2 2.0 LED Pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series LED pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
Combo/Driving provides a balanced beam pattern with strong forward illumination and a wide field of view. The SS3 shines in a smooth 80x30 degree spread, while the C2 2.0 shines in a 55x20 degree pattern, making both an excellent all-around option for a variety of speeds and terrain. Unlike other combo lights on the market that produce a distracting hotspot on rough terrain, the Combo/Driving pattern produces a smooth, evenly blended beam for a more comfortable driving experience.
For states that require them, we also offer snap-on covers for your Stage Series LED Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your Stage Series LED Pods.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

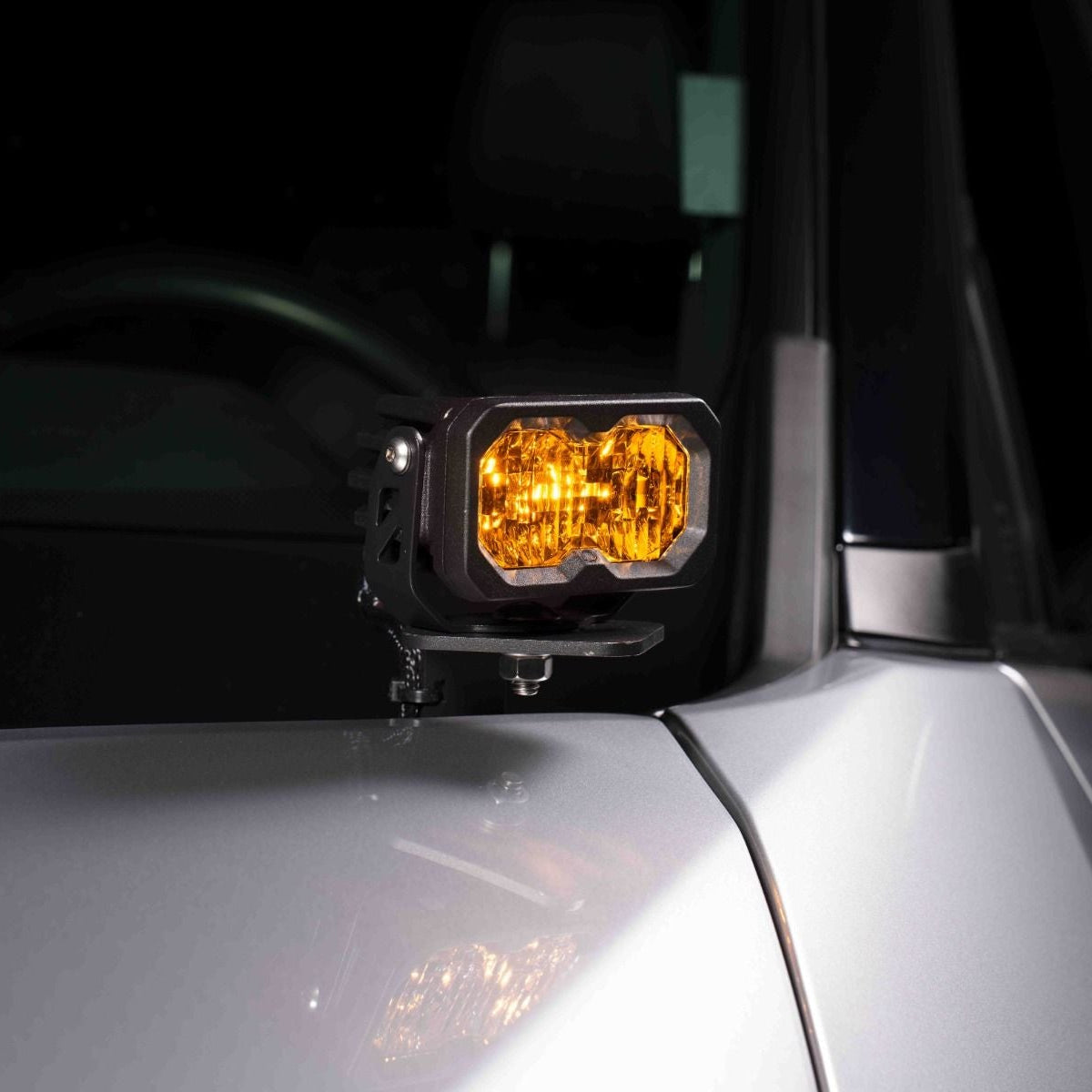

Backlight Functionality. Both the SS3 and C2 2.0 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
Quantity: Pair (Left and Right Side)

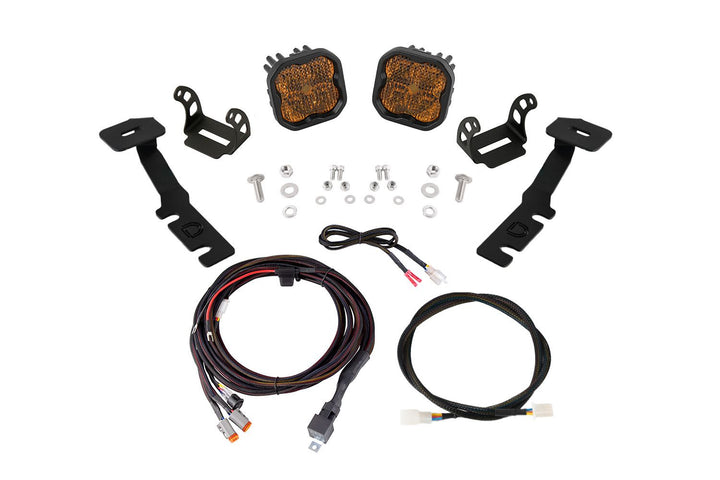

Included:
✔ Two (2) SS3 or C2 2.0 LED Pods

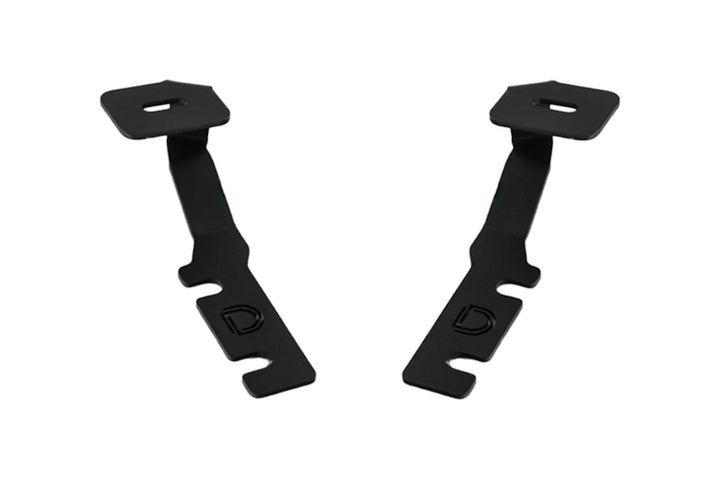

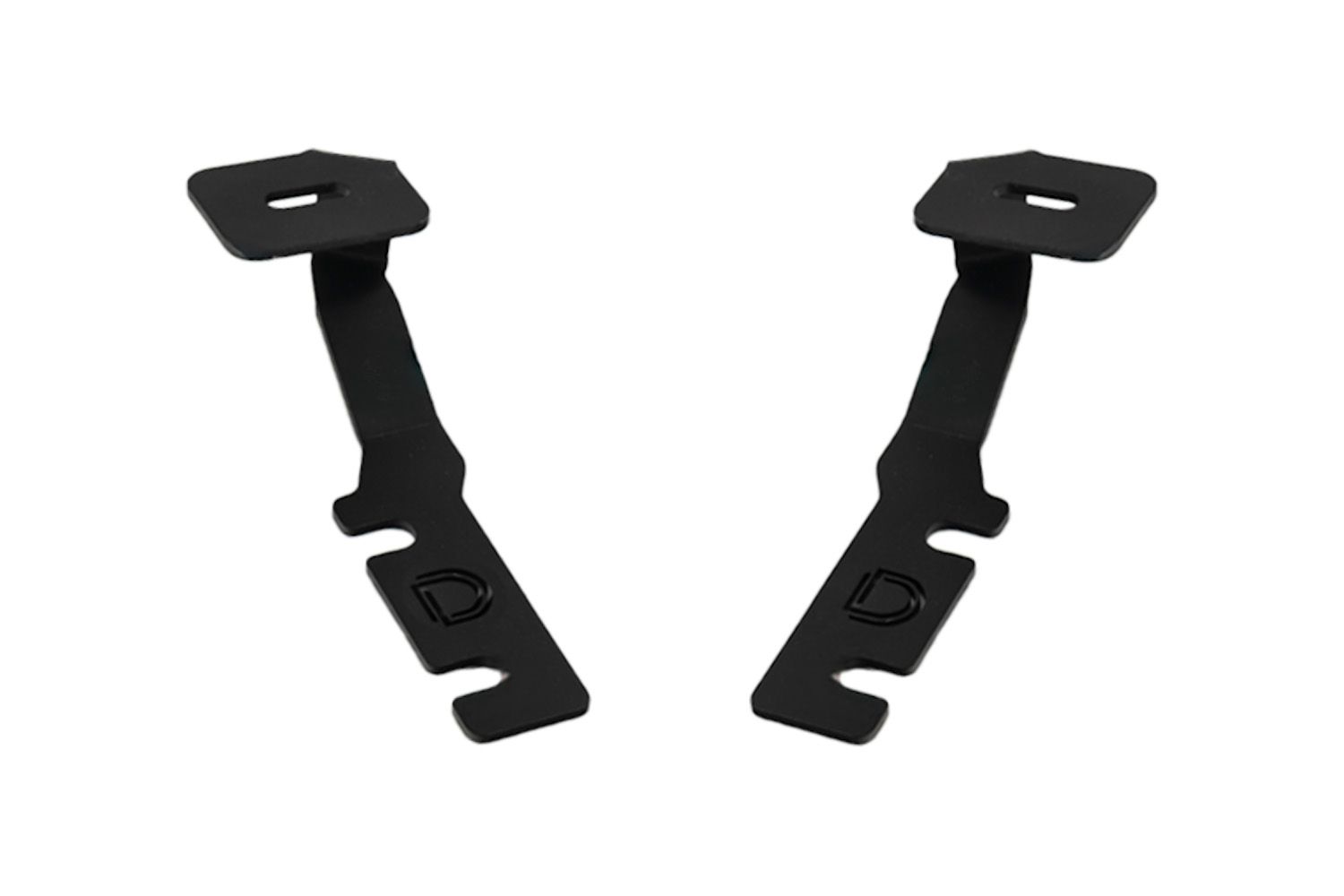

✔ Two (2) Ditch light brackets
✔ Two (2) SS3 or C2 2.0 Mounting brackets
✔ One (1) Heavy Duty Dual Output 4-pin Wiring Harness
✔ One (1) 1-Meter Extension Harness
✔ Mounting hardware
✔ Mounting guide
Fitment: 2019-2025 Toyota RAV4
Please Note: Do not use automatic car washes with this kit installed.
Features
Bolt-on fitment for Toyota RAV4.
Adds two Stage Series LED Pods above the hood using factory mounting points.
Patented TIR optics provide maximum output and reduced glare.
Thick-gauge stainless steel construction.
Low-profile design.
Made in USA with global materials.
Specs
SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
C2 2.0 Current (amps @ 12.8V): Sport: 1.17, Pro: 1.8
Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo (Driving and Flood)
Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, C2 2.0 Sport: 15, C2 2.0 Pro: 23
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Warranty
8 Year Limited Warranty
