Description
ICON Vehicle Dynamics 2025-2026 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDXS equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 9 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
The included ICON billet aluminum upper control arm kit is designed to improve overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance while .75” of rear lift height over stock allows a for level stance front to rear. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy "on-vehicle" fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series remote reservoir CDXS rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2025-2026 Toyota 4Runner Stage 9 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

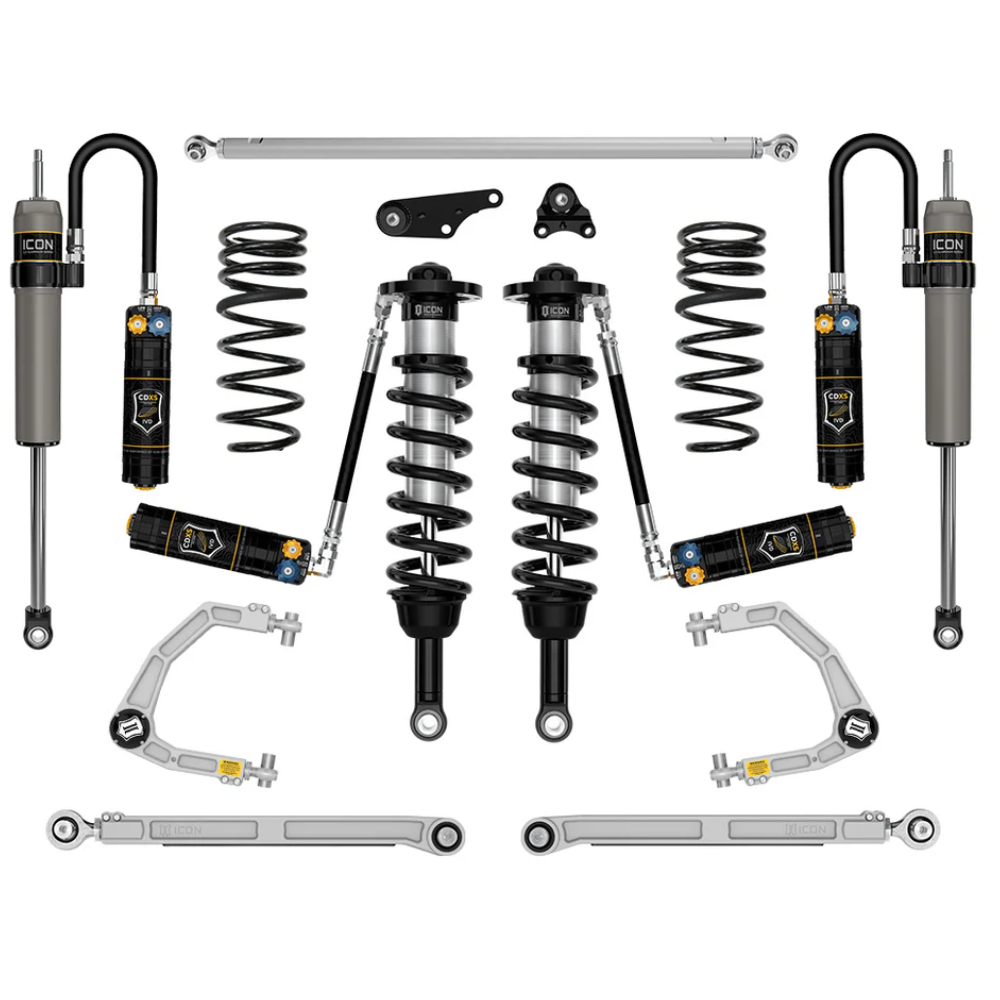

Included:
✔ 58795X (qty: 1) | FRONT 2.5 VS RR CDXS COILOVER KIT
✔ 58552DJ (qty: 1) | BILLET UCA DJ PRO KIT
✔ 55160 (qty: 1) | FRONT DIFF DROP KIT
✔ 52753 (qty: 1) | .75" DUAL RATE REAR SPRING KIT
✔ 54003 (qty: 1) | BILLET REAR LOWER LINK KIT
✔ 54202 (qty: 1) | BLT ADJ TRACK BAR
✔ 57872XP (qty: 1) |0-3" REAR 2.5 VS RR CDXS PAIR
Fitment: 2025+ Toyota 4Runner 4WD
Raises Rear .75 (in)
Raises Front 1.25 (in) - 3 (in)
Technical Notes
➜ OEM Wheels & Tires Fitment: Yes
➜ Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
➜ Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
➜ Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
➜ APPLICATION NOTE #1: Only fits 4WD models
➜ APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
➜ APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
➜ APPLICATION NOTE #150: Shocks are fully serviceable
➜ APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
➜ APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
➜ APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma or 4Runner, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality.
Features
➤ Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
➤ Increased wheel travel and improved ride quality over stock

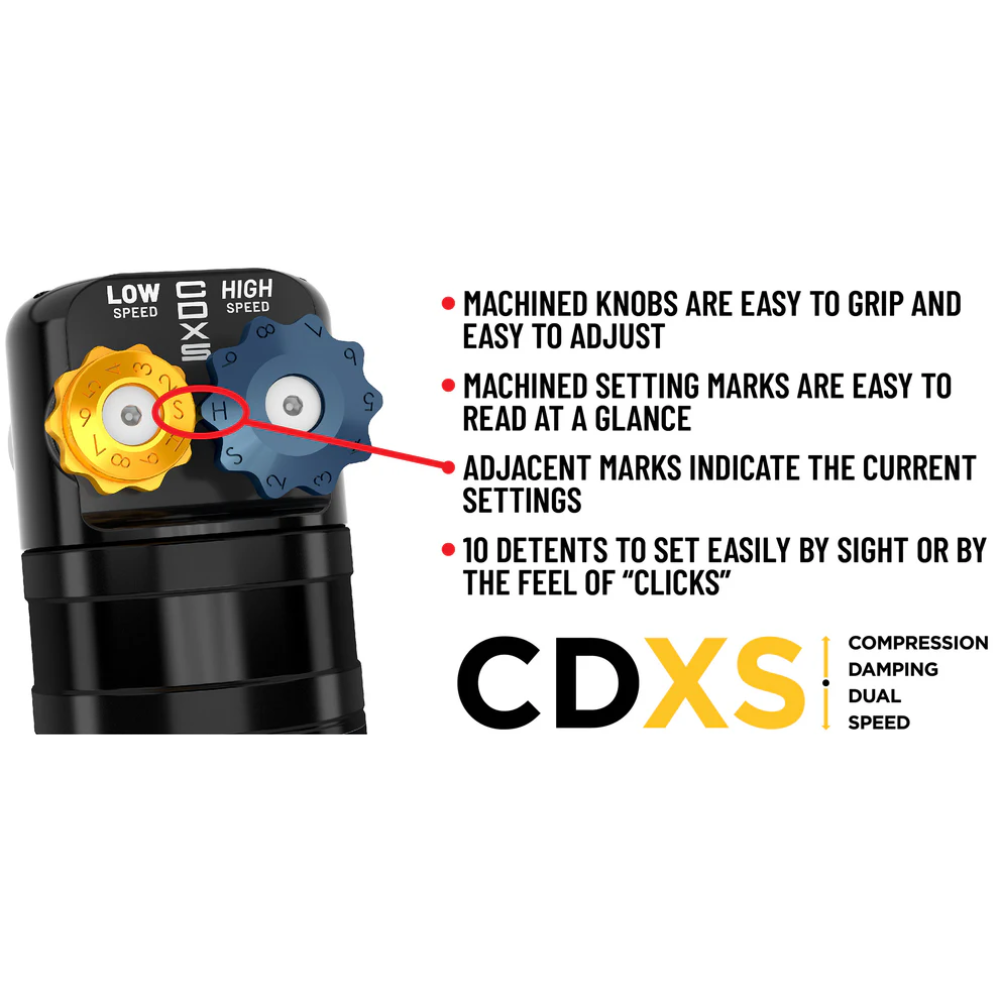

➤ All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
➤ Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
➤ Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
➤ Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
➤ UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
➤ 6061 aircraft grade aluminum CNC machined components
➤ Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
➤ Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
➤ Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
➤ On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
➤ FK Rod End bearings for extended longevity and minimal deflection
➤ 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers.
Specs
Shipping Width: 13.00 in
Shipping Length: 31.00 in
Shipping Depth: 7.00 in
Shipping Weight: 211.0000 LB
