Description

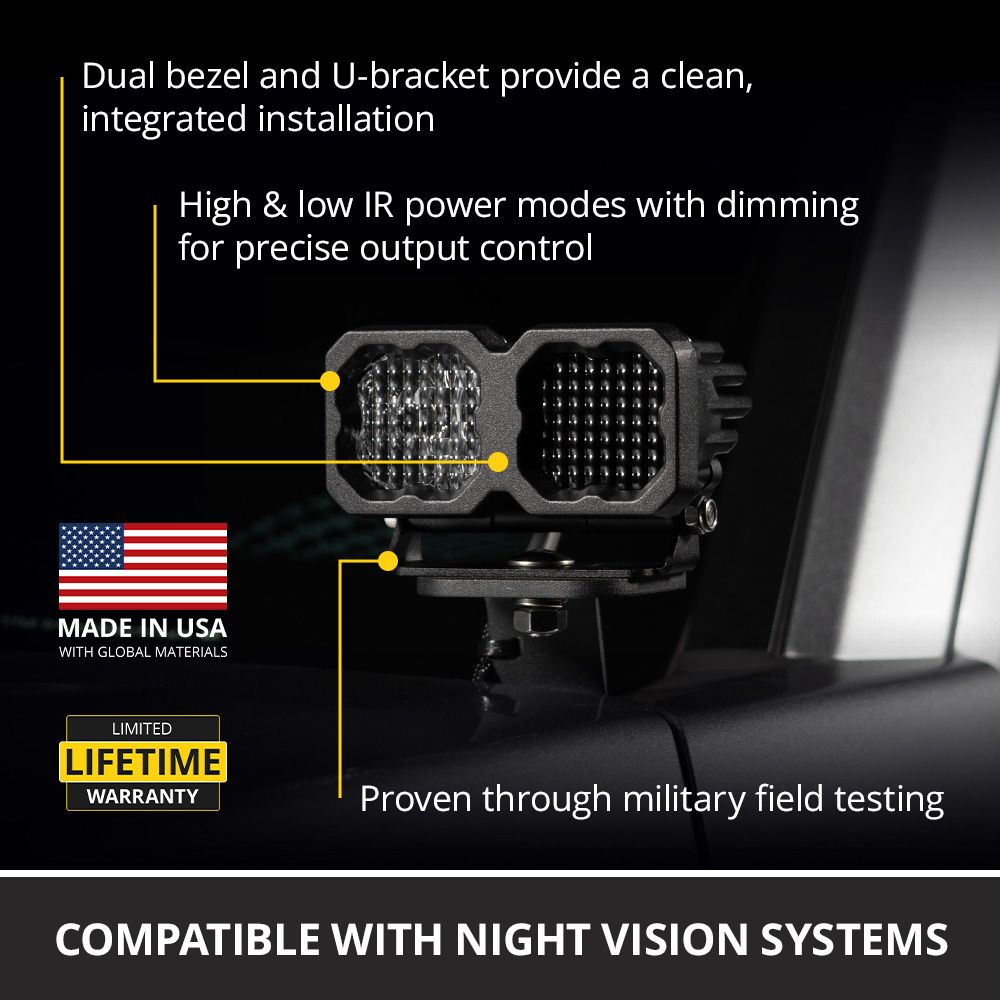

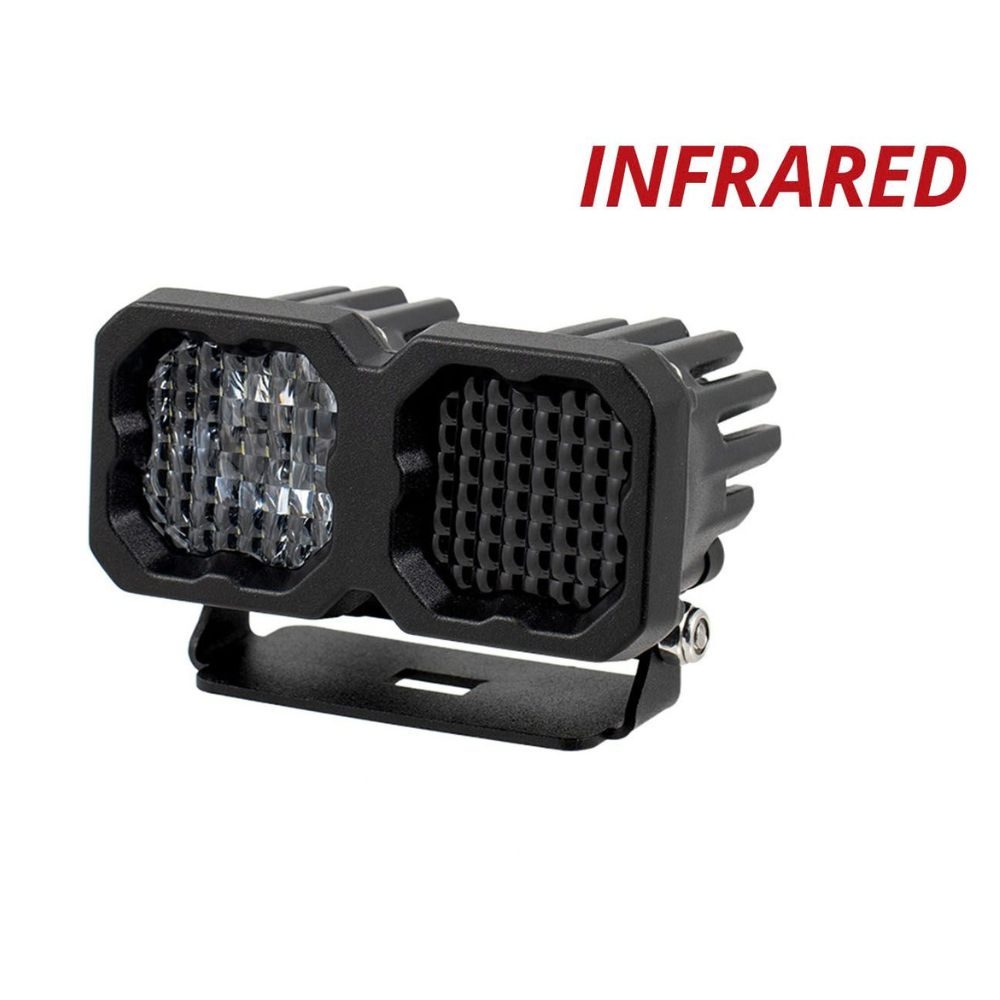

Combine infrared and visible lighting in one mounting location with the Diode Dynamics C1 Dual IR LED Pod. Two C1 pods sit side by side in a single bezel, pairing an 850nm IR Wide light with a Sport White Wide light and red backlight.
850nm IR and visible white light in one side-by-side C1 dual bezel.
Sport Wide lighting with a red backlight on the visible-light side.
High and low IR modes with PWM and variable-voltage dimming.
Dedicated mounting bracket and hardware included.

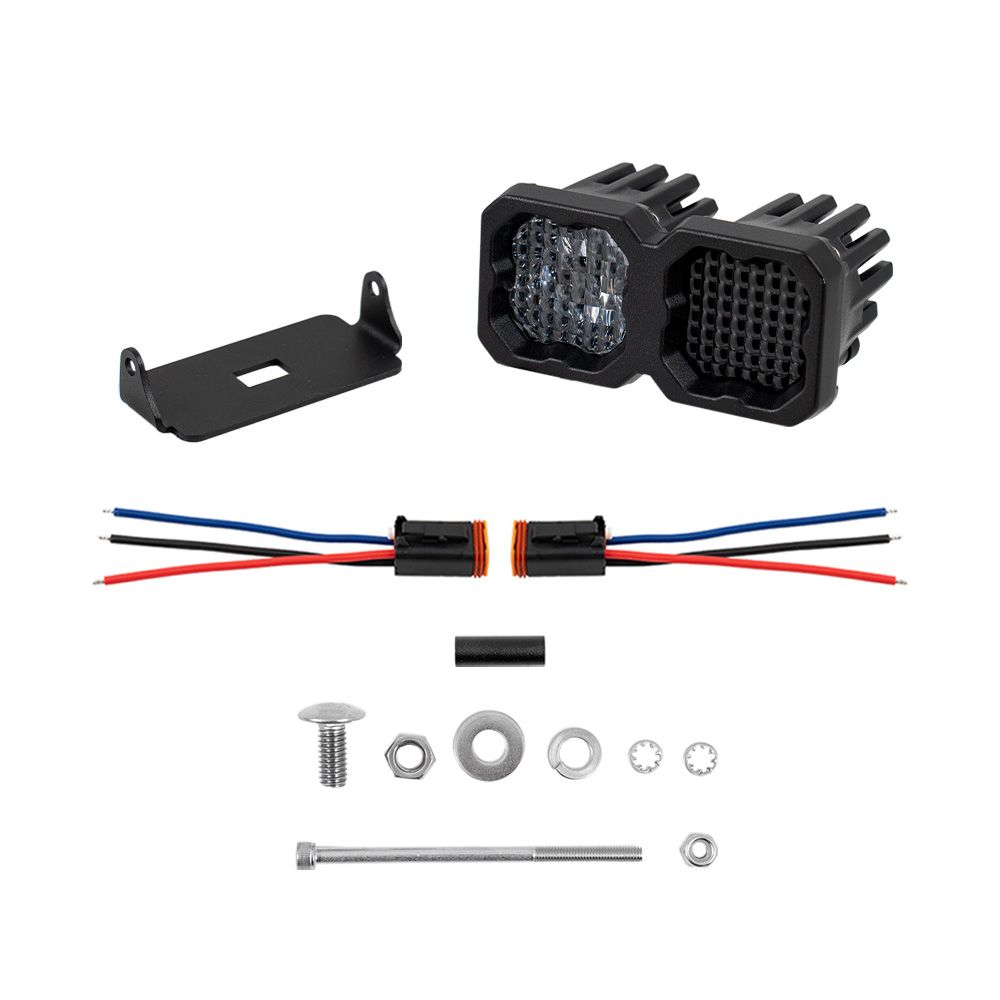

Included:
✔ 1x dual assembly with an 850nm infrared C1 pod and a white C1 pod in one bezel
✔ 1x U-bracket and mounting hardware
Features
Two Functions, One Assembly. The dual bezel brings a right-side IR pod and left-side visible-white pod together in a single assembly. It is distinct from a C1 pair, which uses two separate single-pod bezels. This layout supports builds that need both night vision illumination and conventional visible lighting.

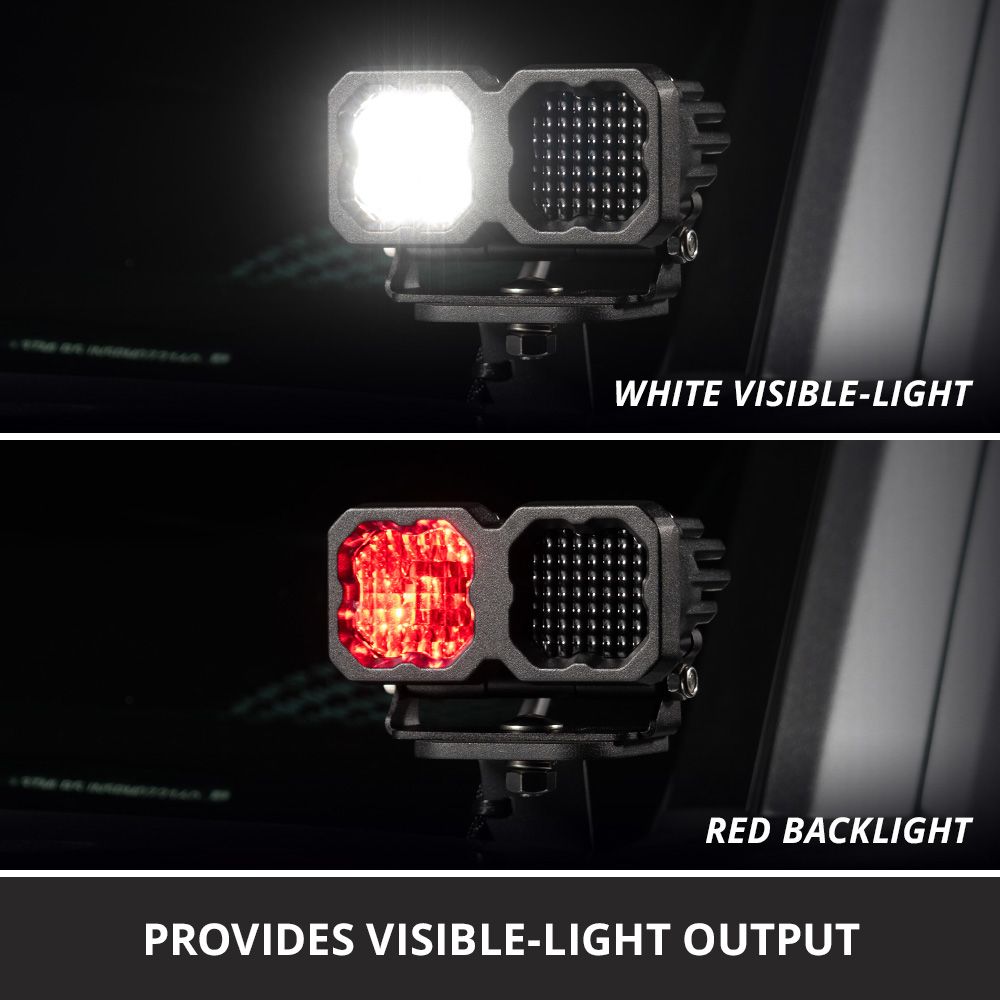

Purposeful Coverage. Both sides use the Wide pattern. The visible side provides Sport white output with a red backlight, while the IR side provides 850nm illumination with high and low modes. The red backlight belongs to the visible-light pod; it is not a separate color mode for the IR emitter.
Controlled Output. High and low IR modes provide control over illumination as the surroundings change. PWM and variable-voltage dimming allow further adjustment, helping you match the output to your equipment and the scene rather than relying on maximum output at all times.
Matched to Your Equipment. The IR side operates at 850nm and may show a faint red glow at the emitter. Confirm that your night vision equipment supports 850nm before selecting this light.
Built for Your Setup. The assembly operates on 9-16V systems. Plan wiring for both the IR and visible-light functions. One dual-bezel assembly with two C1 pods mounted side by side, not a pair of separately mounted lights. Mounting bracket and hardware are included.
Proven Reliability. Developed through military field testing, this purpose-built IR lighting platform brings proven application experience to your night vision setup. Made in USA with Global Materials.
Infrared Safety. Infrared output may not be visible to the naked eye. Do not look directly into an operating infrared light.
Experience. For more than 20 years, Diode Dynamics has developed high-performance lighting solutions for automotive enthusiasts, beginning in the rally community where dependable lighting is essential. Today, our products are engineered, tested, and assembled by our team in the United States, giving us direct control over performance, quality, and reliability. From a dedicated night vision setup to a versatile auxiliary lighting system, you can count on Diode Dynamics for purpose-built lighting.
Made in USA with Global Materials.
Specs
Measurement basis. High and low values describe the infrared operating modes. Values are reproduced from engineering data and are not multiplied for pairs.
Infrared side only. These values describe the infrared pod, not total electrical consumption or combined output of the dual assembly.
Measured Lumens: High: 0.9, Low: 0.6 mW Raw Lumens: High: 100, Low: 60 mW/sr Intensity (cd): High: 4.0, Low: 3.0 mW/sr Color Temp (CCT): 850nm Power (watts): High: 1.5, Low: 1.0 W Operating Voltage: 9-16V Current (amps @ 12.8V): High: 0.1, Low: 0.08 A LED Emitter: OSRAM IR Connector(s): DT 4-Pin Materials: Sabic Lexan 121R IR Filter Product Weight (lb): 1.2 Shipped Weight (lb): 1.2
