Description

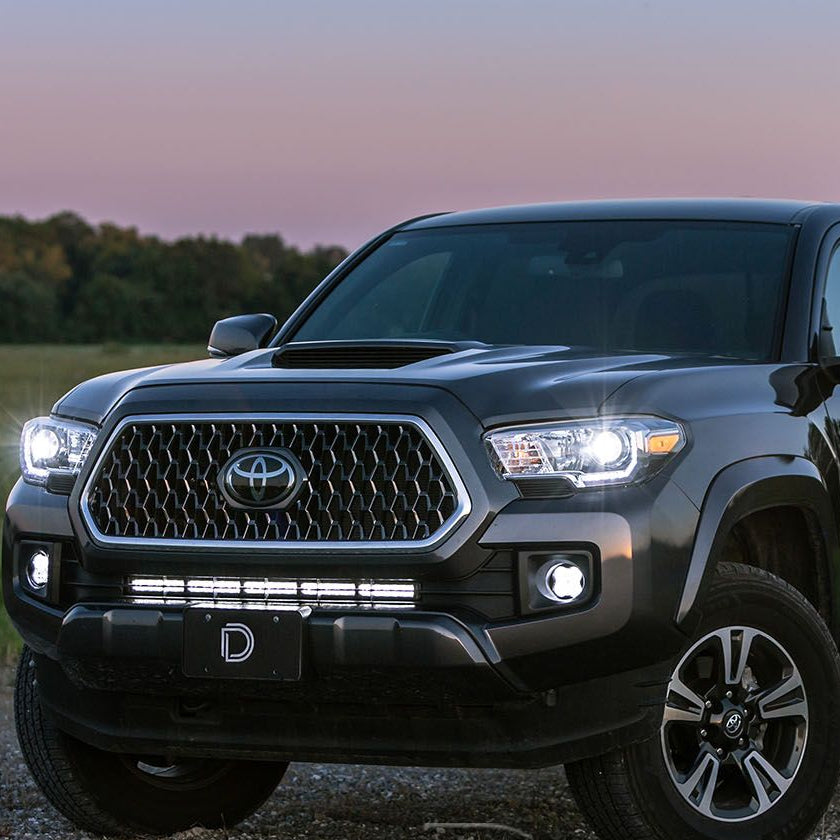

Upgrade the fog lights on your Toyota Tacoma with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included angled bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your Toyota Tacoma in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.
SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose cool white, selective yellow, or Dual-Color output to match your needs and the conditions.
When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Backlight Functionality. The Stage Series 3" LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

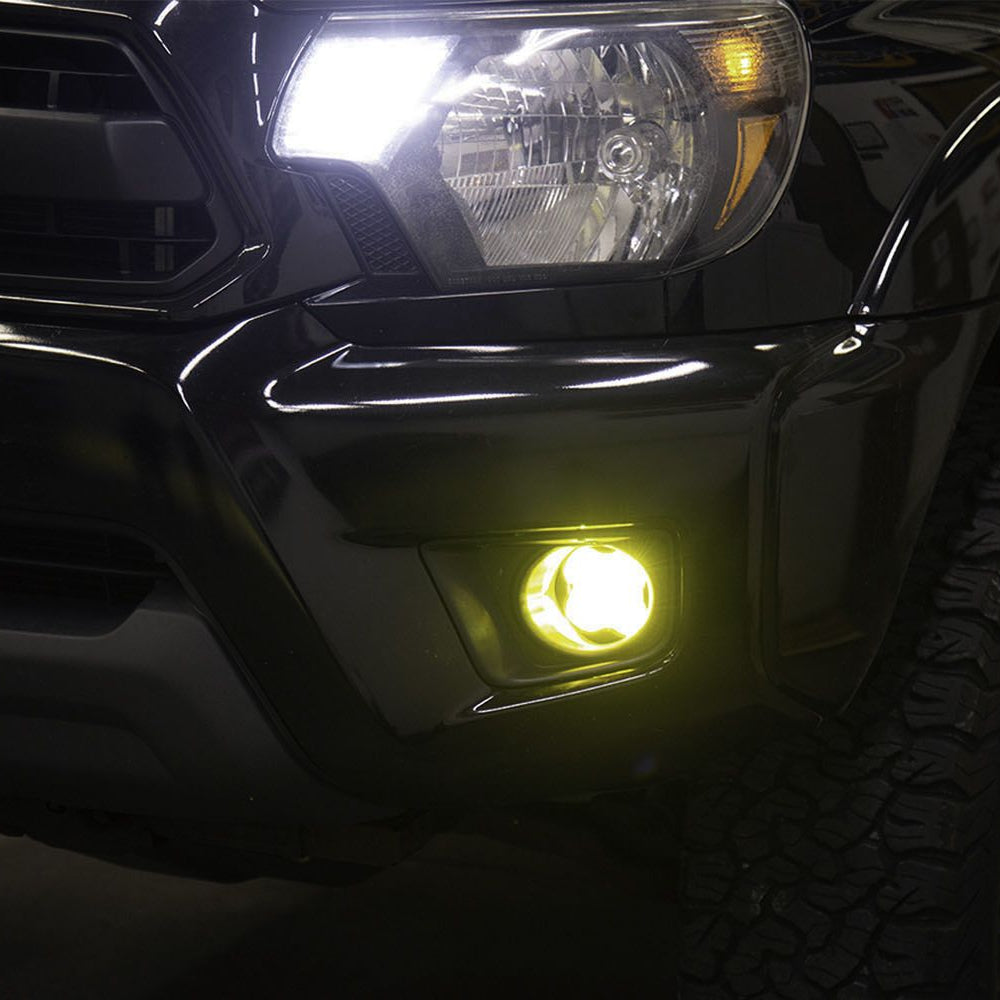

White, Yellow, or Dual-Color. Choose 6000K cool white, 3000K selective yellow, or the Dual-Color option. White provides a crisp, modern appearance, while selective yellow improves contrast in rain, snow, fog, and dust. The Dual-Color option combines both colors in one lamp and lets you select the output that best fits the conditions.
SmartSelect Dual-Color Control. The Dual-Color option lets you switch the main beam between 6000K cool white and 3000K selective yellow using the factory fog light switch, with no extra switch required. To enter programming mode, cycle the fog lights On and Off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two full cycles, the lamps return to white as the factory setting.
Consistent Fog Pattern. On the Dual-Color option, both white and yellow use the same focused SAE fog pattern, so changing color does not change the beam shape or aiming.
Multiple Power Levels. Stage Series LED pods are available in several power levels to suit your needs. Sport provides dependable performance and is a great entry-level upgrade. Dual-Color delivers output between Sport and Pro, with selectable white and yellow SAE fog output in a single lamp. Pro steps up the intensity for greater visibility, while Max delivers the highest output available for those seeking maximum performance.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Toyota or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
Included:
✔ Two (2) SS3 3” Angled LED Pods
✔ Two (2) Type B brackets
✔ Two (2) H11 4-pin DT backlight tap wires
✔ Mounting hardware
✔ Mounting guide
Quantity: Two (2)
Fitment: 2016-2023 Toyota Tacoma
Please Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, you can utilize our standalone wiring harness, which gets power from the battery and utilizes an included on/off switch.
Features
Direct replacement for Toyota Tacoma fog lamps
SAE-compliant road-legal output
Includes angled bezel, for factory-style appearance
Plug and play, no modification needed
Advanced TIR optics provide high efficiency and focus
Durable powdercoated aluminum die-cast
Engineered and Assembled in USA
Specs
Dual-Color Main Beam Power (watts): 20
Dual-Color Main Beam Current (amps @ 13.2V): 1.5
Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Backlight Power (watts): 0.4
Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
Backlight Current (amps @ 12.8V): 0.03
Operating Voltage: 9-30V
Beam Angle: Fog, 80°x8°
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX, Dual-Color
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 0.56
Product Weight (lb): 0.81
Warranty
Limited Lifetime Warranty
