Description
Chromoly Rear Link Kit
Our rear links feature urethane bushings that offer better on and off-road control and handling. TC lower links are stronger than stock and more capable of hard impacts on the trail. This kit allows you to firm up the ride and reduce some of the flex and vibration that is common with the factory rubber bushings.

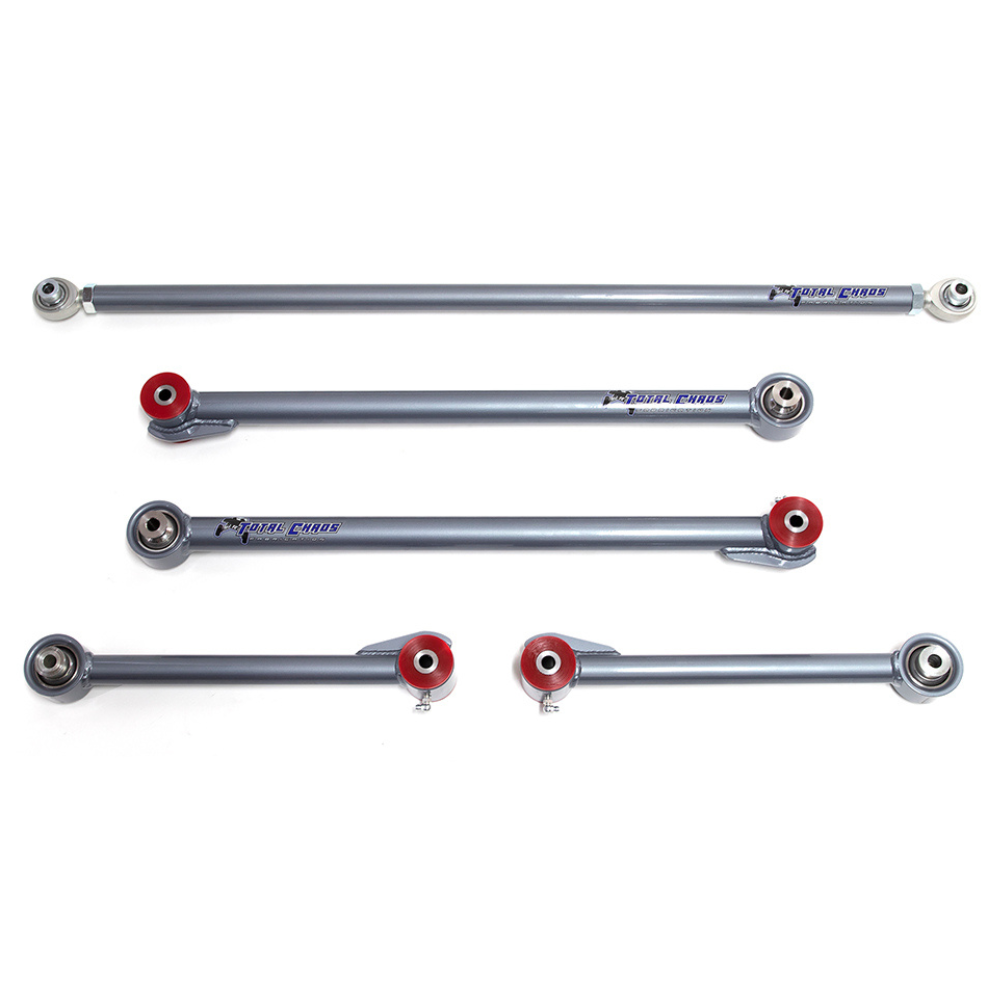

Included :
✔ Upper Link x 2 [88451]
✔ Lower Link x 2 [88452]
✔ Panhard x 1 [88453]
✔ Inner Sleeve – Long x 2 [68605]
✔ Inner Sleeve – Short x 2 [69708]
✔ Bushing – Urethane Half x 6 [60684]
✔ Bushing – Urethane Full x 2 [60292]
✔ Heim Spacer: Upper Link x 4 [99875]
✔ Spacer – 1’’ 9/16’’ Hi-Misalignment x 4 [100916]
✔ Heim Spacer: Panhard x 4 [99877]
✔ Heim – RHT 7/8’’ – 14 RHT JAM (Zinc) x 2 [11378]
✔ Nut – 7/8’’ – 14 RHT JAM (Zinc) x 2 [11378]
✔ 1’’ Uniball (Stainless) w/ PTFE Liner x 4 [FK-WSSX16T-1]
Fitment: 2024+ Toyota Tacoma | 2023+ Sequoia | 2022+ Toyota Tundra
Features
100% bolt on.
Lower links are constructed from 1.5".188 wall 4130 chromoly tubing for maximum strength and feature 1" stainless steel uniballs and urethane bushings.
Upper links are constructed from 1.25" x .156 wall 4130 chromoly tubing with 1" uniballs and urethane bushings.
Panhard bar is constructed from 1.25" x .250 wall 4130 chromoly tubing and uses 7/8" chromoly rod ends and can be adjusted if needed.
Uppers and lowers include greaseable urethane pivot bushings. Link kit is fully rebuildable.
Capable of more wheel travel with extended shocks.
Hi-misalignment spacers included, re-uses factory mounting hardware.
3 stage powder coat process includes clear coat for long lasting finish.
Disclaimer
Warranty
➜ TOTAL CHAOS Fabrication Inc. products are warranted to be free from defects in workmanship and materials. This warranty is extended to the original purchaser only and does not apply to wear items or components, and if damages are caused through abuse, negligence, improper repairs, inadequate fit, modifications and alterations or if used other than the manner it was designed or intended. TOTAL CHAOS Fabrication Inc. makes no other express warranties or guarantees. Products will only be warranted within 30 days of original purchase date and must be accompanied with the original purchase receipt.
