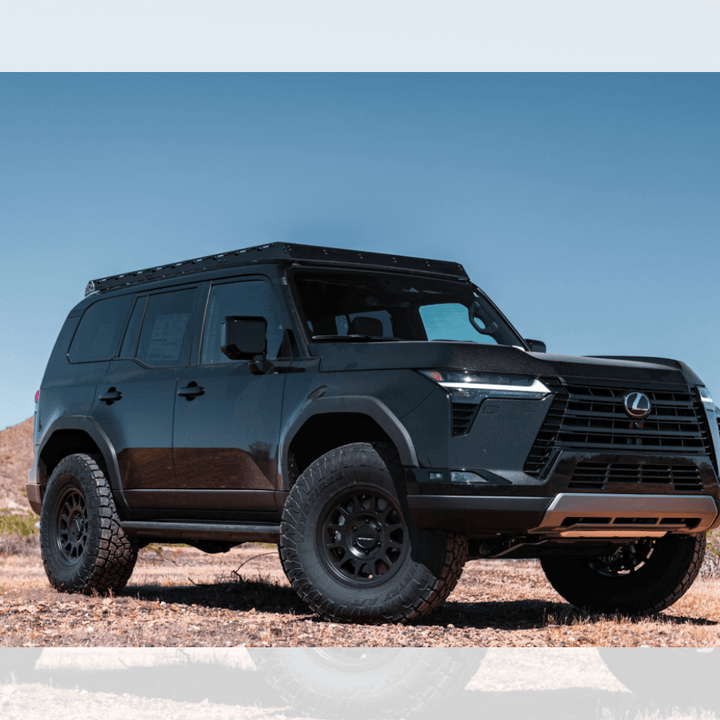

Check out the 2024-2026 Lexus GX 550 Preload Lift Kit from Westcott Designs!

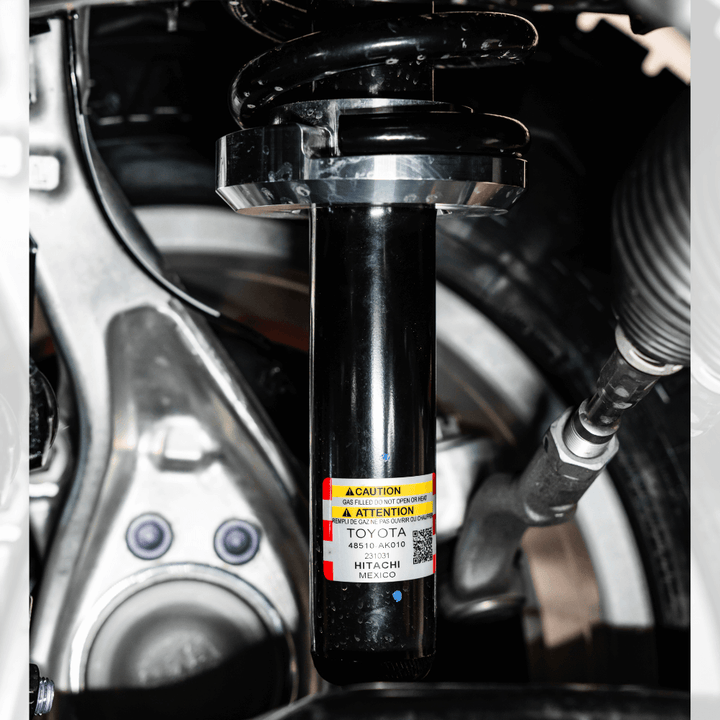

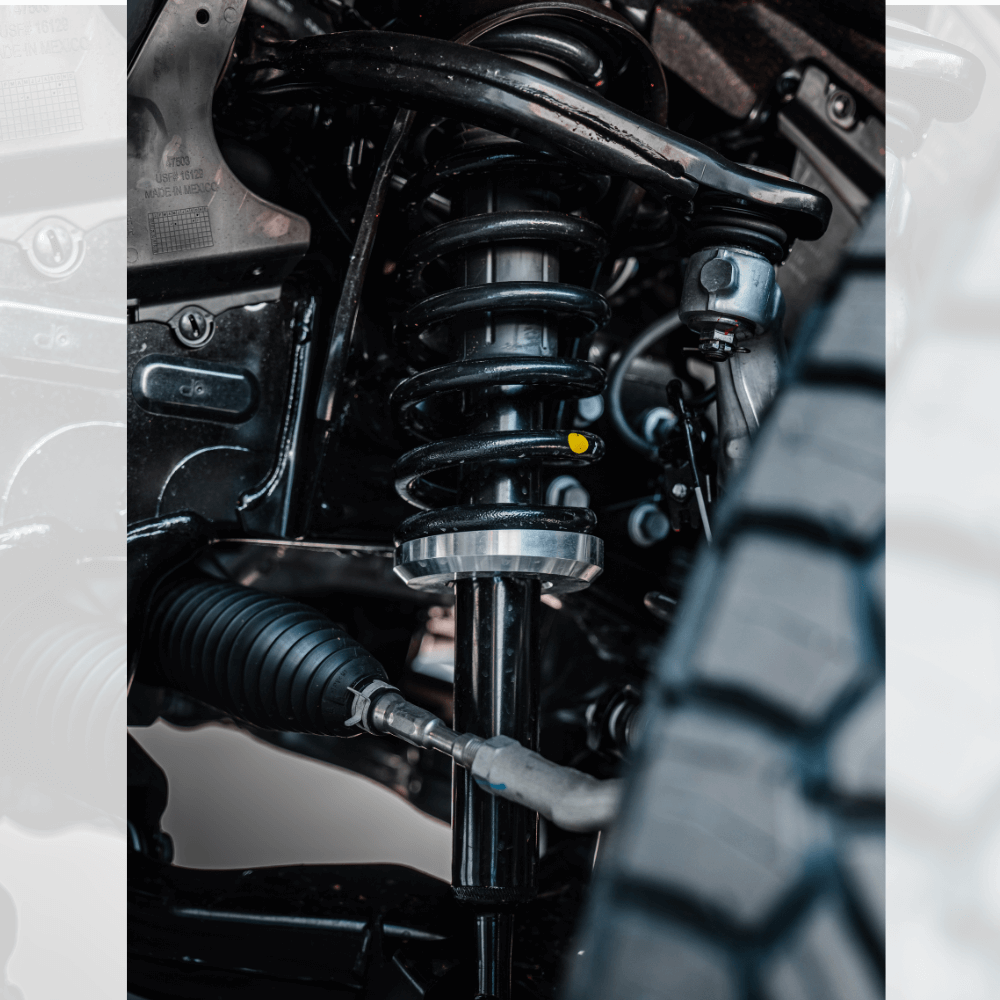

This kit features all new CNC machined components and are available in both raw aluminum and hard black anodized finishes for that true “like factory” look. This kit gives you 2.50” of lift in the front and .75” in the rear using your factory shocks and springs and includes complete hardware for an easy install. This is NOT your traditional spacer lift kit, you retain your factory ride quality, factory suspension geometry and still able to align the vehicle to factory specs after install. It does NOT require new UCA’s, and you can run up to a 35” tire with a 17×8.5+35 MM offset.
These kits along with all Westcott products have been designed and built here in house Phoenix, AZ in the great USA!

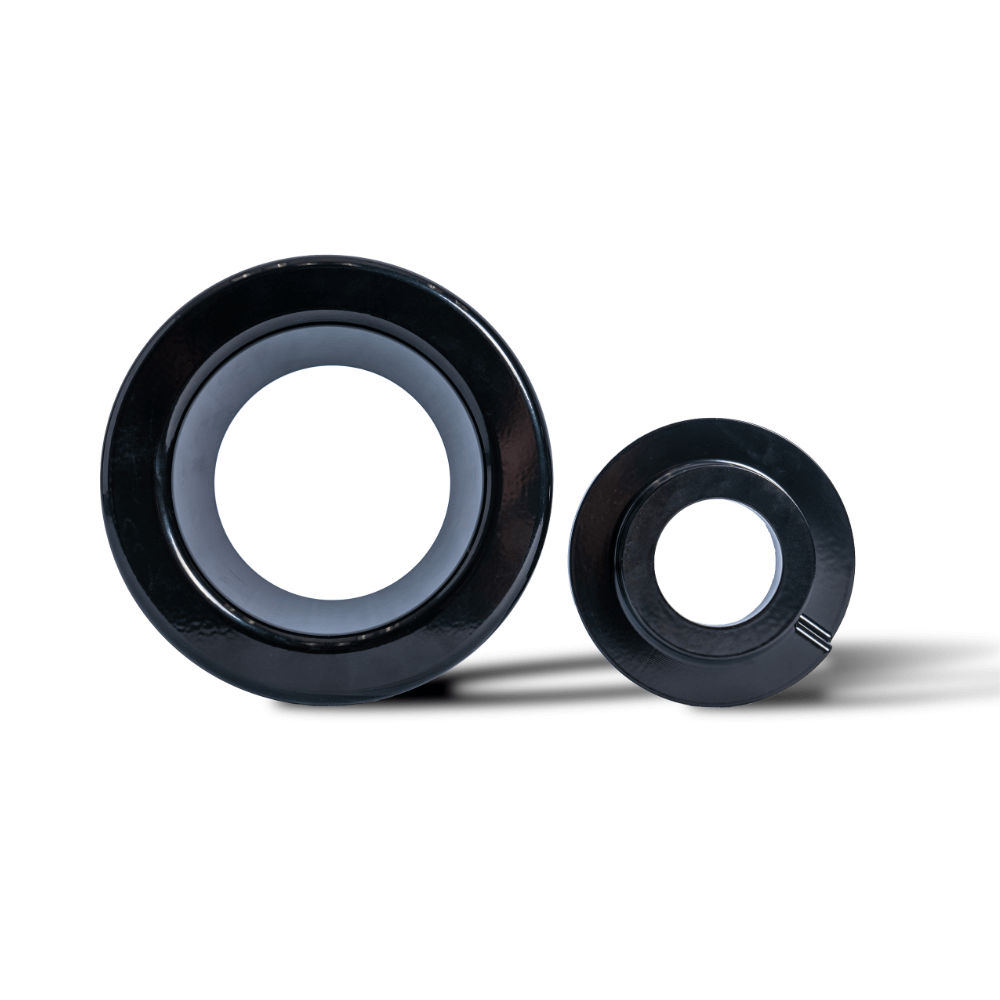

Included:
✔ Overtrail & Overtrail+
- One-inch rear pucks
- Two lower preload collars
✔ Luxury & Luxury+ | Premium & Premium+
- One-inch rear pucks
- Two lower preload collars
- 1/2″ Top Spacer
Fitment:
✔ 2024+ Lexus GX550
✔ This lift kit works on all 2026 GX550’s including the new Overtrail & Overtrail + models!
Please Note:
➜ Patent Pending
➜ No shocks are included with any preload collar lift kits
Weight: 15 lbs
Dimensions: 12 × 10 × 8 in
Alignment Specification
| Camber | Caster | Toe |
| 0.2–0.4° positive camber | 0.4° split with higher on right | 0.1° toe out on each side (total 0.2° toe out) |

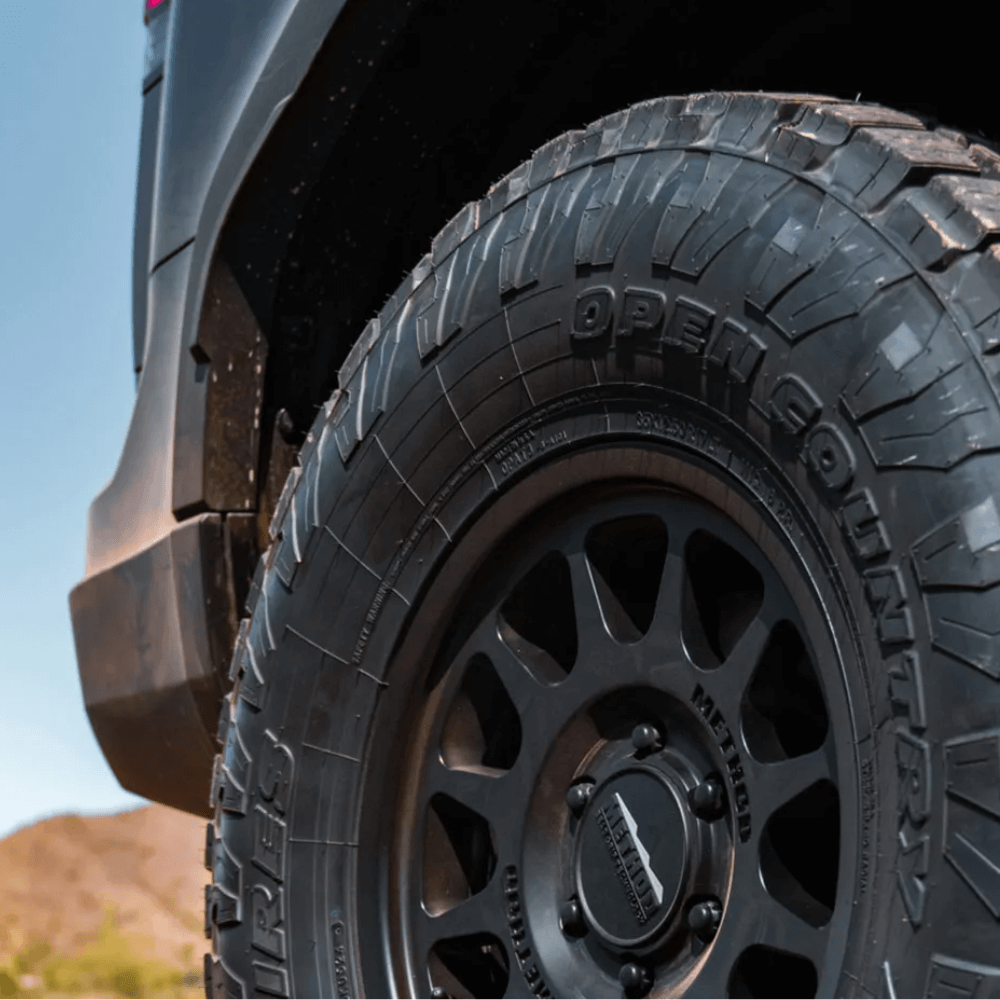

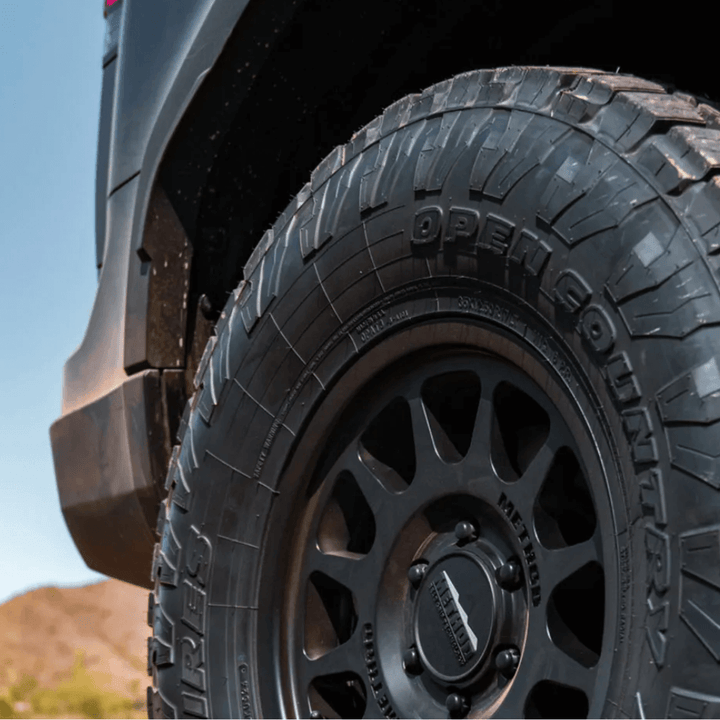

Wheel & Tire Fitment
| Size | Offset | Tire Size / Notes |
| 17x8.5 | +35 | 35x12.50x17 — Remove rear "Safety" Bracket, push liner forward |
| 17x8.5 | +25 | 285/75R17 — Remove rear "Safety" Bracket, push liner forward |
| 18x8.5 | +40 | 35x12.50x18 — Remove rear "Safety" Bracket, push liner forward |
| 18x9 | +18 to +20 | 295/70R18 — Minimal trimming of front plastics may be required, remove rear "Safety" Bracket, push liner forward |
| 20x9 | +18 to +20 | 285/65R20, 295/60R20 — Minimal trimming of front plastics may be required, remove rear "Safety" Bracket, push liner forward |
| 22x9.5 | +30 | 285/55R22 — Trimming necessary for fitment, remove rear "Safety" Bracket, push liner forward |
Note: More aggressive tires or incorrect alignment can cause variance and may require additional trimming.
Limited Lifetime Warranty
Westcott Designs, Inc. warrants that its products will be free from defects in materials and workmanship for so long as the original purchaser owns the product, subject to the exceptions set forth, PROVIDED THAT SUCH PRODUCTS WERE properly installed in accordance with our installation instructions.
Powder Coat Coverage
Our powder coat products and services are warranted from the date of purchase by the original purchaser for 1 year.
