OnX6 Straight Dual Control LED Light Bar
OnX6 Straight Dual Control LED Light Bar
OnX6 Straight Dual Control LED Light Bar

OnX6 Straight Dual Control LED Light Bar

Regular price$1,184.95
Shipping calculated at checkout.

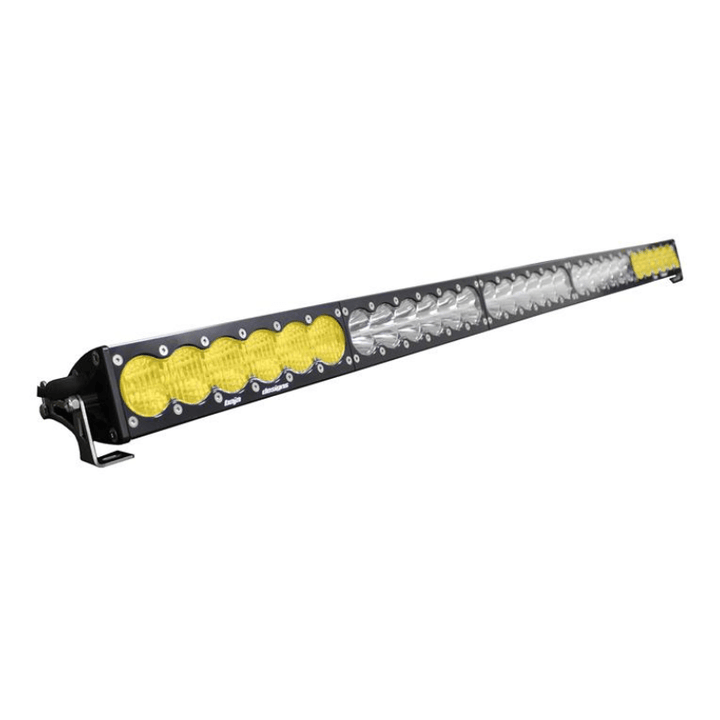

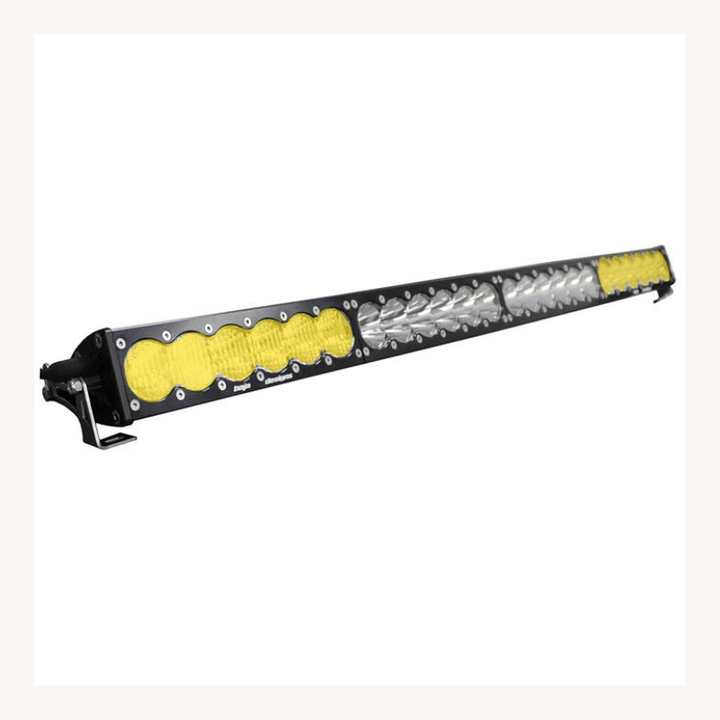

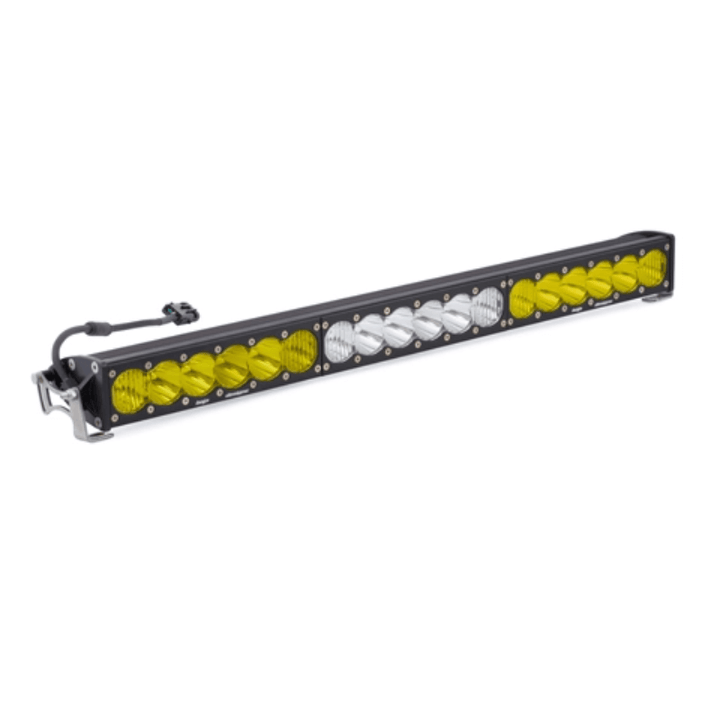

Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light.

The wide/cornering pattern used on the OnX6 Dual Control provides a dedicated zone 1/2 option for near-field visibility while the spot lens also adds dedicated distance for zone 3/4 lighting. This combination allows drivers to use one light for multiple lighting zones.

The latest generation of the OnX series is brighter, bolder, and better so you have visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power, eliminate flickering, and protect your vehicle’s wiring system.

The OnX6 Dual Control LED Light Bar is BRIGHTER, BOLDER, BETTER.


ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color


OnX6 Straight Dual Control LED Light Bar 30 Inch / 40 Inch / 50 Inch Specifications
Amperage Rating (A): 21.7 (High); 17.1 (Low) / 26.8 (High); 22.4 (Low) / 28.2 (High)
Average Rated Life (hr.): 49,930
Beam Pattern: Driving/Combo
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 28,938 (High); 23,150 (Low) / 39,220 (high); 32,760 (Low) / 39,910 (high)
Description: Straight; Driving/Combo; Amber/Clear
Housing Color: Black
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color: Amber/Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam
Lighting Quantity: 18 / 24 / 30
Lighting Type: LED
Lighting Technology: Forward Projecting
Mounting Hardware Description: Mounting Brackets
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: OnX6+ 30 Inch / 40 Inch / 50 Inch LED Light Bar
Universal or Specific: Universal
Wiring Harness Included: No
Depth (in.): 4.29
Height (in.): 2.69
Length (in.): 30 / 40 / 50
Weight (lbs.): 11.45 / 15.05 / 18.65

Standards & Compliance
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)


Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
