MAXTRAX MKII Mounting Pins
MAXTRAX Mounting Pins are the easiest, safest, and most-secure way to mount your genuine MAXTRAX Recovery Boards. Because of the unique design of our patented Keyhole, our Mounting Pins (both 40mm and 17mm) can carry either one or two sets of MAXTRAX (two or four boards) and their M10 stainless bolt has a provision for a small TSA-style padlock. Two individual rotating Nylon “keys” allow you to securely restrain your MAXTRAX while the primary component remains stationary, attached to your roof or bed rack, or custom mounting application.

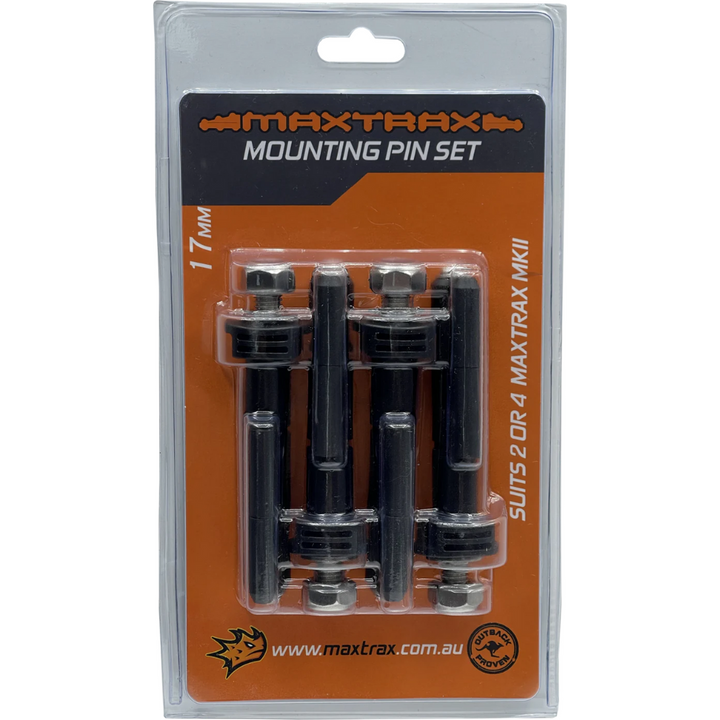

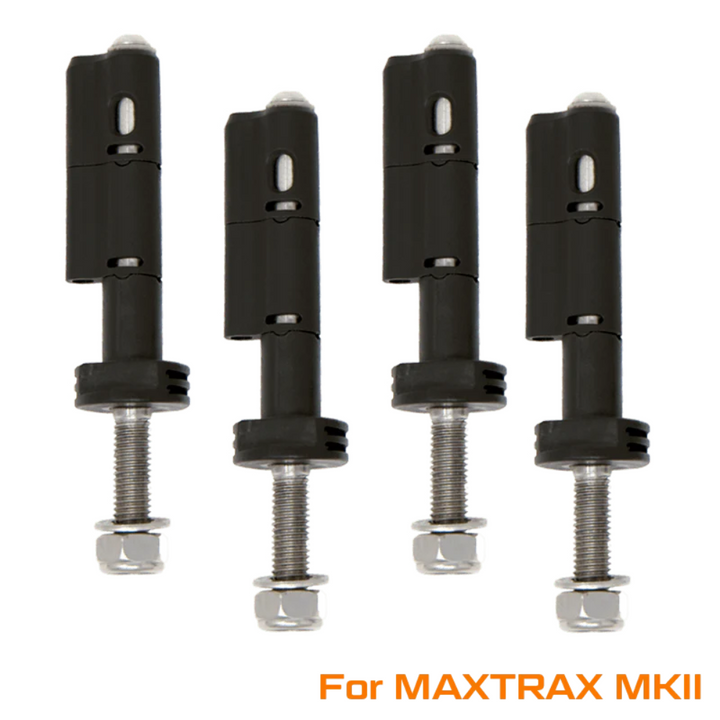

Sold in a set of four, enough to mount one or two sets of MAXTRAX (two or four boards total).
Please Note: Antiseize recommended on install.
Genuine MAXTRAX Mounting Pins are the easiest, safest, and most secure mounting solution for putting your MAXTRAX on a roof rack or cross-bars. Constructed from high-quality black nylon and stainless steel, these quick-release pins can hold one or two sets of MAXTRAX (2 or 4 boards).
Top roof rack manufacturers, including Rhino Rack, Eezi-Awn, Front Runner, and more, make a reciprocal bracket that allows for a bolt-on roof rack mounting solution.Designed exclusively for MAXTRAX MKII—these cannot be used with any other brands.
The design also permits a TSA-style padlock to be run through the top of the pin to keep your MAXTRAX secure—we recommend a bicycle cable lock if your security requirements exceed this.
Weight: 3.5 oz (per pin)
Dimensions: 12 x 10 x 2 in

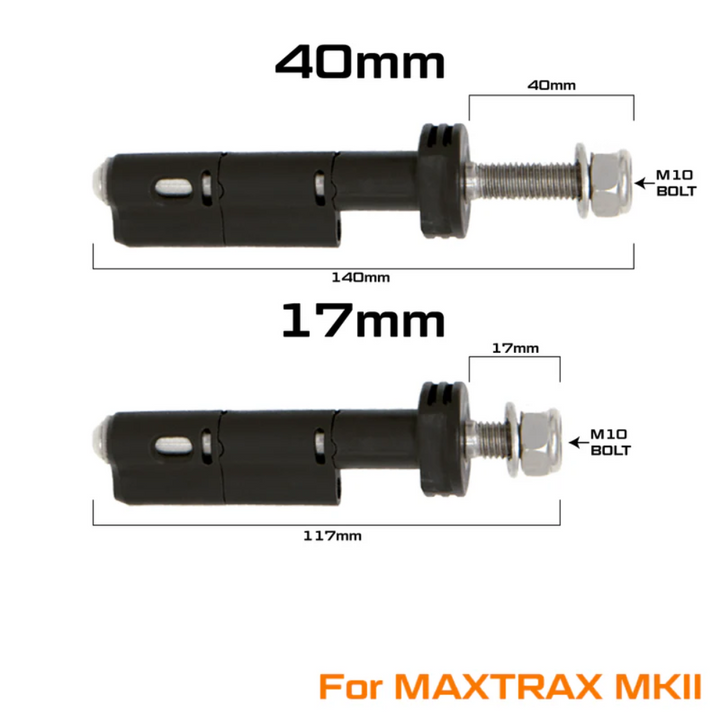

Size: 5.5 inches long including an inch-and-a-half shaft of 10mm diameter thread that can be cut to length if required. SS Nylock nuts & flat washers are included.
