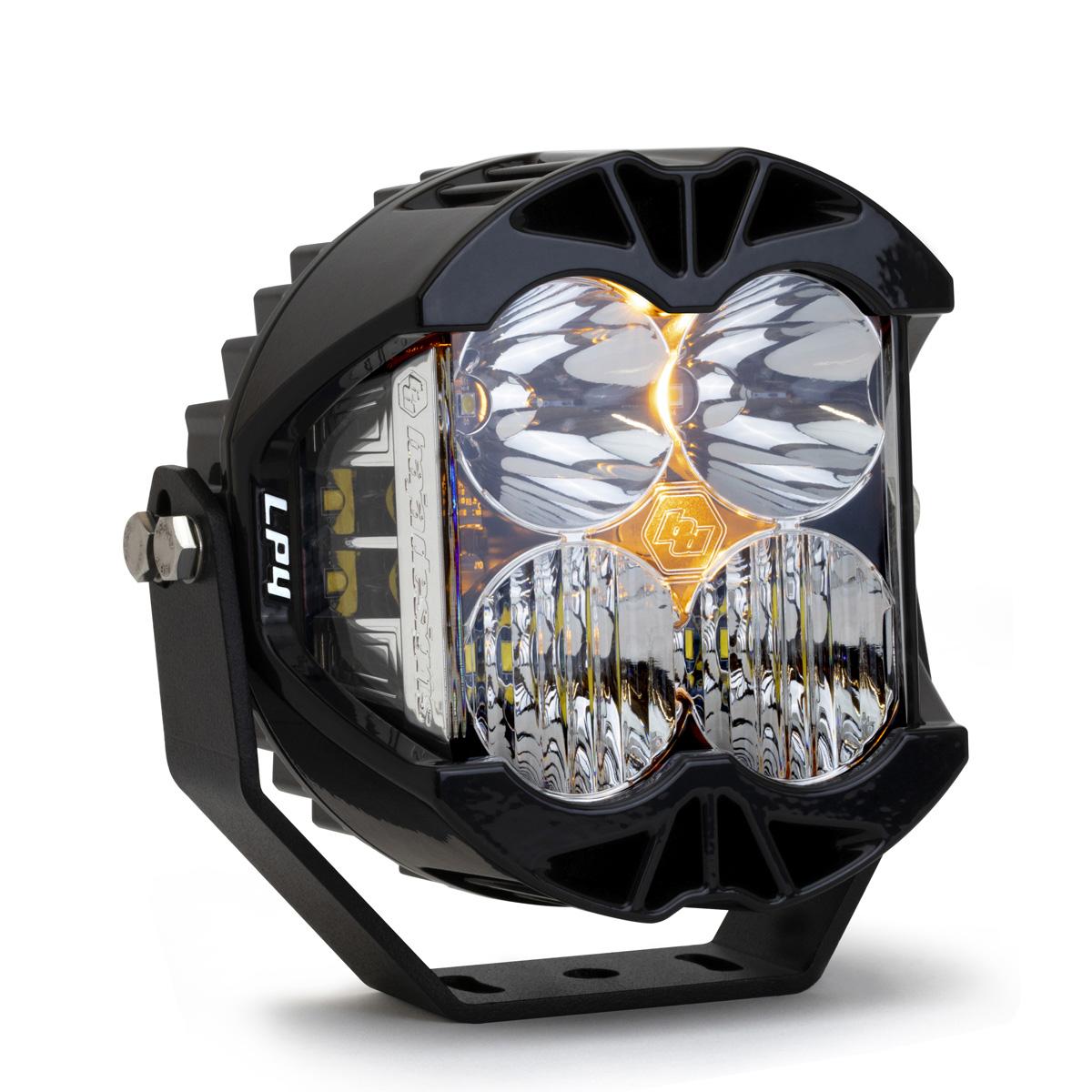

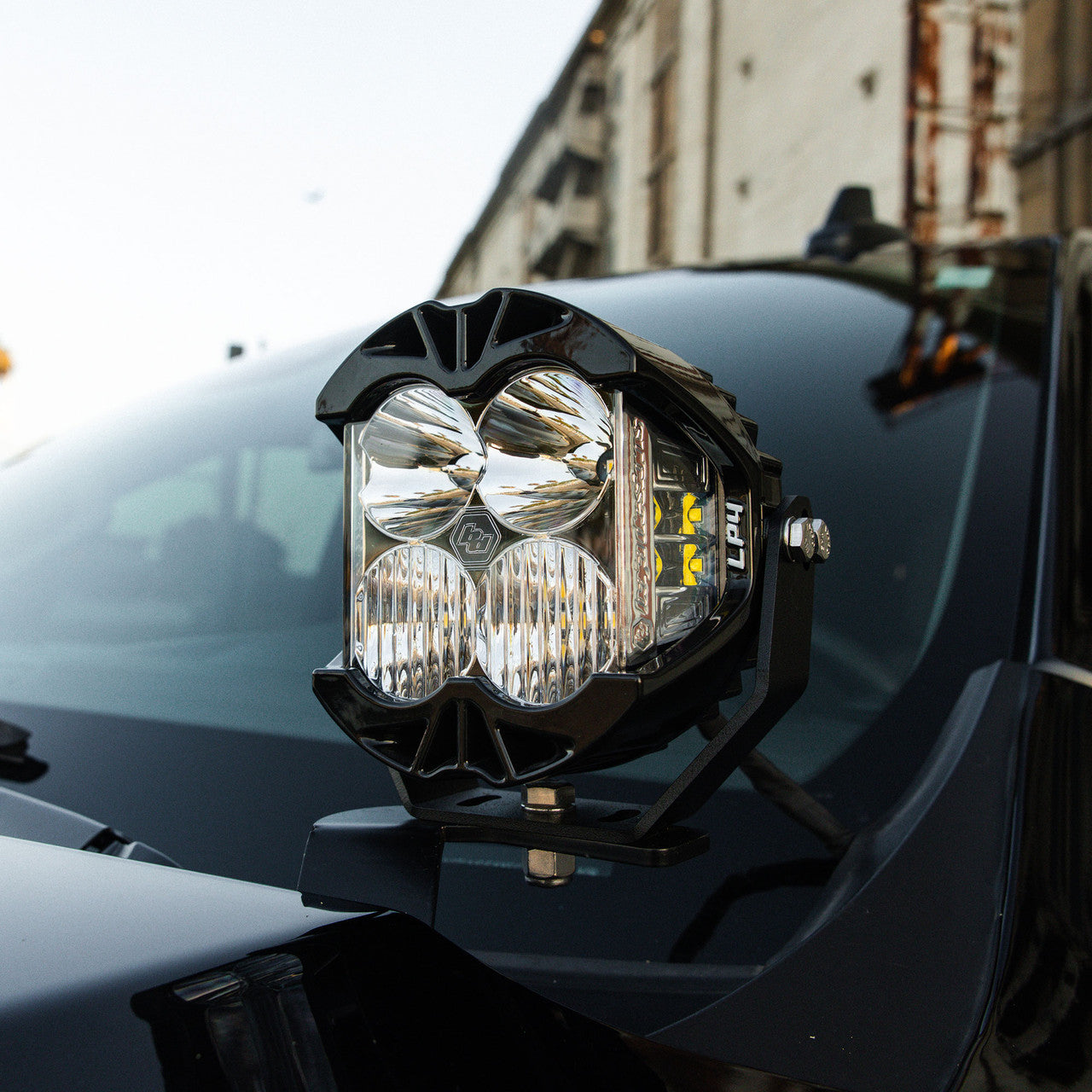

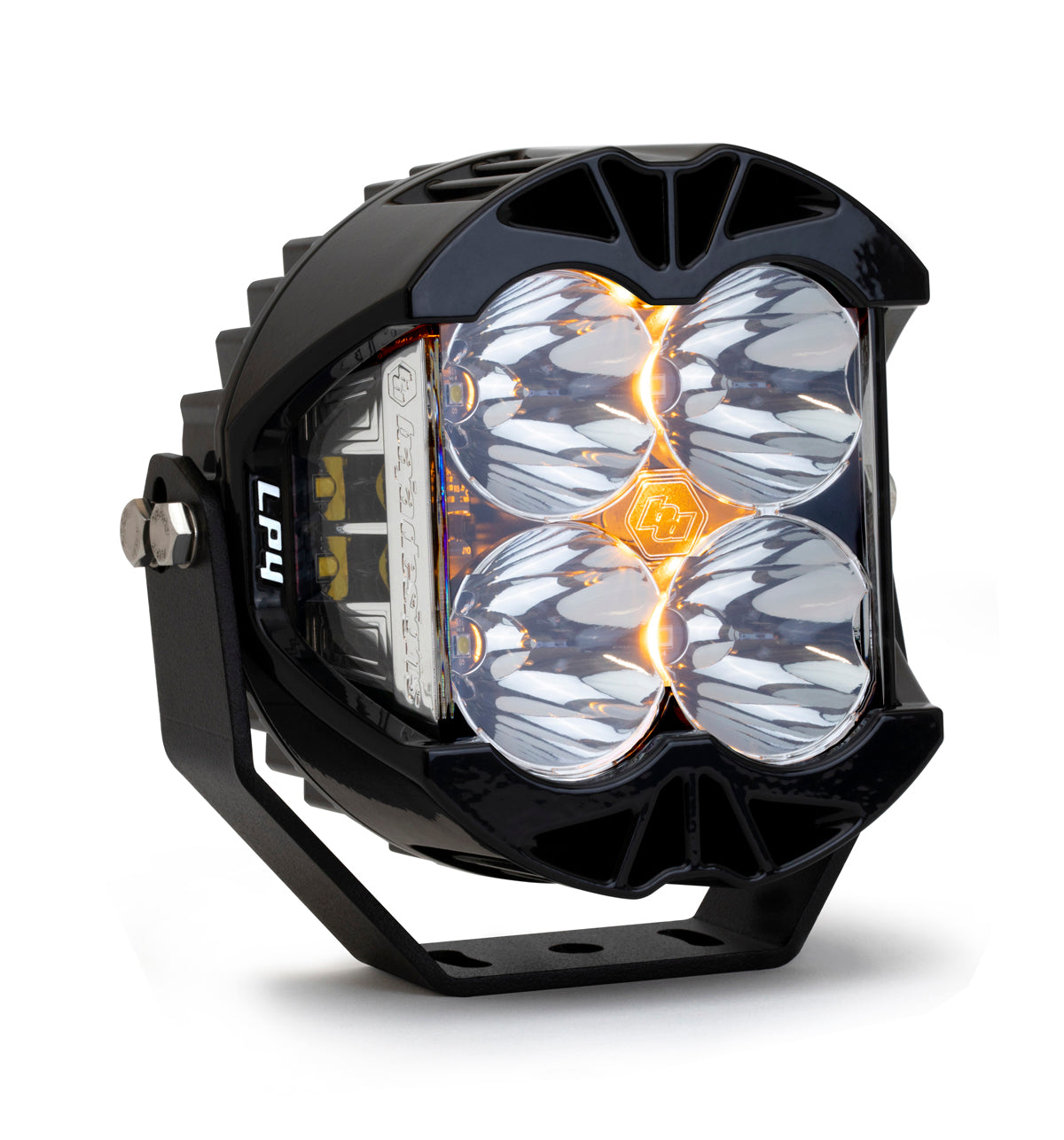

LP4 Pro LED Auxiliary Light Pod
CURRENT ESTIMATED LEAD TIME IS 4-6 WEEKS
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200-degree spread of usable LED light. This light pumps out 7,050 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

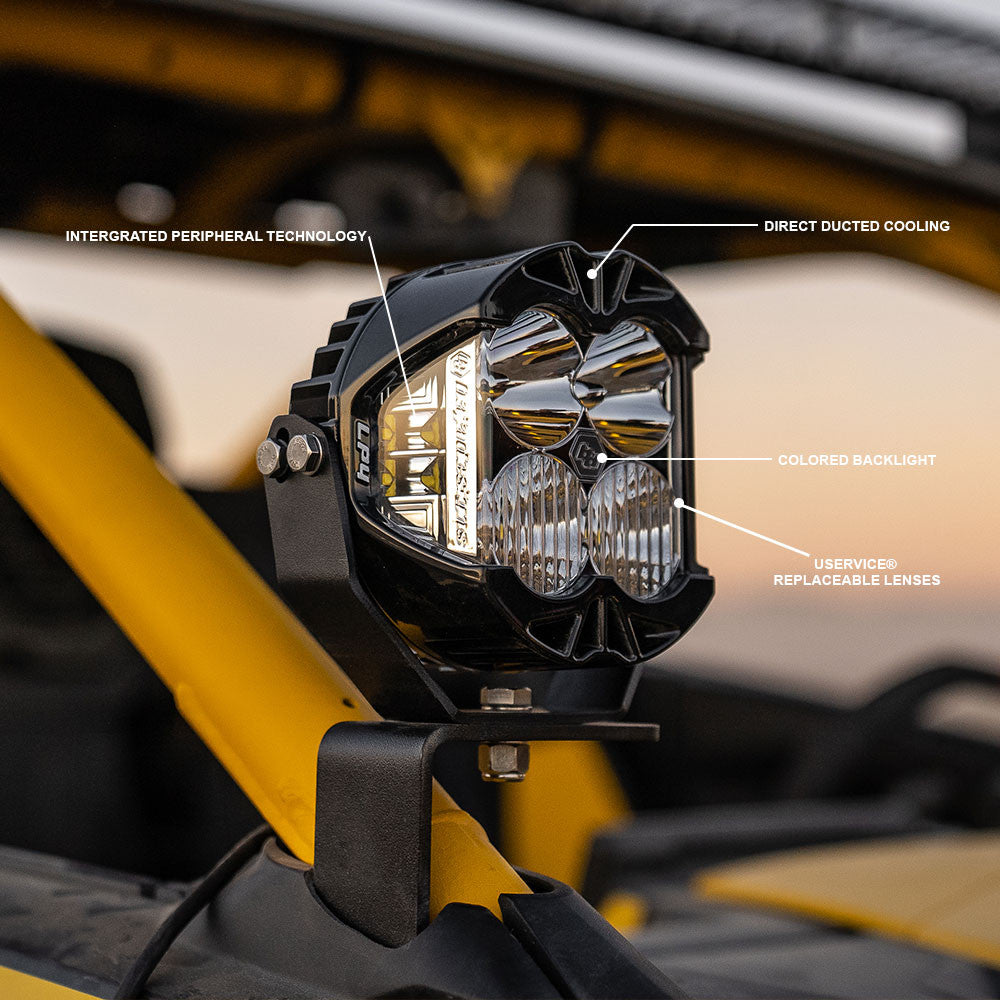

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 easily fulfills all your lighting needs.
Choose the pattern to suit your needs:

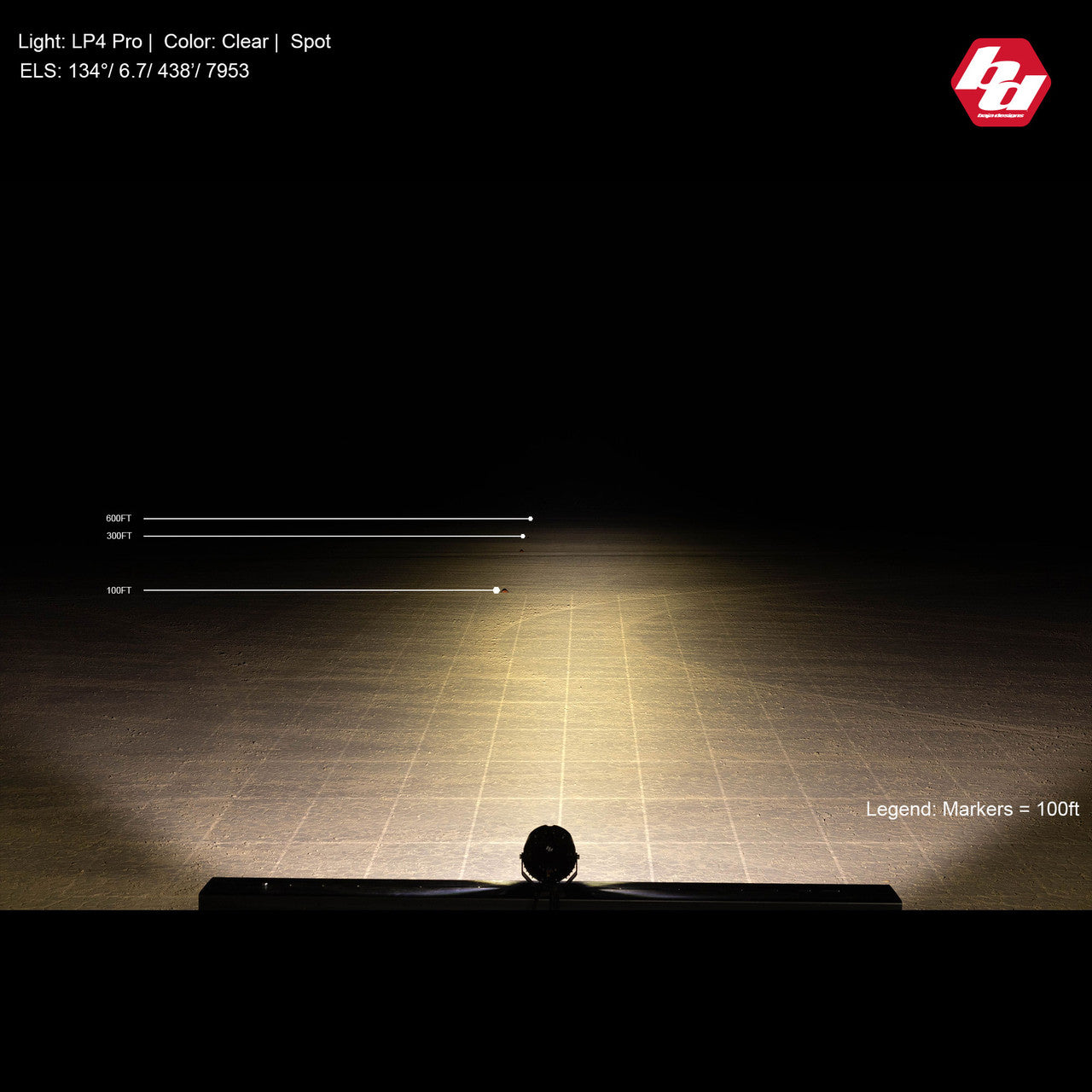

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

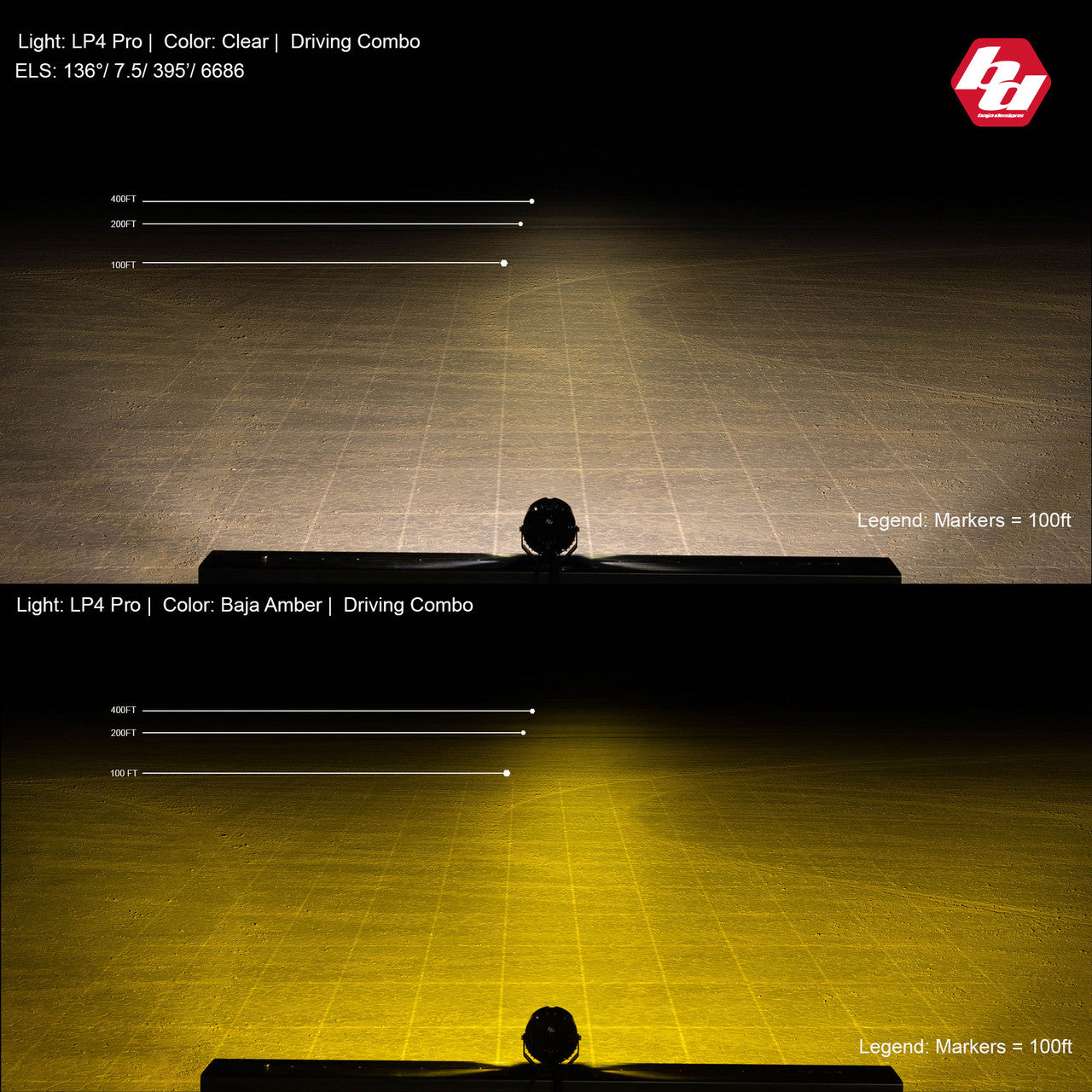

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).
Features
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specs
Amperage Rating (A): 5.500
Average Rated Life (hr.): 49,930
Backlight Amperage Rating (A): 0.350
Backlight Wattage (W): 4.830
Beam Pattern: Spot | Combo-Driving
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 8857
Housing Color: Black
Housing Material: Hard Anodized Machined Aluminum

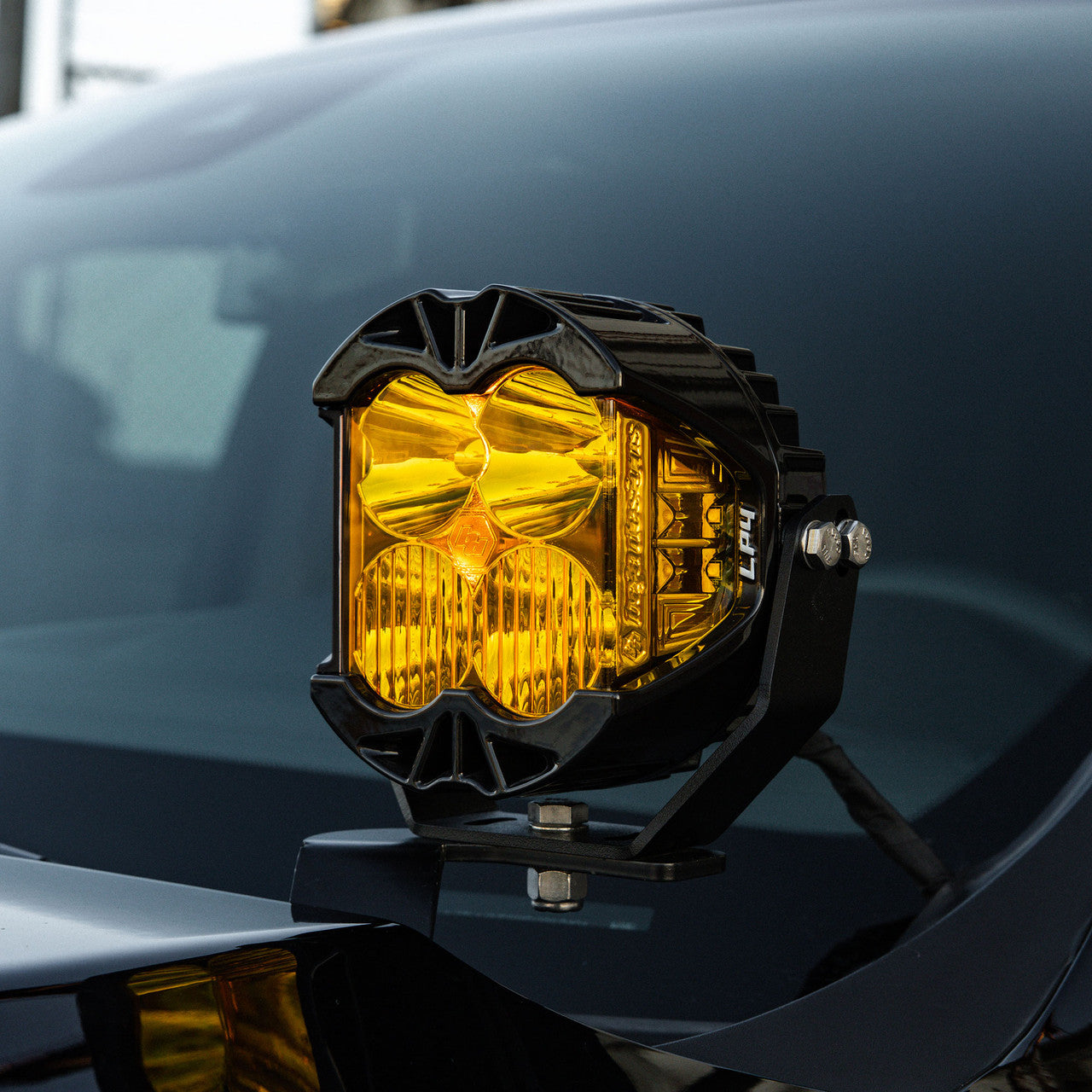

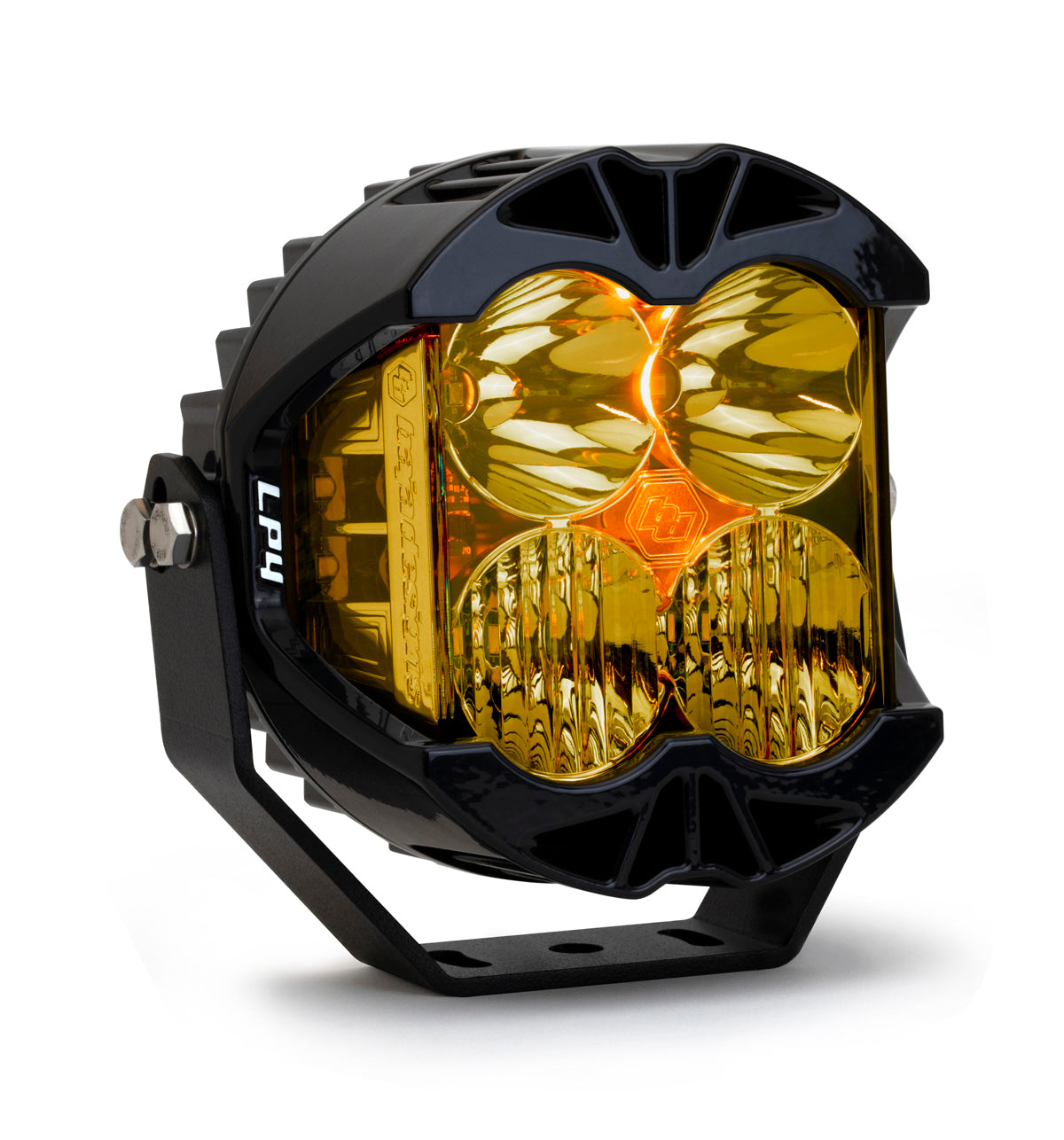

Lens Color: Clear | Amber
Lens Material: Hardcoated Polycarbonate

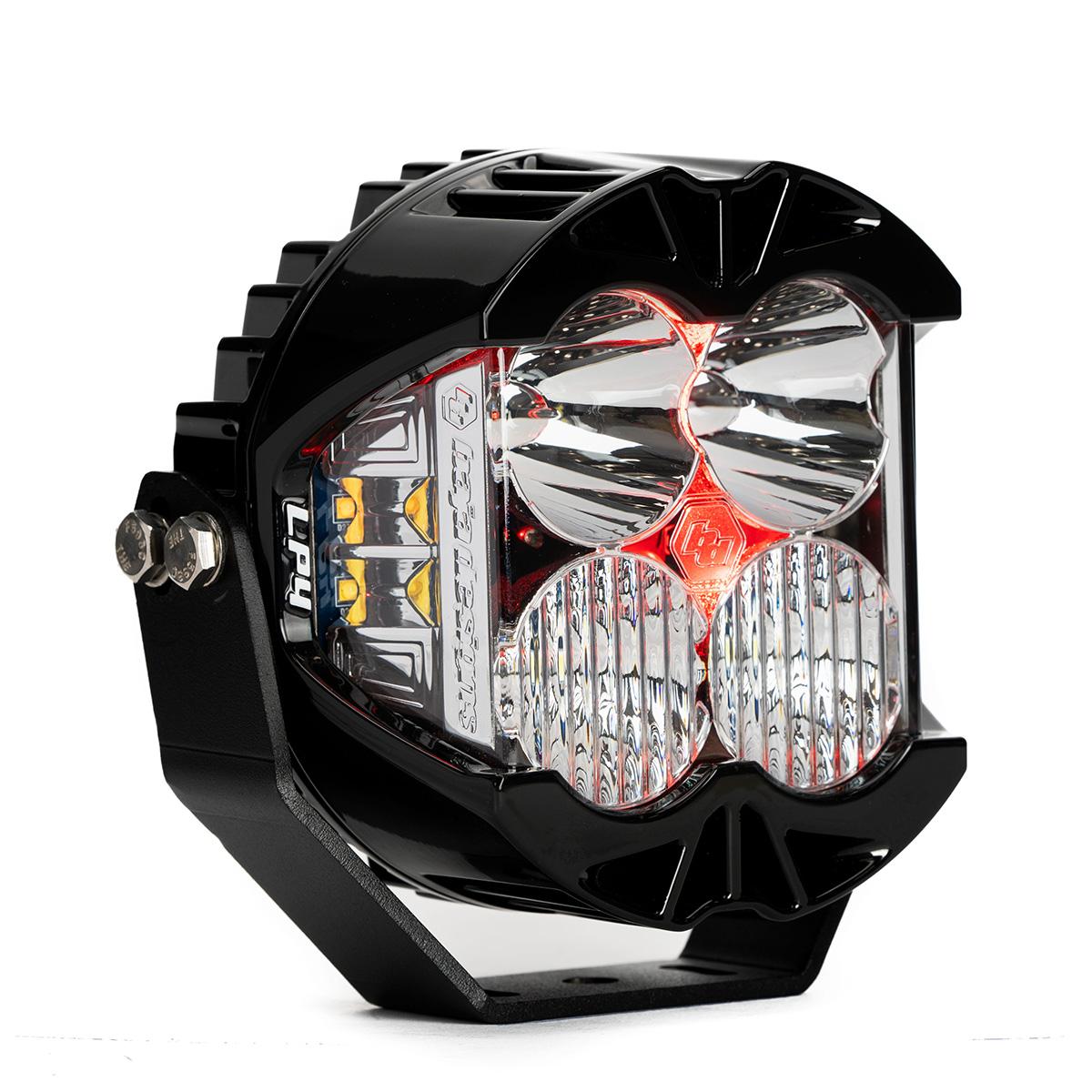

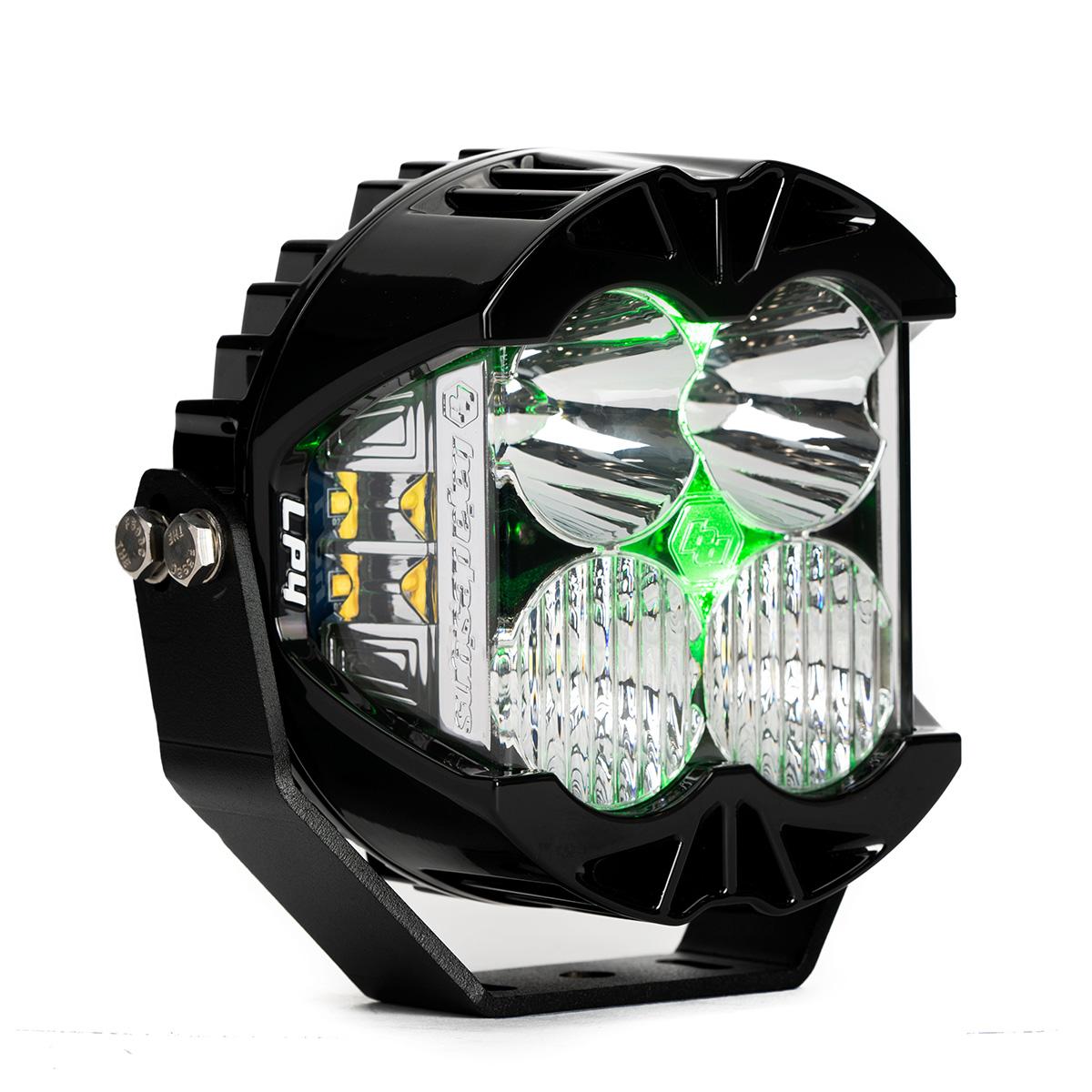

Lighting Modes: Beam/Day-Time Running Backlighting
Lighting Quantity: 4
Lighting Type: LED
Lighting Technology: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: LP4 Pro LED Light Pod
Secondary Amperage Rating (A): 1.000
Secondary Brightness (Lumens): 1972
Secondary Light Quantity: 4 LEDs
Secondary Lighting Type: LED
Secondary Lighting Technology: Integrated Peripheral Technology (IPT)
Secondary Wattage (W): 15
Terminal Connector: DT06-4S Deutsch
Terminal Type: Mating Connector
Universal or Specific: Universal
Wattage (W): 75.900
Wiring Harness Included: No (Single) | Yes (Pair)
Dimensions:
Depth (in.) 3.2
Height (in.) 5.1
Length (in.) 5.1
Weight (lb.) 2.8
Standards & Compliance:
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Warranty
Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
