Guessing the best beam pattern is over!

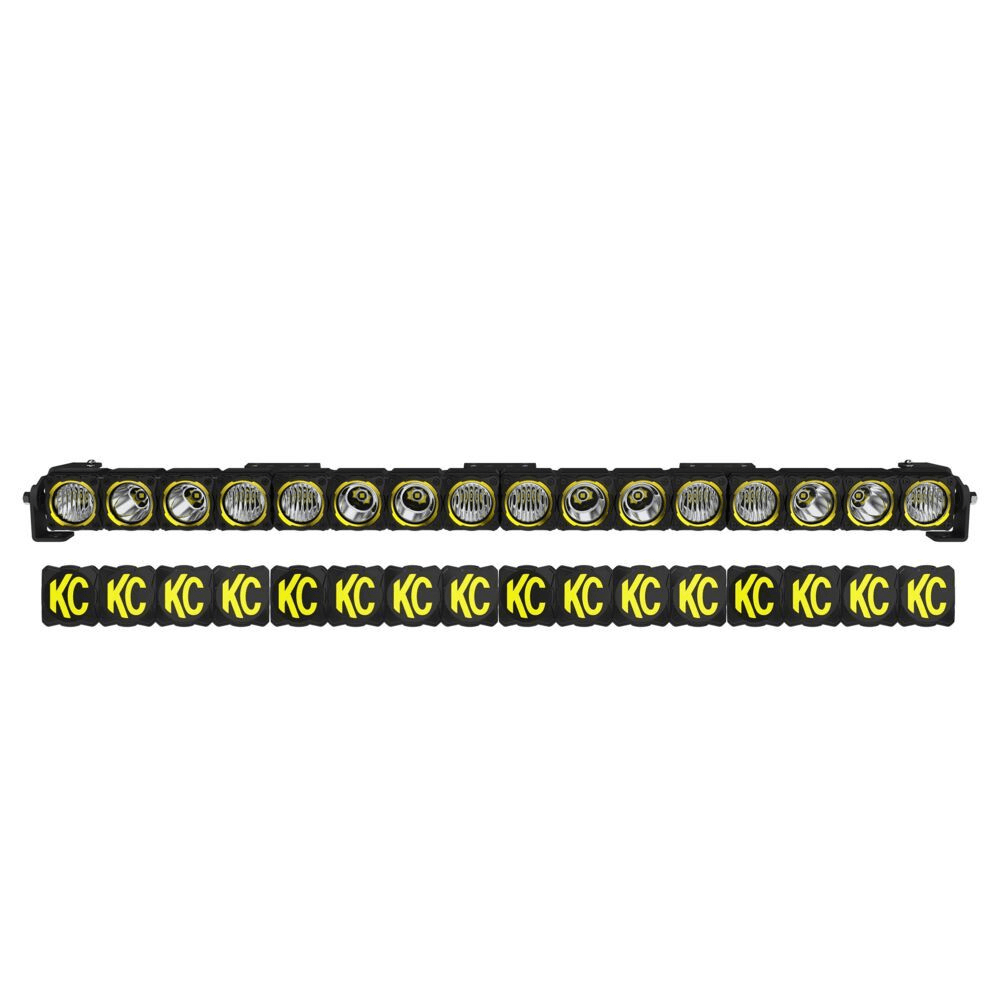

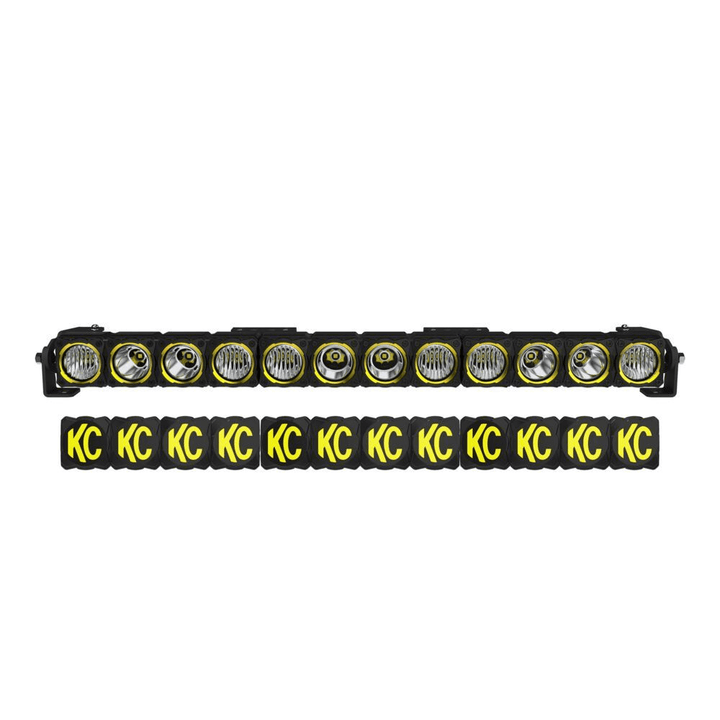

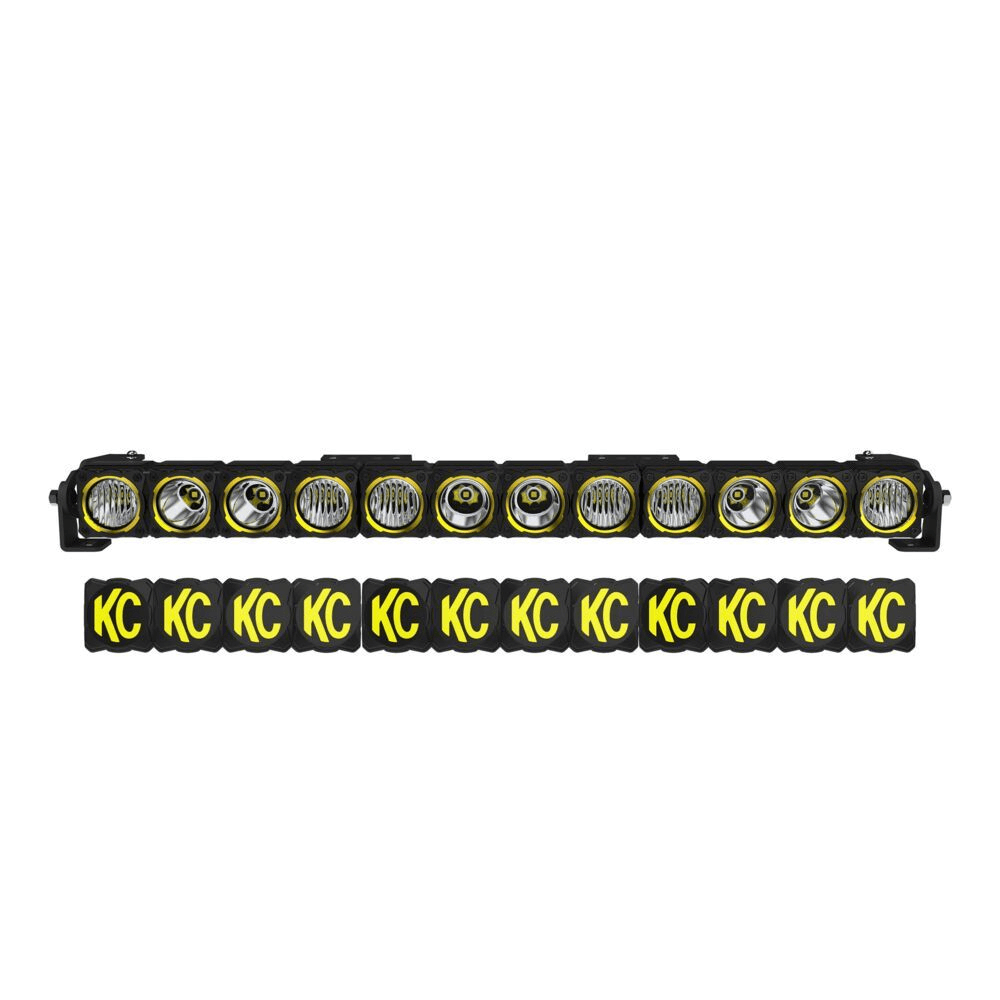

The FLEX ERA LED Light Bar Master Kit includes lights, both beam pattern lenses, spare o-rings, KC logo covers, and a complete wiring kit, so you spend less time in the garage and more time on the trails.
Amber LED Backlight
The FLEX ERA LED Light Bar helps you stand out in the crowd thanks to its Amber LED backlight. This can be used on-road or off-road, day or night, adding an extra touch of style.
High-Output Performance
With 7,912 lumens of power per 10" segment, the FLEX ERA LED Bar sets a new standard in output, offering unprecedented visibility and beam quality - ideal for demanding, high-speed conditions.
Flexible Design
The FLEX ERA LED Light Bar is linkable, curvable, and optic swappable, defying all engineering limits while staying true to the core elements of the FLEX ERA family. Whatever your lighting demands, this bar delivers.
Customizable
Our time-tested FLEX family tradition ensures you can personalize your rig with KC's colored accent bezels. These bezels come standard in gold, but you can choose from deep red, rich blue, or gloss black to suit your style.

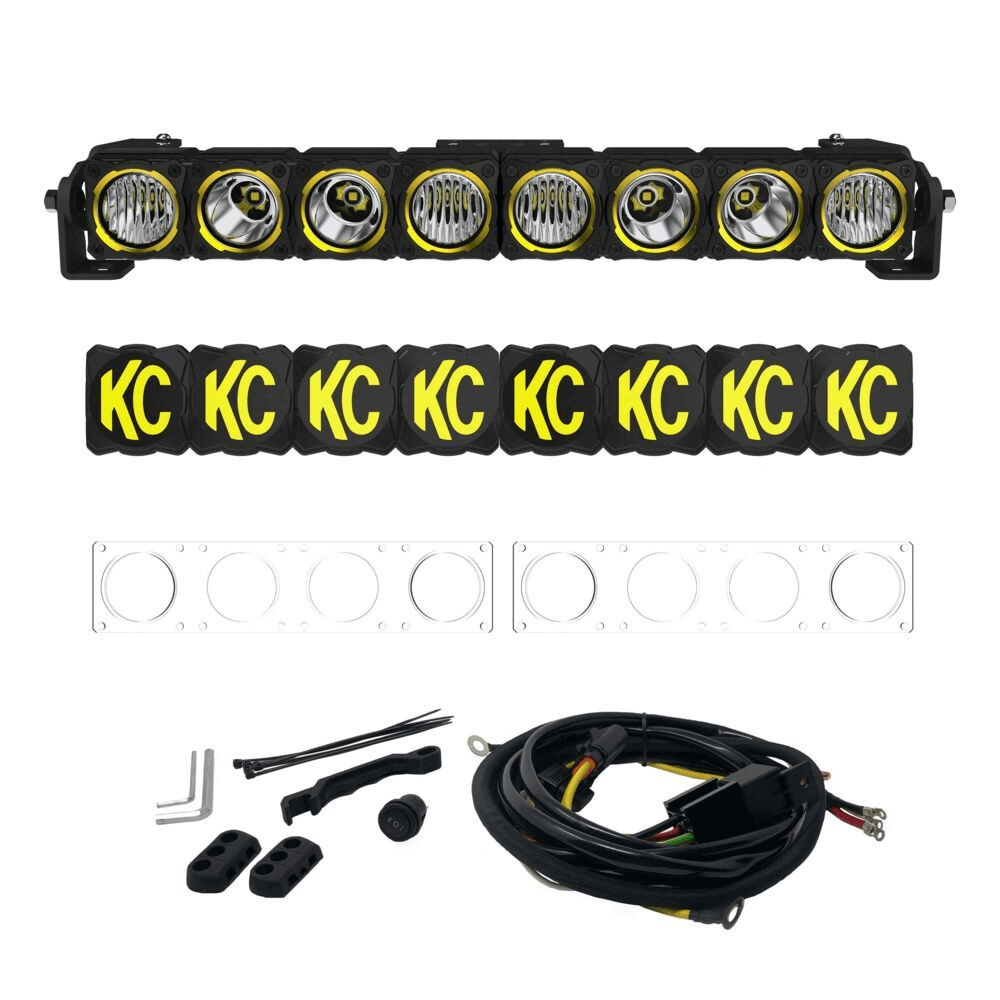

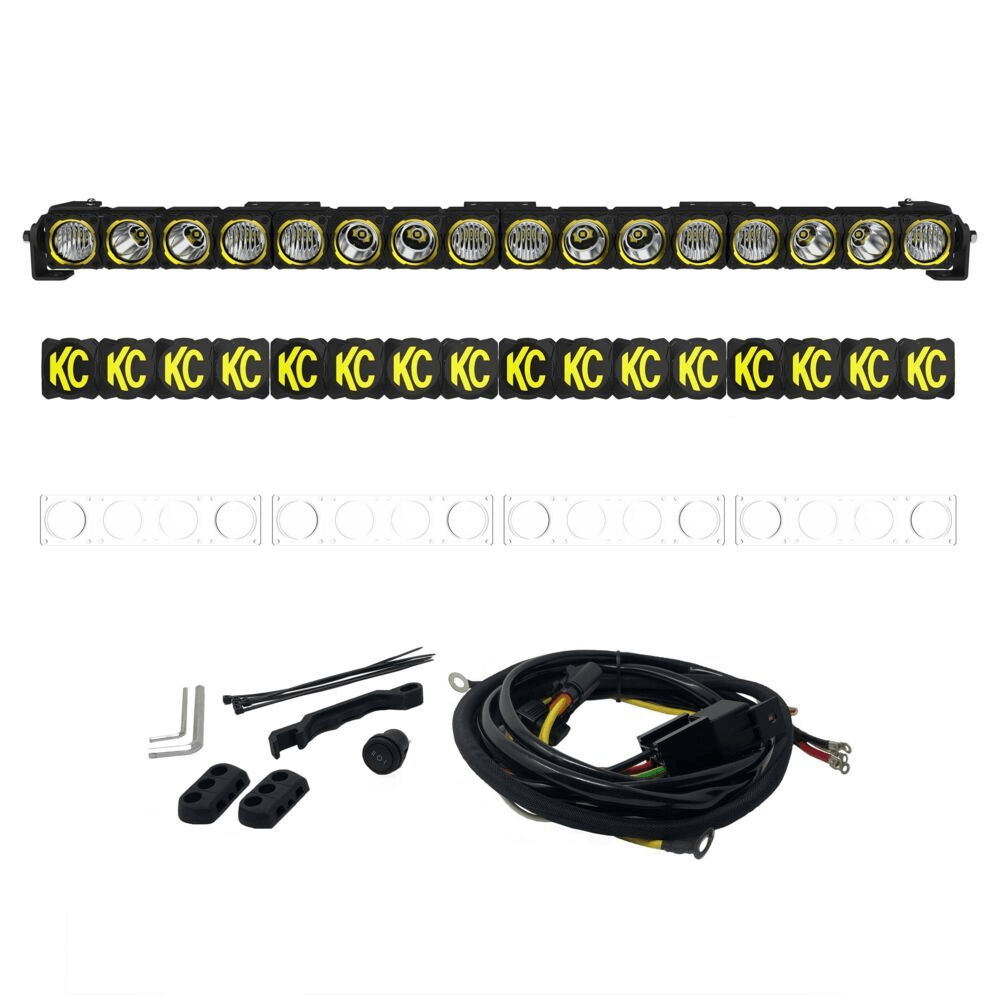

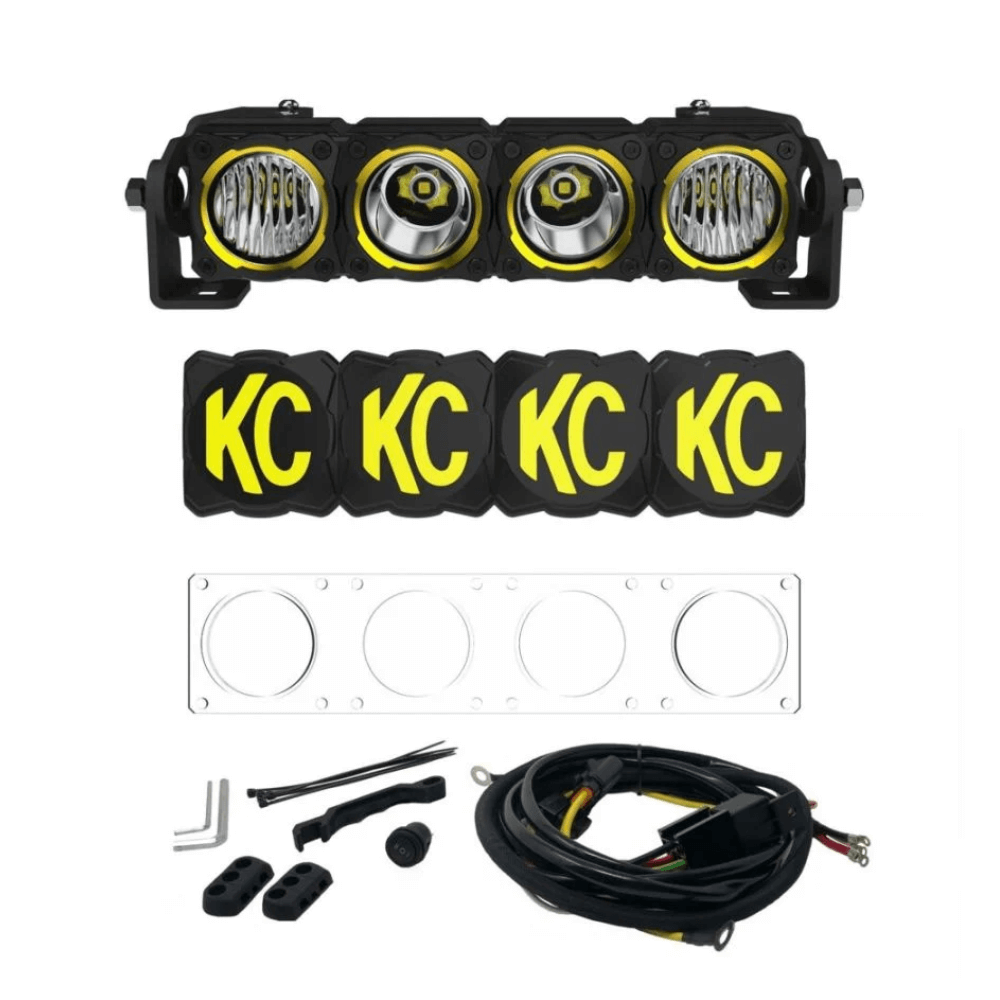

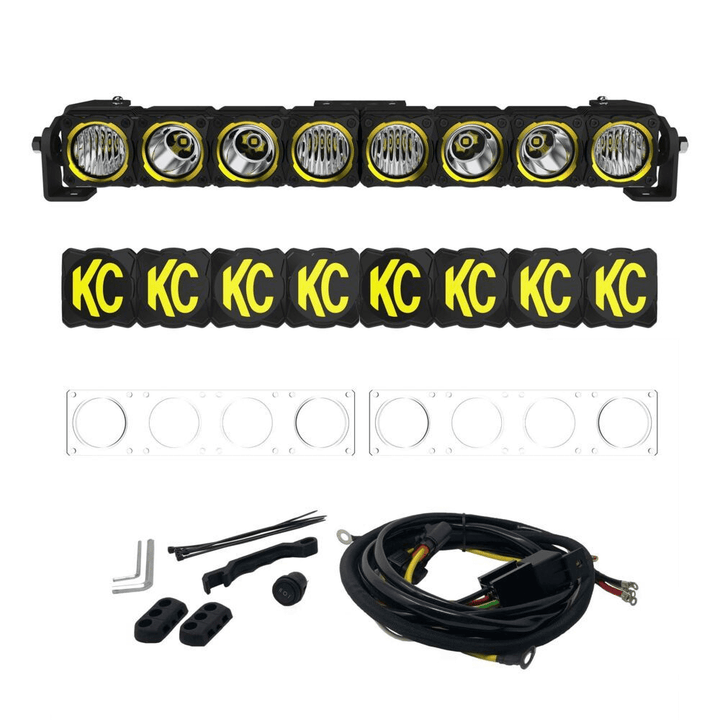

Any FE Bar from 10" to 50" comes standard as a Master Kit with absolutely everything you need to get up and running quickly so you can spend less time in the garage and more time out on the trails.

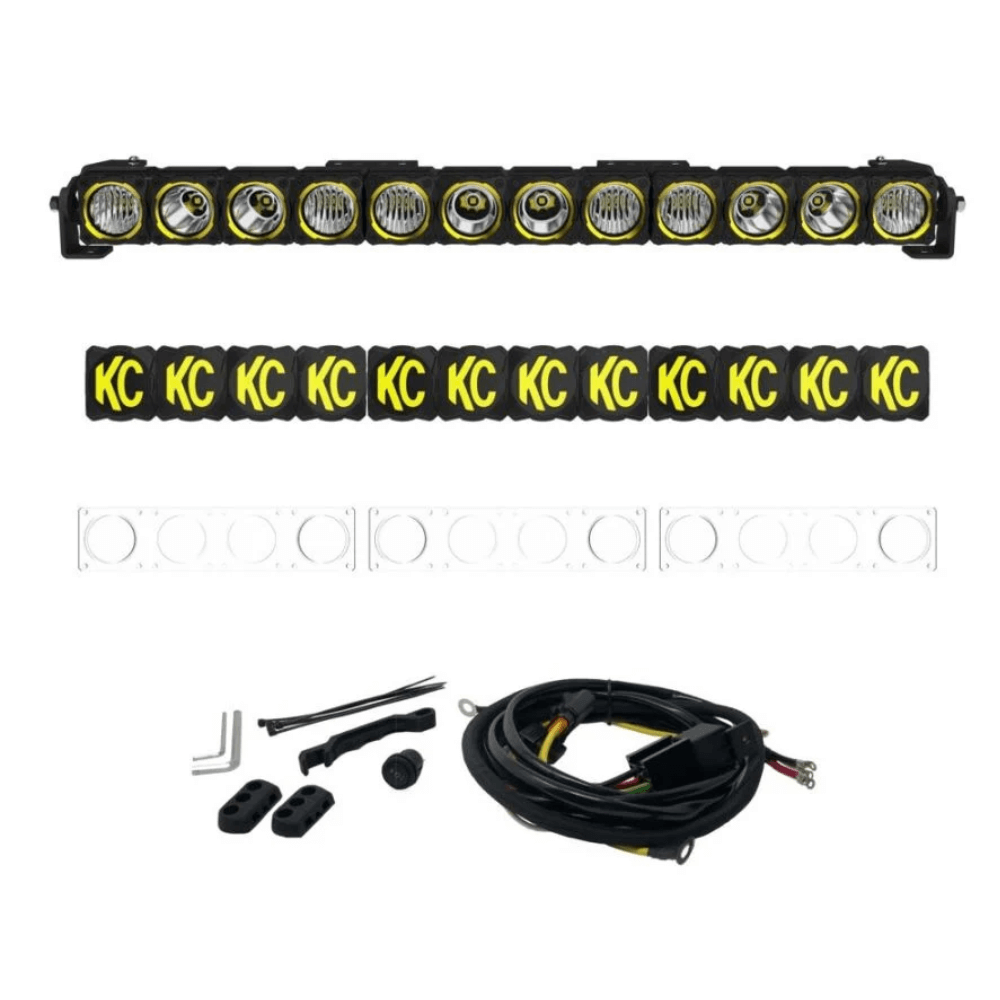

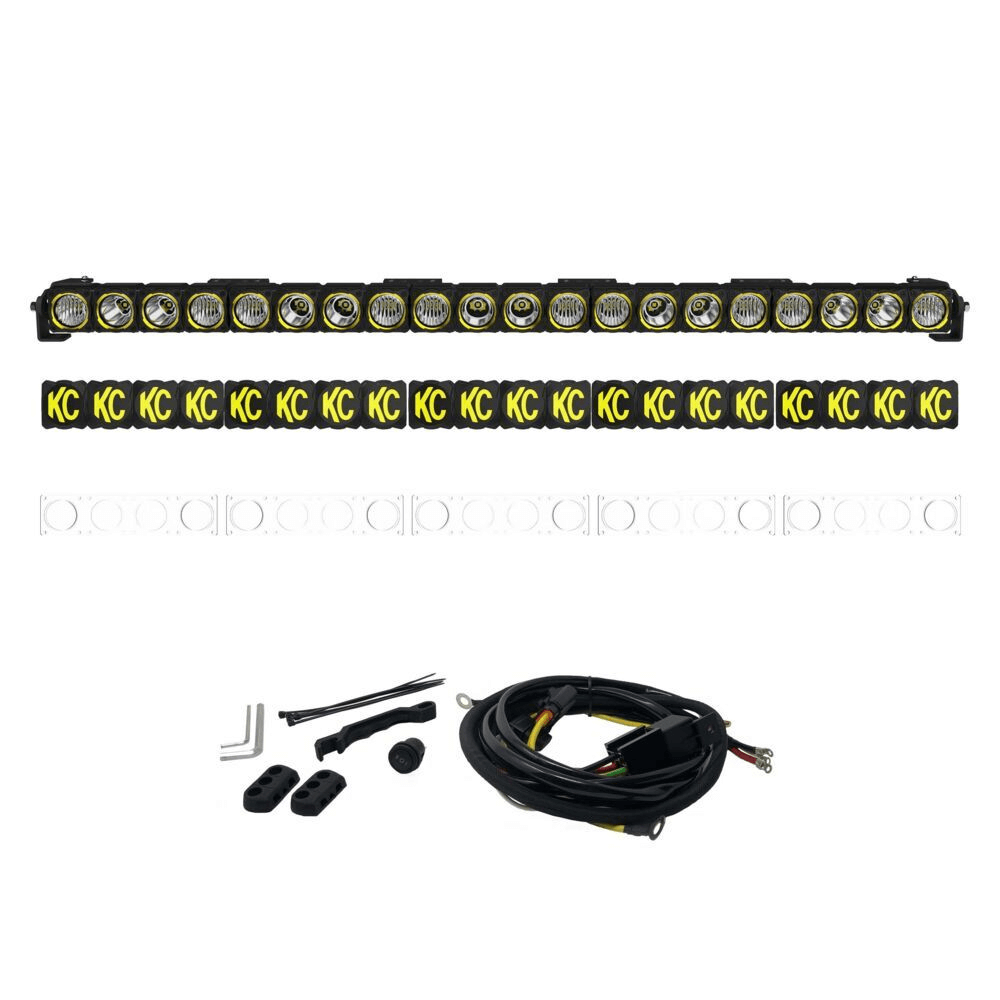

Included:
✔ FLEX ERA® LED Light Bar (1 per segment)
✔ Combo Beam Lenses (pre-installed; 1 per segment)
✔ Spot Beam Lenses (1 per segment)

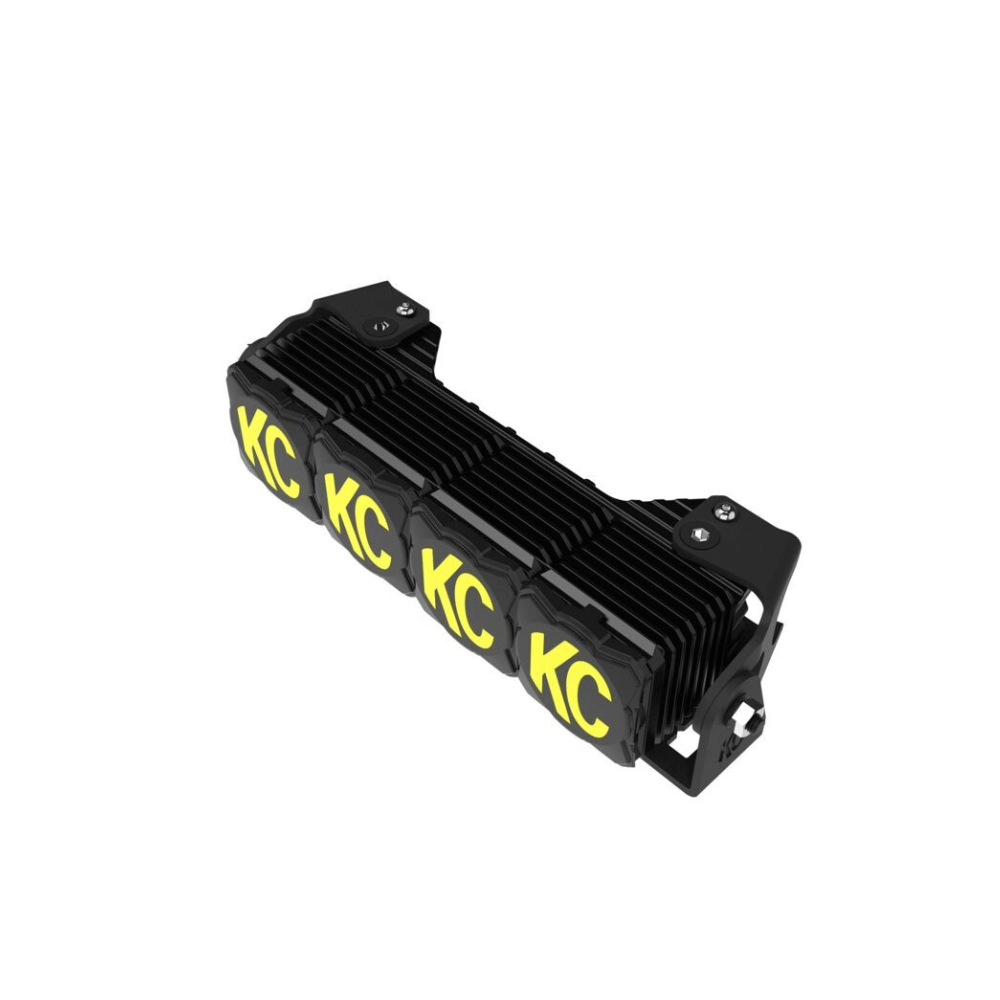

✔ Light Covers - Black with Yellow KC Logo (1 per segment)
✔ End Mounts, Linker Kits, and Hardware
✔ Assembly Tool Kit and Setup Guide
✔ Complete Wiring Kit with LED Switch

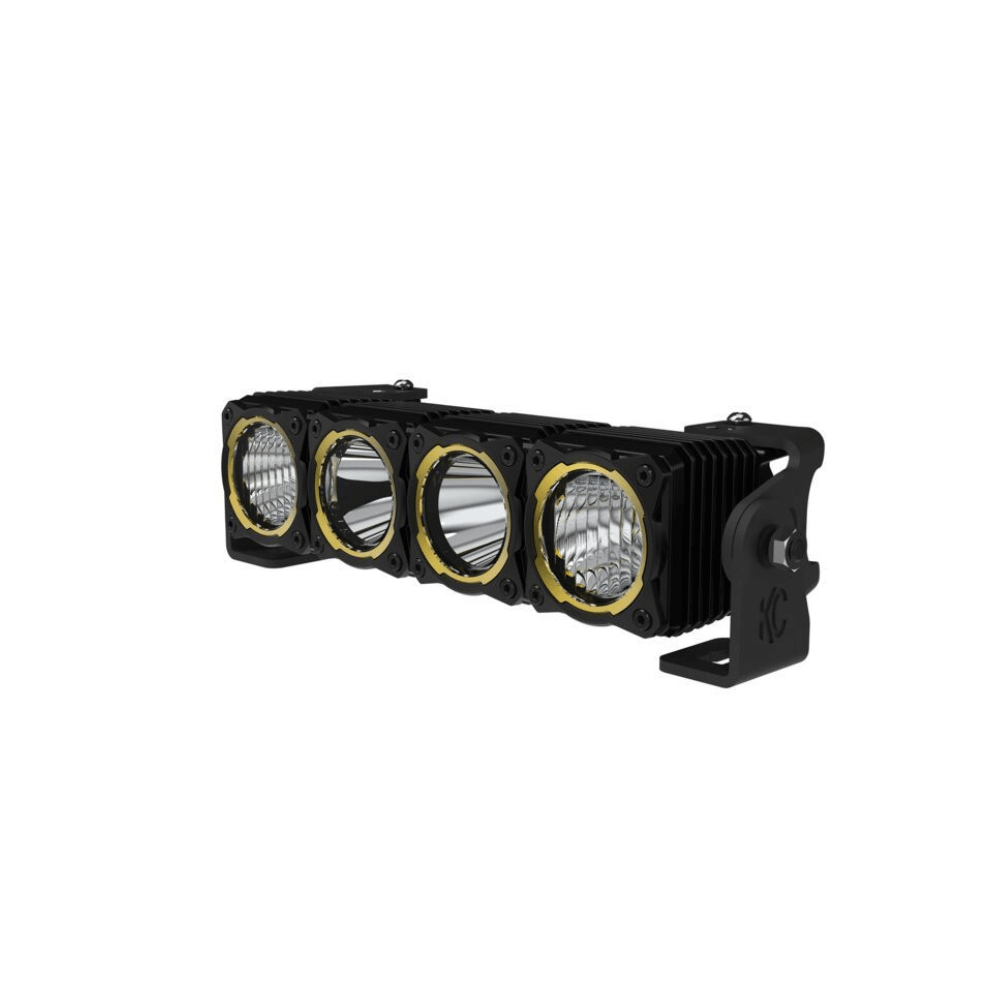

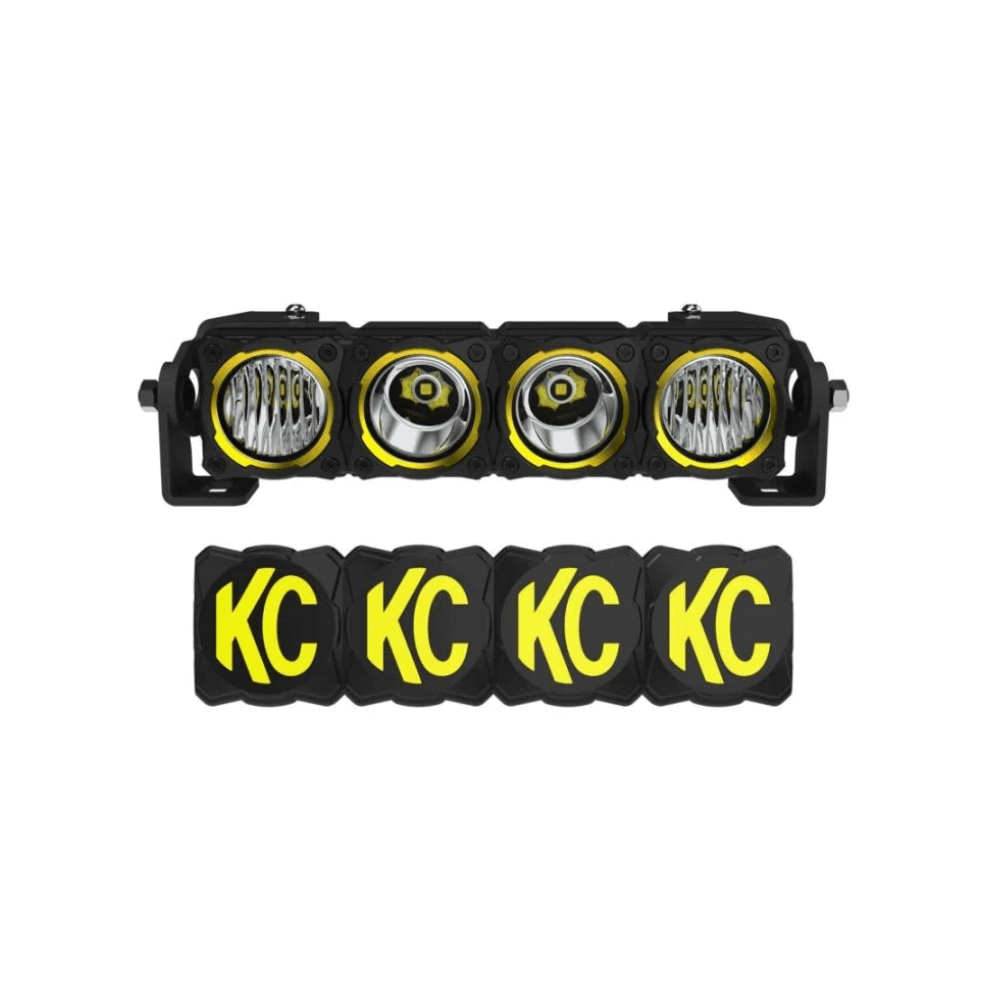

Size: 10"
Weight: 9.000000
Wattage Per Light: 12W / 108W
Total Wattage: 12W (Amber Backlight) / 108W (High-Power)
Amp Draw Per Light: 1.0a (Amber) / 9.0a (White)
Voltage: 9V-36V
Lumens Per Light: 7,912lm
Lux Per Light: 1,610lx (Combo) / 1,800lx (Spot)
Candela Per Light: 161,000cd (Combo) / 180,00cd (Spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo
Beam Distance: 401m (Combo) / 424m (Spot)
Light Technology: LED
Mount Location: Bumper, Overhead, Roof
Material: Aluminum Alloy
Product Finish/Color: Black
Product Dimensions W: 11.37 " x H: 2.66 " x D: 3.85 "
IP Rating: IP68

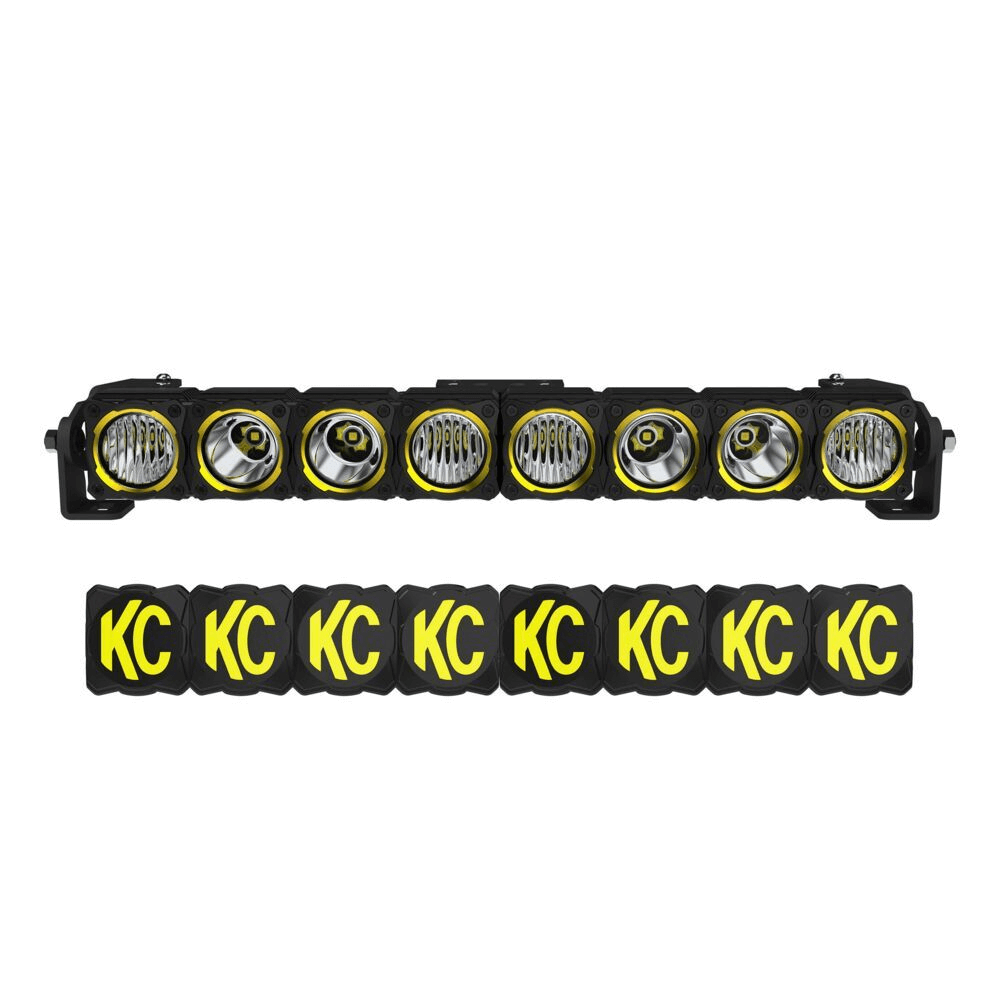

Size: 20"
Weight: 13.000000
Wattage Per Light: 24W / 216W
Total Wattage: 24W (Amber Backlight) / 216W (High-Power)
Amp Draw Per Light: 2.0a (Amber) / 18.0a (White)
Voltage: 9V-36V
Lumens Per Light: 15,824lm
Lux Per Light: 3,220lx (Combo) / 3,600lx (Spot)
Candela Per Light: 322,000cd (Combo) / 360,000cd (Spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo
Beam Distance: 567m (Combo) / 600m (Spot)
Light Technology: LED
Mount Location: Bumper, Overhead, Roof
Material: Aluminum Alloy
Product Finish/Color: Black
IP Rating: IP68
Size: 30"
Weight: 16.000000
Wattage Per Light: 36W / 324W
Total Wattage: 36W (Amber Backlight) / 324W (High-Power)
Amp Draw Per Light: 3.0a (Amber) / 27.0a (White)
Voltage: 9V-36V
Lumens Per Light: 23,736lm
Lux Per Light: 4,830lx (Combo) / 5,400lx (Spot)
Candela Per Light:483,000cd (Combo) / 540,000cd (Spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo
Beam Distance: 695m (Combo) / 735m (Spot)
Light Technology: LED
Mount Location: Bumper, Overhead, Roof
Material: Aluminum Alloy
Product Finish/Color: Black
IP Rating: IP68
Size: 40"
Weight: 21.000000
Wattage Per Light: 48W / 432W
Total Wattage: 48W (Amber Backlight) / 432W (High-Power)
Amp Draw Per Light: 4.0a (Amber) / 36.0a (White)
Voltage: 9V-36V
Lumens Per Light: 31,648lm
Lux Per Light: 6,440lx (Combo) / 7,200lx (Spot)
Candela Per Light: 644,000cd (Combo) / 720,000cd (Spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo
Beam Distance: 802m (Combo) / 849m (Spot)
Light Technology: LED
Mount Location: Bumper, Overhead, Roof
Material: Aluminum Alloy
Product Finish/Color: Black
IP Rating: IP68

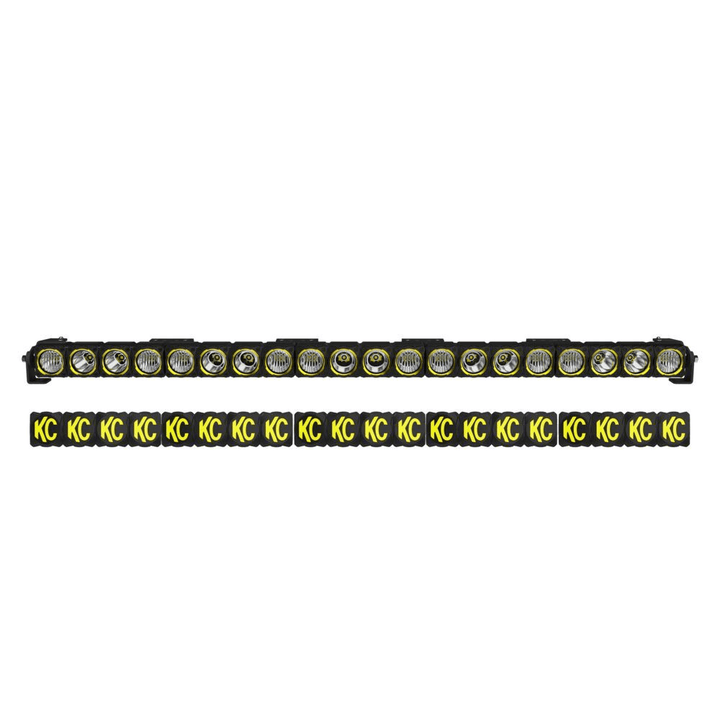

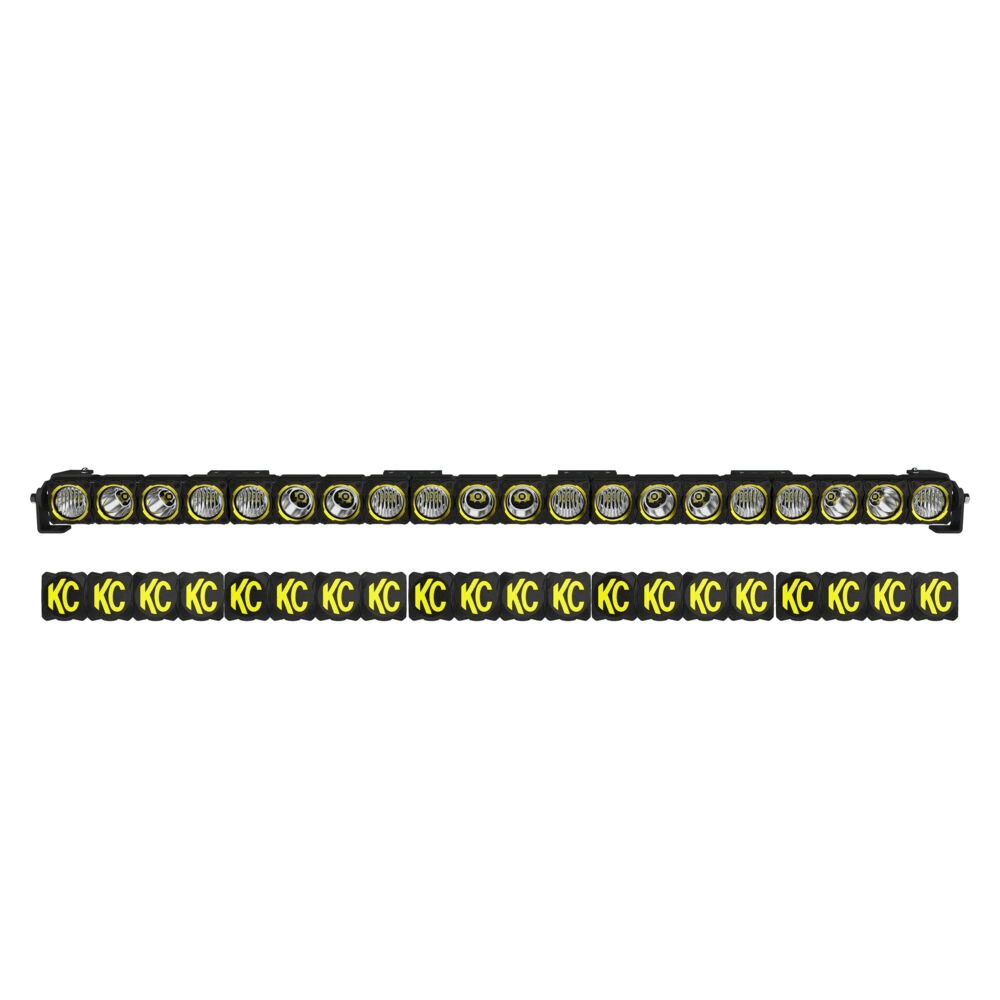

Size: 50"
Weight: 25.000000
Wattage Per Light: 60W / 540W
Total Wattage: 60W (Amber Backlight) / 540W (High-Power)
Amp Draw Per Light: 1.0a (Amber) / 9.0a (White)
Total Amp Draw: 5.0a (Amber) / 45.0a (White)
Voltage: 9V-36V
Lumens Per Light: 39,560lm
Lux Per Light: 8,050lx (Combo) / 9,000lx (Spot)
Candela Per Light: 805,000cd (Combo) / 900,000cd (Spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo
Beam Distance: 897m (Combo) / 949m (Spot)
Light Technology: LED
Mount Location: Bumper, Overhead, Roof
Size of Products: 50"
Material: Aluminum Alloy
Product Finish/Color: Black
IP Rating: IP68
