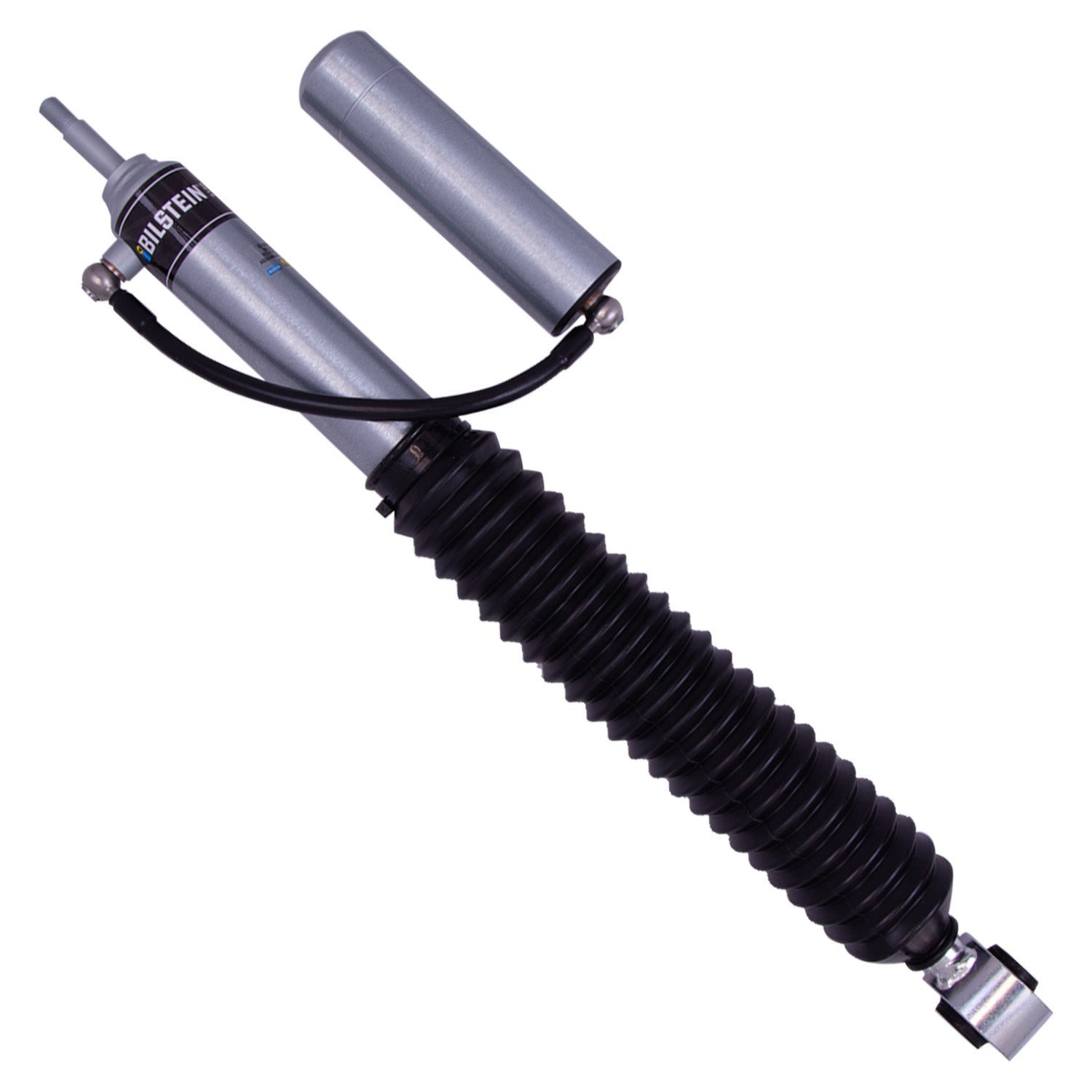

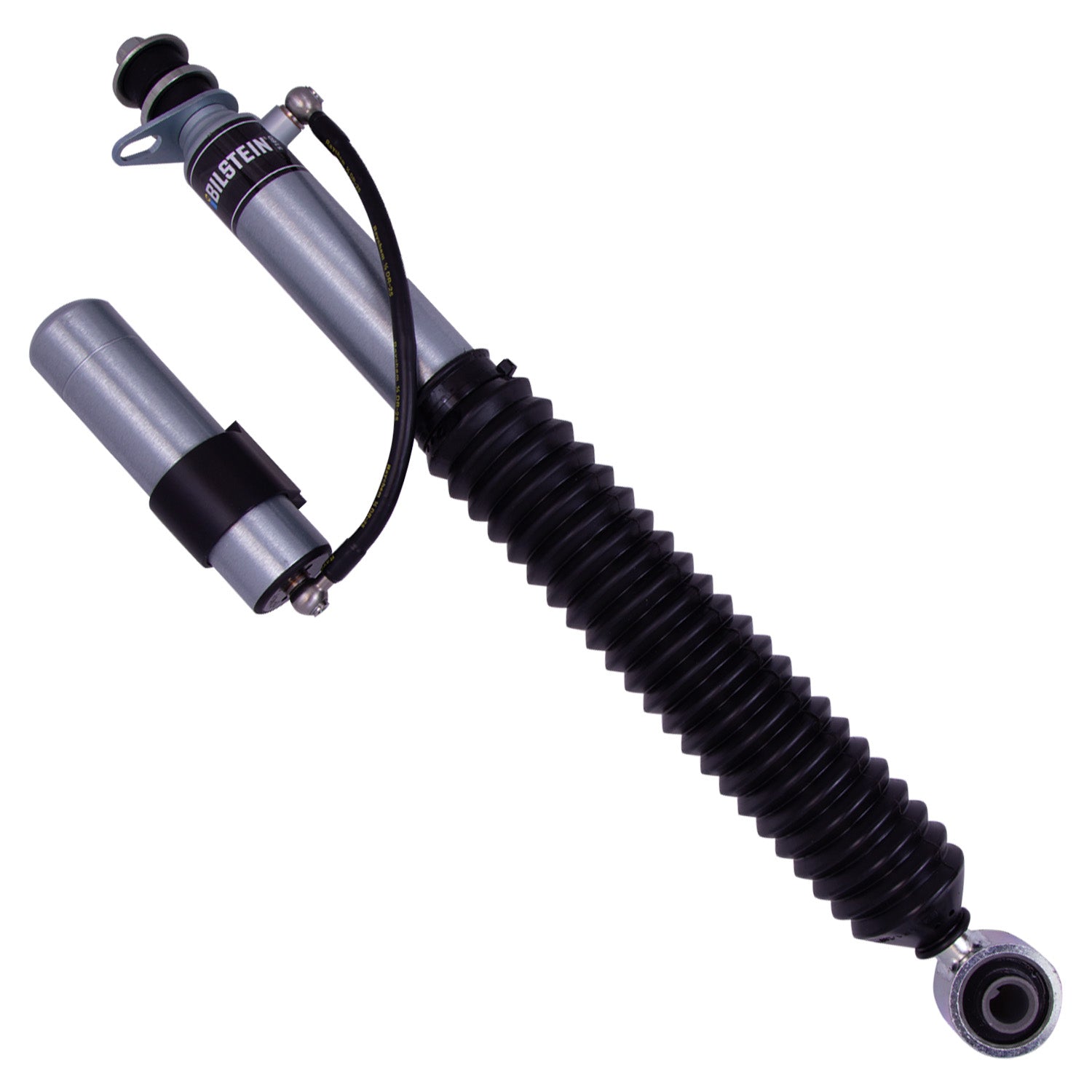

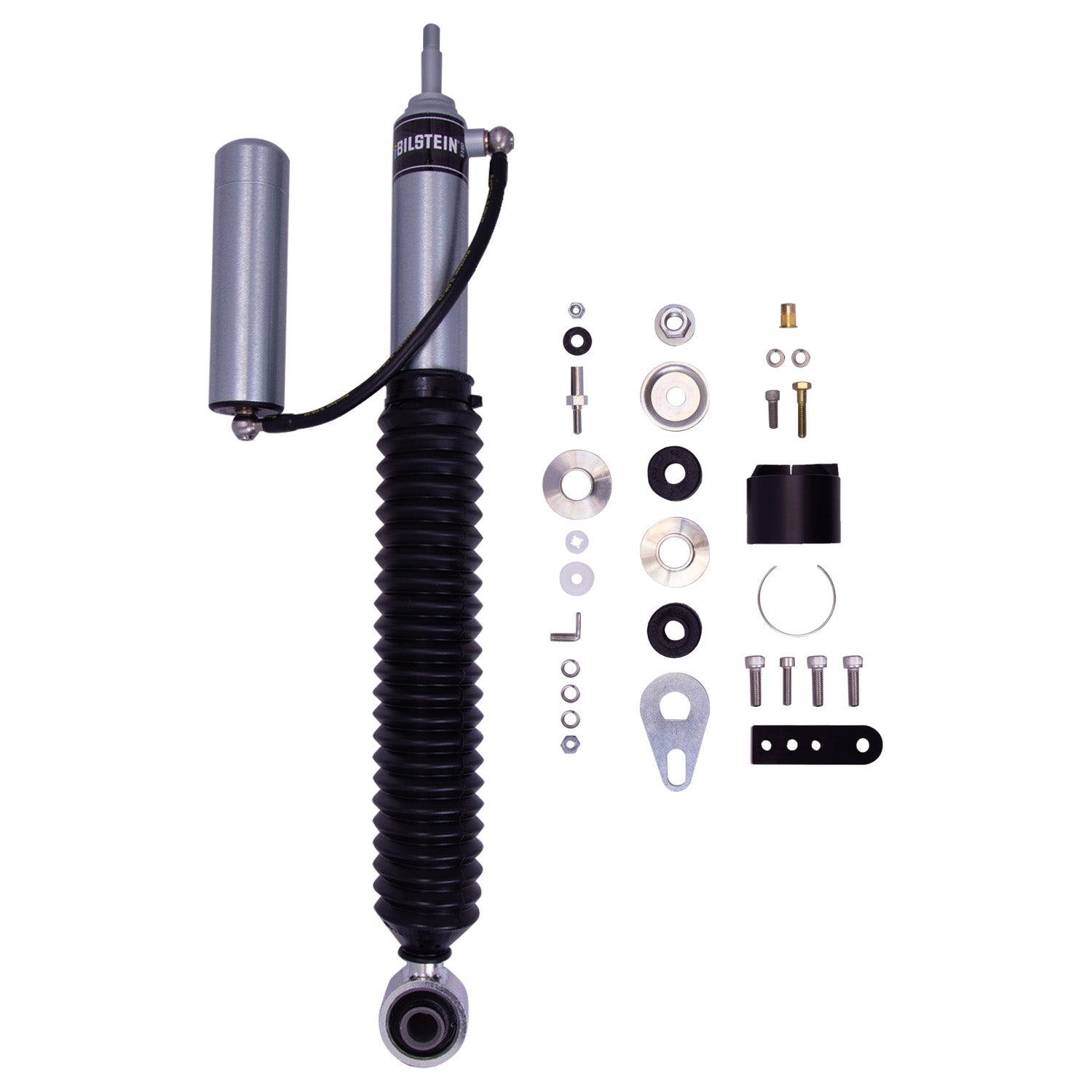

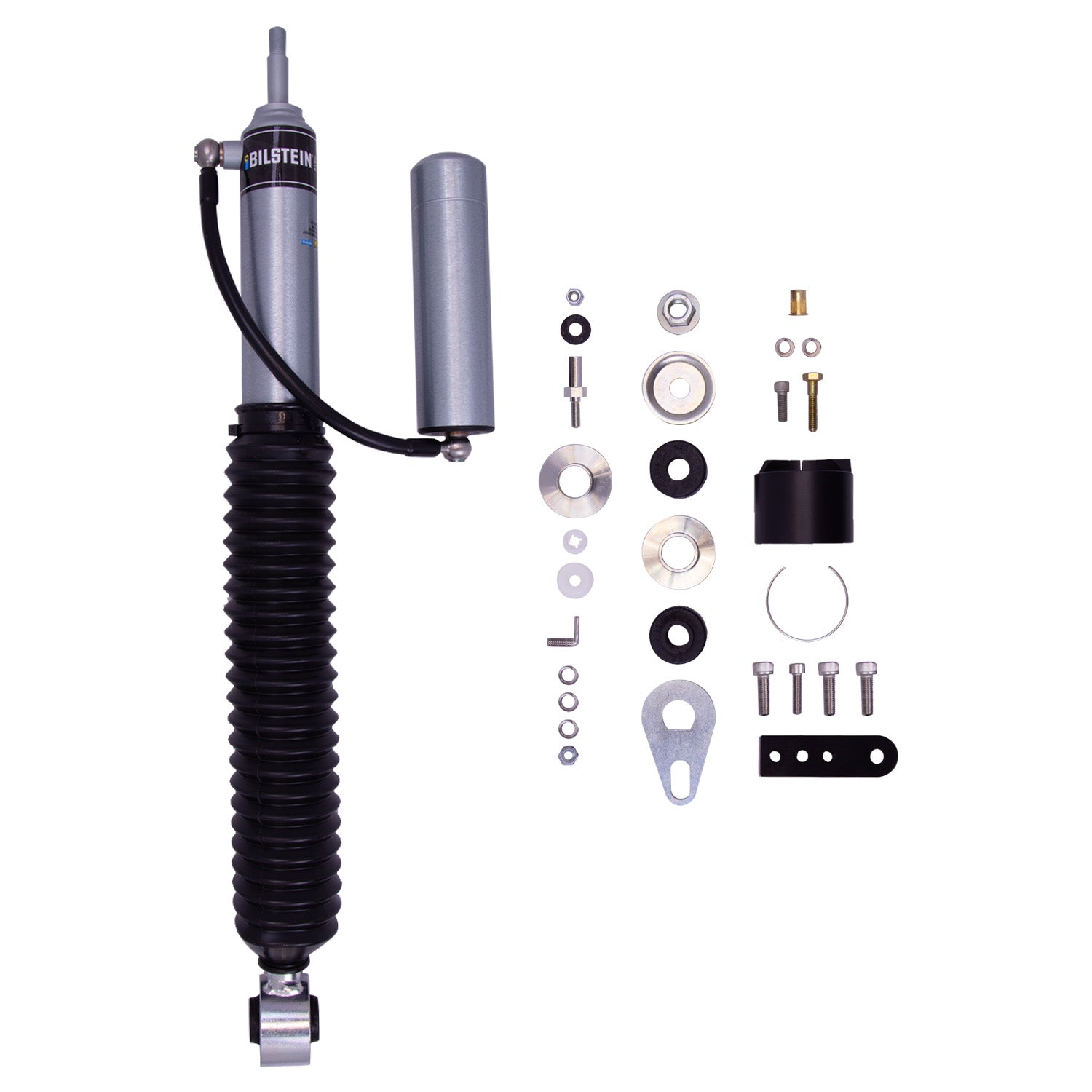

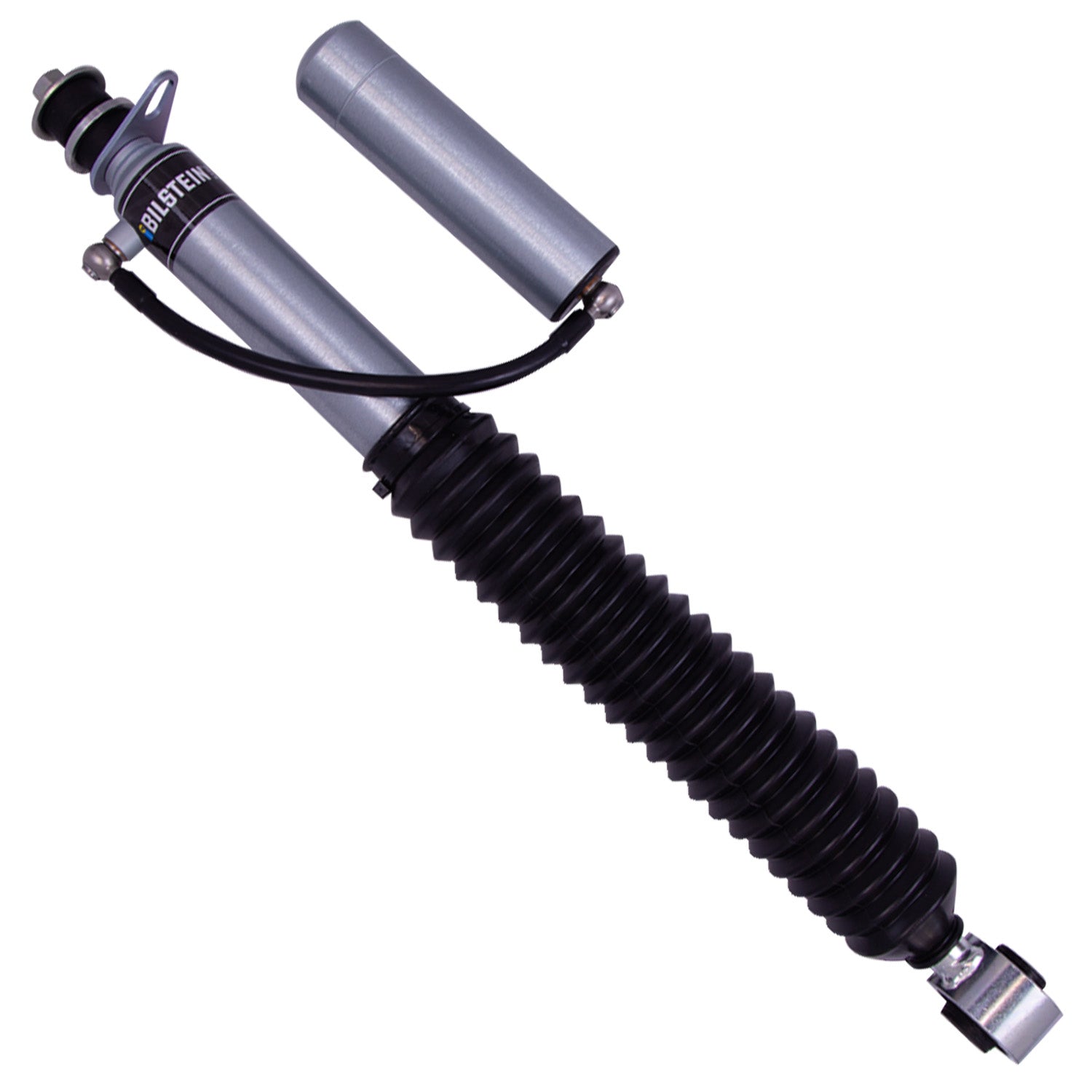

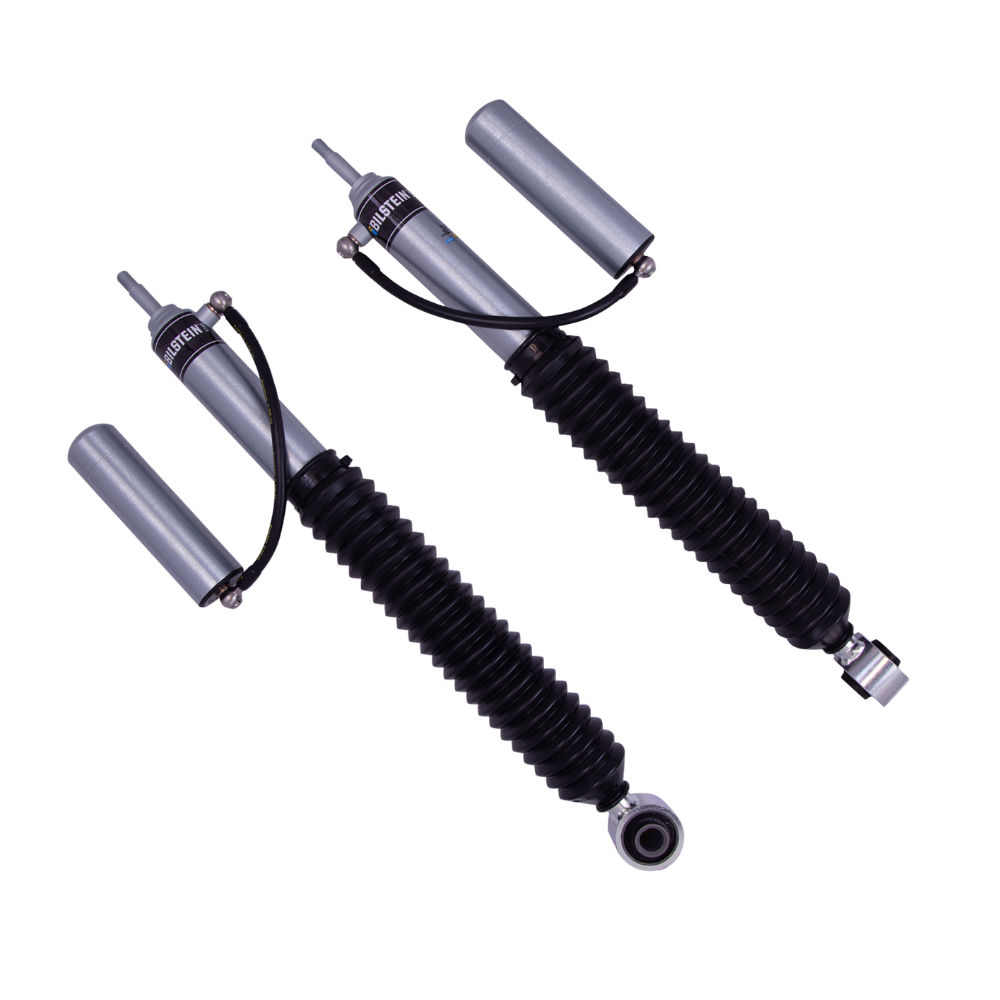

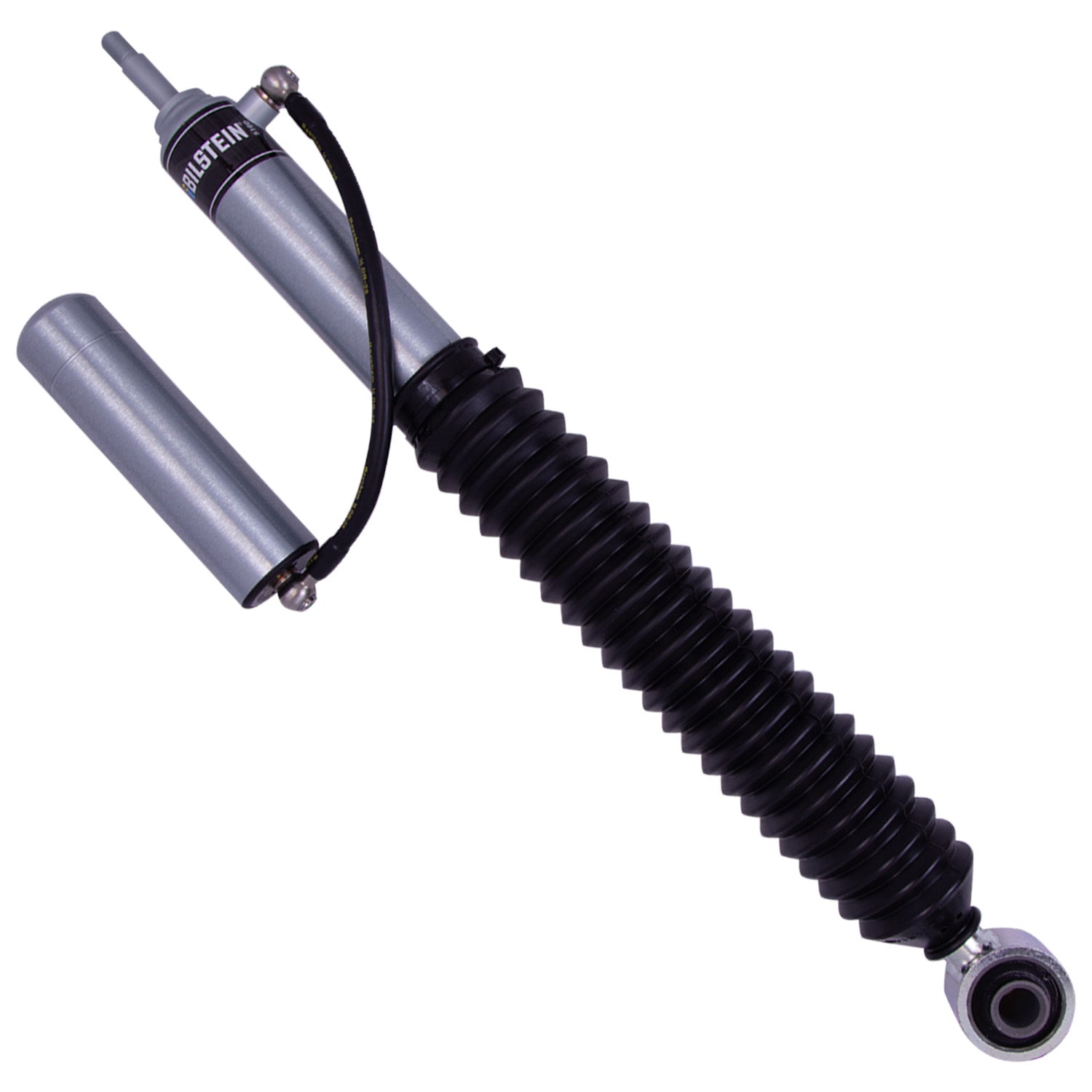

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Position: Left | Right Rear
Fitment: 2007-2014 Toyota FJ Cruiser
Please Note:
➜ Fits Vehicles With 1.25-2.5" Rear Lift
➜ Without X-REAS Suspension
Installation Guide Here
Product Brochure
Material Safety Data Sheet
Collapsed Length (in): 14.50
Extended Length (in): 23.50
Collapsed Length (mm): 368.3
Extended Length (mm): 597.0
Stroke/travel Length (in): 9.00
Lower Mount Type: Eye 19.25mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: Yes
Body Design: Smooth Body (Non-Coilover)
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Boot Included: Black Bellows

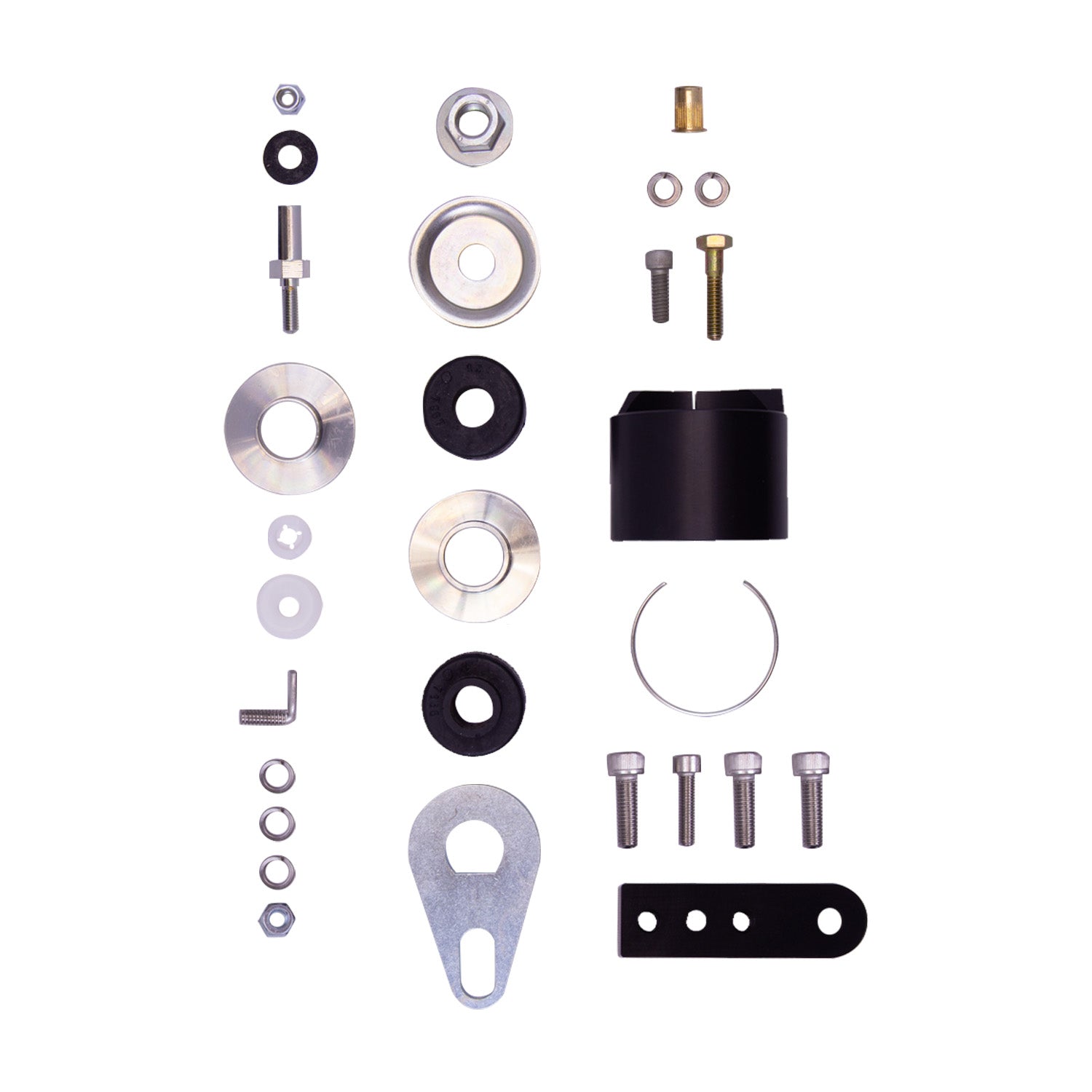

Replacement Mounting Kit: B4-KT1-Z434A00
Replacement Mounting Kit 2: B4-KT1-Z442A00
Spring Seat Included: No
Billet Reservoir Clamp Included: Yes
Shaft Diameter: 14mm
Adjustable Damping: Non-Adjustable
Quantity per Vehicle: 1 per side
Weight (lbs): 5.90
➜ Limited 2-Year Warranty
