Description

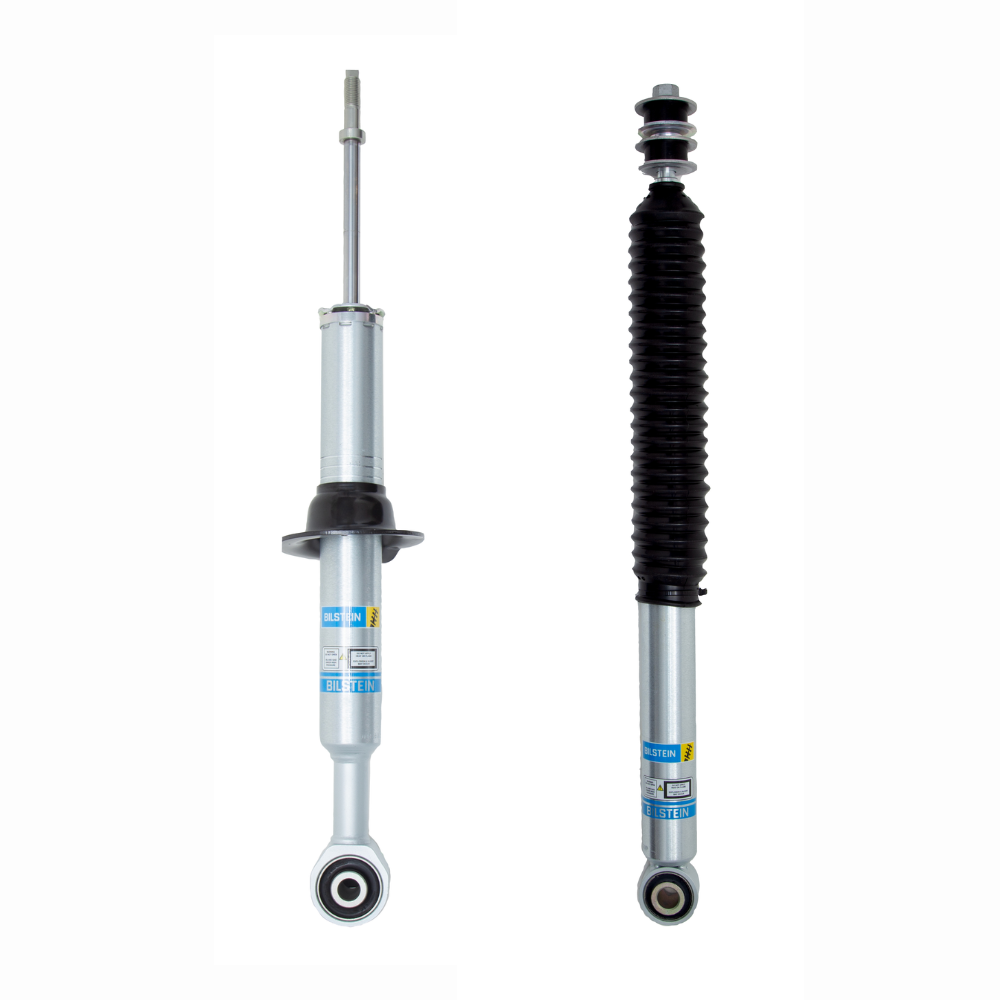

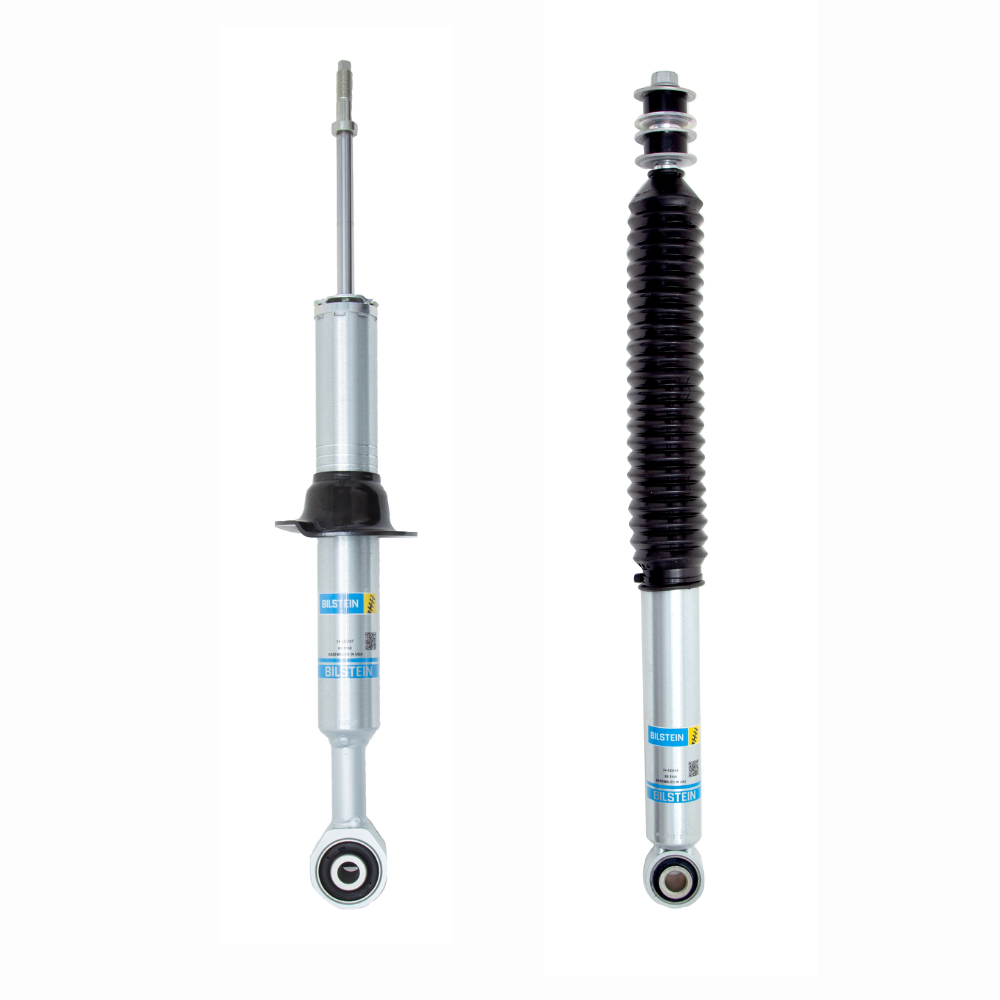

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Fitment: 2024+ Toyota Tacoma

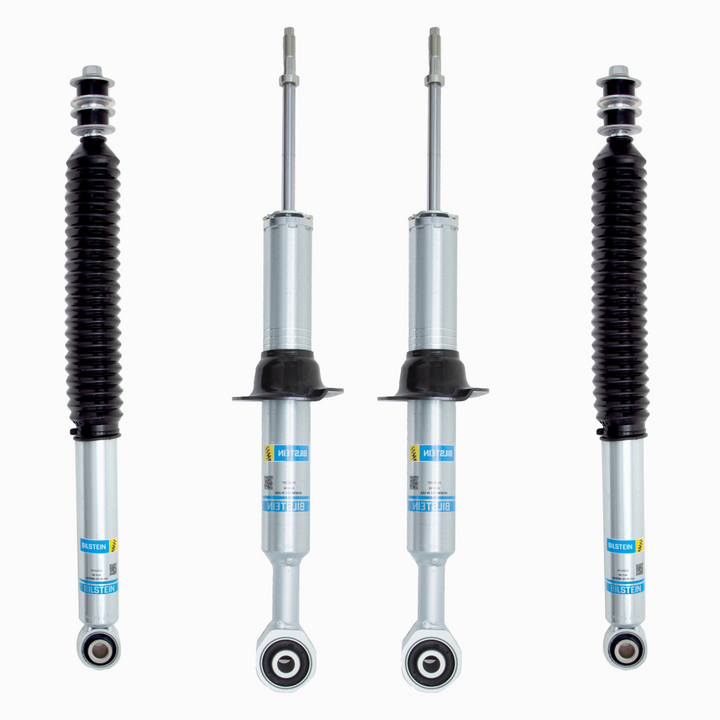

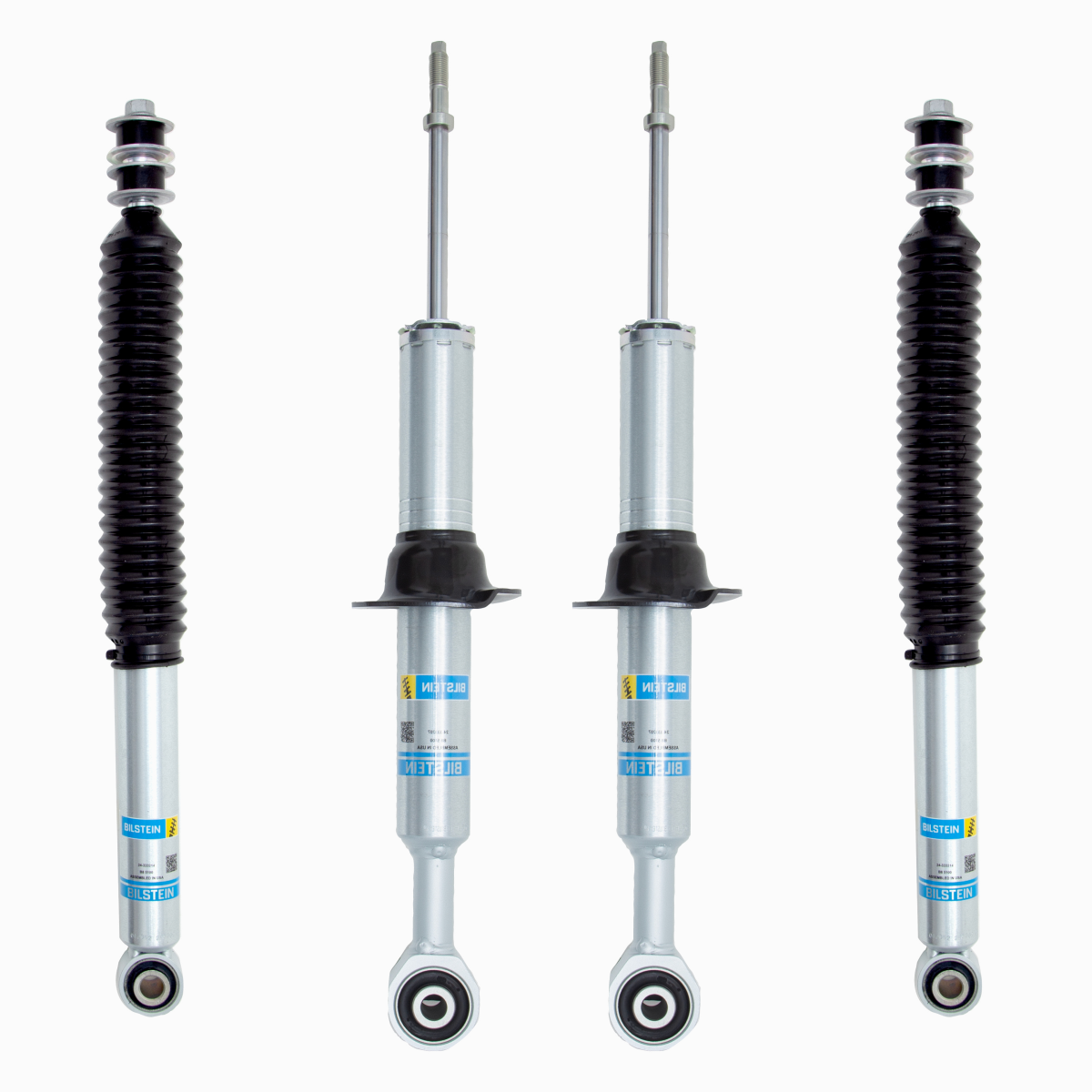

Included:
✔ (2) B8 5100 (Ride Height Adjustable)-Suspension Shock Absorber - FRONT
✔ (2) B8 5100 (Ride Height Adjustable)-Suspension Shock Absorber - REAR
Features
➤ Monotube Design
➤ Zinc Coating
➤ Right Height Adjustable
➤ Direct Fit
➤ Vehicle Specific Tuning
➤ Made in the USA
➤ Limited Lifetime Warranty
Specs
FRONT
Collapsed Length (in) : 19.24
Extended Length (in) : 24.13
Collapsed Length (mm) : 488.8
Extended Length (mm) : 612.8
Stroke/travel Length (in) : 4.89
Lower Mount Type : Eye 16.3mm
Upper Mount Type : Stem
Internal Design : Monotube
Finish : Zinc Plated
Reservoir : No
Body Design : Snap Ring Grooved Body (Coilover)
Body Diameter (od) : 2.0 in.
Piston Diameter : 46mm
Boot Included : No
Spring Seat Included : Yes
Shaft Diameter : 14mm
Adjustable Damping : Non-Adjustable
REAR
Collapsed Length (in) : 15.78
Extended Length (in) : 25.44
Collapsed Length (mm) : 400.8
Extended Length (mm) : 646.2
Stroke/travel Length (in) : 9.66
Lower Mount Type : Eye 19.1mm
Upper Mount Type : Stem
Internal Design : Monotube
Finish : Zinc Plated
Reservoir : No
Body Design : Smooth Body (Non-coilover)
Body Diameter (od) : 2.0 in.
Piston Diameter : 46mm
Boot Included : Black Bellows
Spring Seat Included : No
Shaft Diameter : 14mm
Adjustable Damping : Non-Adjustable
Warranty
Limited Lifetime Warranty. More Info Here
