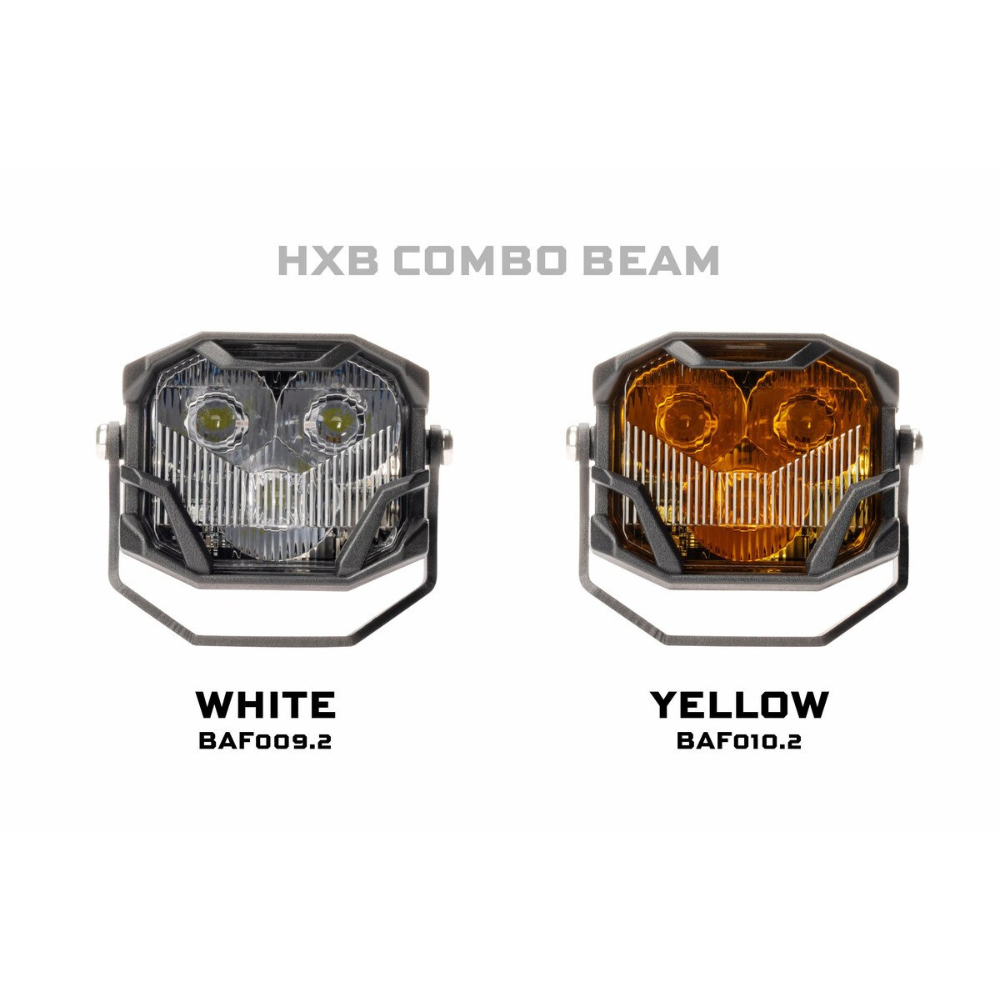

Combo Beam: Morimoto's 4Banger HXB: Off-Road Reinvented! Designed, engineered, and rigorously tested in the USA, these lights set a new standard in performance, reliability, and style. The HXB Combo Beam delivers a perfect blend of width and distance illumination for comfortable off-road driving. What sets these lights apart is their compact design, fitting seamlessly with Morimoto's fog light and A-Pillar mounting kits for popular trucks. No off-the-shelf components here -- these lights are proprietary and optimized for maximum performance, even in challenging weather conditions. With copper DTP PCBs, cast aluminum shells, and IP69K weather resistance standards, these lights are built to last. Plus, Morimoto offers a range of mounting options for a hassle-free installation.

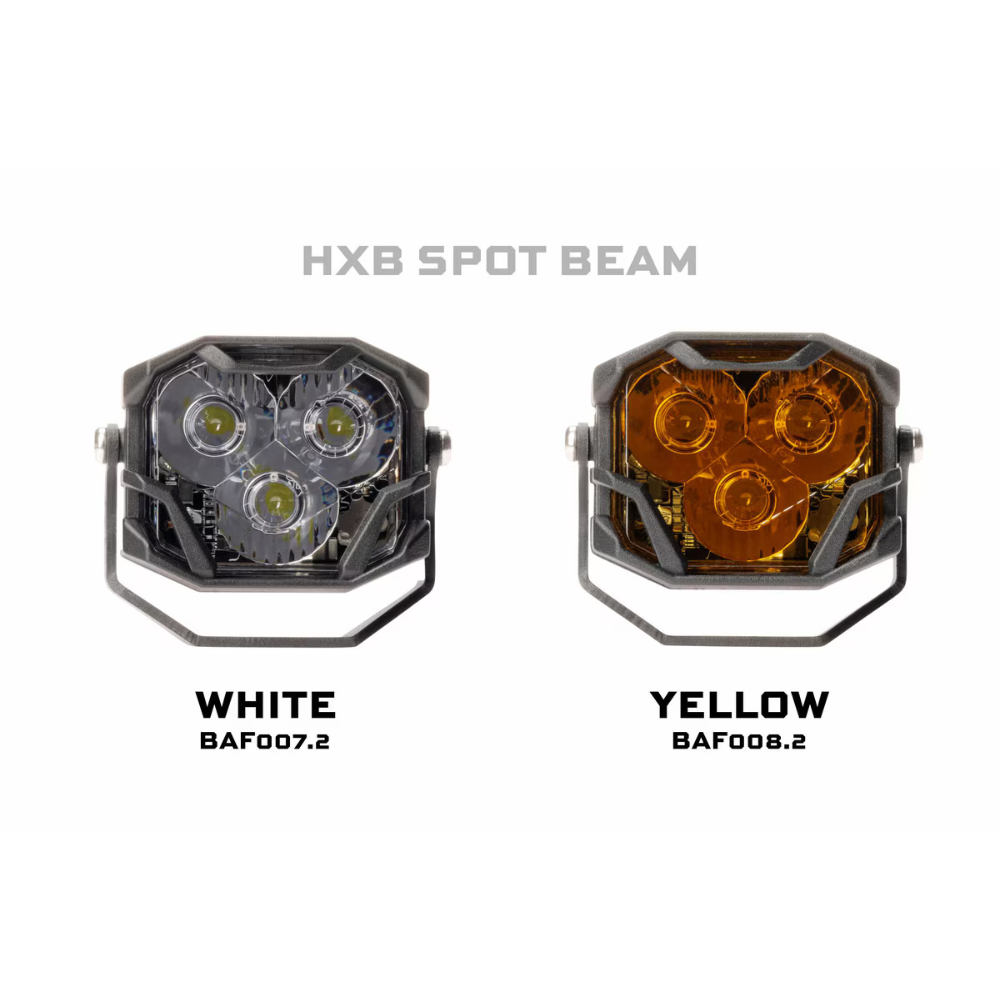

Spot Beam: Morimoto 4Banger HXB Spot -- the ultimate off-road LED lighting solution! These lights are engineered for outstanding performance, reliability, and style. The HXB Spot Beam shines like no other, reaching distances of up to 800 meters with its powerful Osram LEDs. What sets it apart? Its compact design, 30% smaller than competitors, ensures a perfect fit for your vehicle. Plus, with its proprietary technology you can count on unmatched performance. Morimoto doesn't compromise on weather resistance, either. The HXB is built to withstand the toughest conditions, from rain and snow to extreme heat. It's even street-legal, compliant with SAE J581 standards.

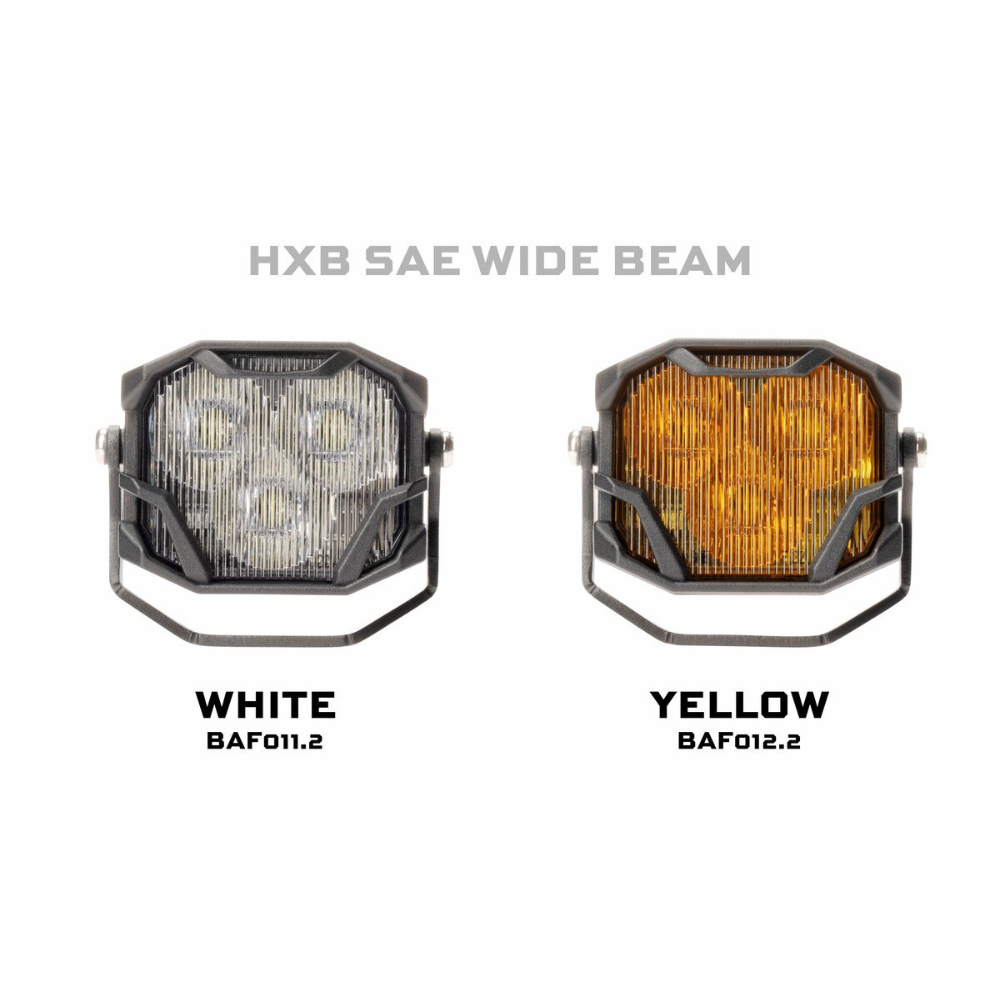

Wide Beam: Morimoto 4Banger HXB Wide - the ultimate off-road LED lights designed to revolutionize your driving experience! Our HXB Wide Beam lights, SKU BAF011.2, are not just powerful; they're SAE-Compliant, boasting an 80% brightness advantage over the competition. With cutting-edge Osram HX Boost LEDs and precision optics, these lights offer superior width, intensity, and control, making them the ultimate off-road LED fog lights. But it's not just about performance; it's about fitment too. The 4Banger HXB is 30% smaller than alternatives, ensuring an OEM+ fitment with Morimoto's mounting kits, available for popular trucks. For a street-legal fog light, our HXB Wide beam models are SAE J583 compliant.

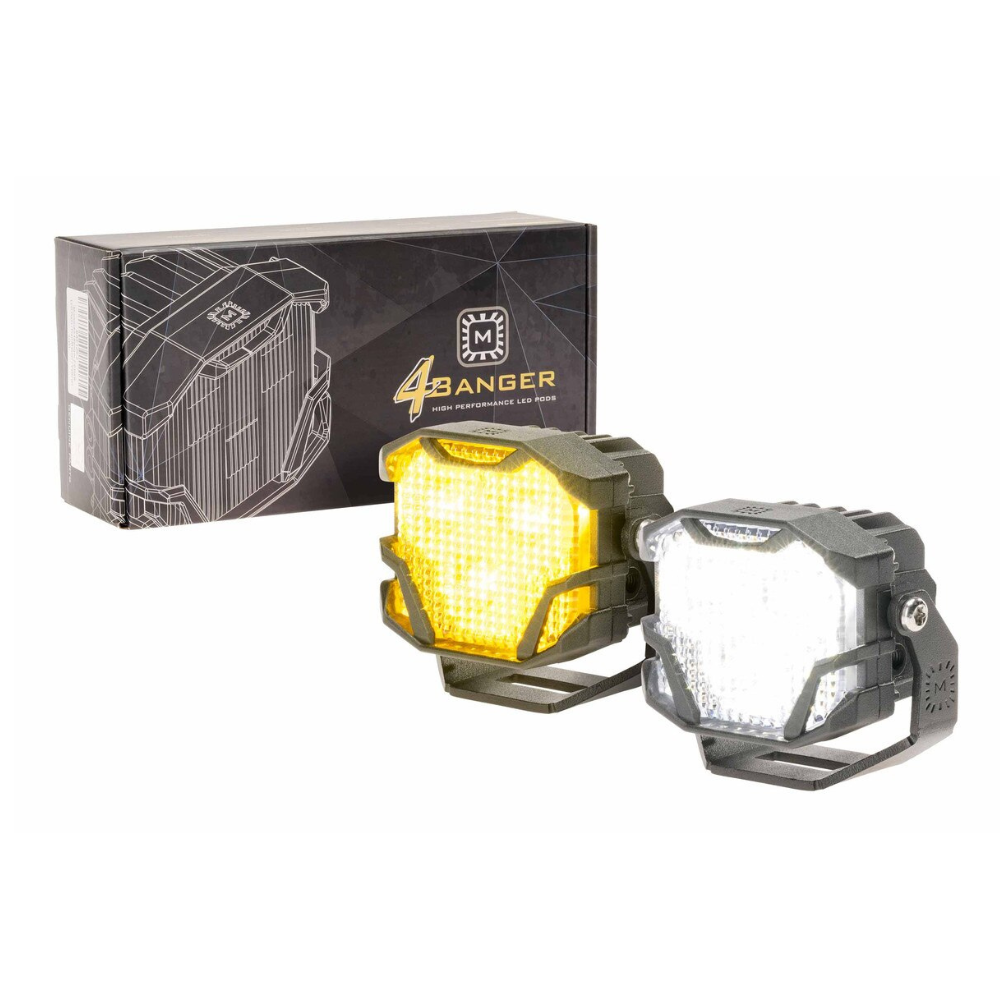

Flood Beam: Morimoto 4Banger Off-Road LED Pod Lights BAF126.2 -- a revolutionary lighting solution that's redefining performance and reliability. Designed, engineered, and rigorously tested in the USA, these pods are your ticket to the next level of illumination. The standout feature is the Flood Beam pattern, offering ample ambient light coverage in all directions. Perfect for low-speed driving, rock crawling, backup lights, and campsite illumination, it ensures unparalleled visibility in your immediate surroundings. Compact and powerful, the 4Banger's footprint is 30% smaller than its competitors, making it an ideal fit for Morimoto's mounting kits. It boasts proprietary technology, lumen-dense Osram LEDs optimized with LucidShape, and rock-solid thermal dynamics using SolidWorks.

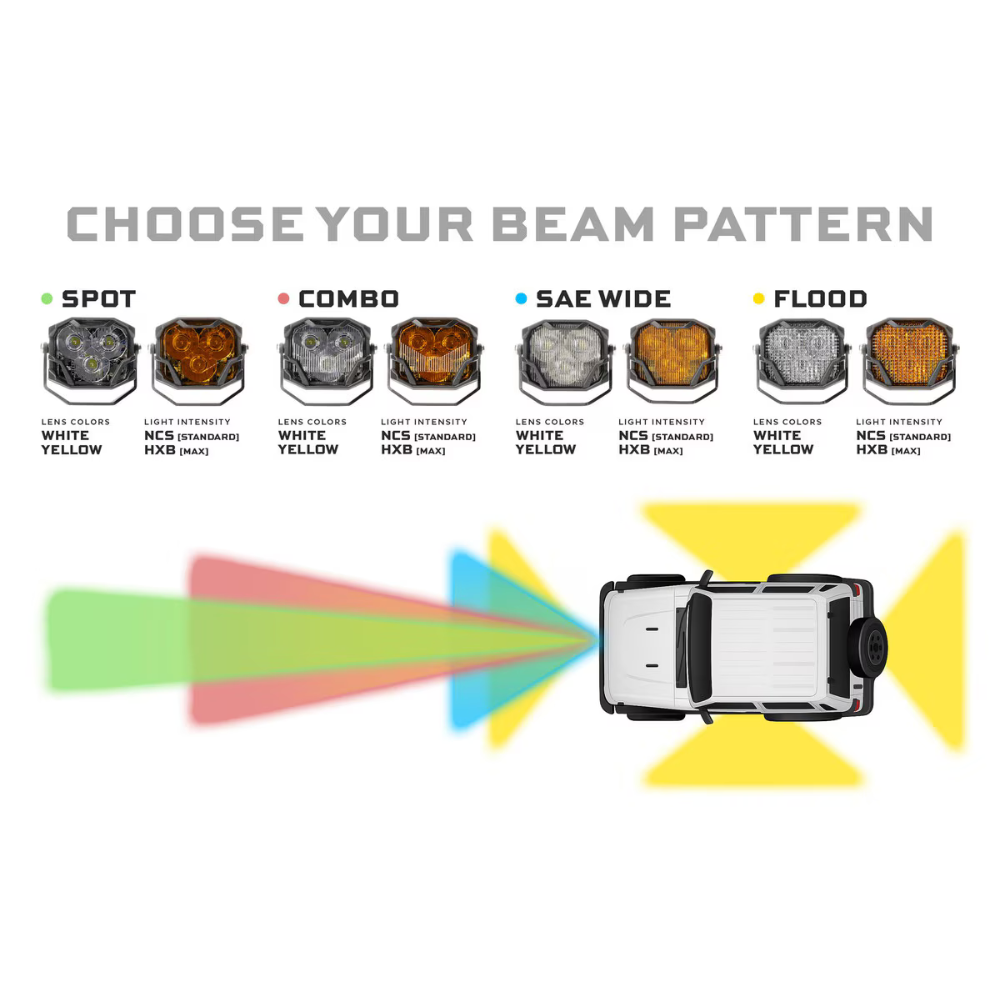

Choose from four industry-leading beam patterns: SAE wide/Fog, Spot, Flood, and Combo, ensuring there's one to suit every need. With weather-resistant construction and top-notch reliability features, including copper DTP PCB and IP69K standards compliance, these lights are built to last.

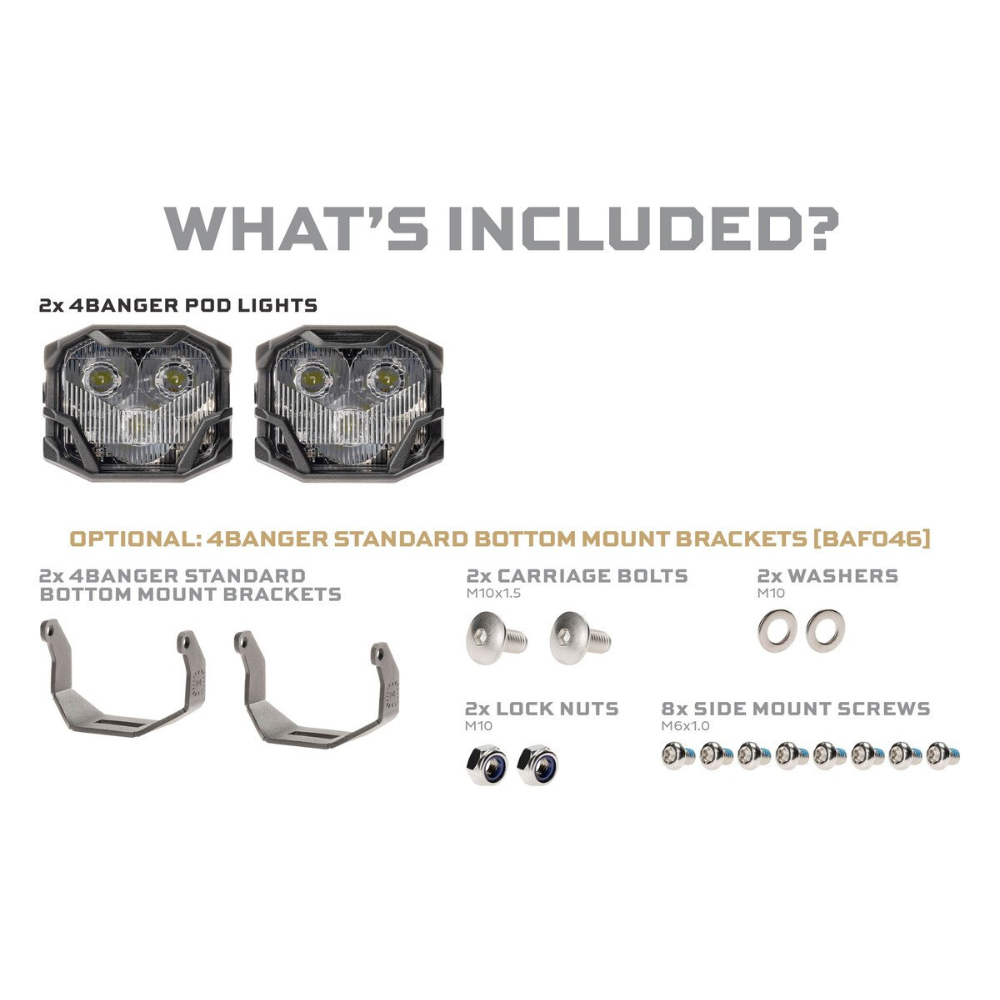

Included:

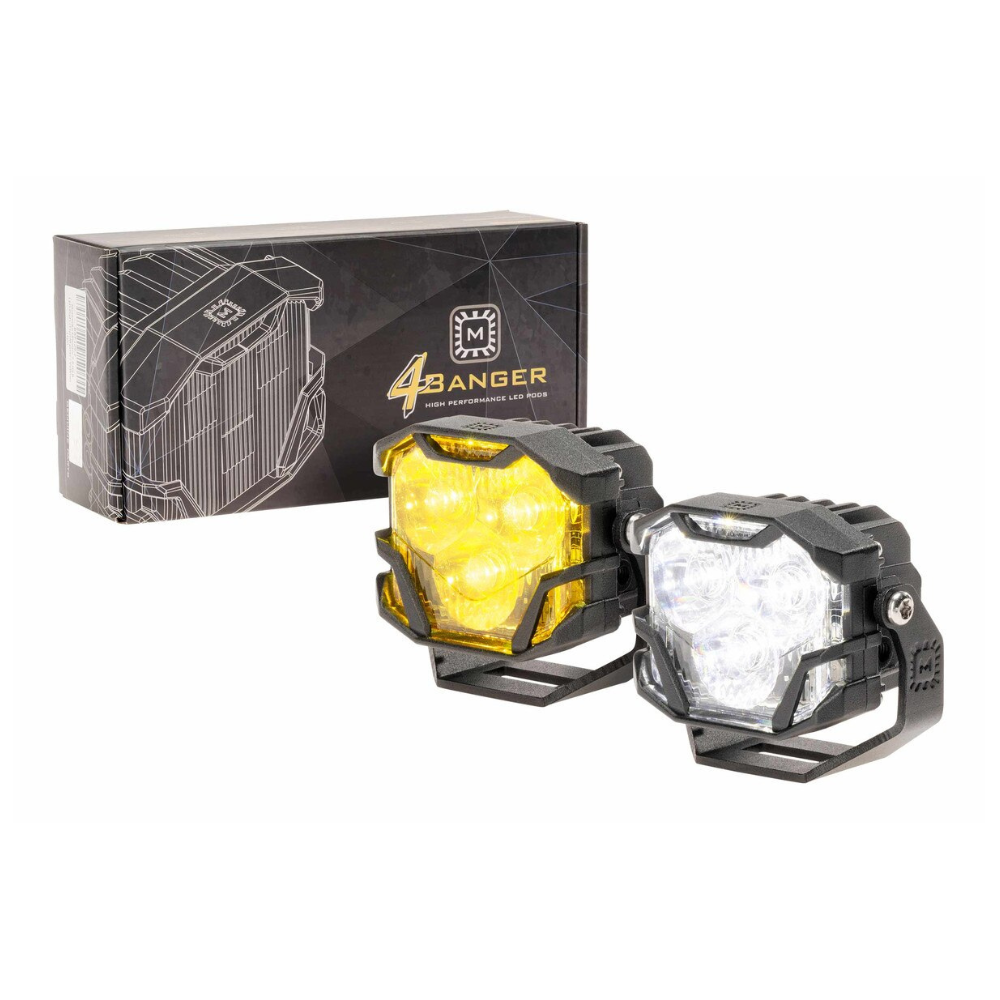

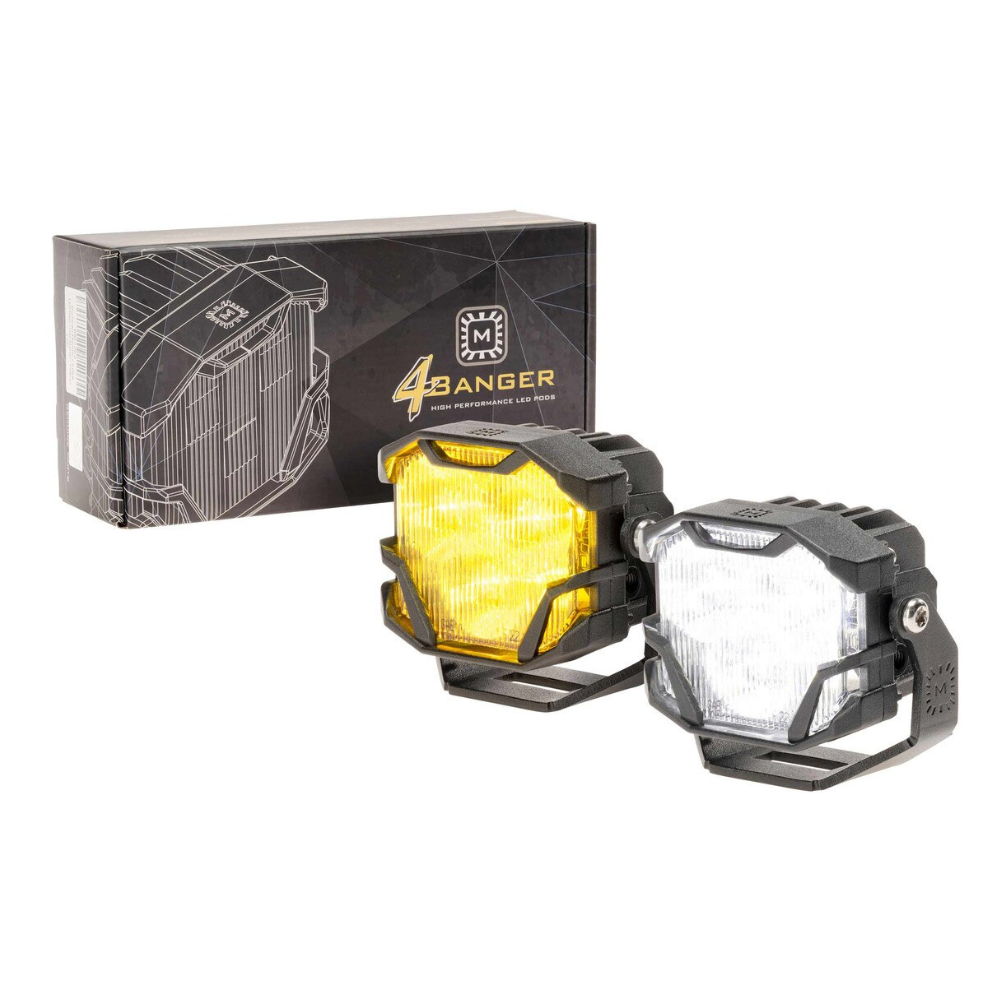

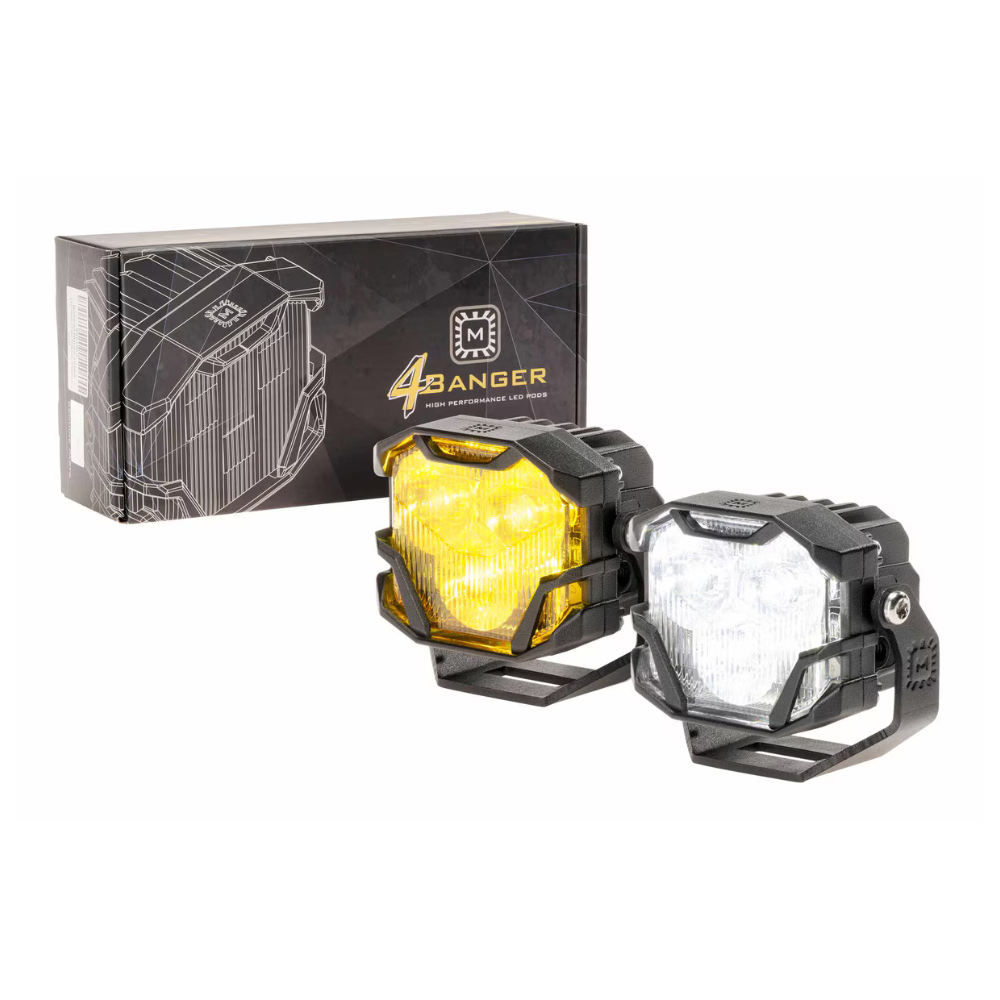

✔ LED Pods : 2x (One Pair) Morimoto 4Banger HXB (White or Yellow)
✔ Hardware : 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M6x1.0 SS Screws
✔ Optional Brackets : 2x Top, Bottom, or Flush Mounts
✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
✔ Optional Covers : 2x Rubber Blackout Covers

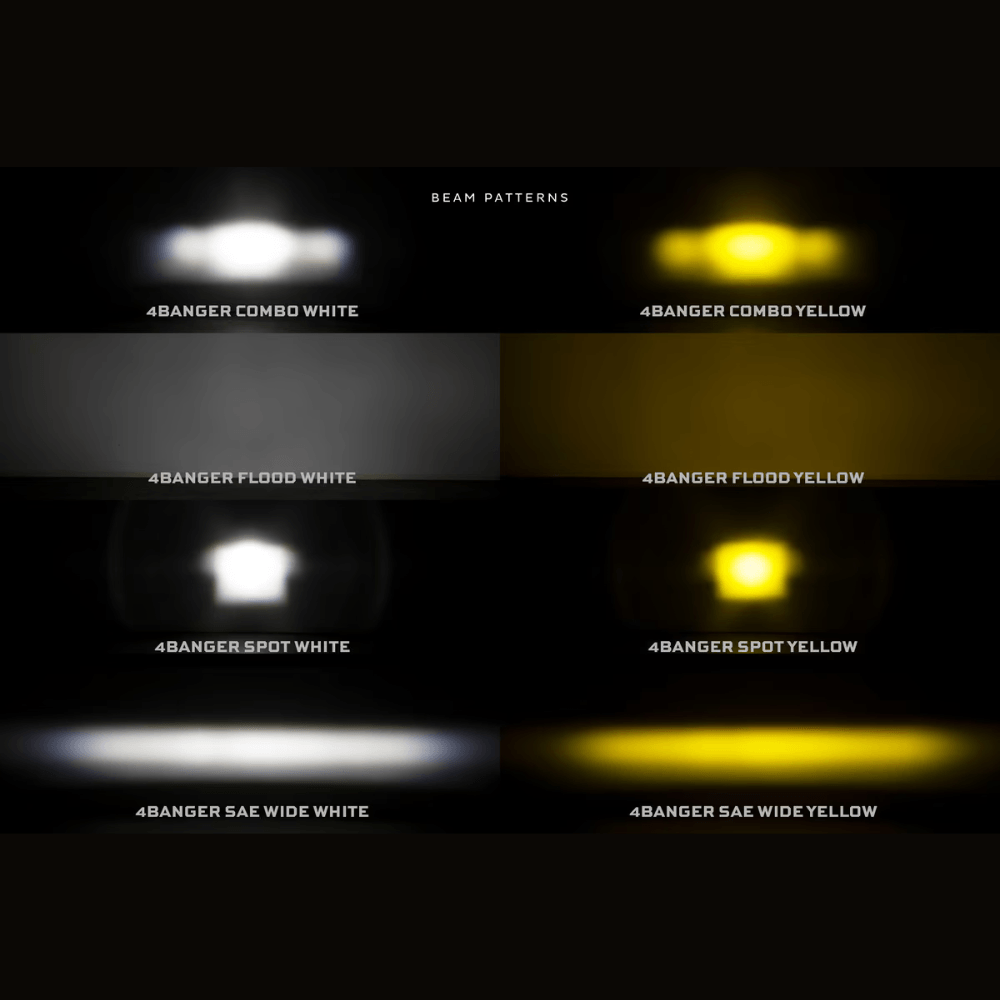

Combo Beam: Perfect blend of width and distance illumination.
Spot Beam: Tightly-focused beam pattern for distance lighting.
Flood Beam: Abundant ambient lighting for low-speed offroading or scene lighting.
Street Legal: Both the NCS and HXB Wide Beam models have been third-party verified compliant with the latest SAE F regulation for use as a street-legal fog light.
Light Source: The NCS 4Bangers are designed around the high performance Nichia NCS LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.

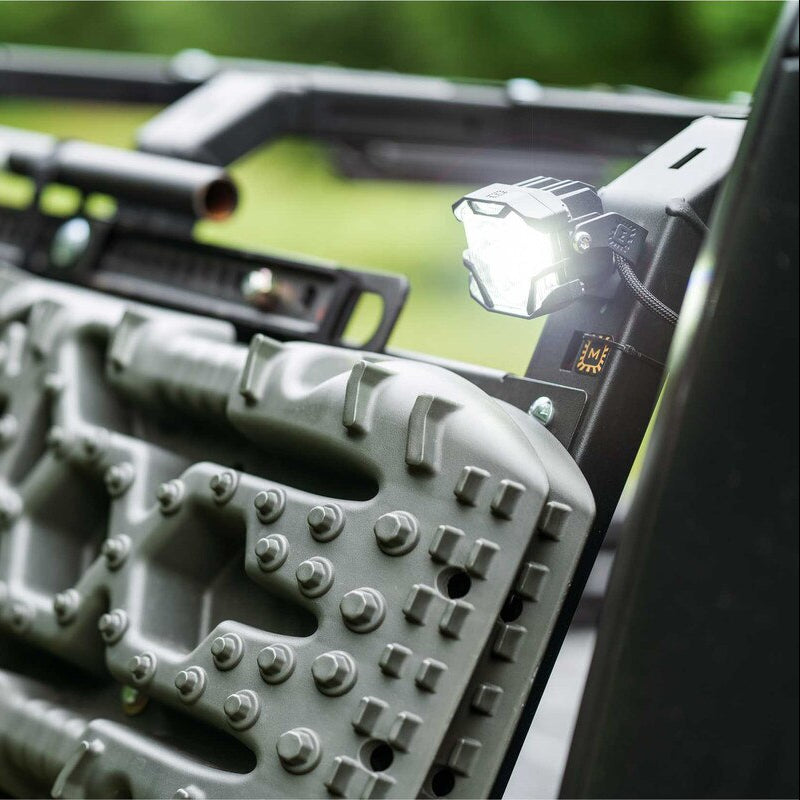

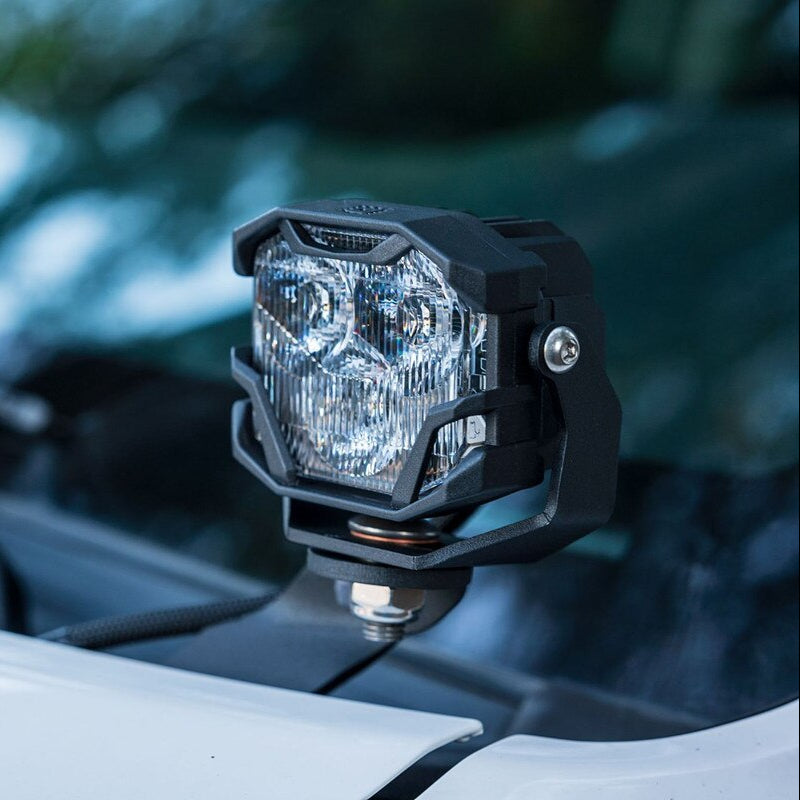

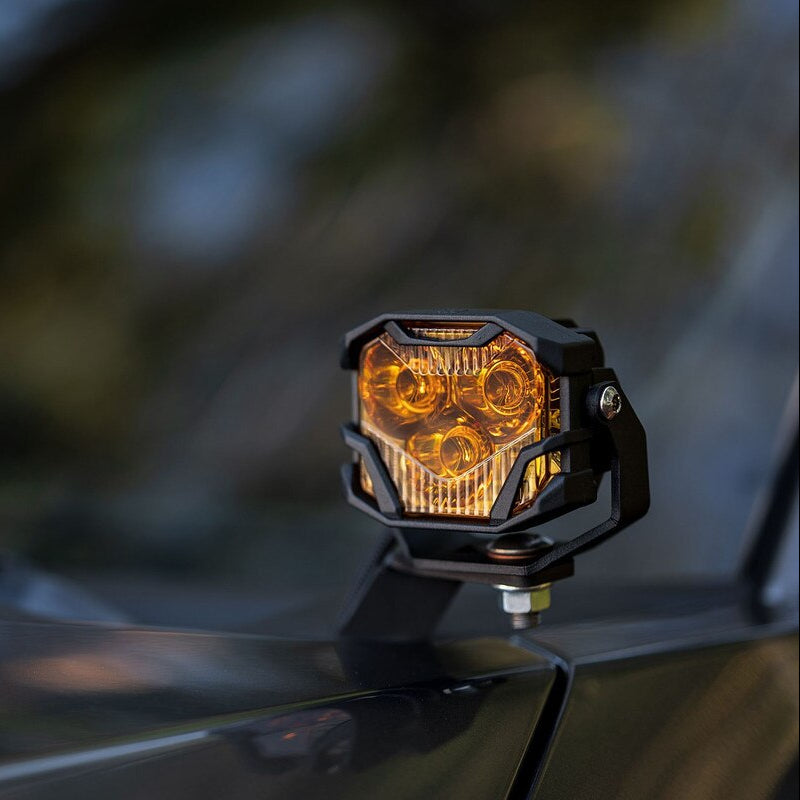

Mounting Options: Available mounts for the 4Banger include pedestal, flush, tube, or hanging for any application type.
US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.
HXB Combo Beam (These specifications are per pod / each!)
Intensity (White) : 78,000 Cd (Post Warm-Up) (780lux @ 10m)
Intensity (Yellow) : 54,600 Cd (Post Warm-Up) (546lux @ 10m)

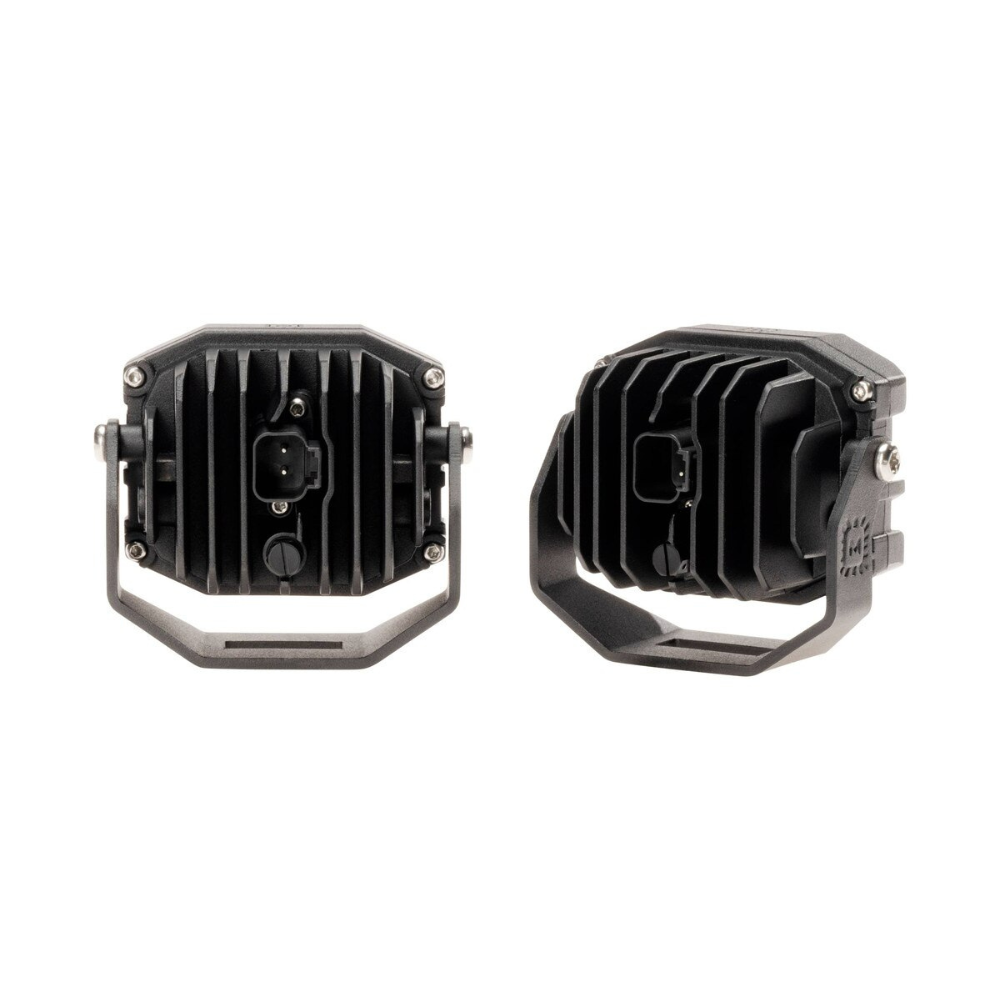

Input : Integrated Deutsch DT 2-Pin
Power (stabilized) : 42w
Current : 3.2A @ 13.5V DC
Peak Luminosity (raw) : 3,000lm
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6x1.0 8mm (4Banger to U-Bracket), M10x1.5 20mm (U-Bracket base)
Color : 2700K (Yellow) or 5700K (White)
Light Source : 3x Osram HX Boost (5700K)
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
HXB Spot Beam (These specifications are per pod / each!)
Intensity (White) : 170,000 Cd (Post Warm-Up) (1,700lux @ 10m)
Intensity (Yellow) : 119,000 Cd (Post Warm-Up) (1190lux @ 10m)
Input : Integrated Deutsch DT 2-Pin
Power (stabilized) : 42w
Current : 3.2A @ 13.5V DC
Peak Luminosity (raw) : 3,000lm
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6x1.0 8mm (4Banger to U-Bracket), M10x1.5 20mm (U-Bracket base)
Color : 2700K (Yellow) or 5700K (White)
Light Source : 3x Osram HX Boost (5700K)
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
HXB Wide Beam (These specifications are per pod / each!)
Intensity (White) : 21,000 Cd (Post Warm-Up) (210lux @ 10m)
Intensity (Yellow) : 14,700 Cd (Post Warm-Up) (147lux @ 10m)
Input : Integrated Deutsch DT 2-Pin
Power (stabilized) : 42w
Current : 3.2A @ 13.5V DC
Peak Luminosity (raw) : 3,000lm
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6x1.0 8mm (4Banger to U-Bracket), M10x1.5 20mm (U-Bracket base)
Color : 2700K (Yellow) or 5700K (White)
Light Source : 3x Osram HX Boost (5700K)
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

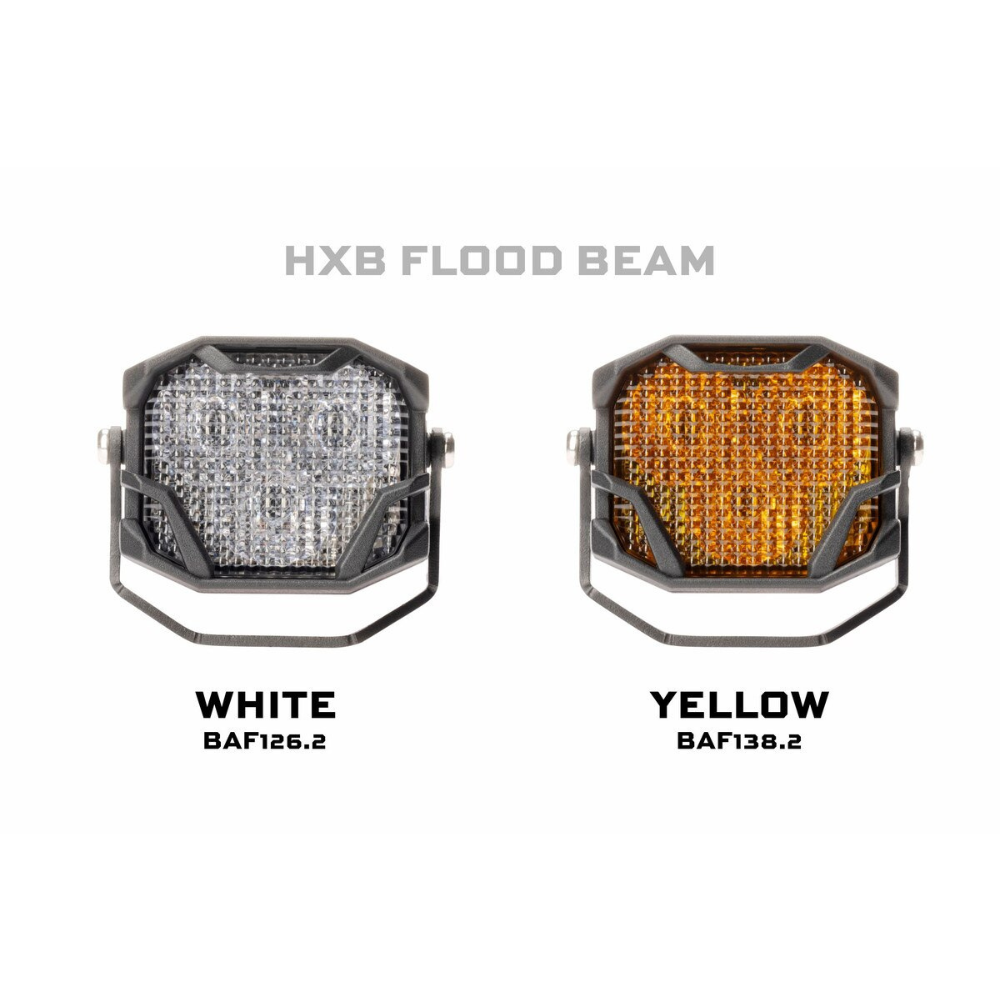

HXB Flood Beam (These specifications are per pod / each!)
Intensity (White) : 1,750 Cd (Post Warm-Up) (17.5lux @ 10m)
Intensity (Yellow) : 1,225 Cd (Post Warm-Up) (12.25lux @ 10m)
Input : Integrated Deutsch DT 2-Pin
Input Voltage : 9-18V DC
Power (stabilized) : 42w
Current : 3.2A @ 13.5V DC
Peak Luminosity (raw) : 3,000lm
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6x1.0 8mm (4Banger to U-Bracket), M10x1.5 20mm (U-Bracket base)
Color : 2700K (Yellow) or 5700K (White)
Light Source : 3x Osram HX Boost (5700K)
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP Rating : IP69K (Dust / High Pressure Water Resistant)
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
