Fitment: 2014-2024 Toyota 4Runner ✔

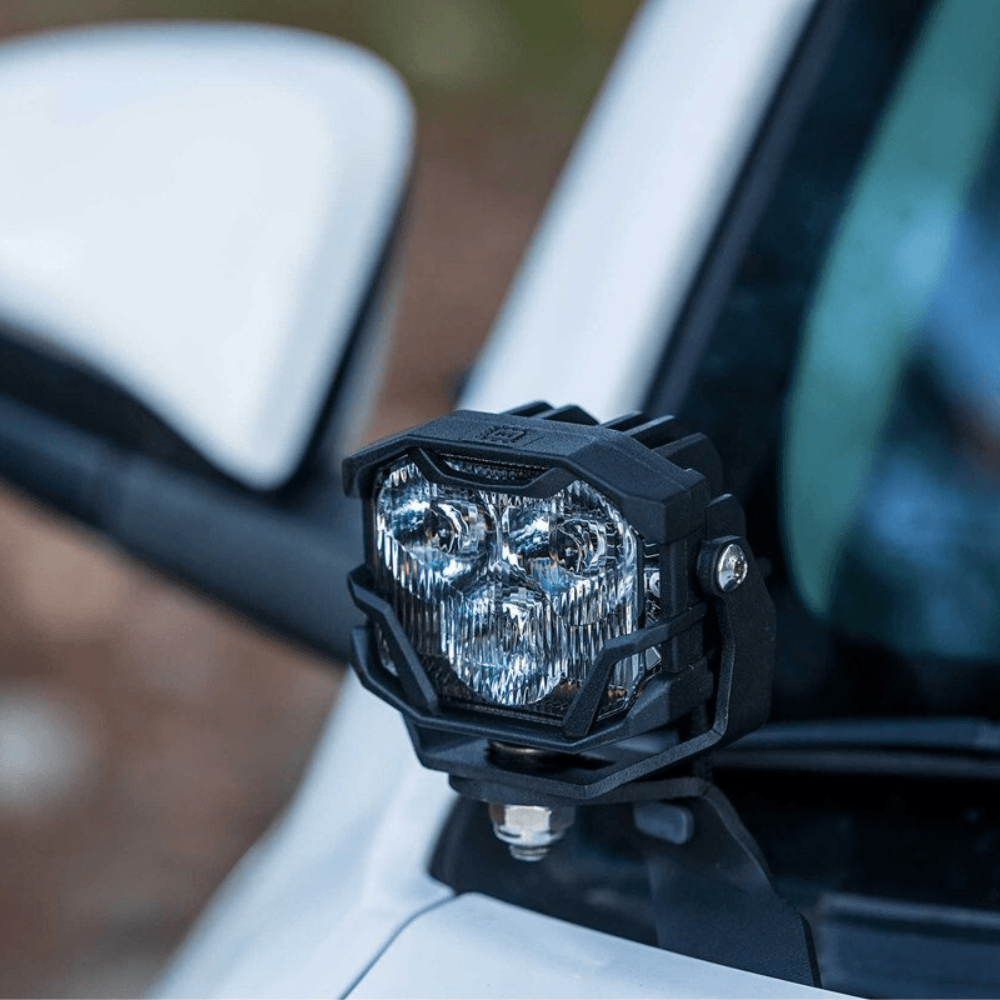

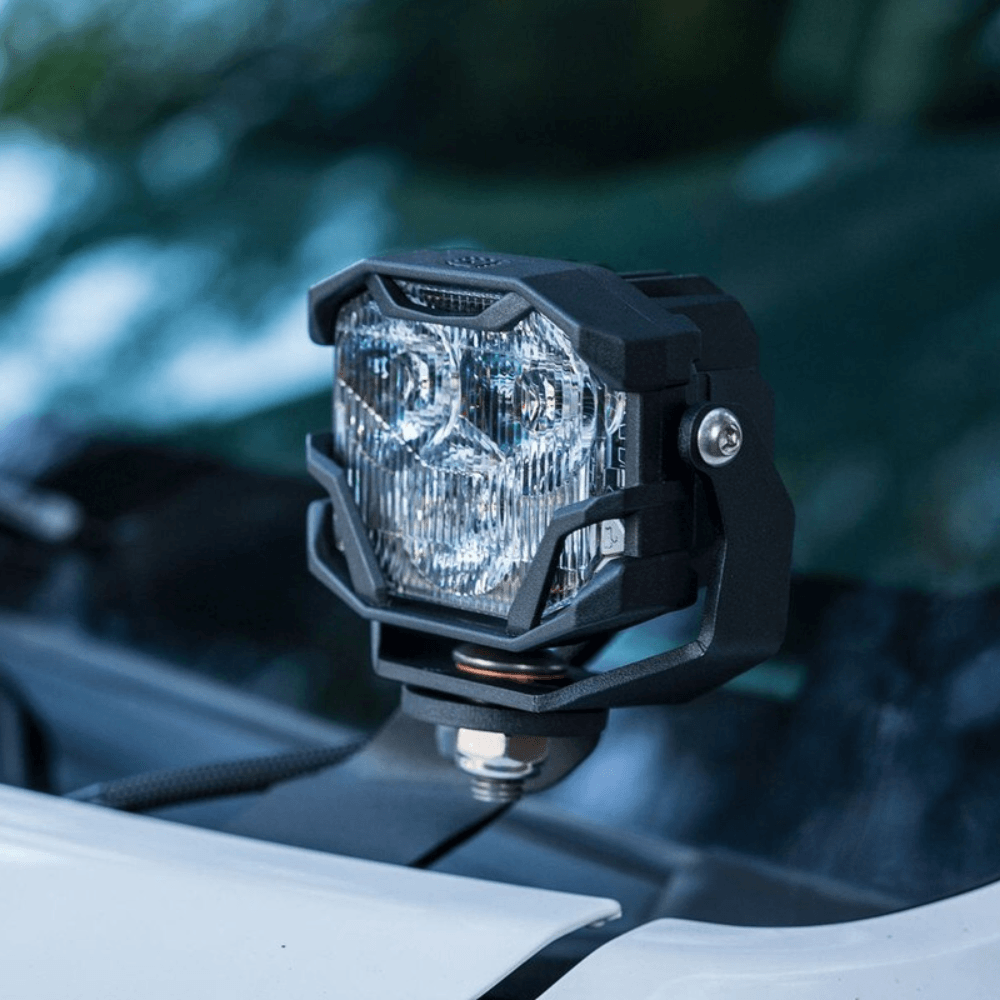

Introducing the Morimoto 4Banger A-Pillar LED Kit -- your ultimate solution for enhanced visibility on the road! This versatile kit offers three dynamic beam patterns: Combo, Spot, and Wide. The NCS pods, known for their brightness, provide a clear path with a blend of width and distance illumination. But if you're seeking the next level of brightness, look no further than the HXB Pods -- they take brightness to an extraordinary level. The Combo beam boasts a perfect blend of width and medium-range illumination, making it ideal for everyday driving. The Spot beam penetrates up to a remarkable 800 meters into the distance with HXB Pods, ensuring unrivaled visibility. Lastly, the Wide beam illuminates the ground directly in front of your vehicle, delivering exceptional width, intensity, and control, all while meeting SAE-Compliance standards.

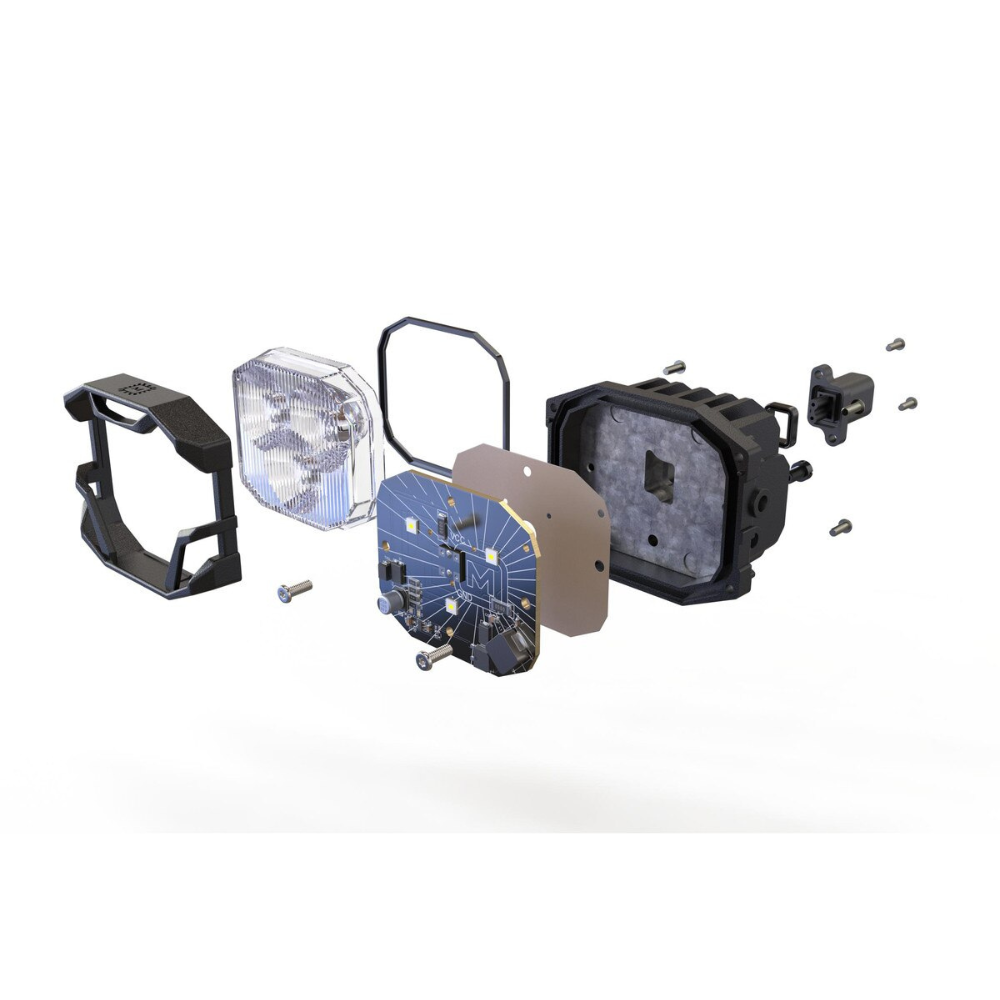

With features like optimized thermal dynamics, weather resistance, and impeccable build quality, the Morimoto 4Banger LED Pods redefine excellence. Elevate your driving experience with the pinnacle of lighting technology.

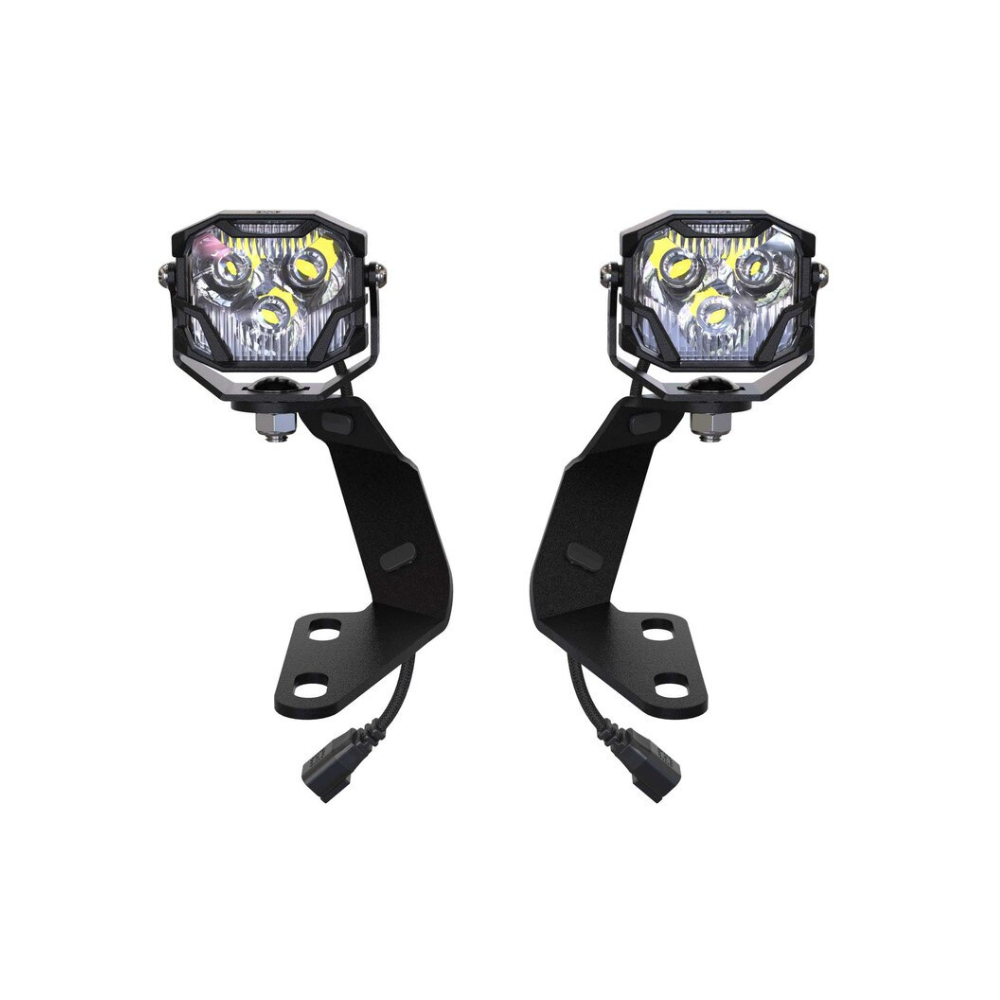

Included:

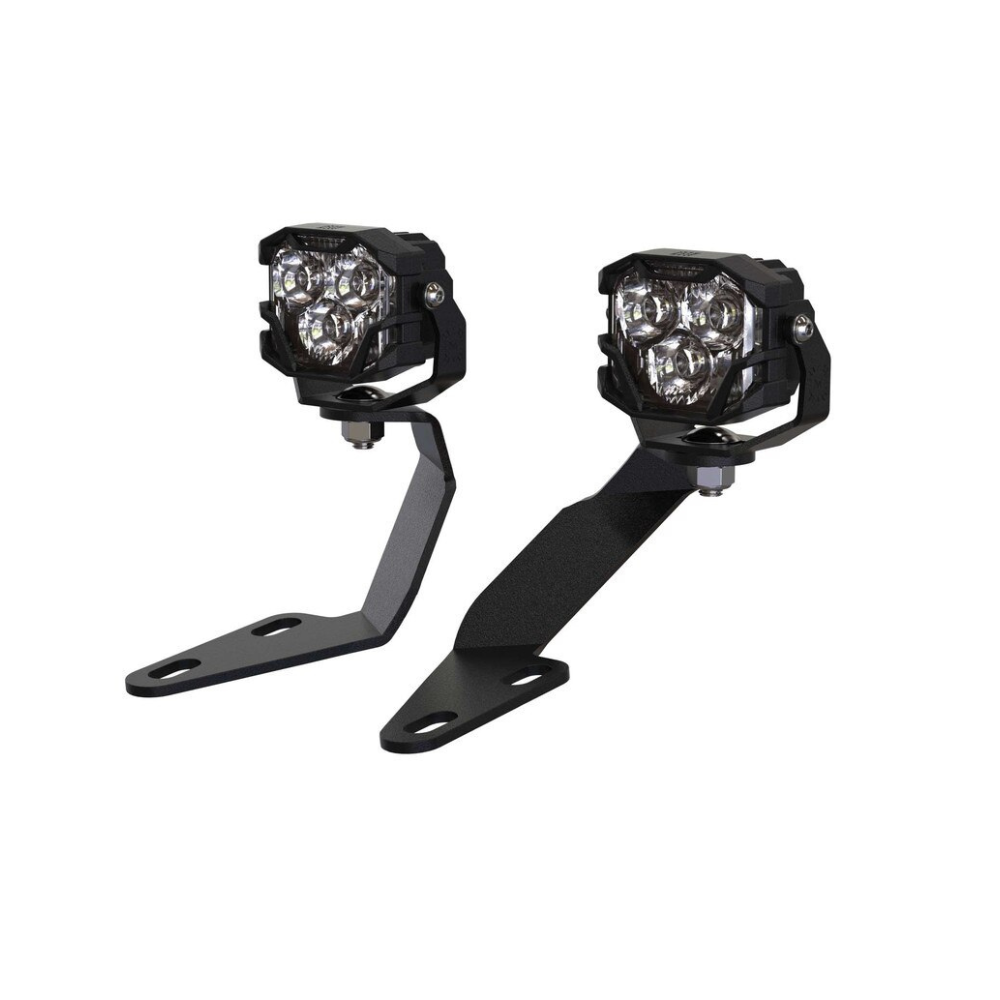

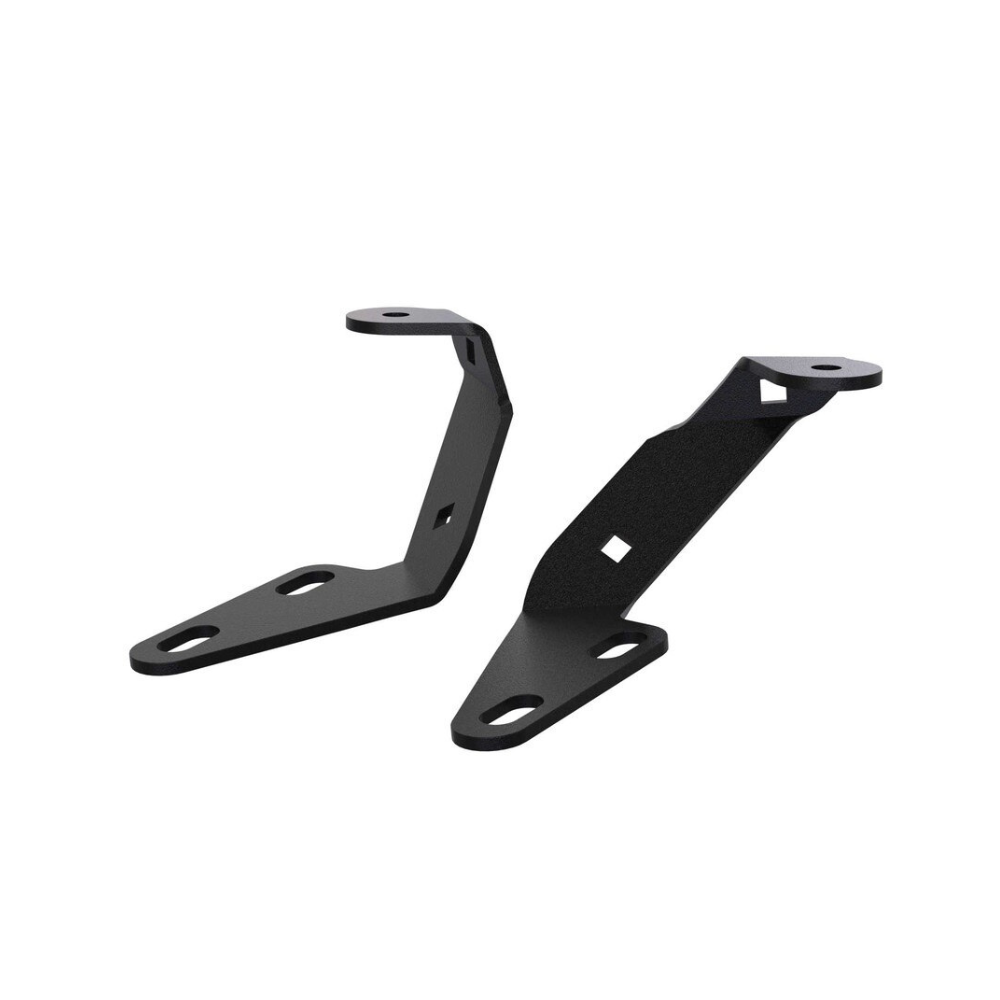

✔ Ditch Brackets : 2x (One Pair) BAF027 Brackets
✔ Hardware : 4x Plastic cable clips

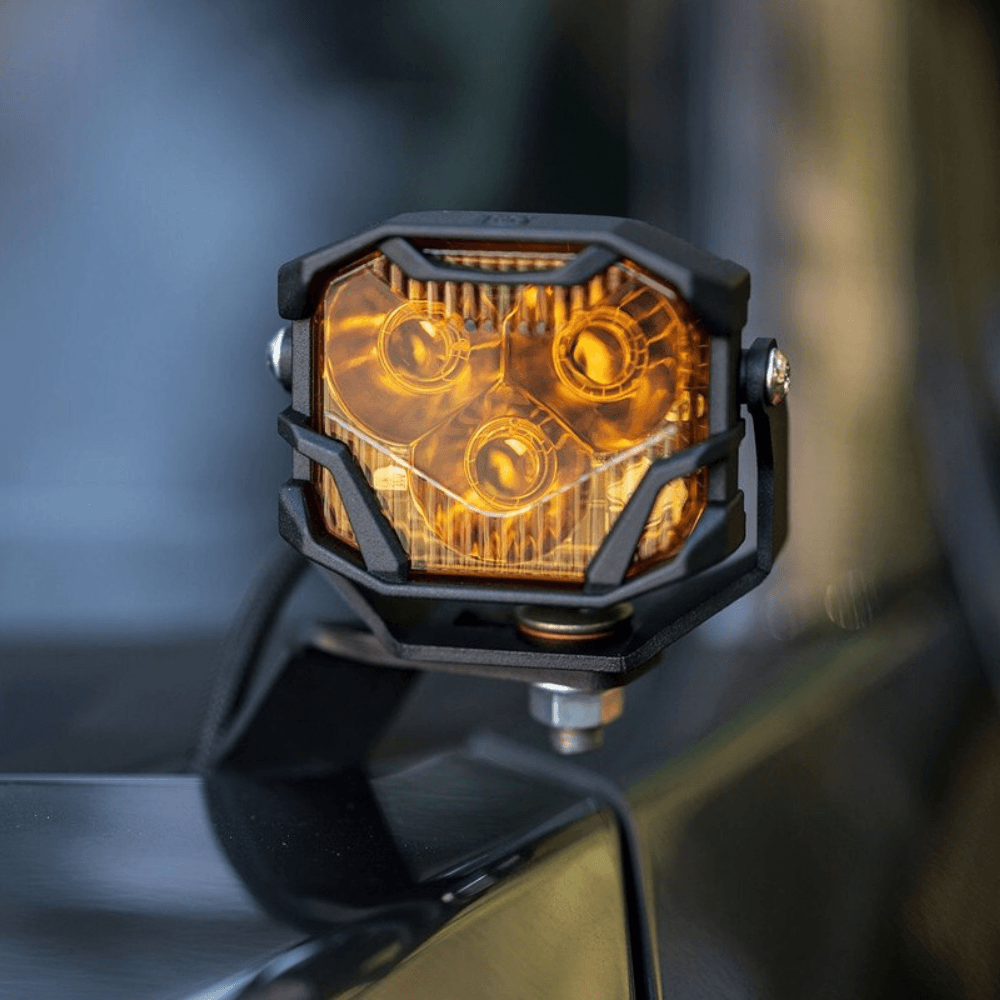

✔ Optional LED Pods : 2x Morimoto 4Banger (Optional Beam Pattern / Color)
✔ Bottom Mounts : 2x Standard Bottom Mount Brackets

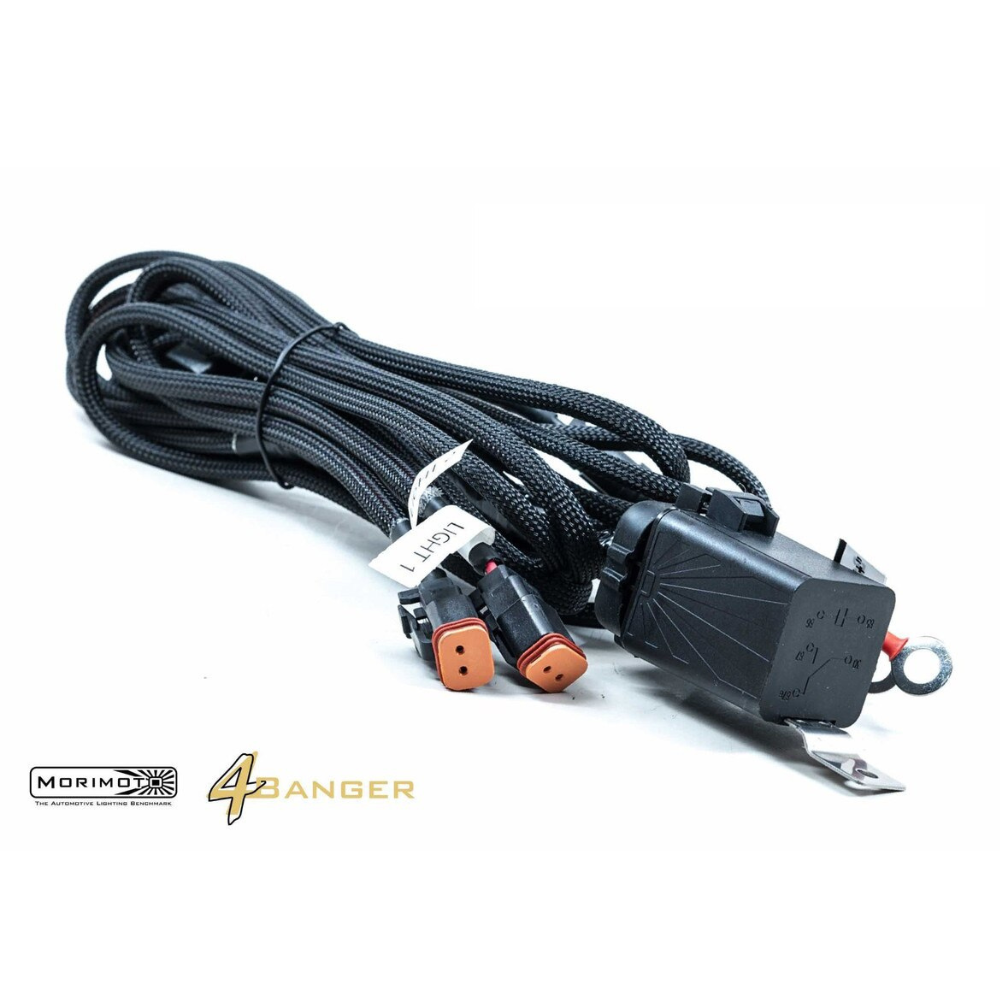

✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
✔ Optional Covers : 2x Rubber Blackout Covers
Perfect Fit Brackets: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA for the 2014-2024 Toyota 4Runner.
Smart Design: These brackets are designed with wire routing clips for the cleanest installation, no zip ties here!
Durable Build: Laser-cut stainless steel brackets are powdercoated to ensure longevity in any environment.
Optimal Lighting: 4Bangers are designed around the ultra high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
Optional Wiring: Your choice of a premium plug-and-play wire harness or standard input pigtails allow you to wire the lights as you see fit.
Intensity:
NCS Wide Yellow : 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White : 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White : 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow : 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White : 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow : 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White : 23,400 Cd (@20 Min / 21C Ambient) (234lux @ 10m)
HXB Combo Yellow : 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White : 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow : 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White : 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage : 9-18V DC
Power : 15.6w (NCS) 42w (HXB)
Current : 1.5A (NCS) or 3.2A (HXB)
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color : 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source : 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input : Proprietary Overmolded Deutsch DT 2-Pin
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
*These specifications are per pod / each!
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
