Fitment: 2010-2013 Toyota 4Runner ✔

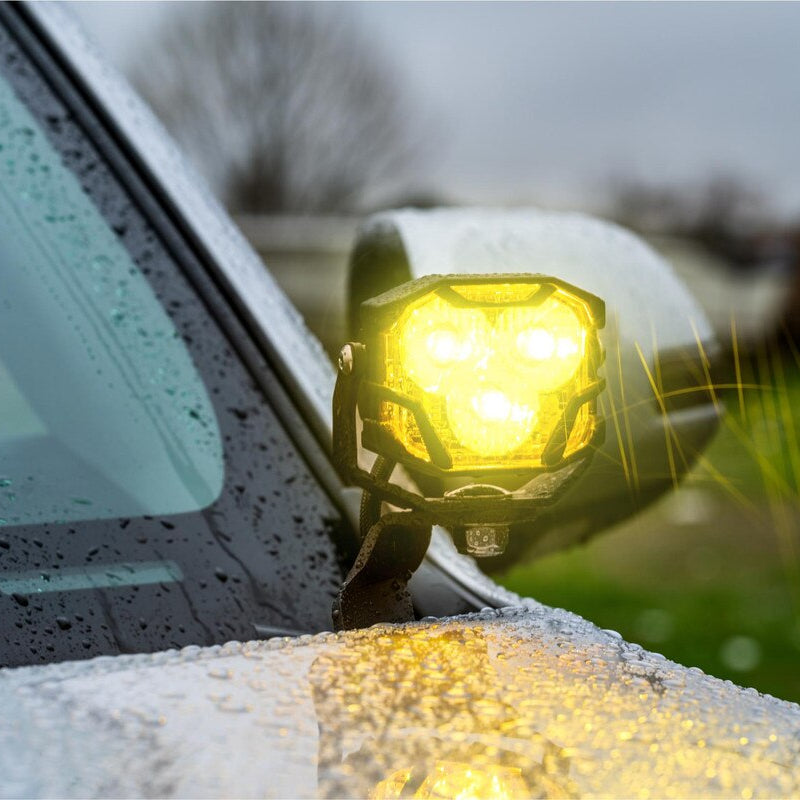

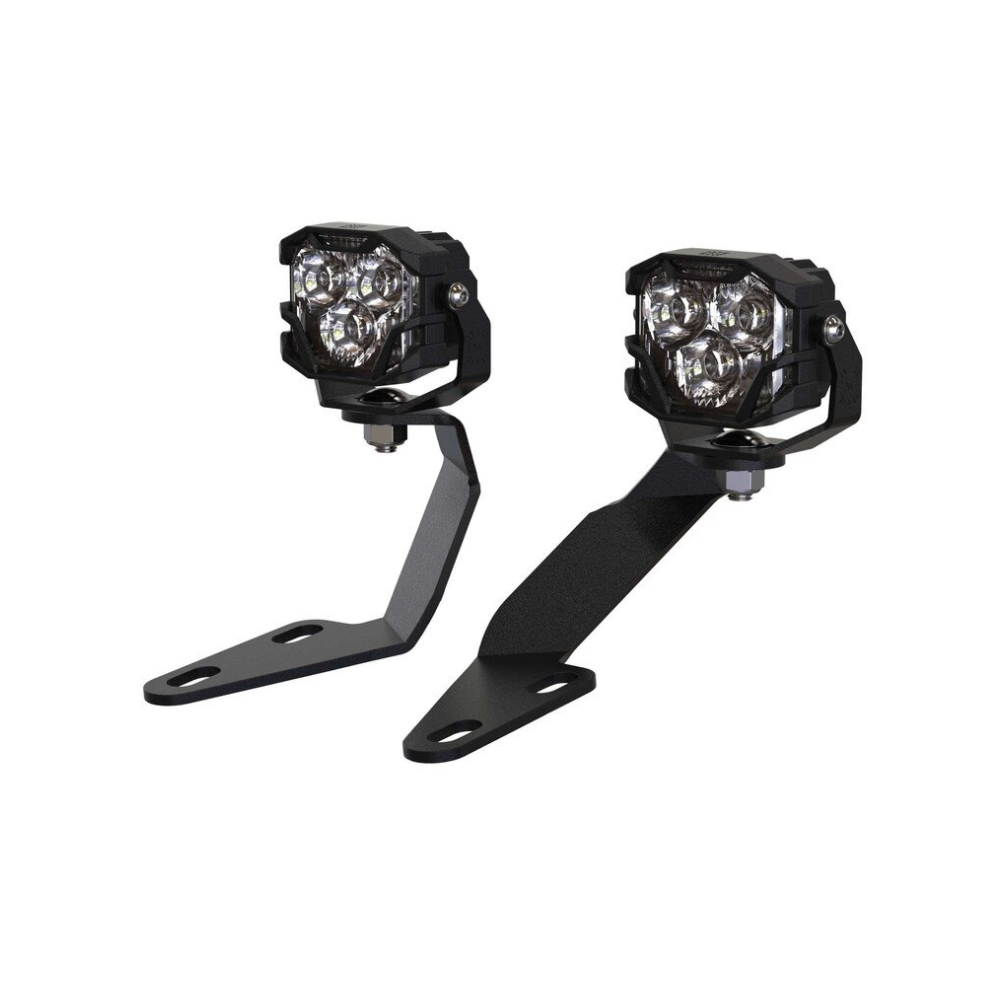

Introducing the Morimoto 4Banger A-Pillar LED kit, the ultimate solution for enhanced vehicle illumination. With three versatile beam patterns -- Combo, Spot, and Wide -- these pods are engineered for exceptional performance. The NCS pods deliver outstanding brightness, making your journey safer and more enjoyable. But for those seeking the pinnacle of brilliance, the HXB Pods take it to the next level with unparalleled intensity. Crafted with precision, these lights boast laser-cut stainless steel brackets, weather-resistant design, and optimal thermal management. The Combo beam strikes a balance between width and distance. The Spot beam shines upt to a staggering 800 meters ahead, perfect for those who crave long-range visibility. Lastly, the Wide beam illuminates the ground directly in front, providing unbeatable off-road fog lighting.
With Morimoto's unwavering commitment to quality, these pods redefine excellence in automotive lighting. Illuminate your journey with the Morimoto 4Banger A-Pillar LED kit and experience a new level of brightness on the road.
Included:

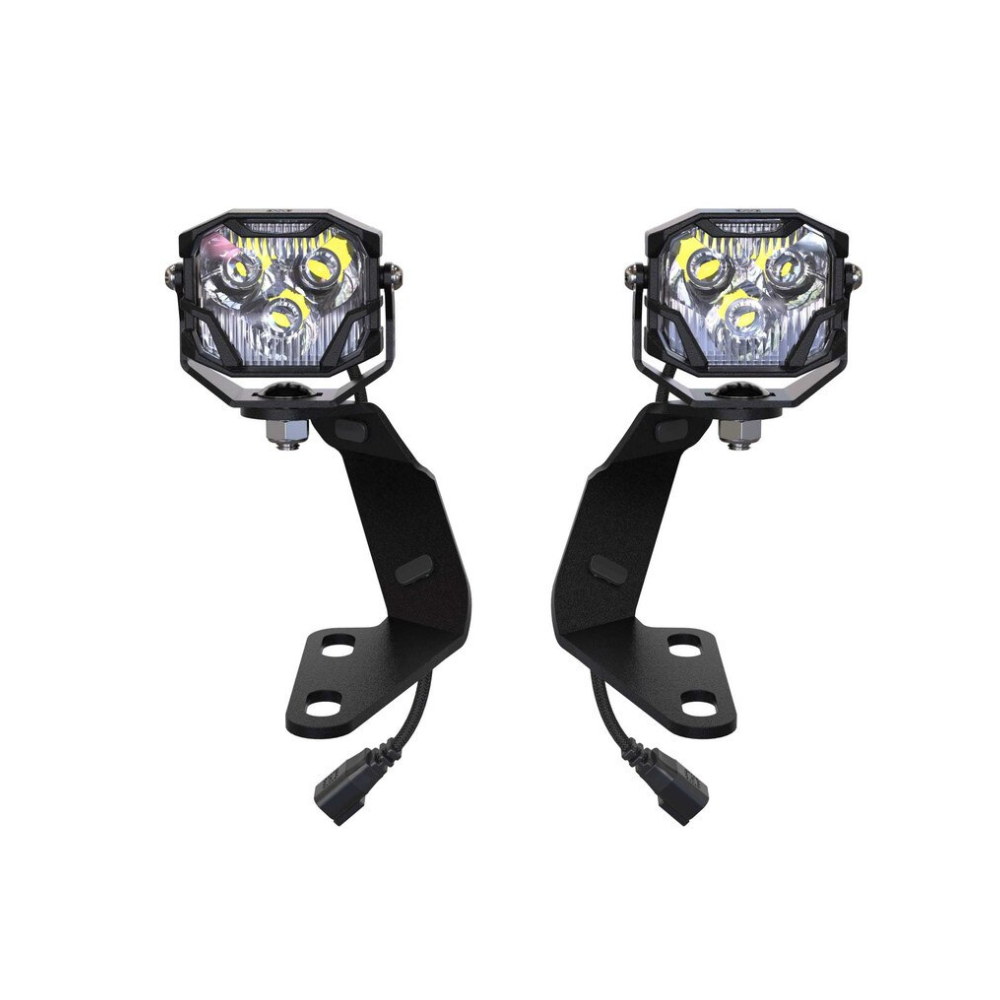

✔ Ditch Brackets : 2x (One Pair) BAF027 Brackets
✔ Hardware : 4x Plastic cable clips
✔ Optional LED Pods : 2x Morimoto 4Banger (Optional Beam Pattern / Color)
✔ Bottom Mounts : 2x Standard Bottom Mount Brackets

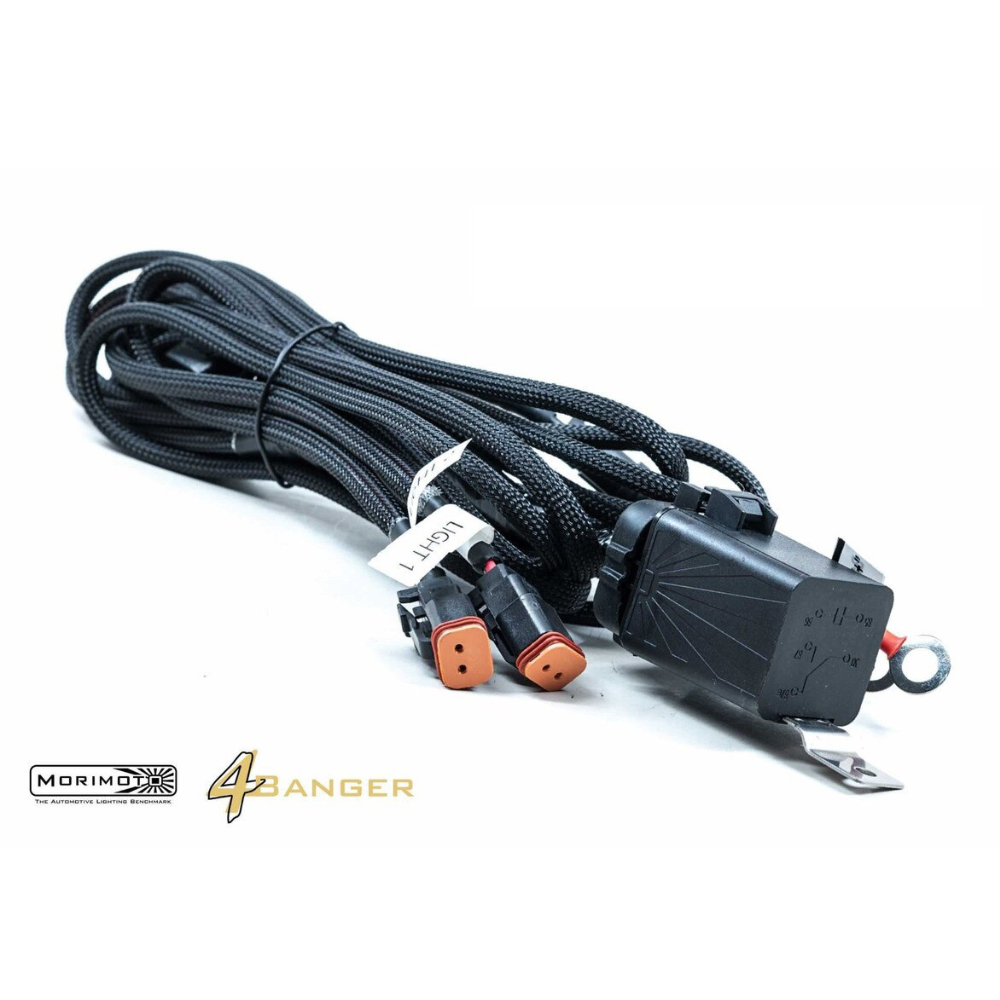

✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
✔ Optional Covers : 2x Rubber Blackout Covers

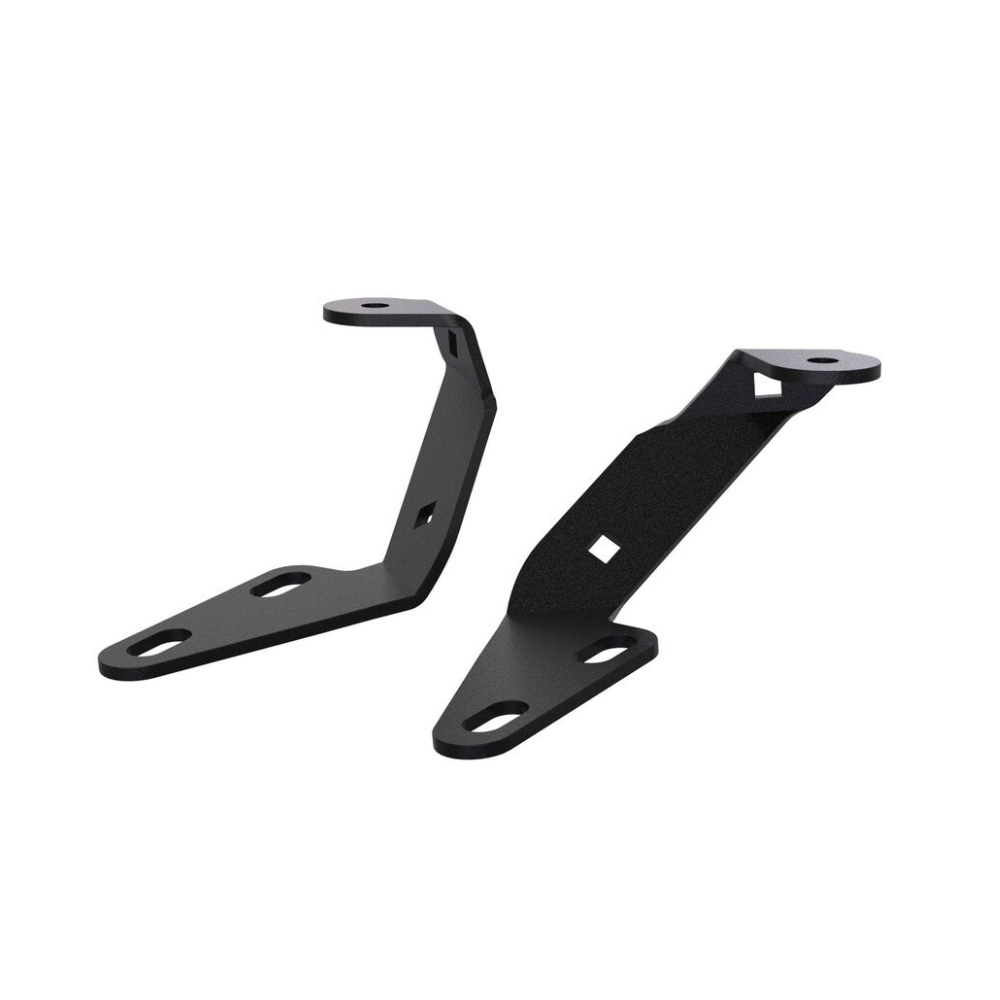

Perfect Fit Brackets: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA for the 2010-2013 Toyota 4Runner.
Smart Design: These brackets are designed with wire routing clips for the cleanest installation, no zip ties here!
Durable Build: Laser-cut stainless steel brackets are powdercoated to ensure longevity in any environment.
Optimal Lighting: 4Bangers are designed around the ultra high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
Optional Wiring: Your choice of a premium plug-and-play wire harness or standard input pigtails allow you to wire the lights as you see fit.
Intensity:
NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White: 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow: 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB Combo Yellow: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage: 9-18V DC
Power: 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Proprietary Overmolded Deutsch DT 2-Pin

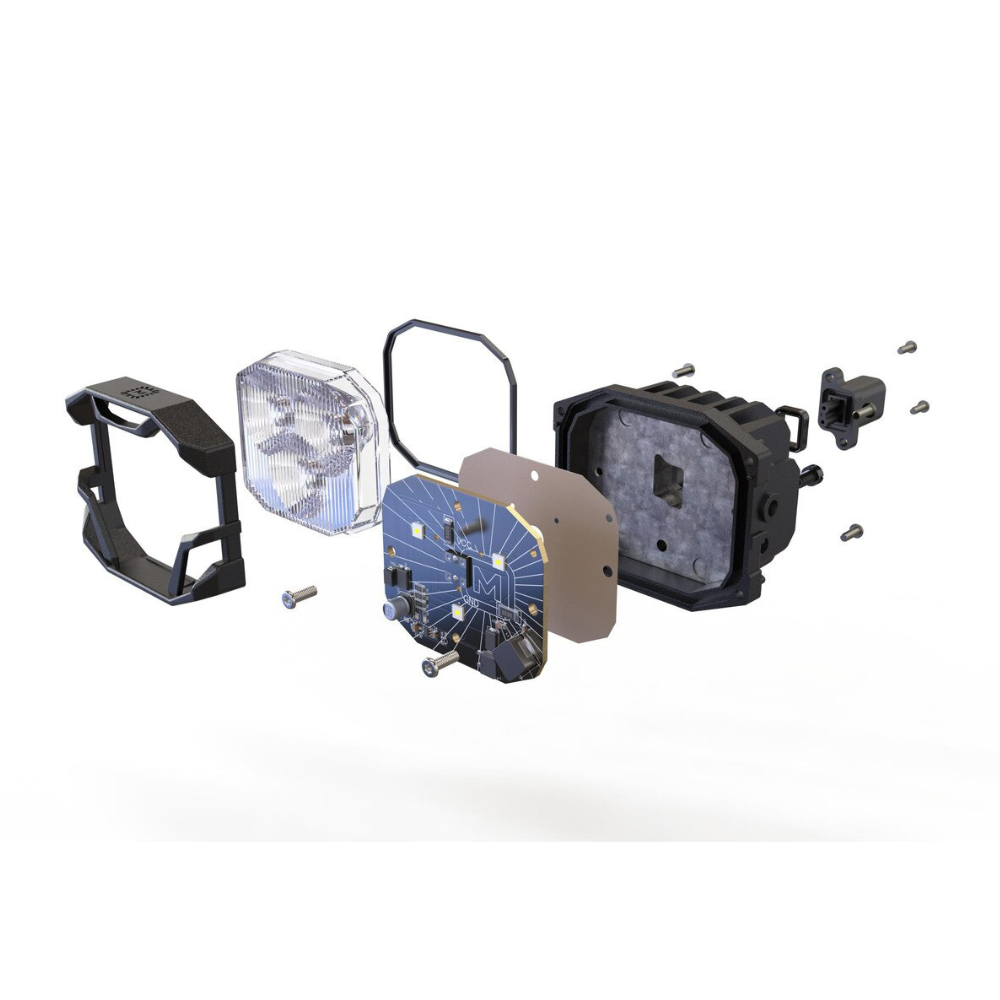

Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Note: These specifications are per pod / each!
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
