Fitment: 2007-2013 Toyota Tundra ✔

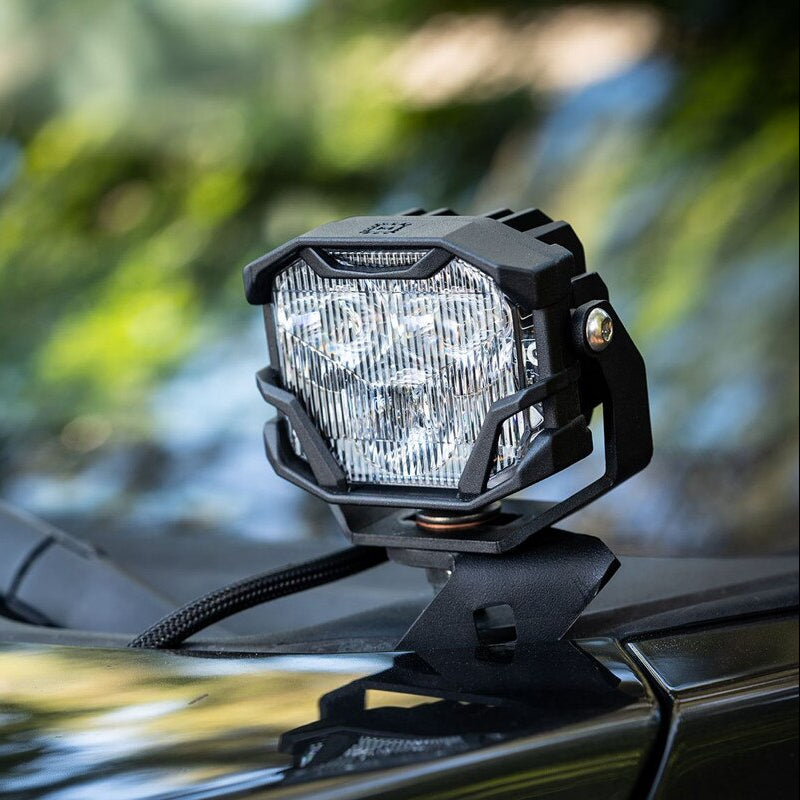

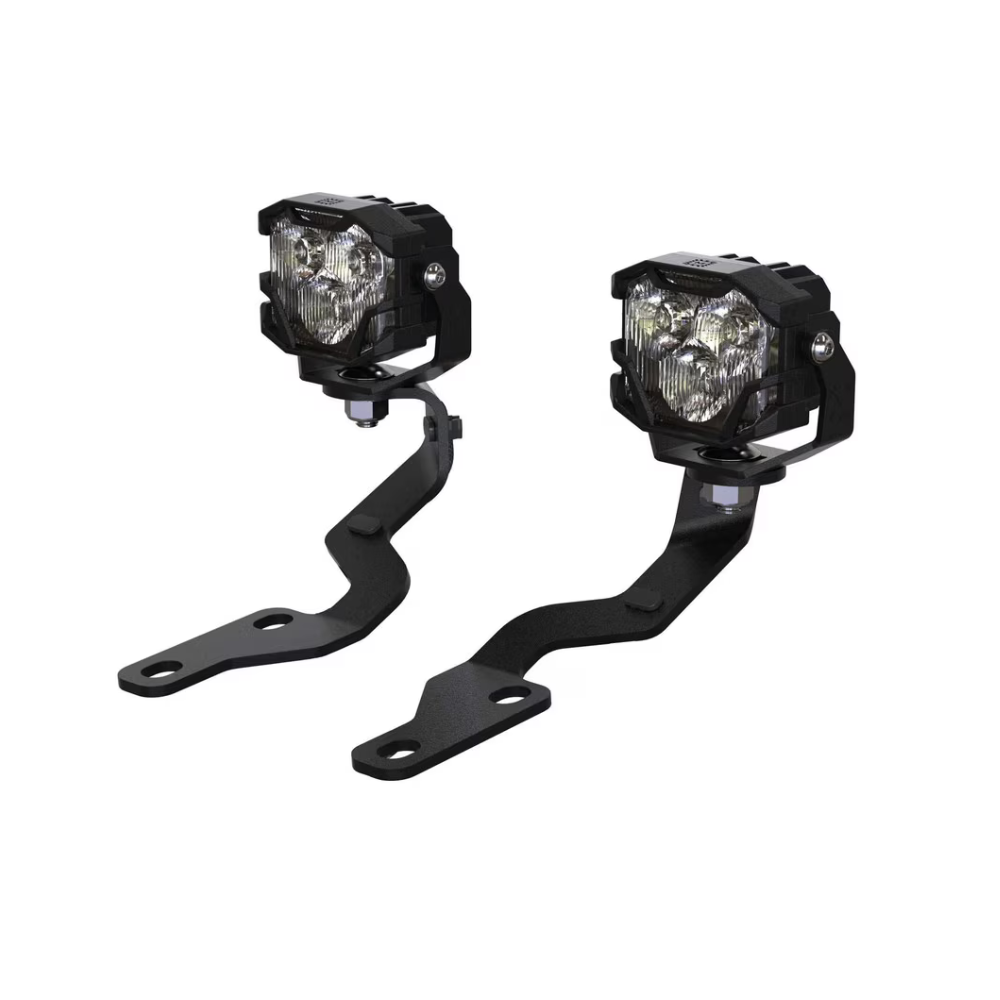

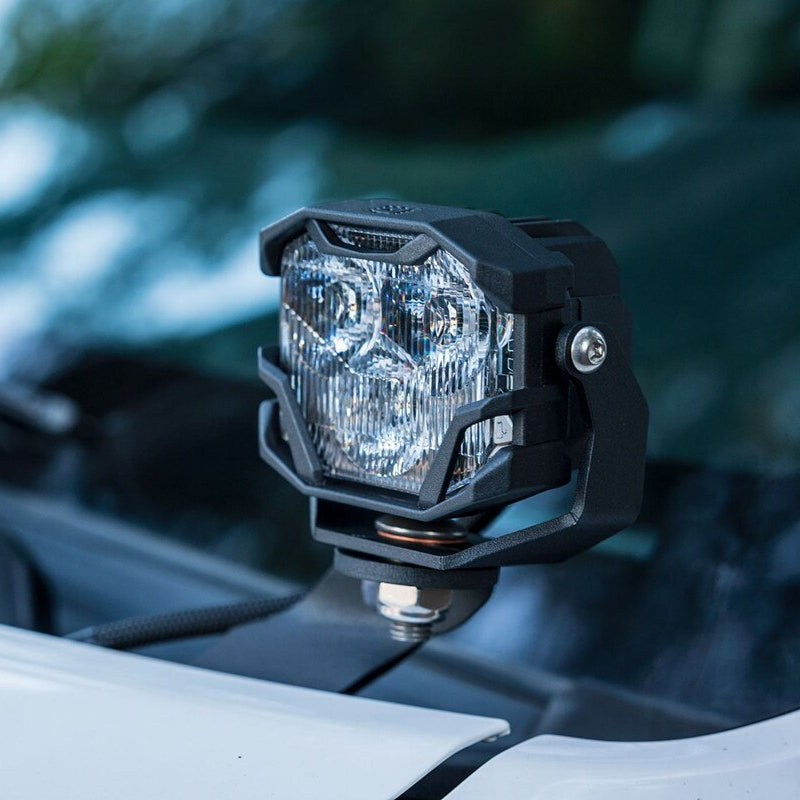

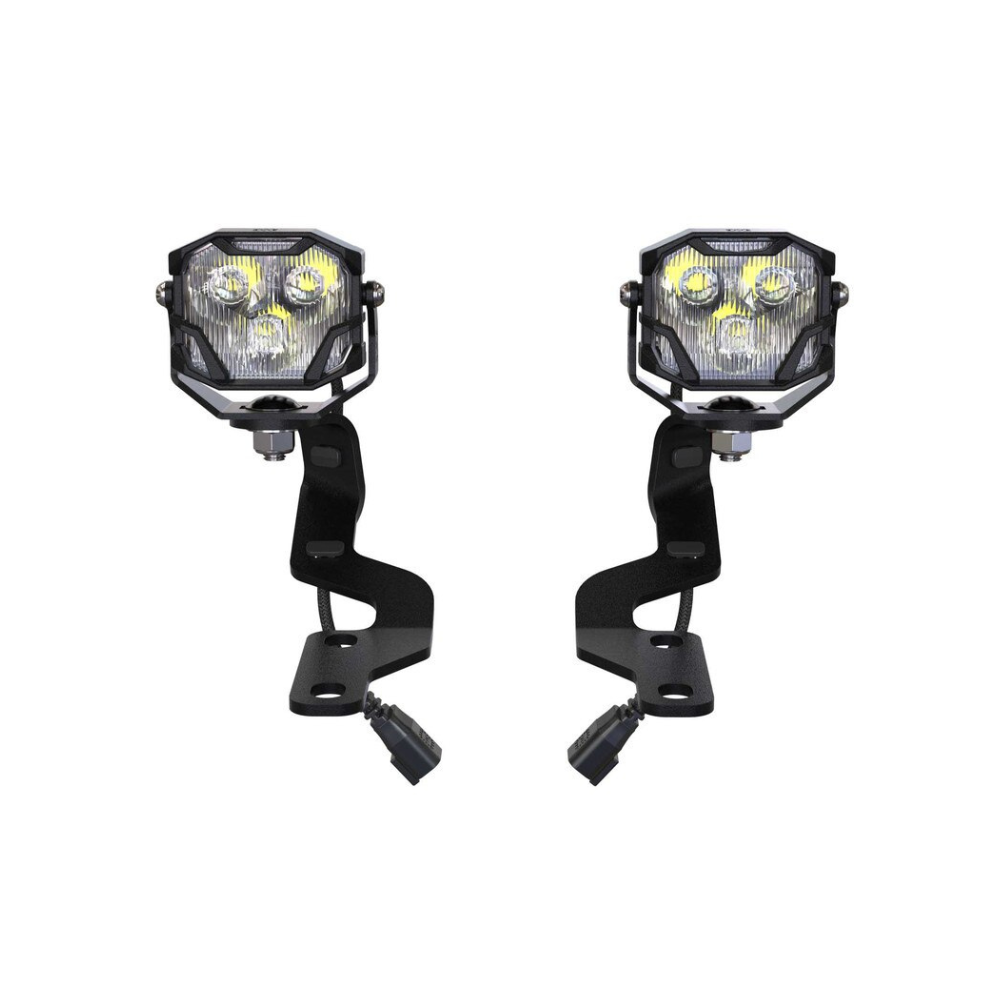

Introducing the Morimoto 4Banger Ditch Light kit, the ultimate solution for enhanced visibility on and off the road. This kit boasts three exceptional beam patterns: Combo, Spot, and Wide Beam, catering to various driving needs. The Combo Beam offers a perfect blend of width and distance illumination, ensuring a comfortable drive even in remote areas. For those seeking exceptional long-range visibility, the Spot Beam penetrates up to an impressive 800 meters. Meanwhile, the Wide Beam excels in ground illumination and off-road performance, making it the brightest SAE-Compliant fog light available.
Notably, the NCS pods provide intense brightness, but the HXB Pods take it to the next level, offering unparalleled luminance. Crafted with precision and reliability in mind, Morimoto's 4Banger LED pods feature top-notch engineering, weather resistance, and efficient cable management for a seamless installation experience. Upgrade your vehicle's lighting capabilities with the Morimoto 4Banger Ditch Light kit and experience superior brightness and performance like never before.
Included:

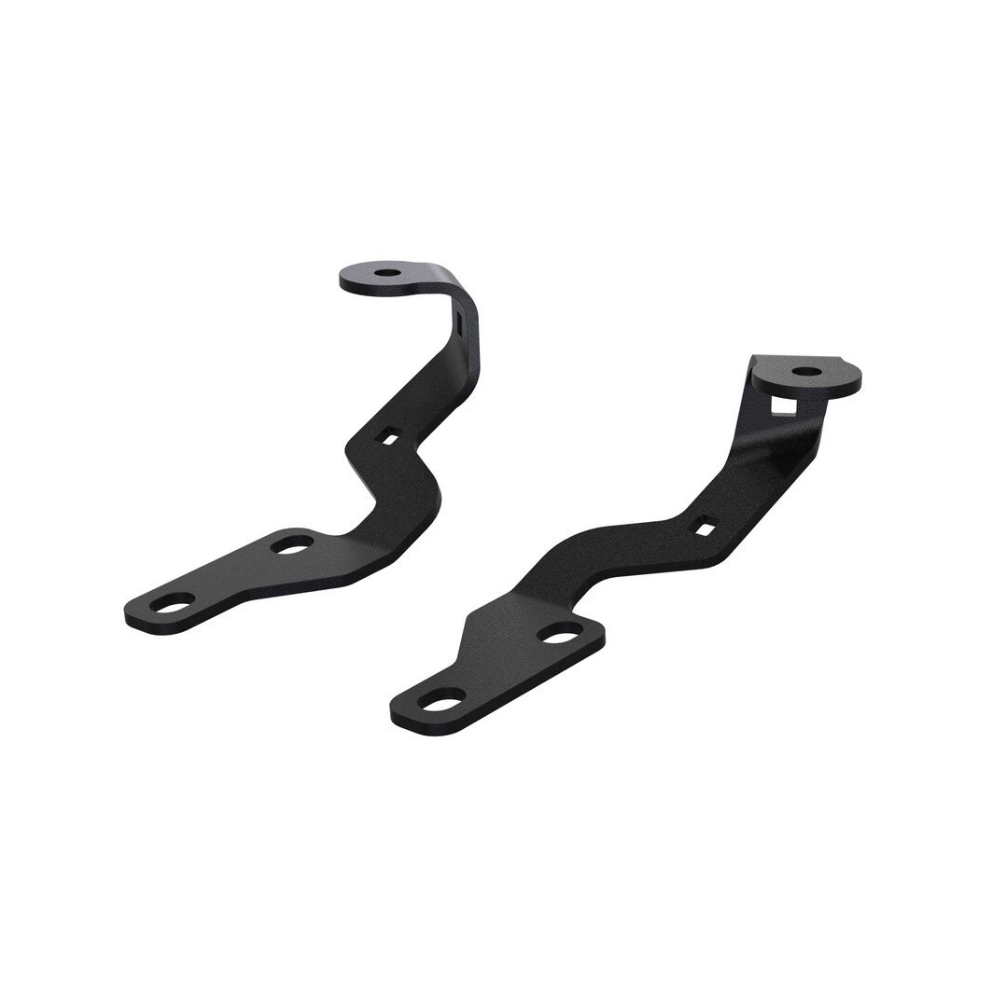

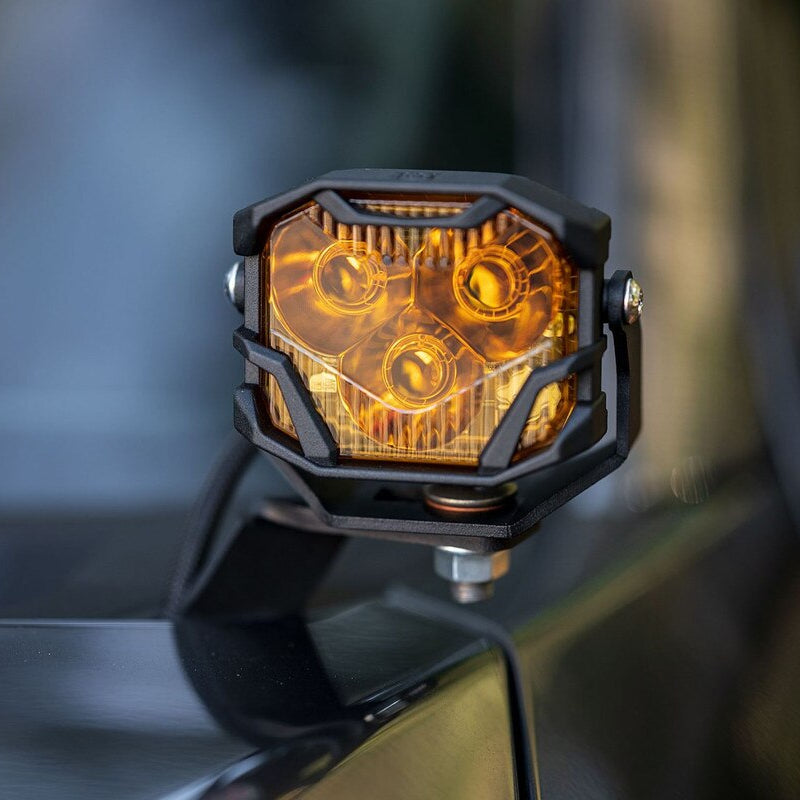

✔ Ditch Brackets : 2x (One Pair) BAF030 Brackets
✔ Hardware : 4x Plastic cable clips
✔ Optional LED Pods : 2x Morimoto 4Banger (Optional Beam Pattern / Color)
✔ Bottom Mounts : 2x Standard Bottom Mount Brackets

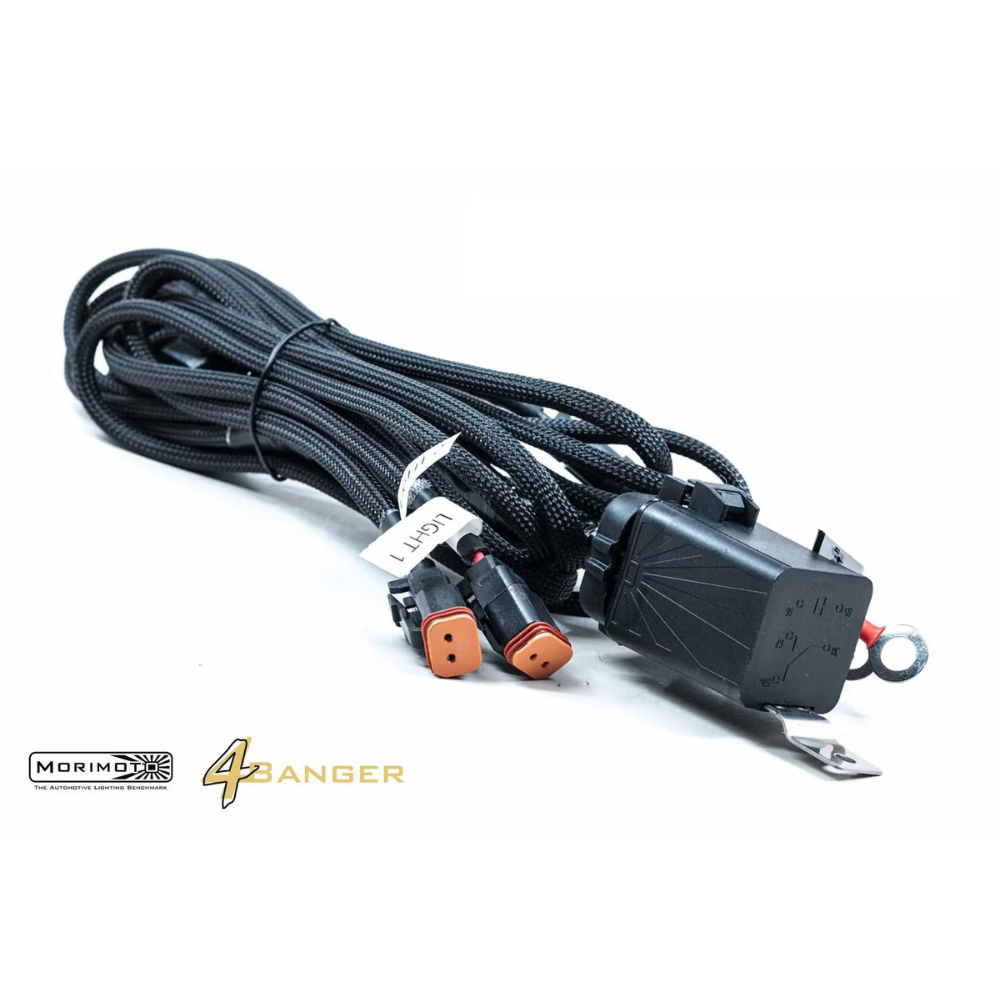

✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
✔ Optional Covers : 2x Rubber Blackout Covers
Perfect Fit Brackets: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA for the 2007-2013 Toyota Tundra.
Smart Design: These brackets are designed with wire routing clips for the cleanest installation, no zip ties here!
Durable Build: Laser-cut stainless steel brackets are powdercoated to ensure longevity in any environment.

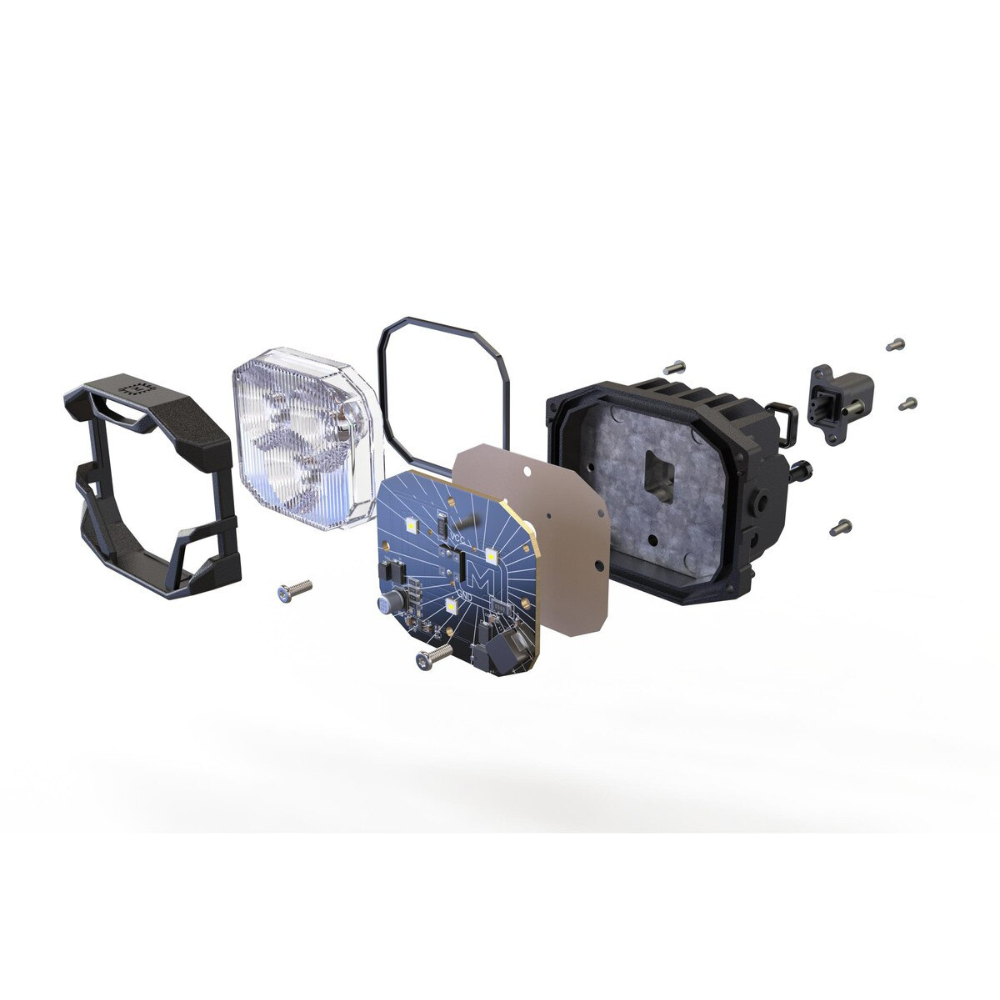

Optimal Lighting: 4Bangers are designed around the ultra high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
Optional Wiring: Your choice of a premium plug-and-play wire harness or standard input pigtails allow you to wire the lights as you see fit.
Intensity:
NCS Wide Yellow : 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White : 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White : 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow : 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White : 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow : 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White : 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB Combo Yellow : 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White : 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow : 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White : 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage : 9-18V DC
Power : 15.6w (NCS) 42w (HXB)
Current : 1.5A (NCS) or 3.2A (HXB)
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color : 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source : 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input : Proprietary Overmolded Deutsch DT 2-Pin
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
(Specs: These specifications are per pod / each!)
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
