Fitment: 2003-2009 Toyota 4Runner ✔

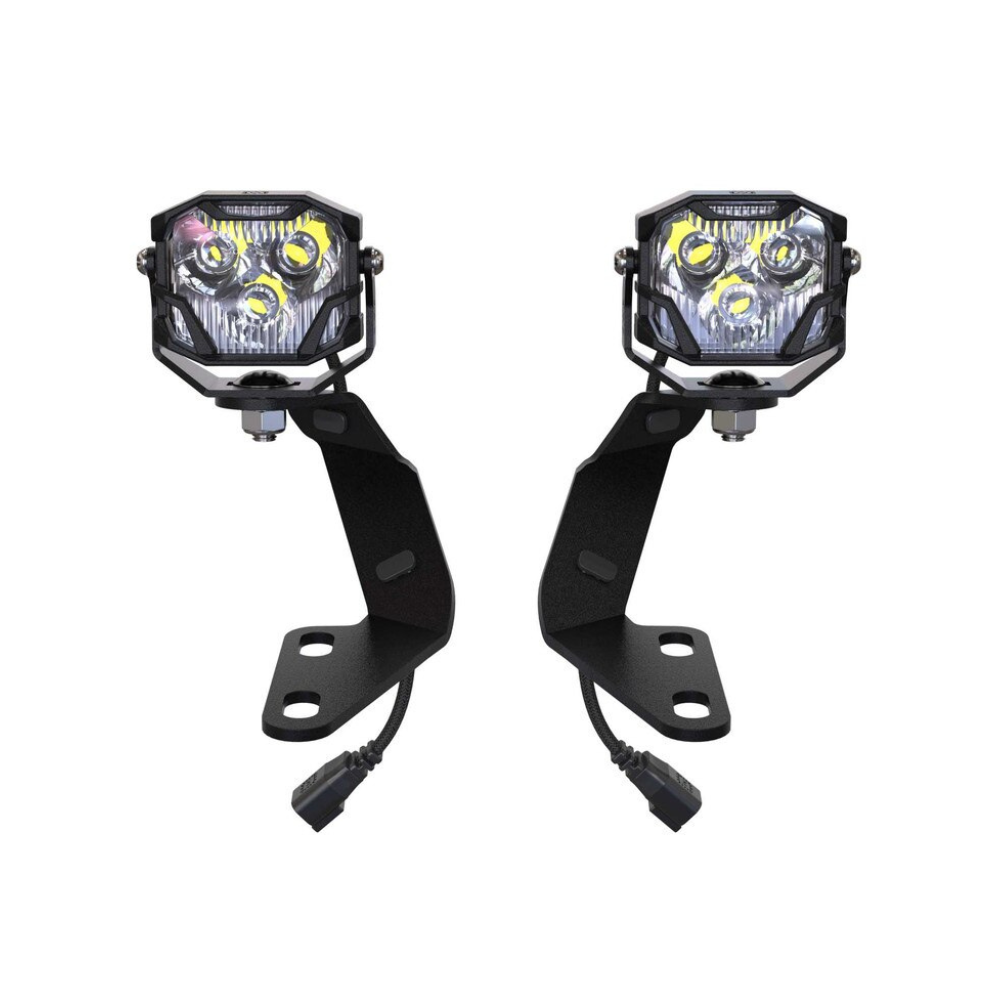

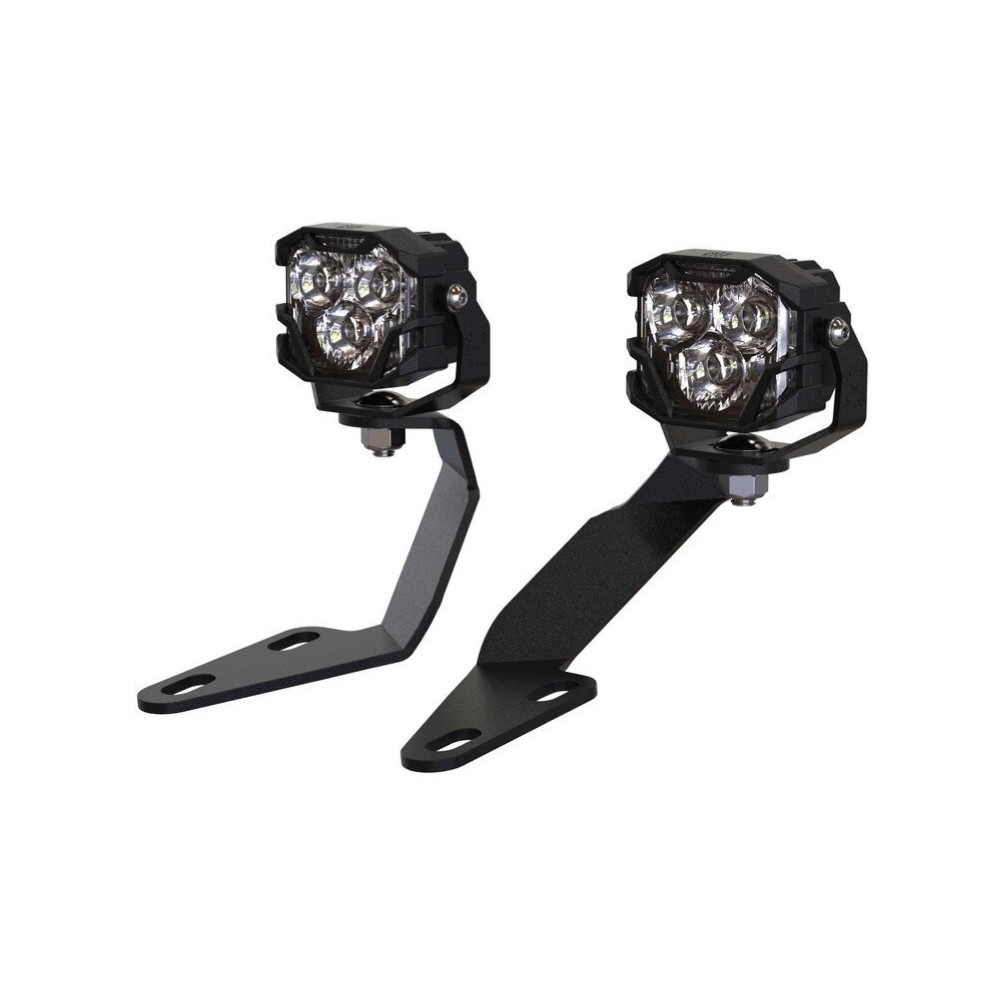

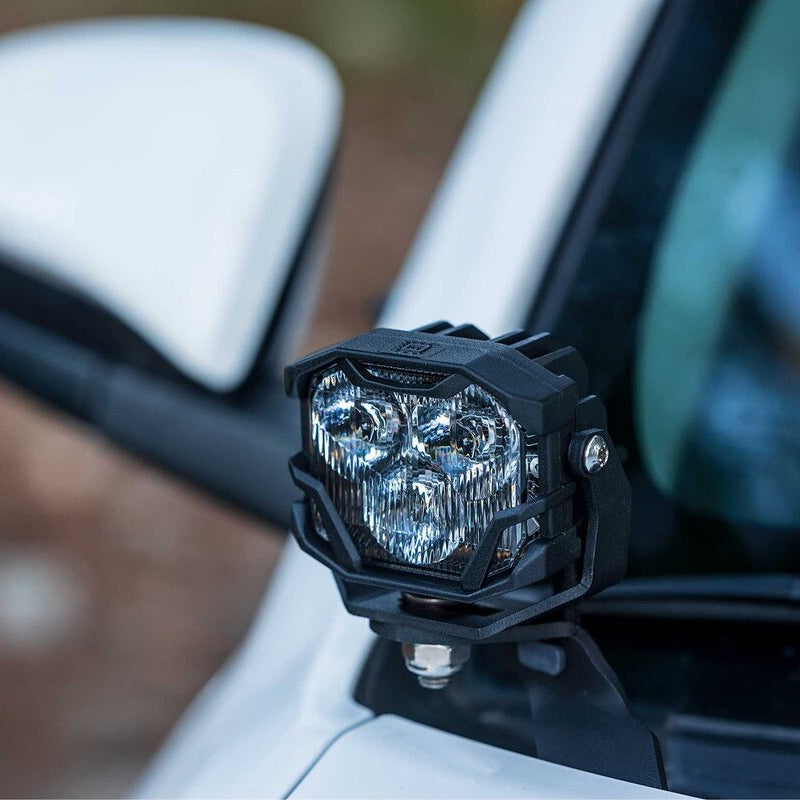

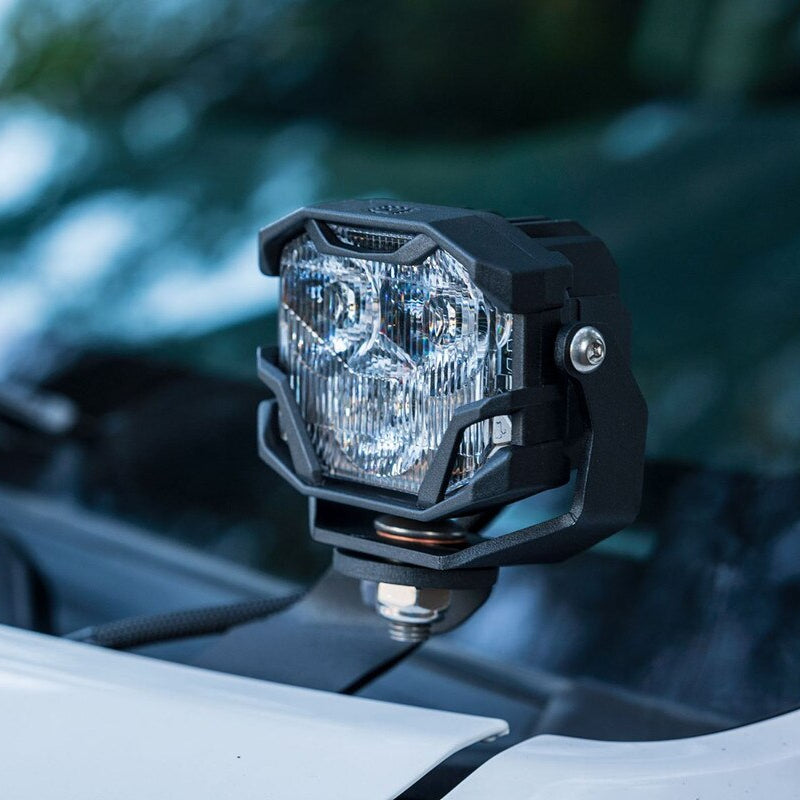

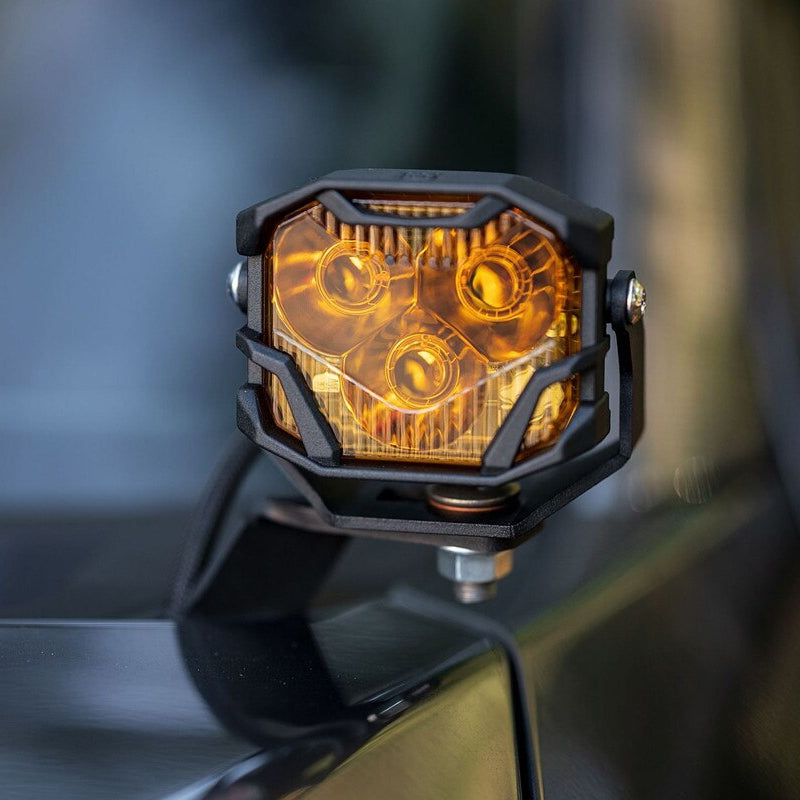

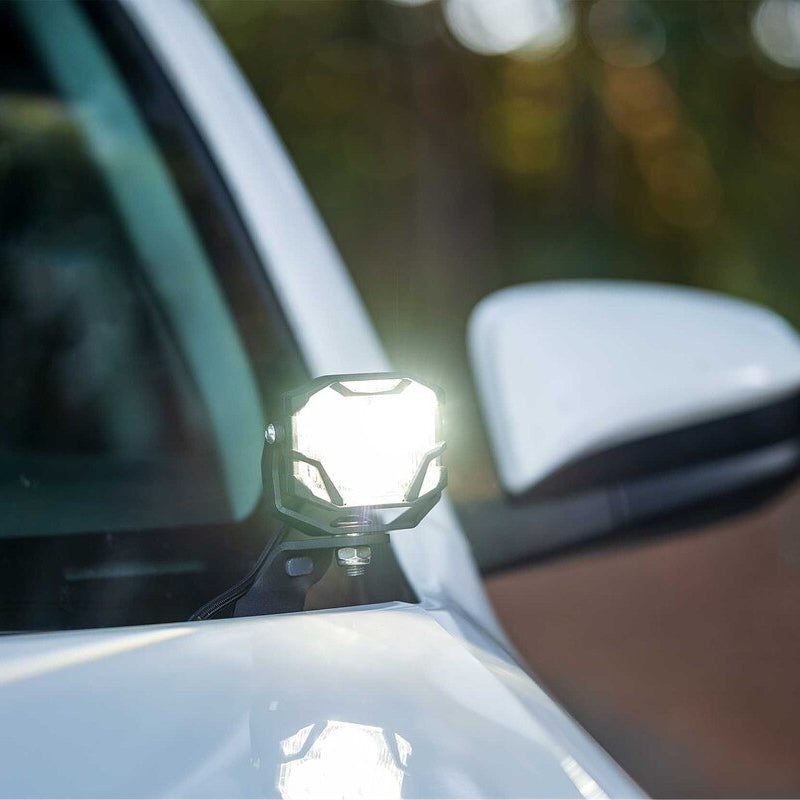

Introducing the Morimoto 4Banger A-Pillar LED Kit -- your gateway to enhanced visibility and safety on the road! Our innovative LED pods offer three distinct beam patterns to cater to your every lighting need. If you crave the next level of brightness, meet the HXB Pods. These bad boys take brightness to new heights, outshining the already bright NCS pods with their sheer intensity. The Combo Beam offers medium-range clarity, while the Spot Beam boasts unparalleled long-distance visibility, capable of penetrating up to 800 meters into the future. And don't forget the Wide Beam, the brightest SAE-Compliant fog light on the market, offering exceptional width, intensity, and control.

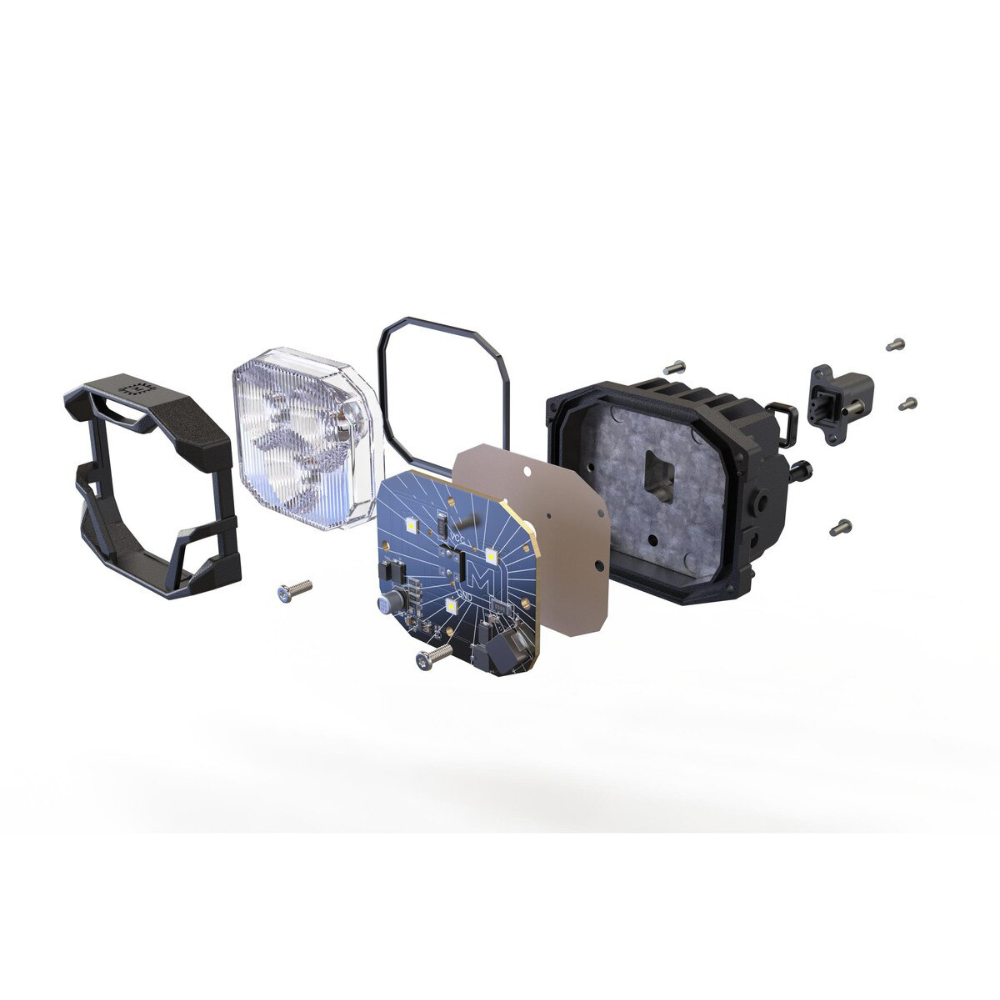

Engineered with precision, these pods are built to last, with features like copper DTP PCBs for optimal heat transfer, stainless steel brackets, and IP69K weather resistance. Plus, our comprehensive wire harness ensures a clean and reliable installation. Elevate your driving experience with Morimoto 4Banger LED Pods - where innovation meets intensity.
Included:

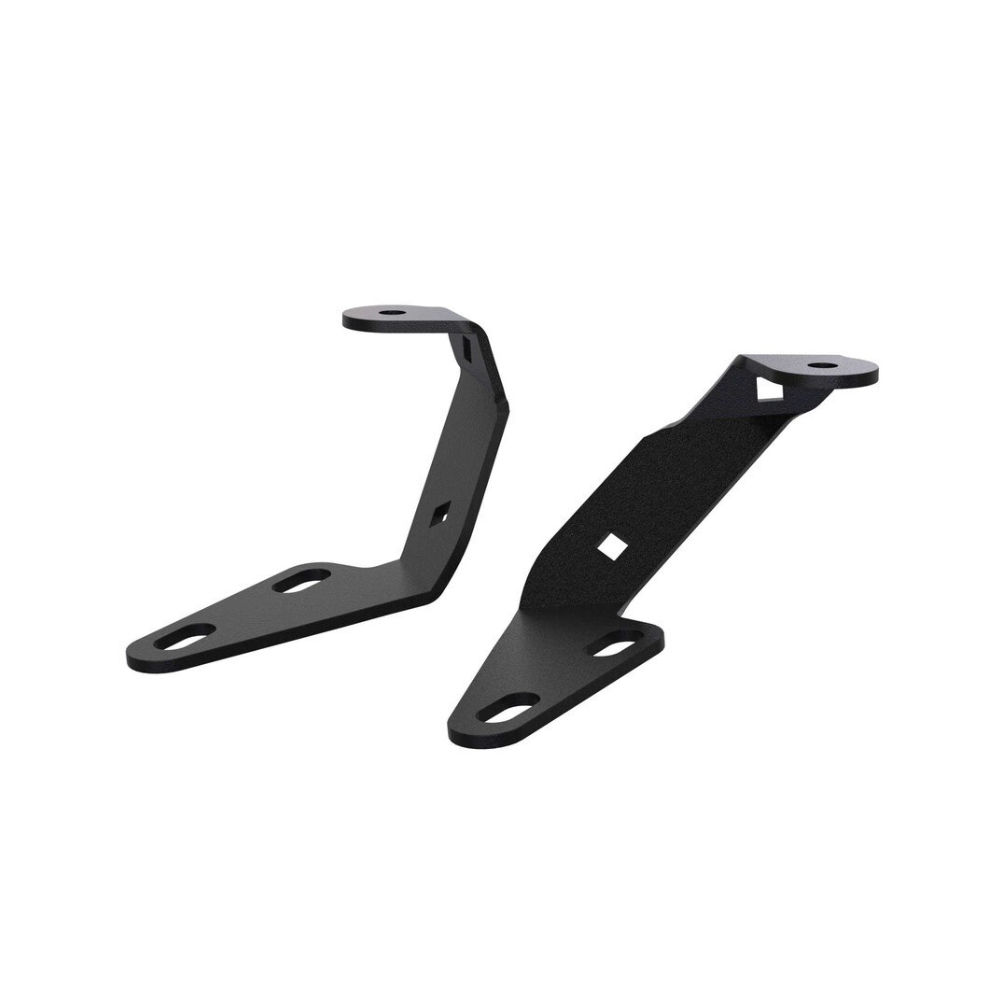

✔ Ditch Brackets : 2x (One Pair) BAF027 Brackets
✔ Hardware : 4x Plastic cable clips
✔ Optional LED Pods : 2x Morimoto 4Banger (Optional Beam Pattern / Color)
✔ Bottom Mounts : 2x Standard Bottom Mount Brackets

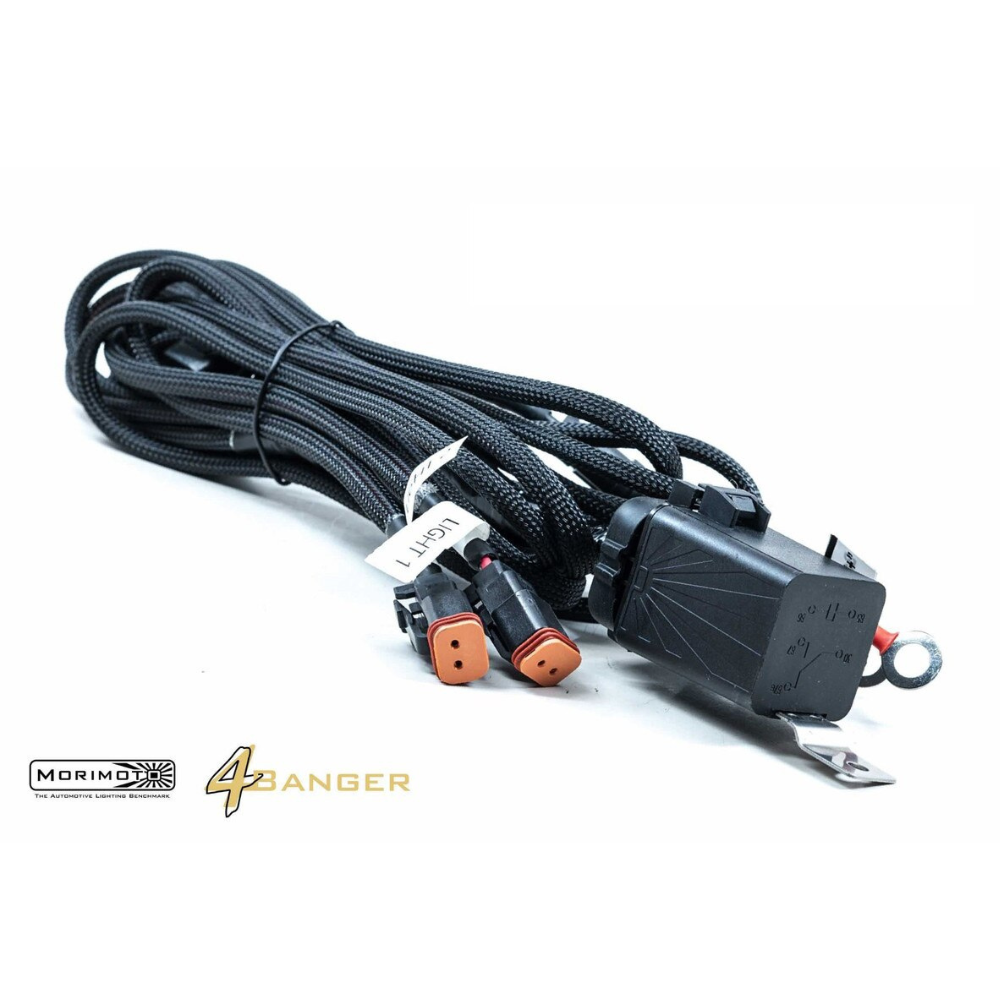

✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
✔ Optional Covers : 2x Rubber Blackout Covers
Perfect Fit Brackets: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA for the 2003-2009 Toyota 4Runner.
Smart Design: These brackets are designed with wire routing clips for the cleanest installation, no zip ties here!
Durable Build: Laser-cut stainless steel brackets are powdercoated to ensure longevity in any environment.
Optimal Lighting: 4Bangers are designed around the ultra high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
Optional Wiring: Your choice of a premium plug-and-play wire harness or standard input pigtails allow you to wire the lights as you see fit.
Intensity:
NCS Wide Yellow : 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White : 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White : 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow : 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White : 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow : 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White : 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB Combo Yellow : 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White : 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow : 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White : 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage : 9-18V DC
Power : 15.6w (NCS) 42w (HXB)
Current : 1.5A (NCS) or 3.2A (HXB)
Dimensions : 82mm W, 67mm H, 60mm D
Hardware : M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color : 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source : 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input : Proprietary Overmolded Deutsch DT 2-Pin
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
These specifications are per pod / each!
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
