Description

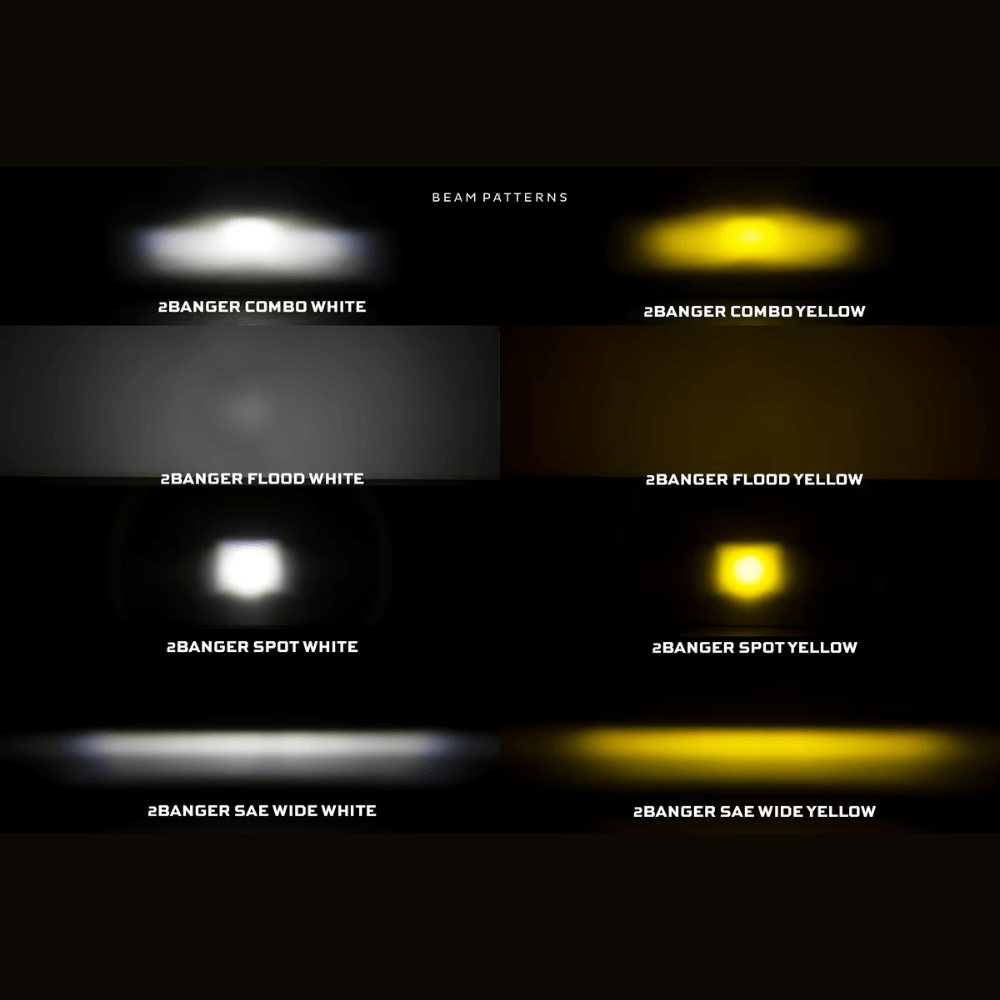

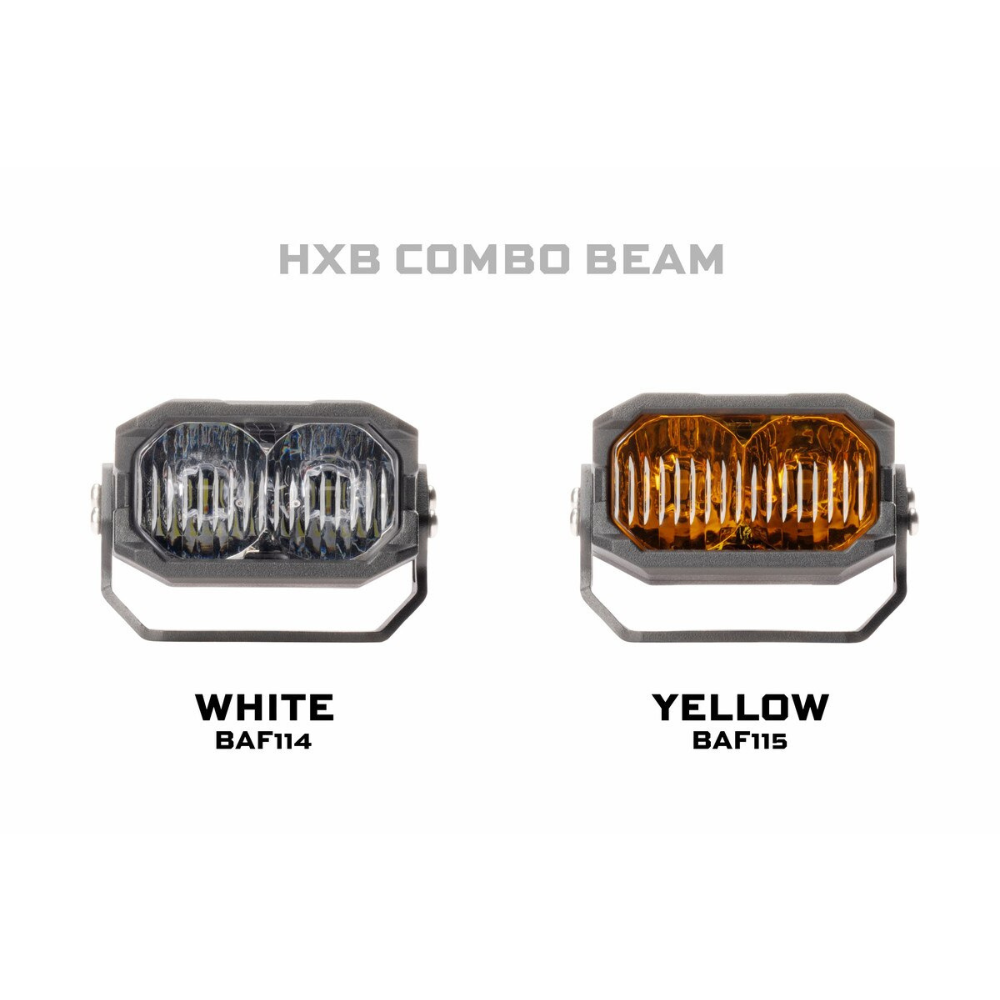

HXB: Morimoto 2Banger Off-Road LED Pods BAF114! These pods are your key to upgrading your vehicle's lighting game with unmatched performance, reliability, and style. Designed, engineered, and torture-tested right here in the USA, they're the epitome of next-level illumination. One standout feature is the HXB Combo Beam pattern, offering the perfect blend of width and distance illumination. It's ideal for comfortable everyday driving, especially when you find yourself in remote areas. The hot spot and spread have been expertly tuned to create an optimal combo beam. With a compact footprint, they're versatile, fitting where full-size pods can't. Morimoto offers universal pedestal mounts and application-specific brackets for a seamless installation on various vehicles. Choose from white or yellow output and four beam patterns for a personalized lighting experience. These pods are built to endure, with a copper DTP PCB for superior heat dissipation, an electroplated cast aluminum shell, and IP69K weather resistance. Plus, they're street-legal, complying with SAE standards.

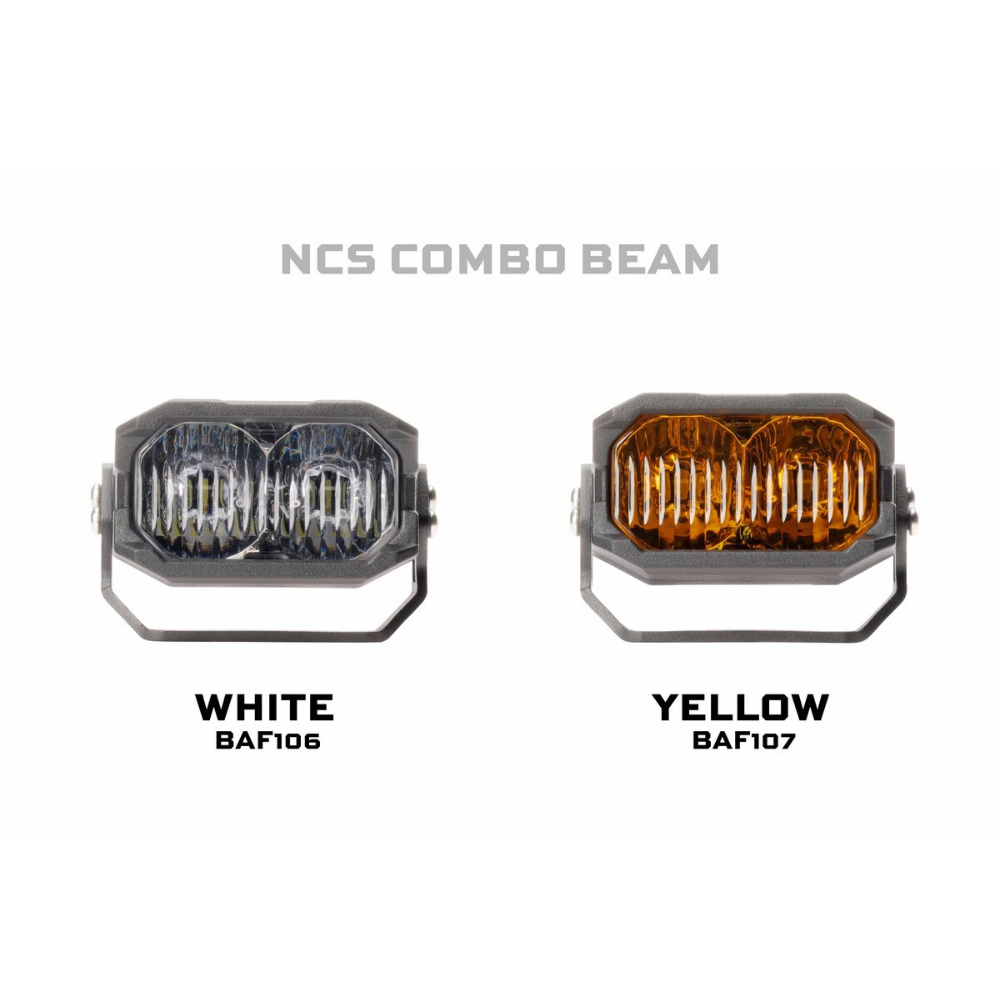

NCS: Morimoto 2Banger Off-Road LED Pods BAF106: a game-changer in lighting technology! Designed, engineered, and rigorously tested in the USA, these pods are the ultimate choice for those who demand exceptional performance. With a compact footprint, adjustable pedestal mounts, and application-specific brackets, they fit any terrain or vehicle. These pods offer unparalleled versatility, easily going from solo use to a custom light bar with BangerBar links. Choose between white or yellow output and four beam patterns for personalized lighting. Among them, the NCS Combo Beam pattern is a standout. It brilliantly illuminates a clear path with medium range, providing a perfect blend of width and distance illumination. Built for reliability, they feature a copper DTP PCB, rugged aluminum shell, and IP69K weather resistance. Compliant with street legality standards, these pods are a must-have for enhancing visibility. Don't forget the optional wire harness for seamless installation.

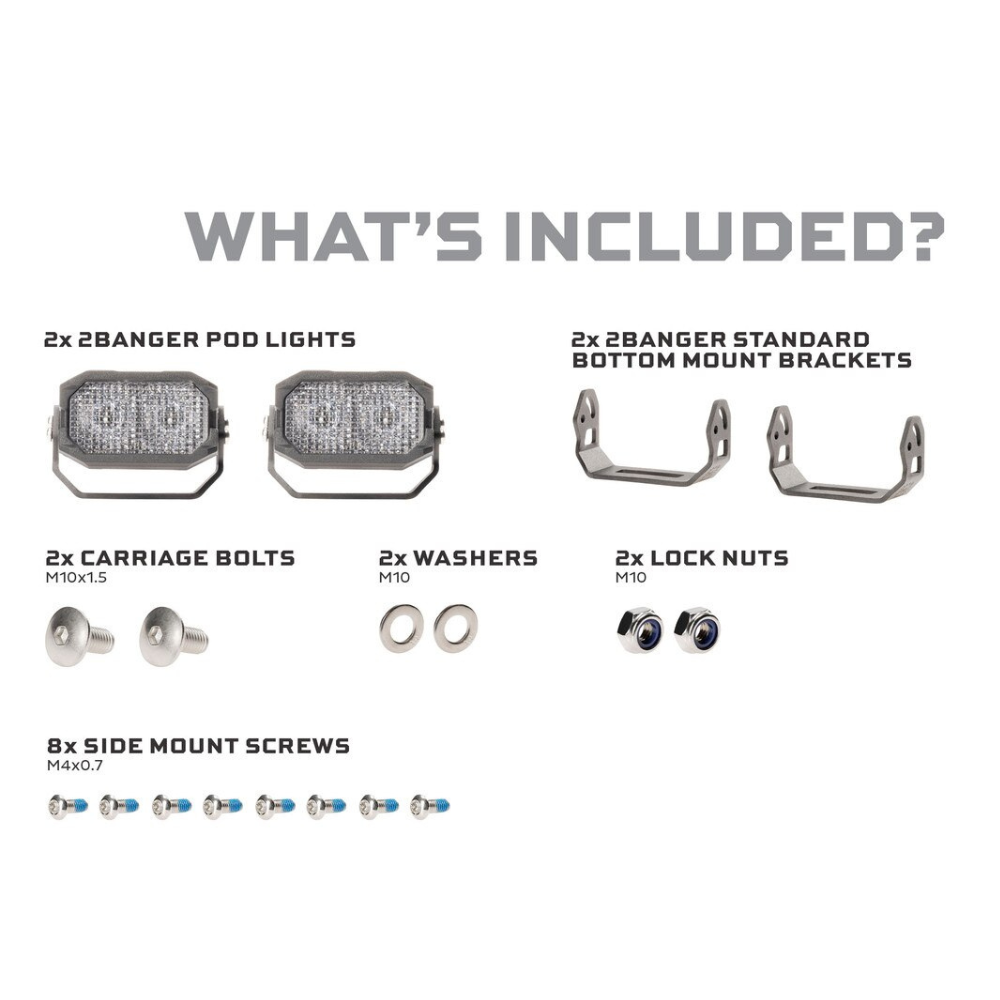

Included:

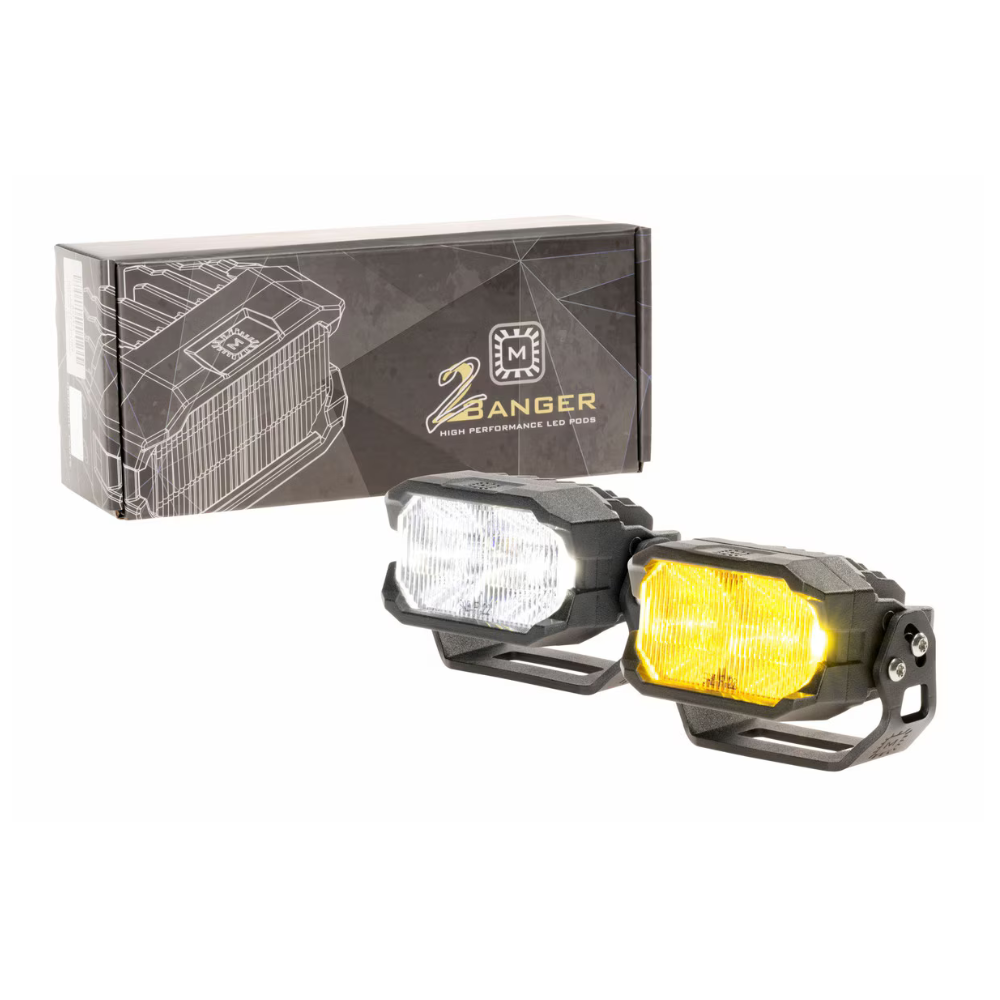

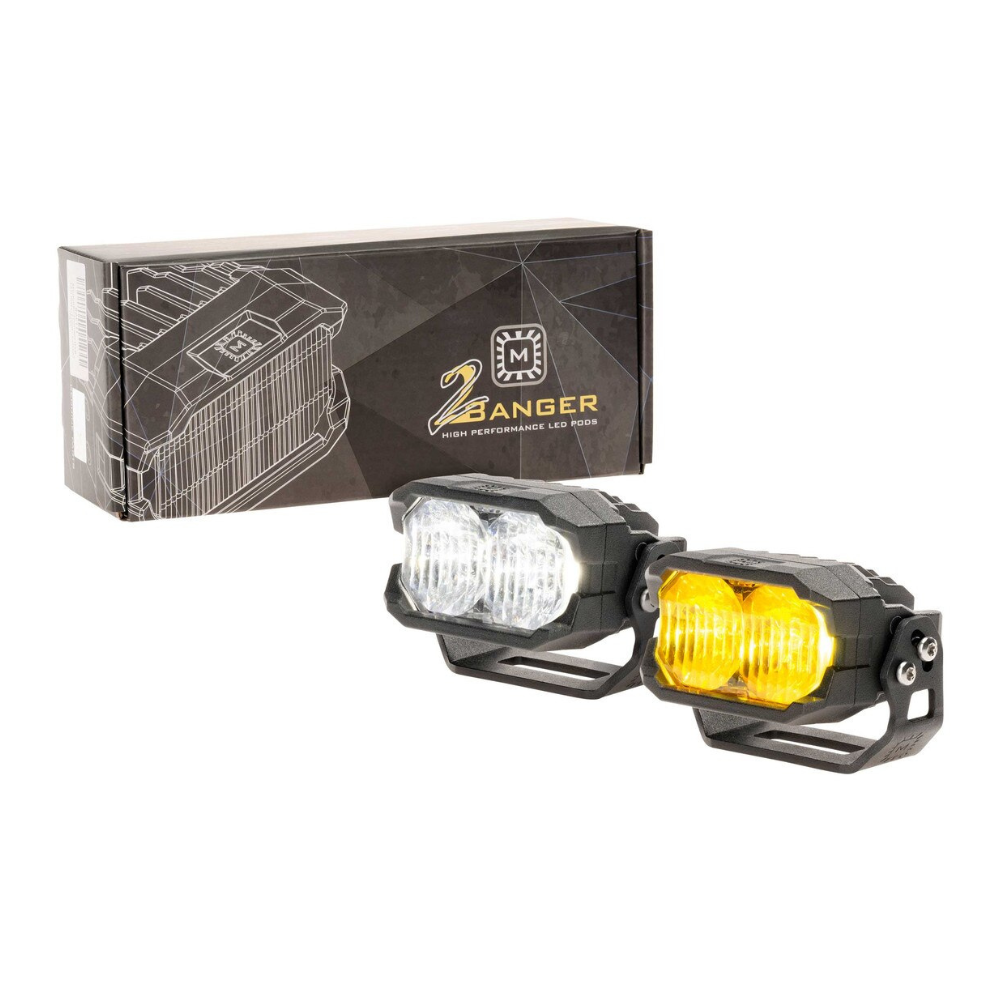

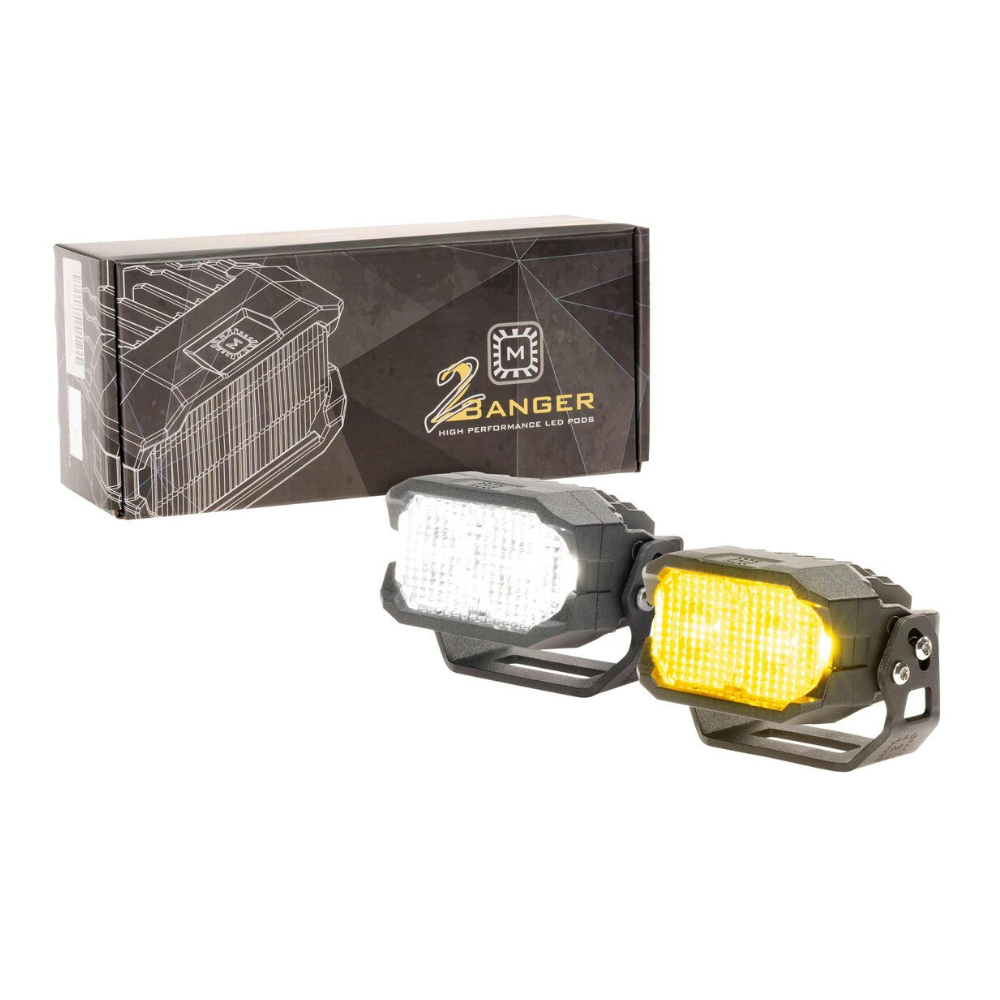

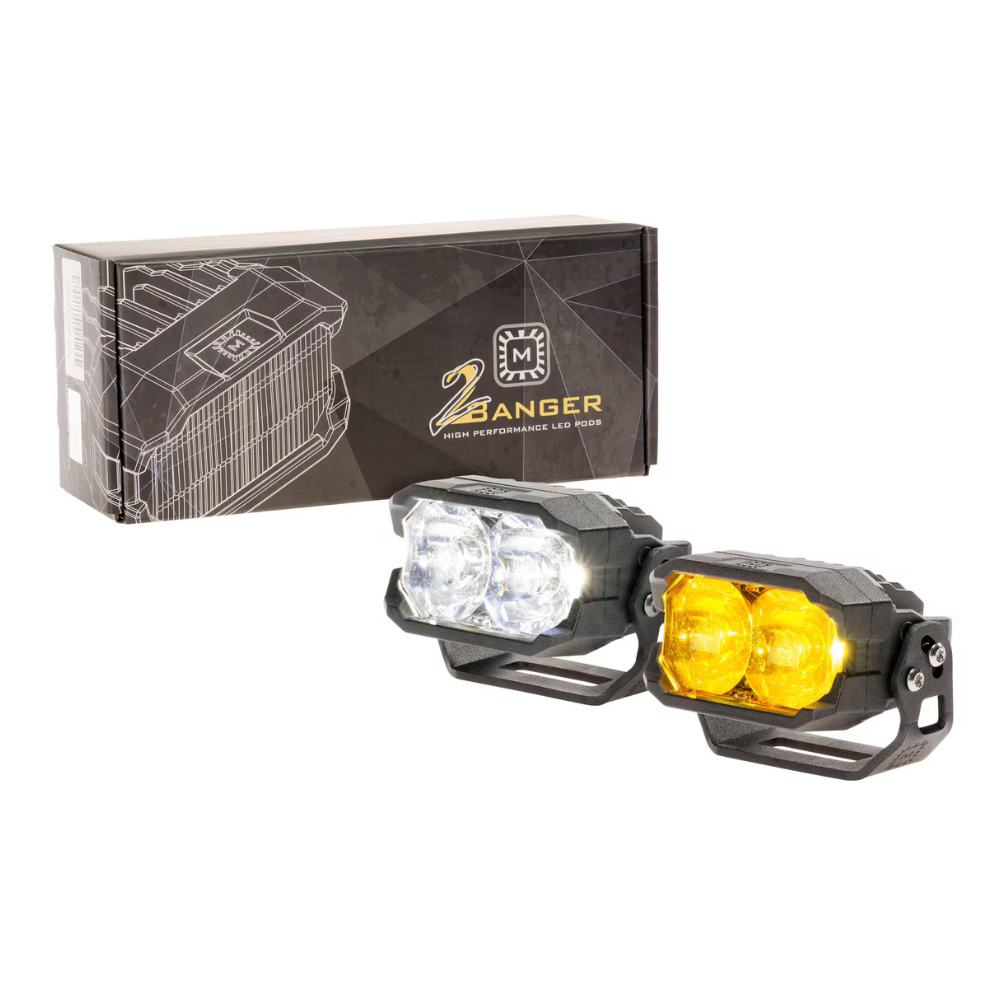

✔ LED Pods : 2x (One Pair) Morimoto 2Banger HXB or NCS (White or Yellow)
✔ Brackets : 2x Brackets
✔ Hardware : 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M4x0.7 SS Screws
✔ Optional Wiring : 1x Morimoto Switched Relay Harness or 2x Pigtails
Features

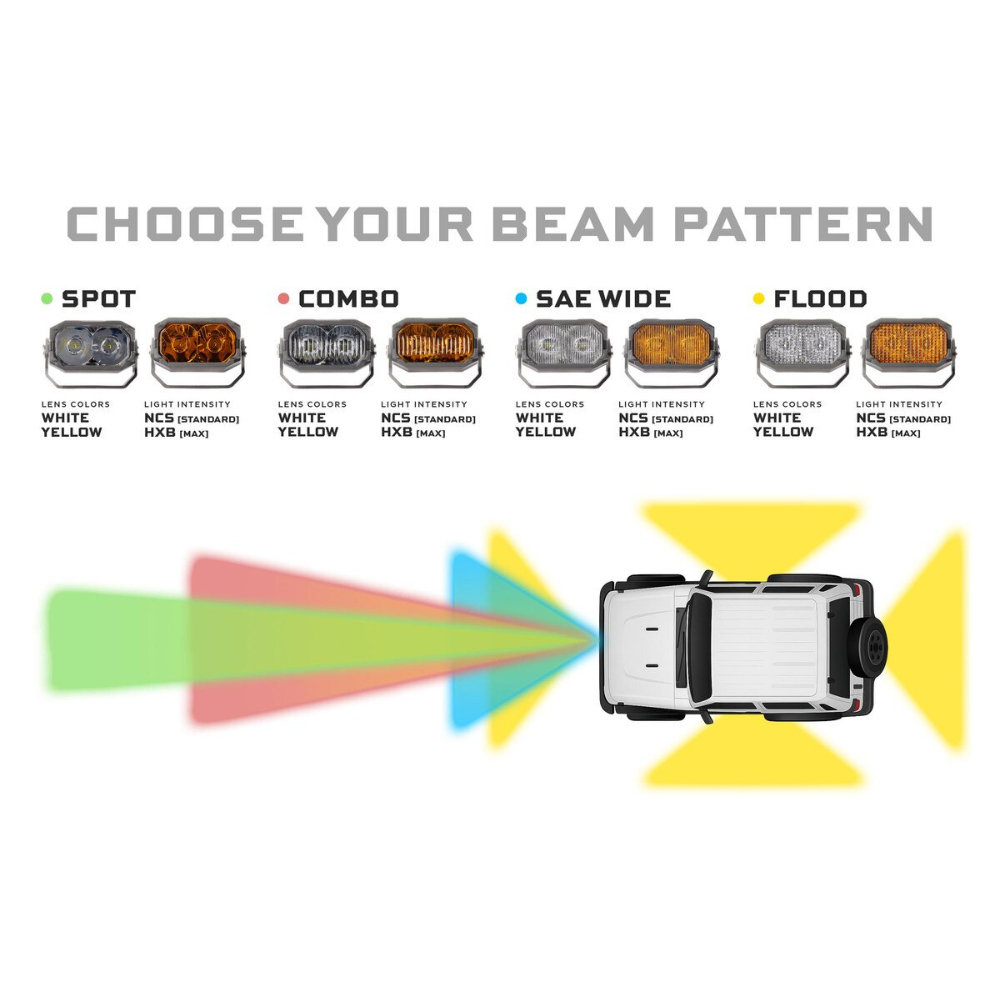

Combo Beam: Perfect blend of width and distance illumination.
Light Source: The NCS 2Bangers are designed around the high performance Nichia NCS LEDs for incredible output. The HXB 2Bangers are designed around the ultra high performance Osram HX Boost LEDs for incredible output.
All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.

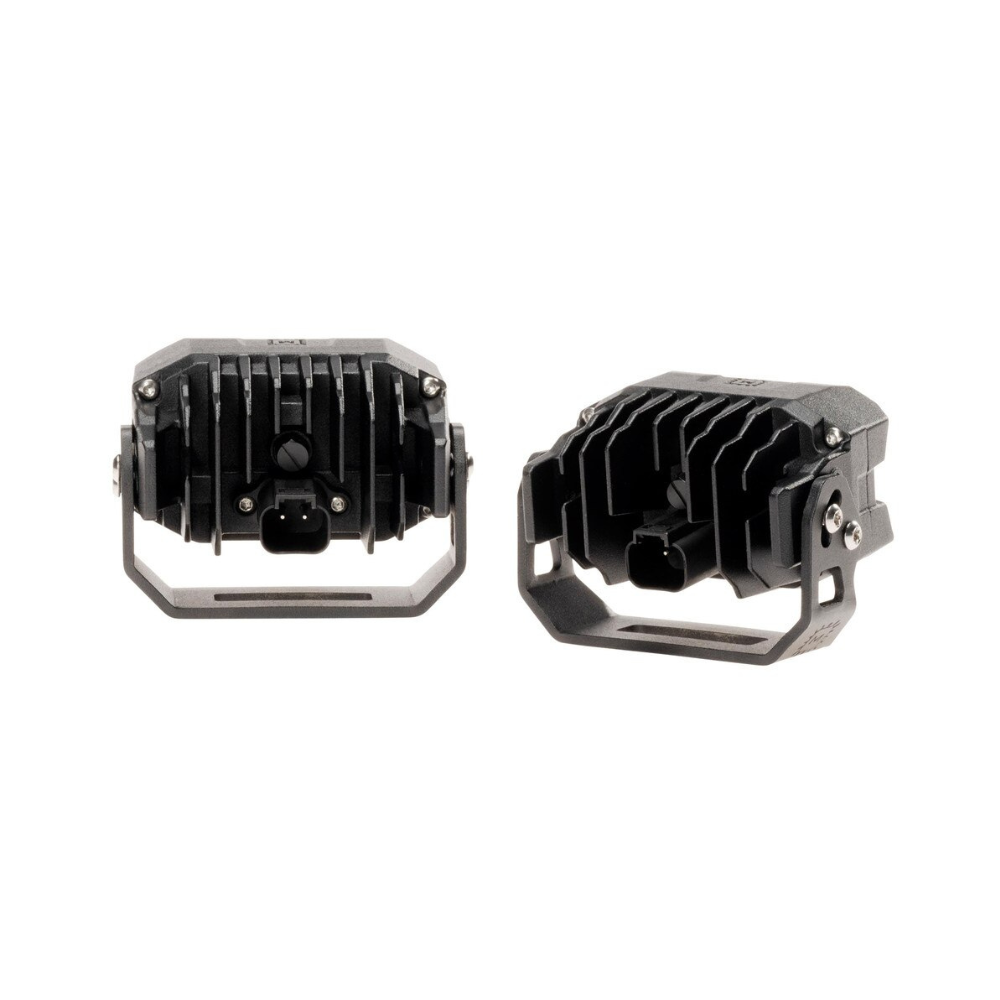

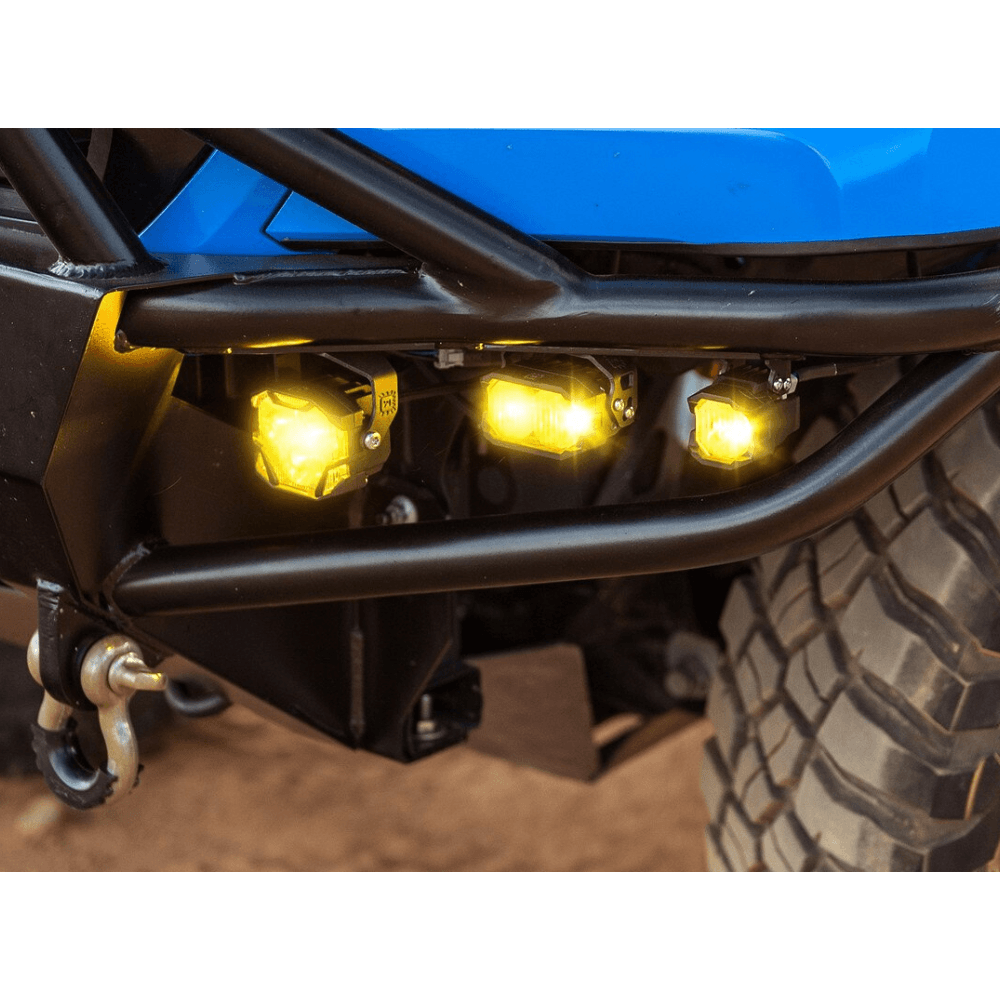

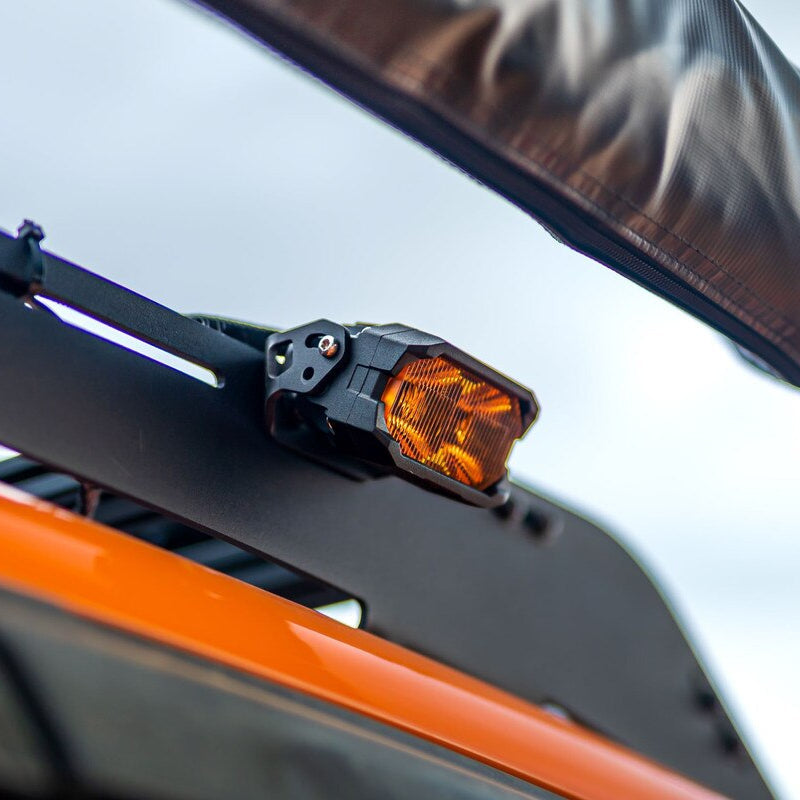

Mounting Options: Available mounts for the 2Banger include pedestal, flush, tube, or hanging for any application type.
US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.
Specs
NCS Combo Beam Specs per pod
Intensity (White) : 42,000 Cd (420 lux @ 10m)
Intensity (Yellow) : 21,000 Cd (210 lux @ 10m)
Power (stabilized) : 13.5W
Current : 1.0A @ 13.5V DC
Peak Luminosity (raw) : 900 lm
Dimensions : 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D
Color : 2400K (Yellow) or 5600K (White)
Light Source : 2x Nichia NCSY131F or Nichia NCSW131F
Input : Integrated Deutsch DT 2-Pin
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
HXB Combo Beam Specs per pod
Intensity (White) : 65,000 Cd (650 lux @ 10m)
Intensity (Yellow) : 42,500 Cd (425 lux @ 10m)
Power (stabilized) : 24.0W
Current : 1.78A @ 13.5V DC
Peak Luminosity (raw) : 2,000 lm
Dimensions : 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D
Color : 2700K (Yellow) or 5700K (White)
Light Source : 2x Osram HX Boost
Input : Integrated Deutsch DT 2-Pin
Material : Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Warranty
➜ Limited-Lifetime Warranty: This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
