2024+ Toyota Tacoma Amplifier System

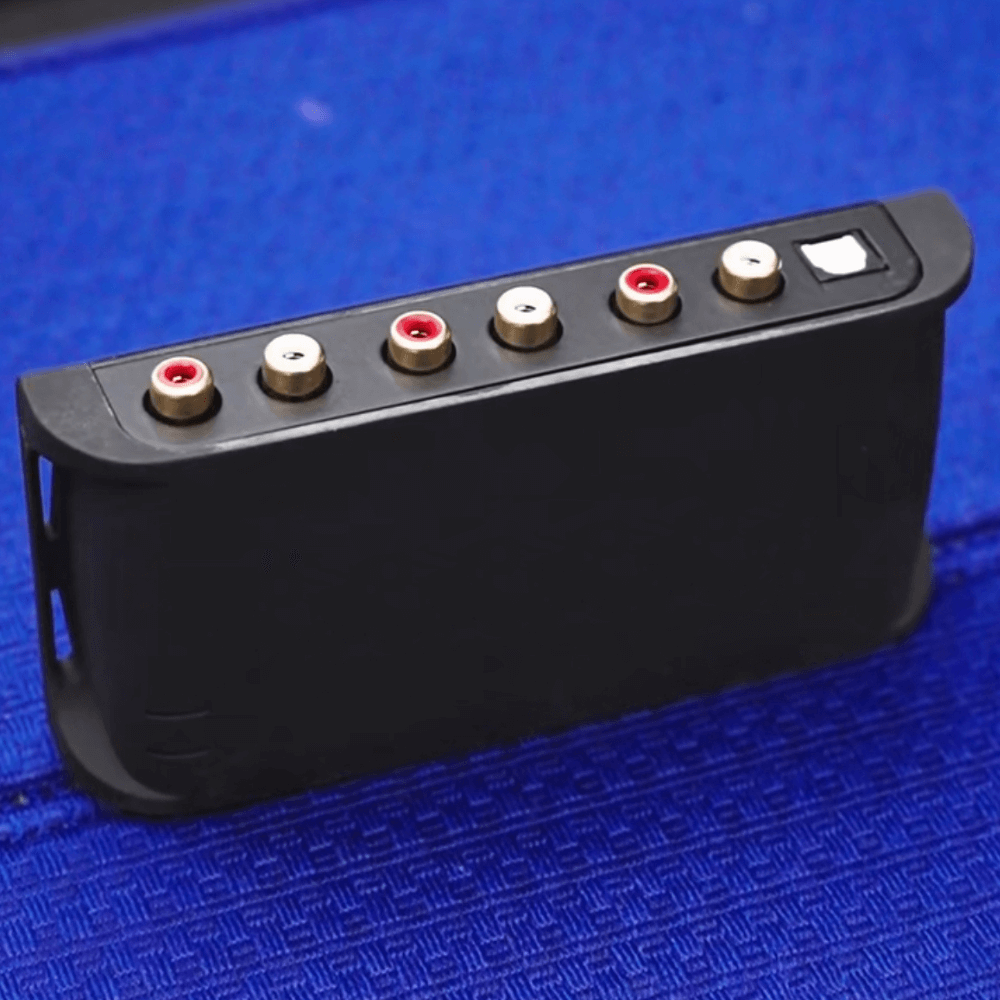

Digital Interface Details
100% Plug & Play connectivity
Allows for a full digital transmission of the analog 2-channel signals from the factory audio module to our Element 710 DSP amplifier

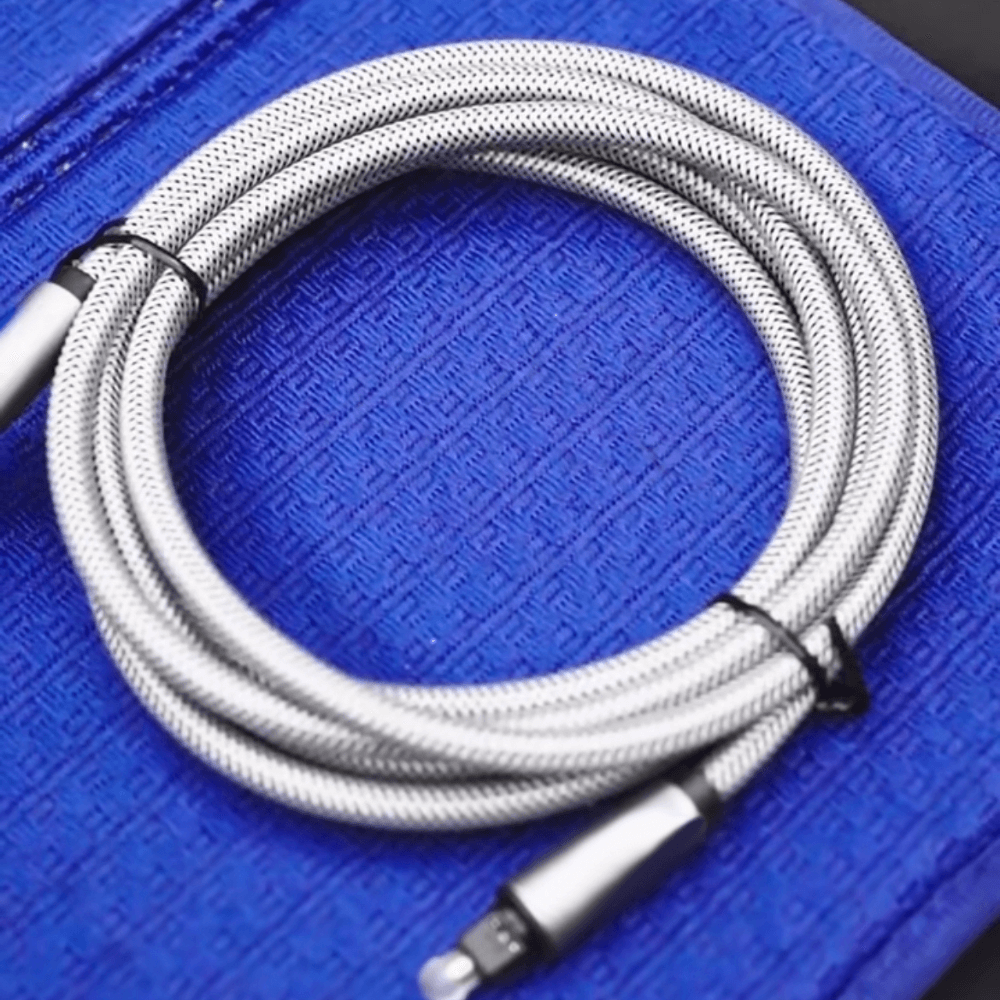

Optical signal transfer using a Toslink cable ensures the best quality audio.

Proprietary Orella Acoustics Calibration
Vehicle-Specific Sound Quality Engineering
Allows for seamless integration between the factory JBL speakers and our DSP amplifier delivering unbridled sound performance and reliability.

Made in Germany – Perfected in the USA

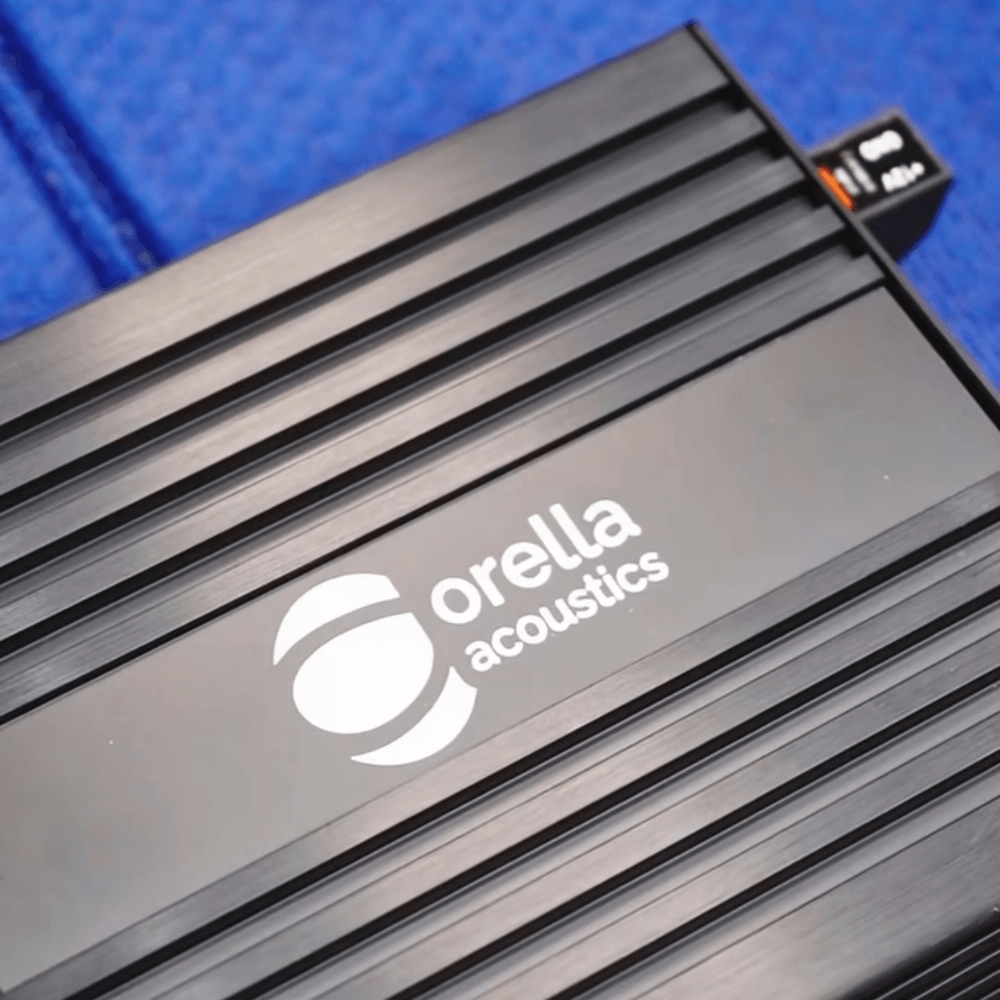

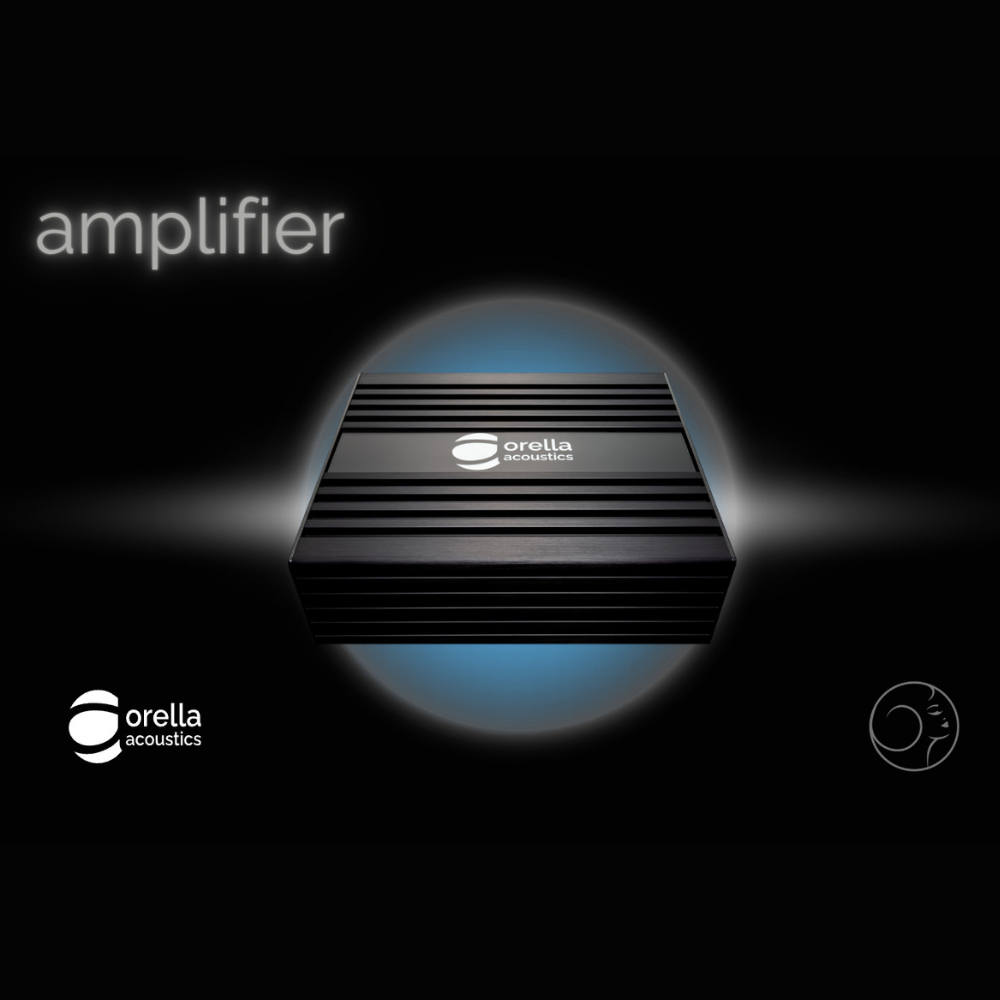

Tacoma (Remastered) DSP Amplifier Specs
Class GD Amplifier Topology
Optical Digital Input
Power Rating: 570W RMS @ 4 ohms, THD 0.03%
Frequency Response: 10 Hz to 22 kHz
Signal-to-Noise Ratio: 104dB (A-weighted)
Damping Factor – >100
64-bit Digital Signal Processing
Burr Brown Analog-to-Digital & Digital-to-Analog Converters
Operating Voltage: 10.5 – 18V (max. 5 seconds down to 6V for start/stop systems)
DC 12V – 40A Max Consumption

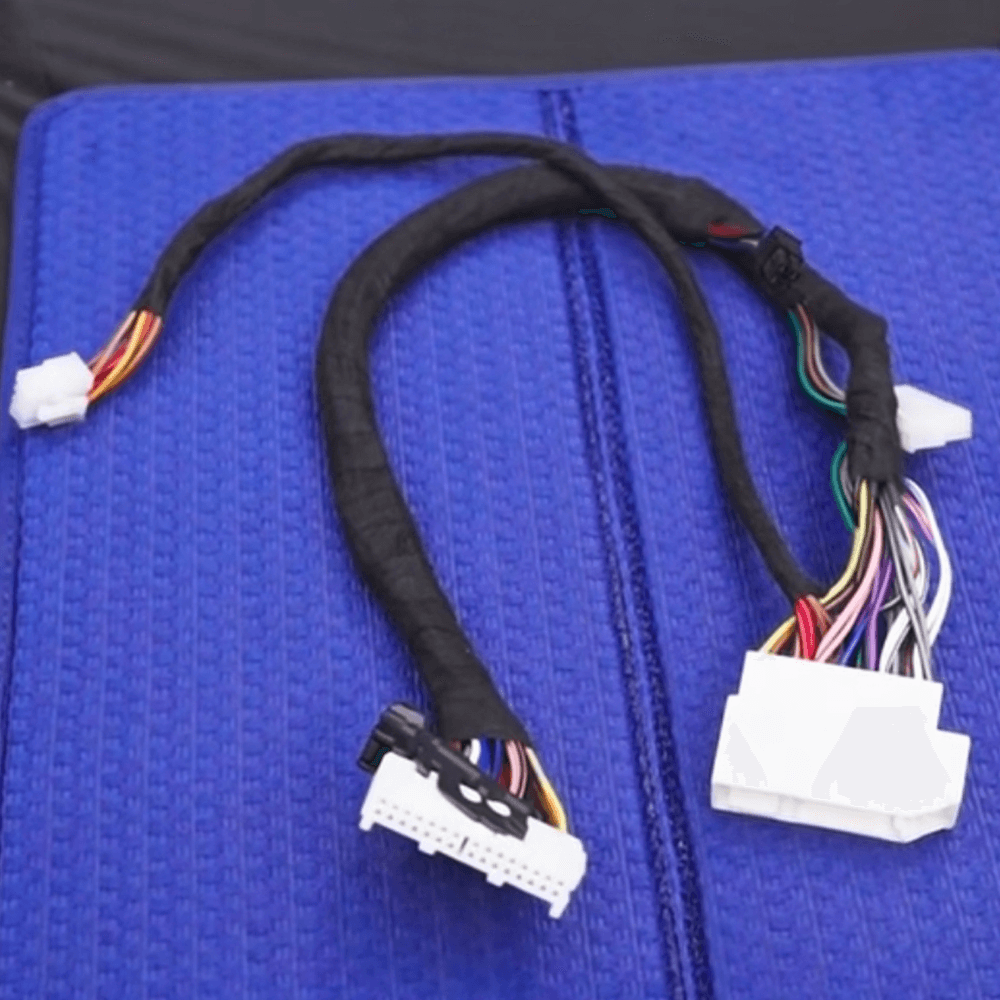

Integration Wiring Harness
Specifically designed to plug & play to the 28P Factory Amplifier connector
EIA specification wire color coding
18g Copper Wire
10g Battery Cable
10g Ground Cable
O.E. Spec Fuse Holder w/ 40A ATC Fuse

Dimensions

46mm x 130mm x 153mm
1.81” x 5.12” x 6.02”
– 18g Mild Steel Mounting Panel

➜ 3-Year Limited Warranty from date of purchase.
