2019+ Toyota Rav4 Slimsport Roof Rack Kit / Lightbar Ready
2019+ Toyota Rav4 Slimsport Roof Rack Kit / Lightbar Ready

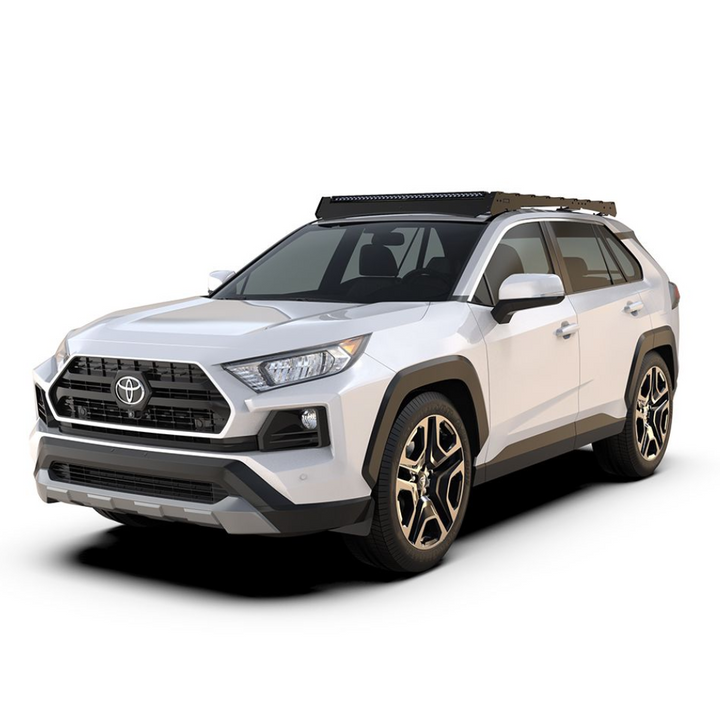

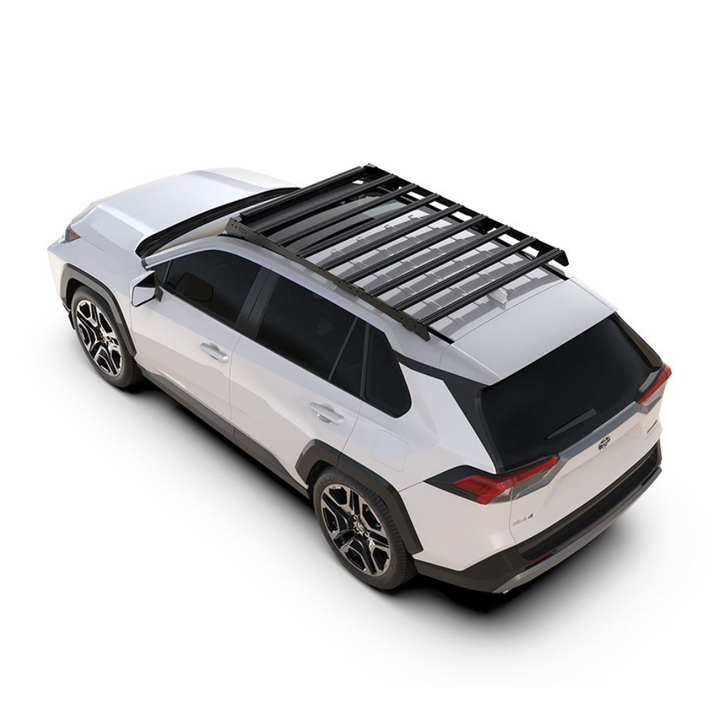

Gear up your Toyota Rav4 (2019-Current) for any adventure with the Slimsport Roof Rack Kit. The Slimsport was designed for activity-focused drivers that do not require an expedition-grade build. It has a low-profile and is compatible with over 55 Front Runner accessories.

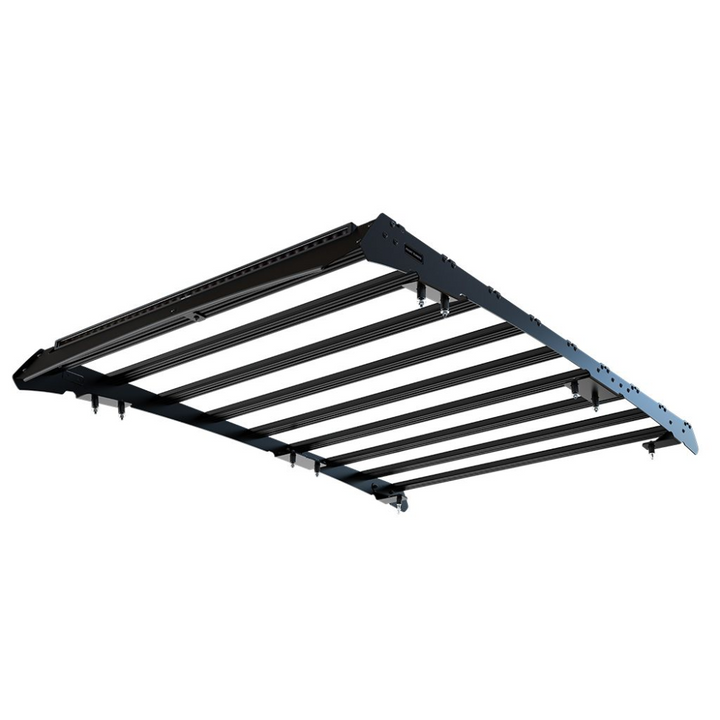

The Slimsport's sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength. The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories. Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket. Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).

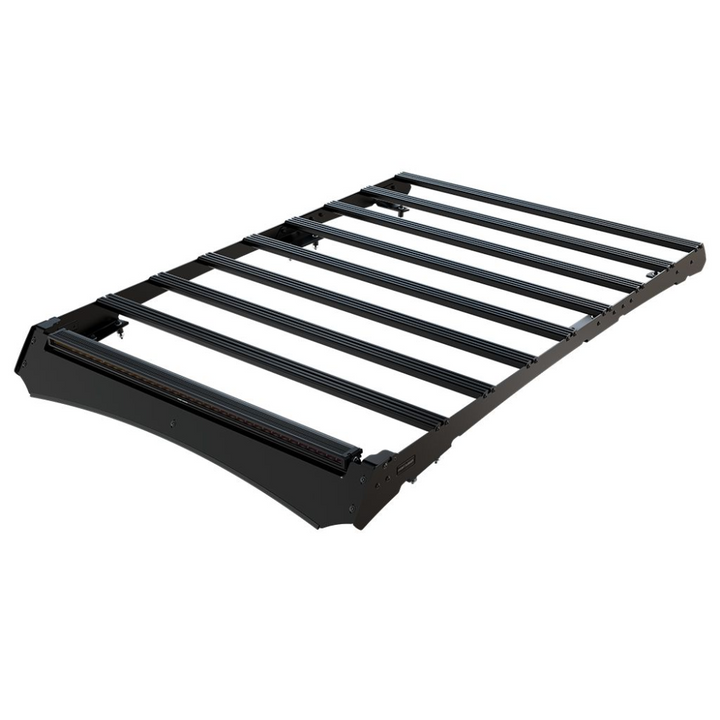

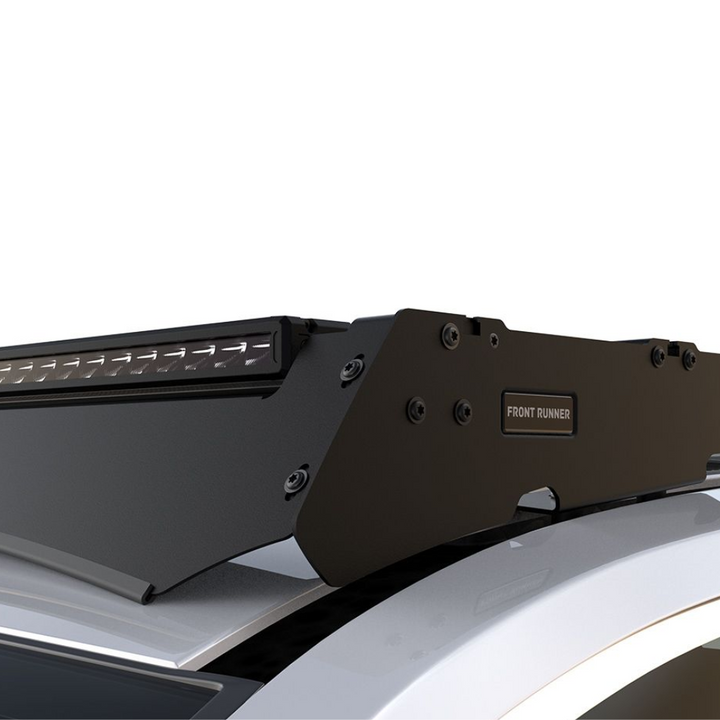

Included in the Toyota Rav4 Slimsport is a 40" cutout to allow the use of the 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.
Included:
✔ 1 x Toyota Rav4 Slimsport Rack Tray
✔ 1 x Toyota Rav4 40" Light Bar Wind Fairing
✔ 1 x Protection Strip
✔ Installation Hardware
✔ Fitting Instructions
Fitment: 2019+ Toyota Rav4
Please Note:
➜ 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
➜ Drilling required for installation. Additional drilling is required for the RAV4 LE models.
➜ Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
Specs
Material Used:
Black Epoxy Powder - coated T6 aluminum
High Strength Steel
Assembled Rack Dimensions: 1676mm (66") L x 1175mm (46.3") W x 135mm (5.3") H
Approximate Installed Weight: 33.94kg (74.82lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 330mm (13")
Length: 1705mm (67")
Height: 220mm (9")
Shipping Weight: 34kg (75lbs)
Warranty
All Front Runner Racks are backed by a Limited Lifetime Warranty.
