2005-2023 Toyota Tacoma Archive Explorer Series "ERIKSON" Lift Leaf Springs

$950.00

Shipping calculated at checkout.

Quantity

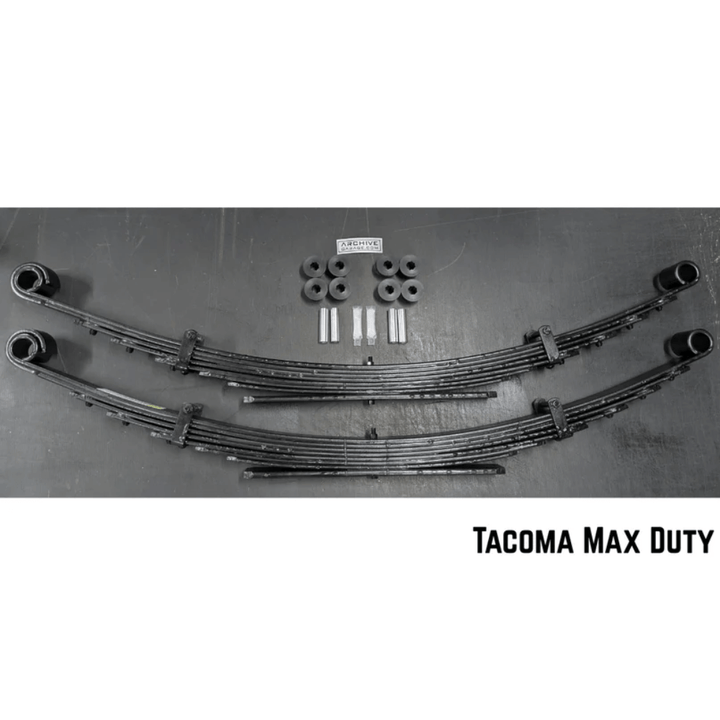

Archive Explorer Series Tacoma leaf packs are designed for severe duty off road travel. Made in USA with 5160 steel, tip insert pads, full military wrap yet won't scrape hanger, bolted spring clips, and high quality poly bushings included in price. Carefully designed to NOT have interference issues that are so common with aftermarket springs in the Tacoma market.

Archive leaf springs have been kicking butt for our customers for several years now

Fitment: 2005-2023 Toyota Tacoma

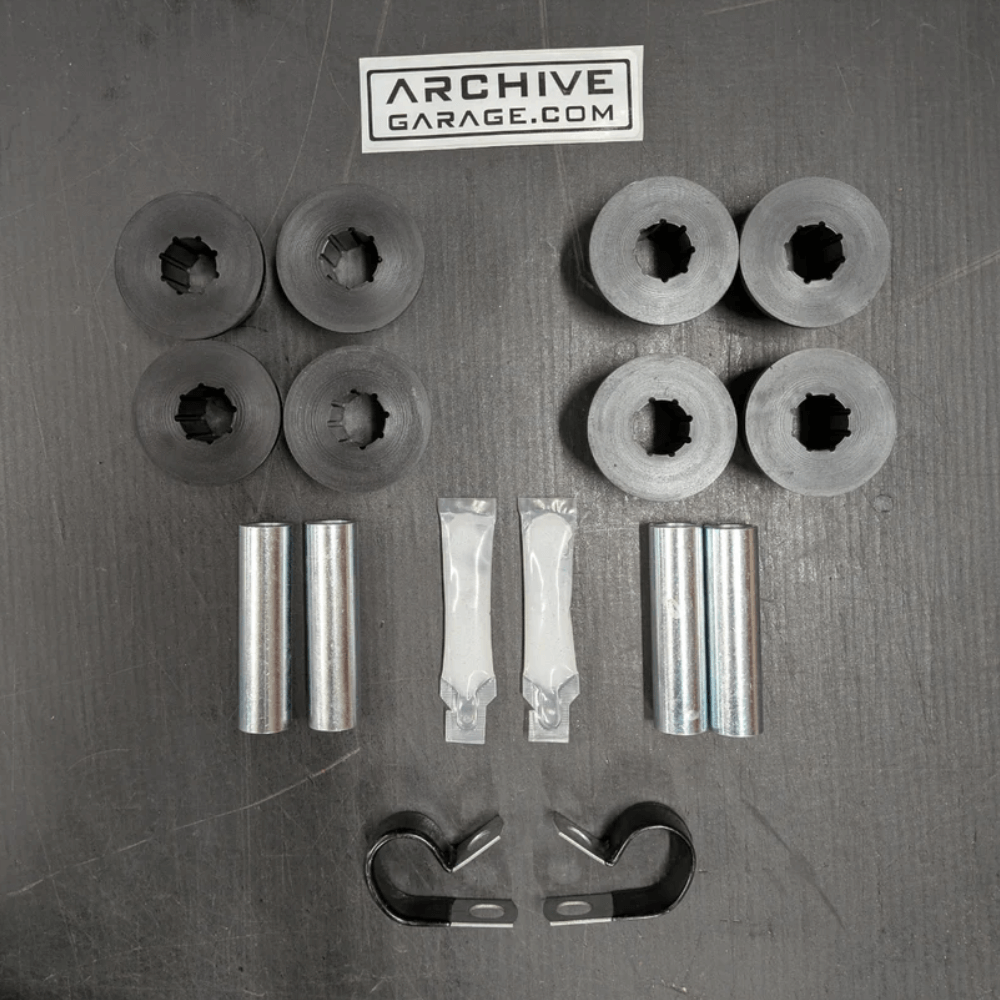

Included: Quantity of 1 is for a PAIR of leaf springs and includes high quality bushings and sleeves.

Please Note: U-bolts are not included

Fitment Chart

2005-2023 Tacoma DCSB

Leaf Pack	Estimated Lift Amount AG Leafs	Axle-Tube-to-Frame-Bottom
Stock 3/1 - 0lbs	0in	8.25in
Archive MD - 0lbs	3.25in	11.25in
Archive MD - 300lbs	2.5in	10.75in
Archive MD - 600lbs	2in	10.25in
Archive HD - 600lbs	3in	11.25in
Archive HD - 1250lbs	2in	10.25in
Archive XD - 1250lbs	3in	11.25in
Archive XD - 1750lbs	2.5in	10.75in

Recommended Shocks (Confirmed Fit & Performance)

Shock	Brand
Accutune Fox Factory RR 2.5x12	Fox
Accutune Fox Factory RR 2.5x14	Fox
AccuTune Fox Factory RR DSC 2.5x12	Fox
AccuTune Fox Factory RR DSC 2.5x14	Fox
AccuTune King RR 2.5x12	King
AccuTune King RR 2.5x14	King
AccuTune King RR 2.5x12 w/ adjuster	King
AccuTune King RR 2.5x14 w/ adjuster	King
ADS Smooth Body 2.5x12	ADS
ADS Smooth Body 2.5x12 w/adjuster	ADS

*If using HD Springs or XD 12in is best
For additional options reach out to shock company to confirm with specs below

Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi

Shock Travel
12-14in

Fittings/Spacers
Standard rod-end shocks (1.5" wide, 1/2" bolt)

2.5" Bypass

Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.

Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer

Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR. Owner assumes all risk when exceeding Toyota's GVWR or GAWR.
