Straightforward installation, 100% bolt on bumper, no cutting or welding of any kind required!
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.

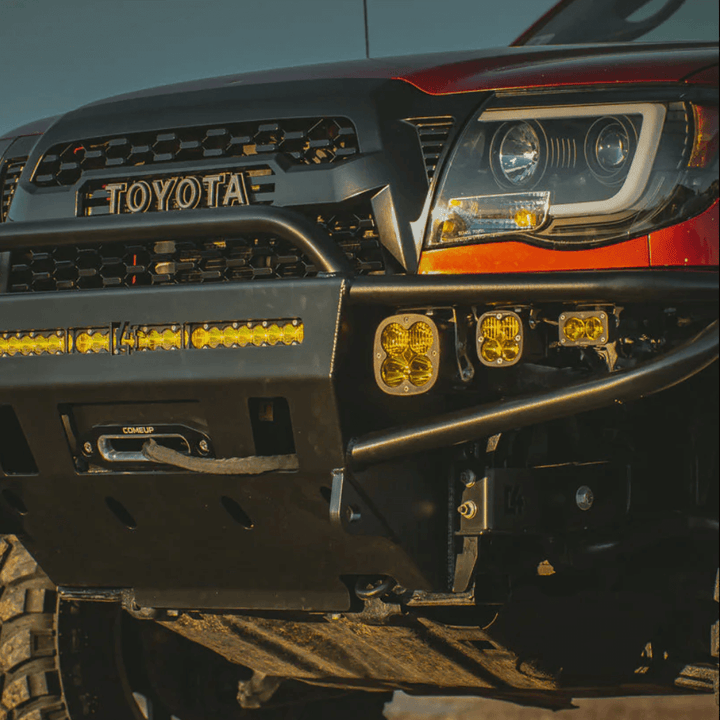

Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Hybrid Front Bumpers! ($177.00 value).
Fitment: Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
PLEASE NOTE: ➜ SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted or powder coated to prevent rusting. ➜If you have TSS you must select YES for the TSS relocation bracket (NOT compatible with mid-height bull bar) ➜We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.

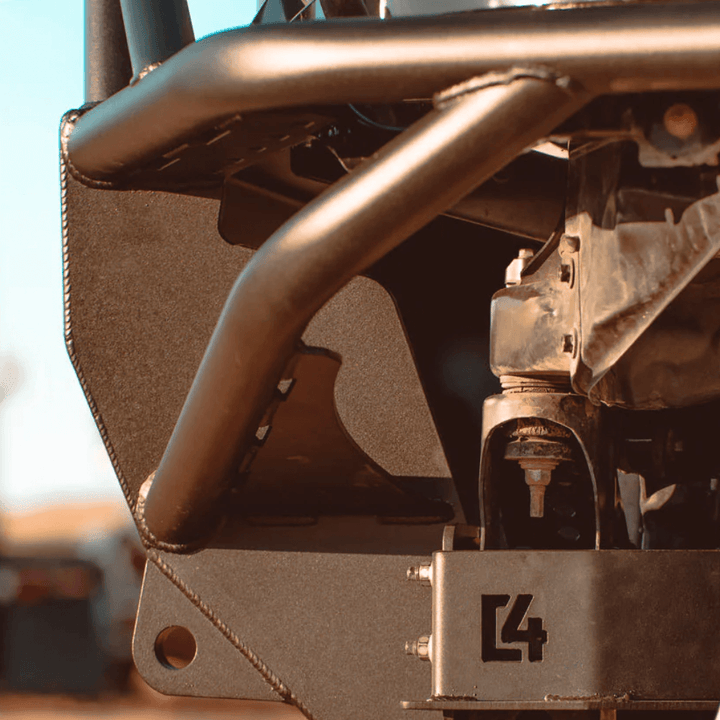

✔ Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD, 1/8″ wall thickness.
✔ 3/4″ thick D-ring tabs fully welded front and back come standard.

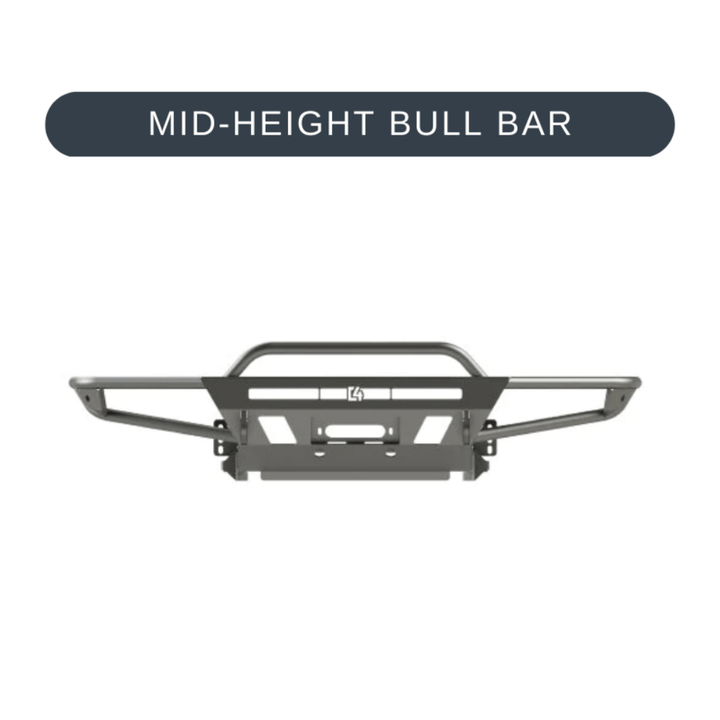

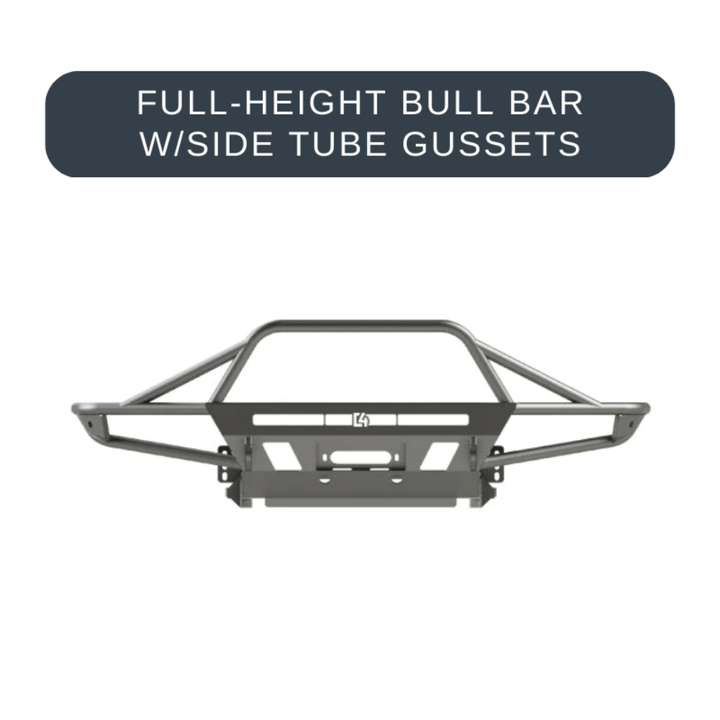

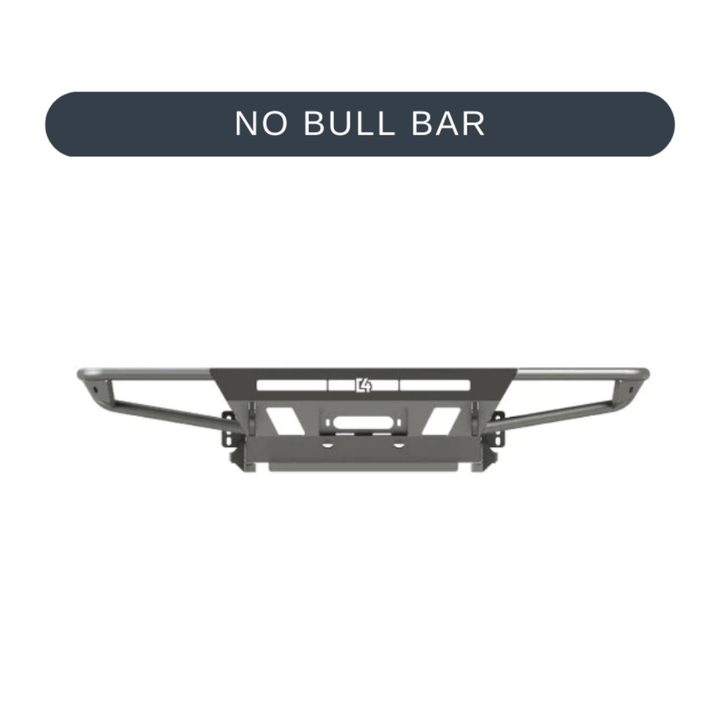

✔ Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Warranty: C4 FAB LLC will warranty all products produced and distributed by C4 FAB LLC for ONE YEAR after the shipping date of the product. More Info Here
