Name: 1996+ Toyota 4Runner Trail-Gear Hub-Centric Wheel Spacer Set (6x5.5)
Brand: Wheeler's Off-Road
SKU: 306488-1-KIT
Price: 162.18 USD
Availability: InStock

1996+ Toyota 4Runner Trail-Gear Hub-Centric Wheel Spacer Set (6x5.5)

$162.18

Shipping calculated at checkout.

Quantity

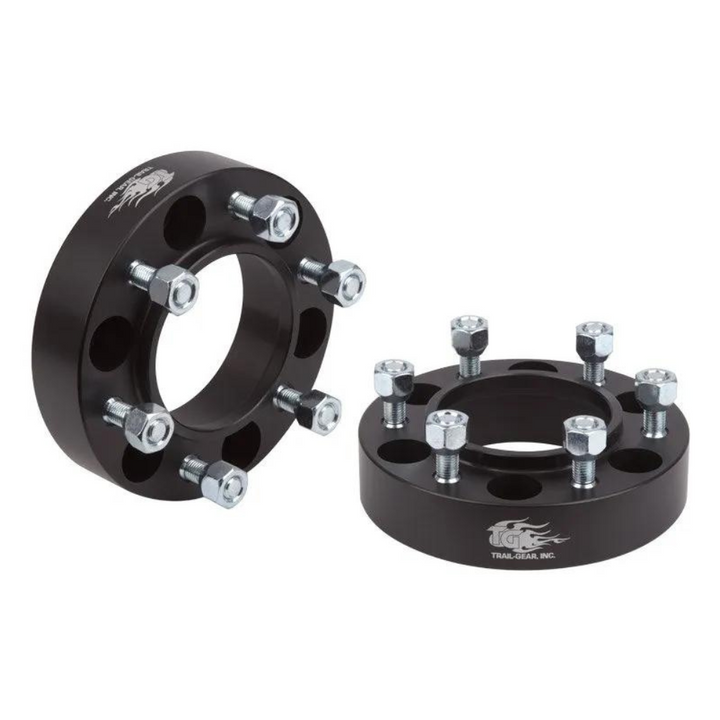

These hub-centric bolt on wheel spacers are designed to give you a little more width without changing out your axle for a wider one. Bolt pattern is 6 stud on a 5.5" round circle. Made from Billet 6061-T6 aluminum. These wheel spacers have Class 10.9 Studs with a M12-1.5 thread and Class 10.9 nuts. Anodized black with a laser-engraved Trail-Gear logo for a clean, modern look. Shipped as a set of two wheel spacers. Every spacer features a precision machined surface.

Hub-centric wheels are designed to hold the weight of the vehicle on the hub center bore of the wheel (not the lugs). The wheel fits onto the hub center perfectly.
Lug-centric wheels are centered on the hub through the lug holes, not the center bore. The weight of the car is supported by the lugs. This design allows manufacturers to make wheels that fit a variety of different vehicles with hub centers of different sizes.

Fitment: ➜ Toyota vehicles with 6 lug hub-centric wheels.
✔ 1996+ Toyota 4Runner
✔ 1996-2006 Toyota Tundra 4WD
✔ 1998-2023 Toyota Tacoma
✔ 2007-2014 Toyota FJ Cruiser
✔ 1993-1998 Toyota T100

Please Note:
➜ Shipped as a set of two wheel spacers
➜ Please verify that your wheels are hub-centric with a 6x5.5 bolt pattern before ordering. ➜ Also, be aware that some Toyota vehicles were manufactured in 5 and 6-lug versions in the same year.
➜ Will not fit vehicles with manual locking hubs!
➜ On the ¾” & 1” thick wheel spacers, you will need to trim your wheel studs in order for the wheel to seat on the face of the wheel spacer.

Installation Guide Here

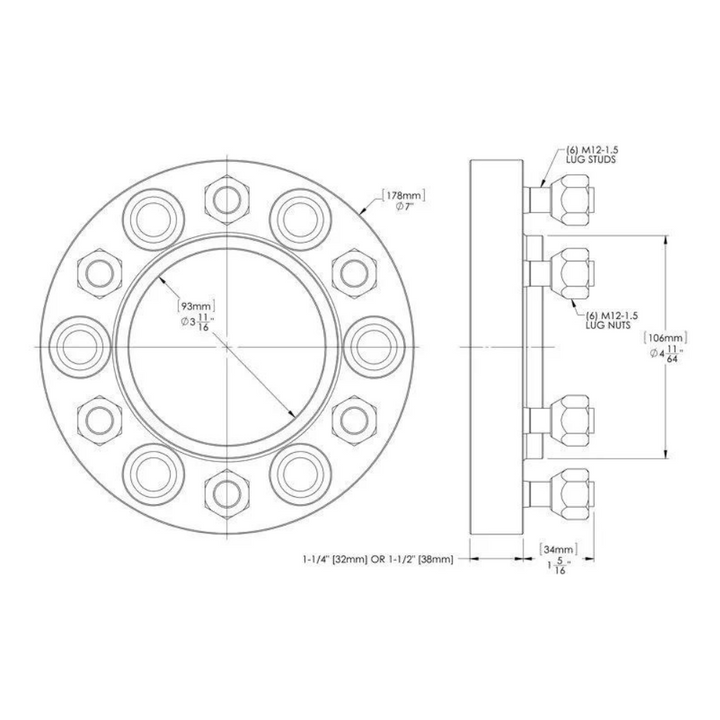

Specs

6x5.5 Bolt Pattern
Billet 6061-T6 Aluminum
Anodized black with Laser-engraved Trail-Gear Logo
M12-1.50 Threads
For Toyota Vehicles with Hub-Centric Wheels
Sold in Pairs

Warranty

➜ 1-Year-Limited-Warranty

All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.

Special Notes
