2005-2023 Toyota Tacoma Ultimate Off Road Package 12"-14" Travel
2005-2023 Toyota Tacoma Ultimate Off Road Package 12"-14" Travel
2005-2023 Toyota Tacoma Ultimate Off Road Package 12"-14" Travel

2005-2023 Toyota Tacoma Ultimate Off Road Package 12"-14" Travel

Regular price$2,600.00
/
Shipping calculated at checkout.


A package of proven components all designed to work together, from 1 trusted source, Archive Garage.  Whether you're off road trail running or taking on your next overland expedition we have the right leaf spring for your rig and usage.

All components are designed and manufactured in USA.

Unlock ultimate performance with this complete Archive Garage kit and save.

Fitment: 2005-2023 Toyota Tacoma

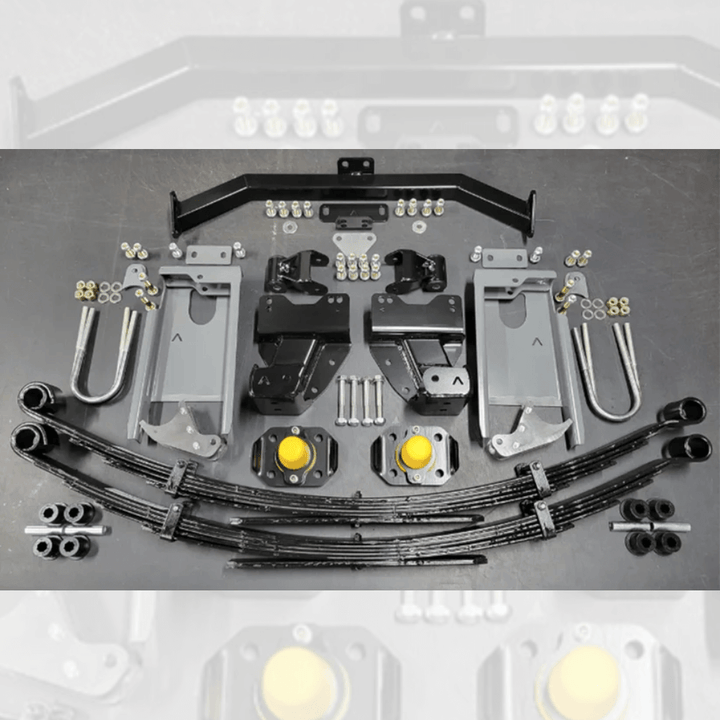

Included:
✔ HAMMER HANGERS® - 2005-2023 TOYOTA TACOMA HD SHACKLE HANGERS with 3.6" shackles
✔ Cross Tube For Hammer Hangers`
✔ 2005-2023 TACOMA SHOCK RELOCATION TOWERS 2.5 X 12" TO 14" MID TRAVEL
✔ ARCHIVE EXPLORER SERIES "ERIKSON" TACOMA LIFT SPRINGS
✔ STEALTH HD TOYOTA U-BOLT FLIP KIT: Option 3, Option 4, Option 5 (air bump)

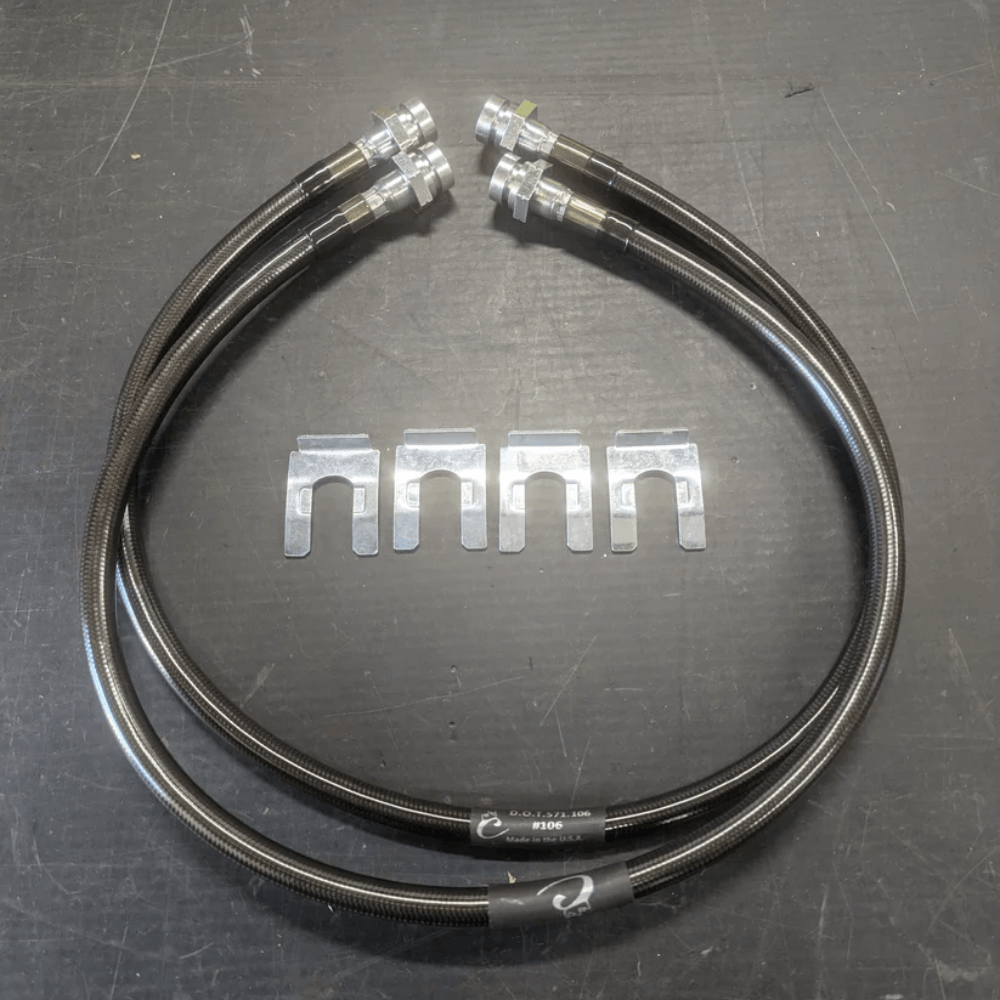

✔ Extended Rear Brake Line Hose Pair for 2005-2023 Toyota Tacoma

Please Note:
➜ REMOTE RESERVOIR ONLY, piggy back resis don't work. Order STRAIGHT hose fitting off shock body - 2.5x12" shocks are the best for HD springs, give the best ground clearance, HD springs max out @ 12" shock travel.
➜ Don't mix LT and MT, true LT SUA conversions that move the springs outboard may will interfere with these axle tabs. For all and u-bolt saddle. Proper install involves setting up off of MAX bump height Details: Puts top shock as high as possible! (3.8"+ higher than other kits) This allows FULL bump travel, which is critical on the Tacoma. Wheel Spacer required minimum 4.75 BS Wheel + 1.25" spacer or equivalent wheel offset.

Fitment Chart

2005-2023 Tacoma DCSB

Leaf PackEstimated Lift Amount AG LeafsAxle-Tube-to-Frame-Bottom
Stock 3/1 - 0lbs0in8.25in
Archive MD - 0lbs3.25in11.25in
Archive MD - 300lbs2.5in10.75in
Archive MD - 600lbs2in10.25in
Archive HD - 600lbs3in11.25in
Archive HD - 1250lbs2in10.25in
Archive XD - 1250lbs3in11.25in
Archive XD - 1750lbs2.5in10.75in

Recommended Shocks (Confirmed Fit & Performance)

ShockBrand
Accutune Fox Factory RR 2.5x12Fox
Accutune Fox Factory RR 2.5x14Fox
AccuTune Fox Factory RR DSC 2.5x12Fox
AccuTune Fox Factory RR DSC 2.5x14Fox
AccuTune King RR 2.5x12King
AccuTune King RR 2.5x14King
AccuTune King RR 2.5x12 w/ adjuster  King
AccuTune King RR 2.5x14 w/ adjusterKing
ADS Smooth Body 2.5x12ADS
ADS Smooth Body 2.5x12 w/adjusterADS

*If using HD Springs or XD 12in is best
For additional options reach out to shock company to confirm with specs below

Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi

Shock Travel
12-14in

Fittings/Spacers
Standard rod-end shocks (1.5" wide, 1/2" bolt)

2.5" Bypass

Note: We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order.
-Many have successfully installed 2.5" bypasses, 3.0 bypass will not fit
-Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper.
-We recommend only 12" travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.

Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer


Disclaimer: Archive Garage in no way recommends exceeding Toyota's GVWR. Owner assumes all risk when exceeding Toyota's GVWR or GAWR.
